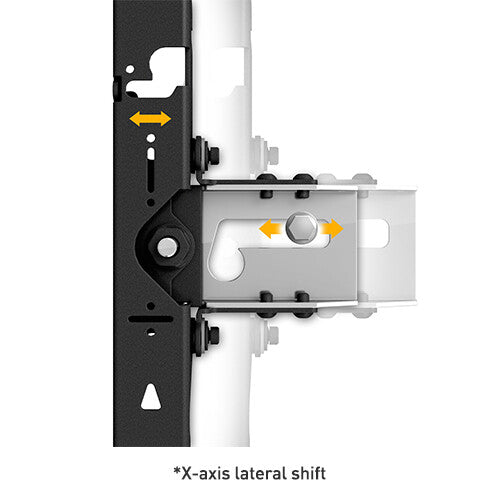

• X-axis lateral shift adjustments enable perfect LED positioning

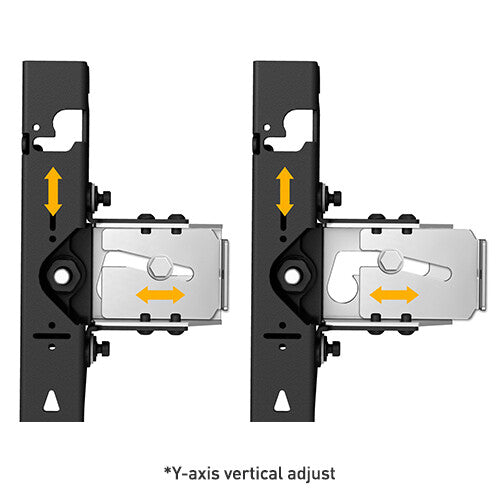

• Y-axis vertical shift adjustments provide perfect cabinet-to-cabinet alignment

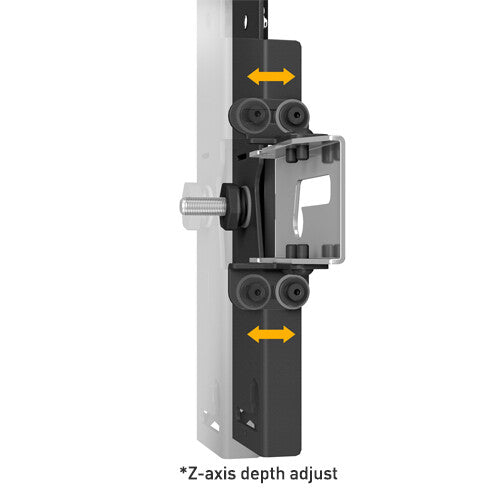

• Z-axis plumb adjustments compensate for wall imperfections to achieve perfectly flat mounting surfaces

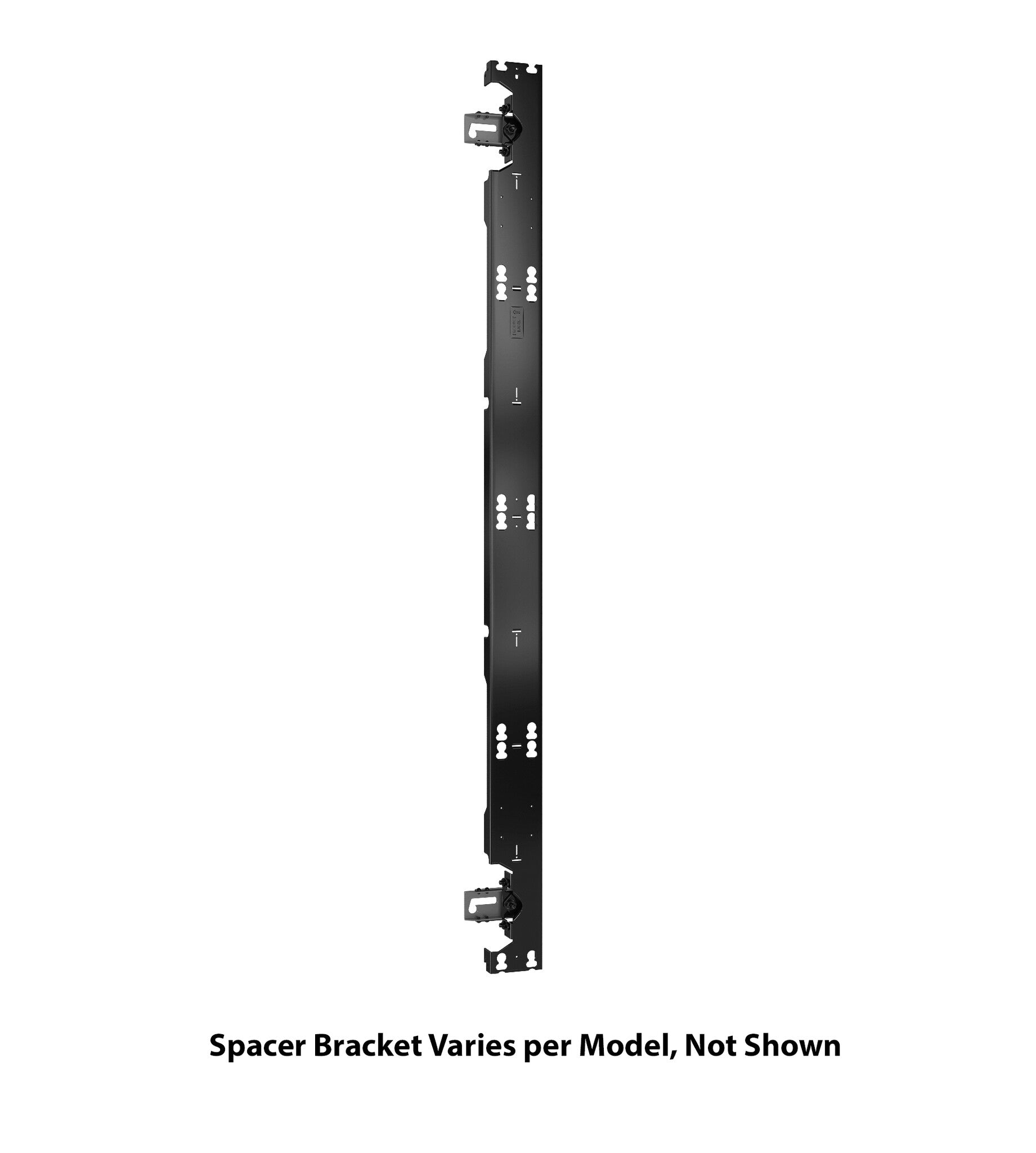

• The modular system contains left, middle, and right wall mounting components that can be ordered in heights supporting 2 and 3 displays tall
• Wall mounting structure, vertical connectors, and side covers sold separately
• Offset mounting slots for easy installation and protect LED sides from damaging friction
• Depth range with display is between 5.37” – 6.12” (136-156 mm)
• Standard, off-the-shelf solution set means product is stockable and ready to ship – no custom lead times

The modular system contains left, middle, and right structural components that can be ordered in 2 high and 3 high lengths to support the Samsung IER/IEA Series. Mix and match a variety of components to create endless video wall configurations. Essential X,Y,
and Z-axis adjustments allow perfect positioning and alignment for a flawless video wall.
TiLED direct view LED mounting solutions are in stock and ready to ship with no custom lead times or project registration required. Easy to specify, order, and install. Turn your creative vision into a reality.
Compatible with:
IER015R
IER020R
IER025R
IER040R
IE015R-F
IE020R-F
IE025R-F
IE040R-F
IF015R
IF025R
IF015R-F
IF025R-F
IF015R-E
IF020R-E
IF025R-E
IF040R-E
IF015R-EF
IF020R-EF
IF025R-EF
IF040R-EF
IE015A
IE020A
IE025A
IE040Al
IE015A-F
IE020A-F
IE025A-F
IE040A-F
