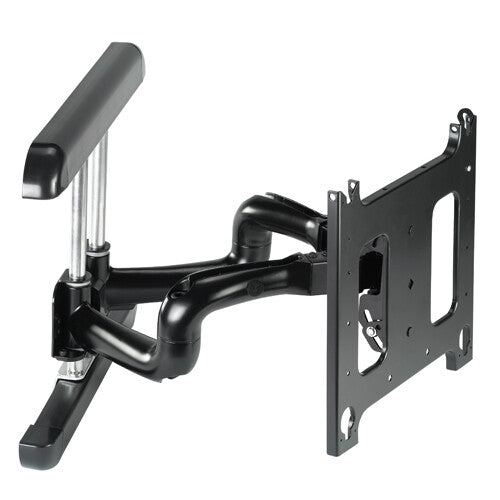

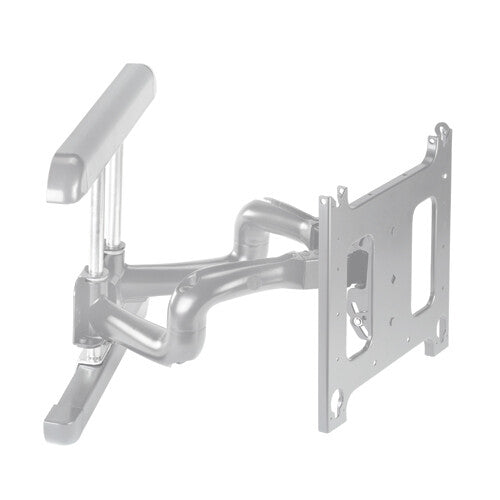

Chief PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
Chief PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
Chief PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
Chief PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
Chief PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension
Chief PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension

Chief PNRUB, Large Flat Panel Swing Arm Wall Display Mount - 25 Inch Extension

Chief
£536.99
Stock Available: 0
  • Centris Fingertip Tilt allows you to select the perfect tension for your screens center of gravity
  • Post-installation height adjustment up to 1 (25 mm) for ultimate flexibility
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Easy connect/disconnect without tools
  • Extends up to 25 (635 mm) for viewing from any angle
  • CableTrac System provides channeled cable management for easy cable routing
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

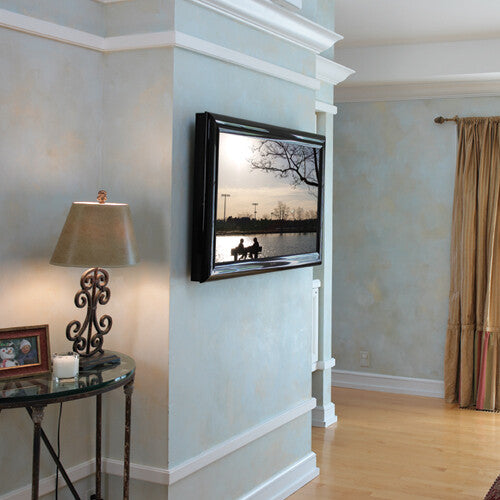

View large flat panel displays from any angle.

Mounting
Maximum weight capacity 90.7 kg
Minimum screen size 106.7 cm (42")
Maximum screen size 2.16 m (85")
Mounting type Wall
Minimum VESA mount 200 x 200 mm
Maximum VESA mount 800 x 400 mm
Panel mounting interface 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400,700 x 400,800 x 400
Number of displays supported 1
Ergonomics
Height adjustment Yes
Height adjustment range 0 - 25 mm
Adjustable depth Yes
Tilt angle range -17 - 5°
Swivel angle 90°
Cable management Yes
Distance to the wall (min) 8.2 cm
Distance to the wall (max) 63.5 cm
Design
Product colour Black
Housing material Steel
Certification UL
Packaging content
Mounting kit Yes
Weight & dimensions
Width 600 mm
Depth (min) 8.4 cm
Depth (max) 63.5 cm
Height 538 mm
Weight 30 kg
Logistics data
Harmonized System (HS) code 85299097
