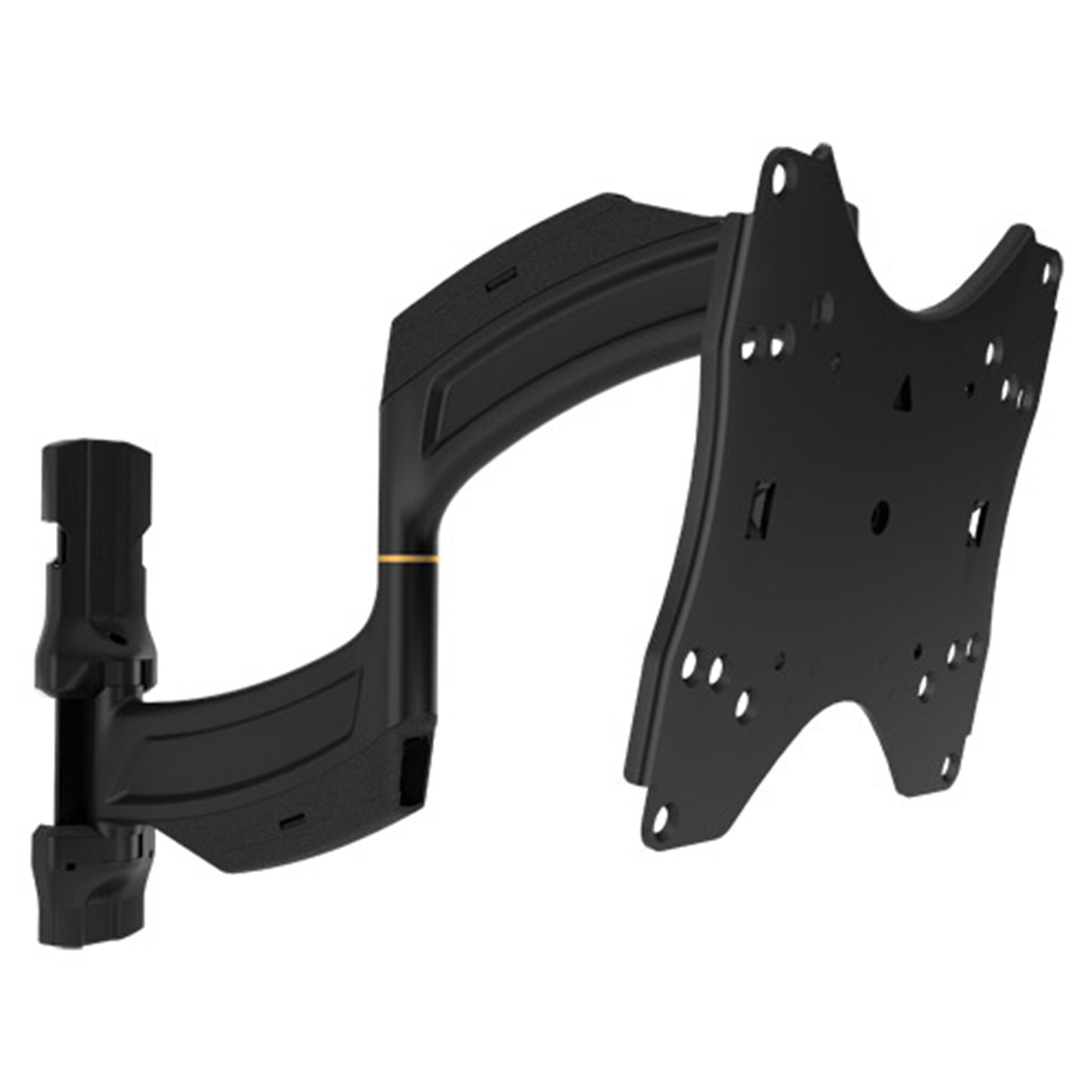

Chief Medium ThinstallTM Single Swing Arm Wall Display Mount - 18 Inch Extension
£171.99
Couldn't load pickup availability
- Maximum weight capacity: 34 kg
- Minimum screen size: 66 cm (26") Maximum screen size: 119.4 cm (47") Wall
- Minimum VESA mount: 100 x 100 mm Maximum VESA mount: 400 x 400 mm
- Number of displays supported: 1
- Rotating
- Cable management
- Steel Black
- Ultra Low Profile Sleek design collapses to 1.5” (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma.
- Extends up to 18” (457 mm) Full extension maximizes viewing potential.
- Centris™ low-profile tilt Provides up to 12° of effortless fingertip tilt toachieve optimal viewing angles.
- Integrated Cable Management Enclosed, tool-free cable covers make it easy to route power and signal cables, and connect to the wall for a seamless installation.
- Post Installation Height Adjustment A total of 1" (25mm) of post installation height adjustment allows for perfect screen placement and alignment
| Mounting | |
|---|---|
| Maximum weight capacity | 34 kg |
| Minimum screen size | 66 cm (26") |
| Maximum screen size | 119.4 cm (47") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400 |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|
| Tilt angle range | -12 - 0° |
| Rotating | Yes |
| Angle of rotation | 90° |
| Cable management | Yes |
| Distance to the wall (min) | 3.8 cm |
| Distance to the wall (max) | 45.6 cm |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Weight & dimensions | |
|---|---|
| Width | 330 mm |
| Depth | 38 mm |
| Height | 356 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
| Other features | |
|---|---|
| Number of products included | 1 pc(s) |
| Pivot | -90 - 90° |
| Screen size compatibility | 660.4 - 1193.8 mm (26 - 47") |
