Chief Large FitTM Fixed Display Wall Mount
£82.99
Couldn't load pickup availability
- Low profile 1” (25 mm) depth facilitates ADA compliance for typical AV design requirements
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 960 x 450 mm
- Re-designed rigid wall plate supports up to 200 lbs (90.7 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards compliant

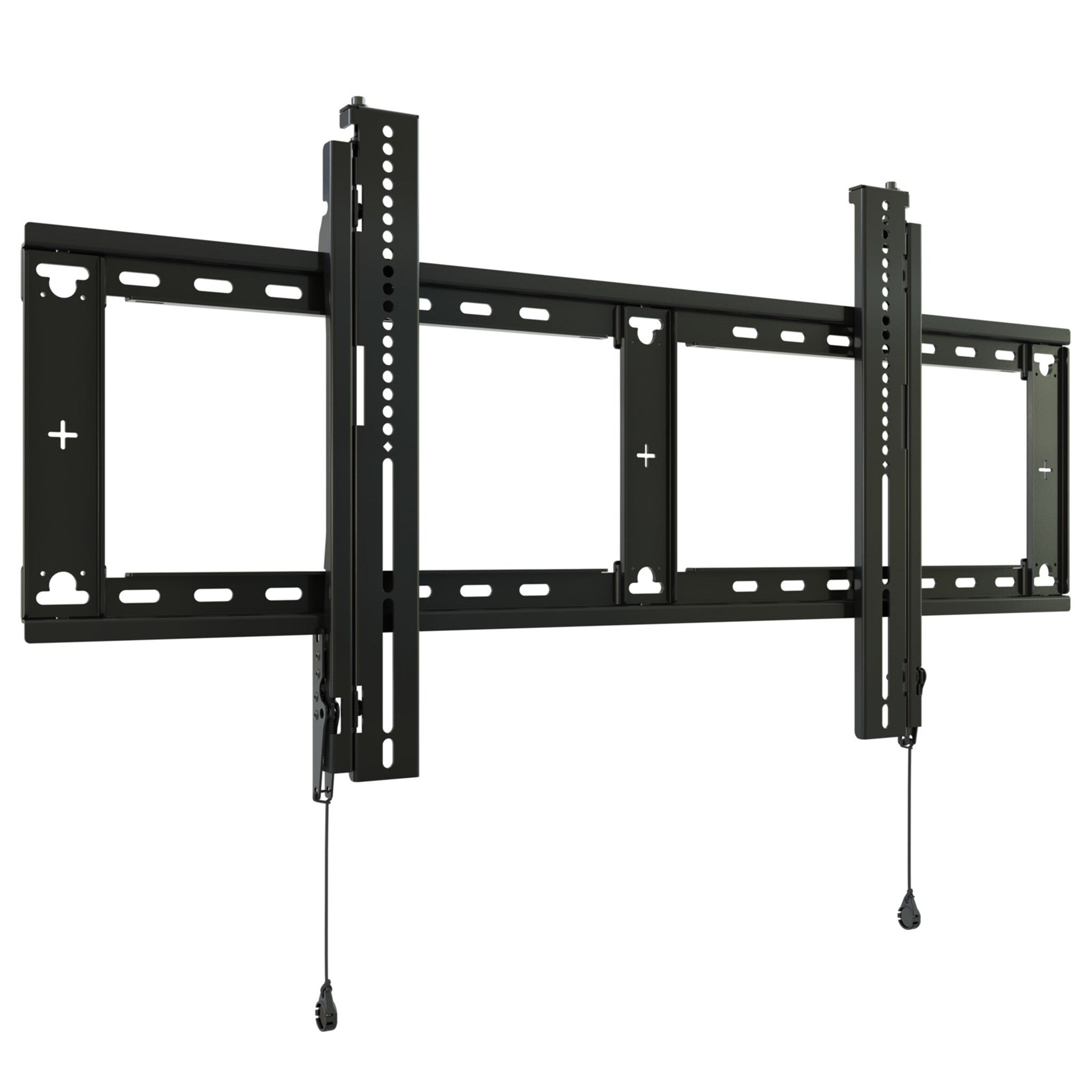

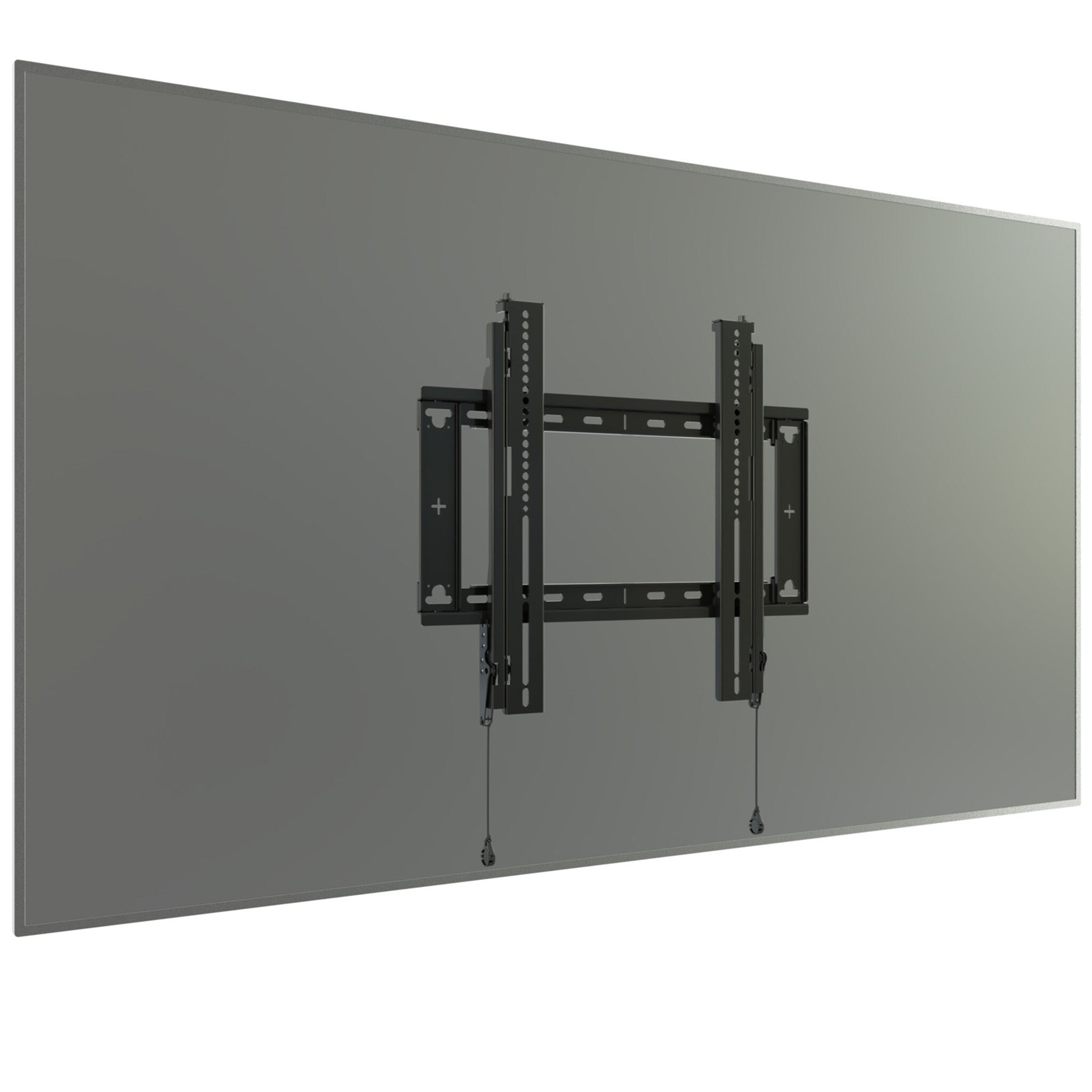

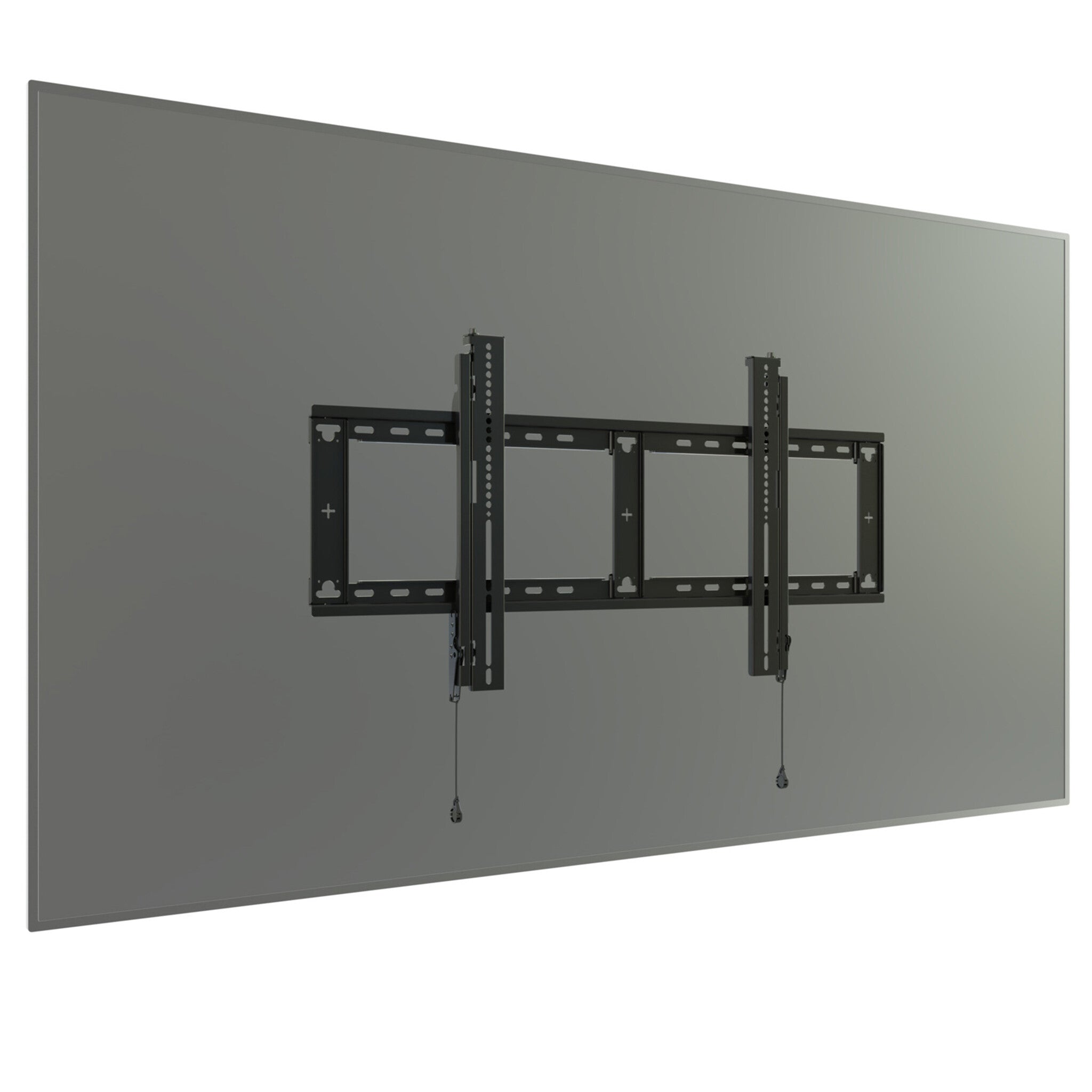

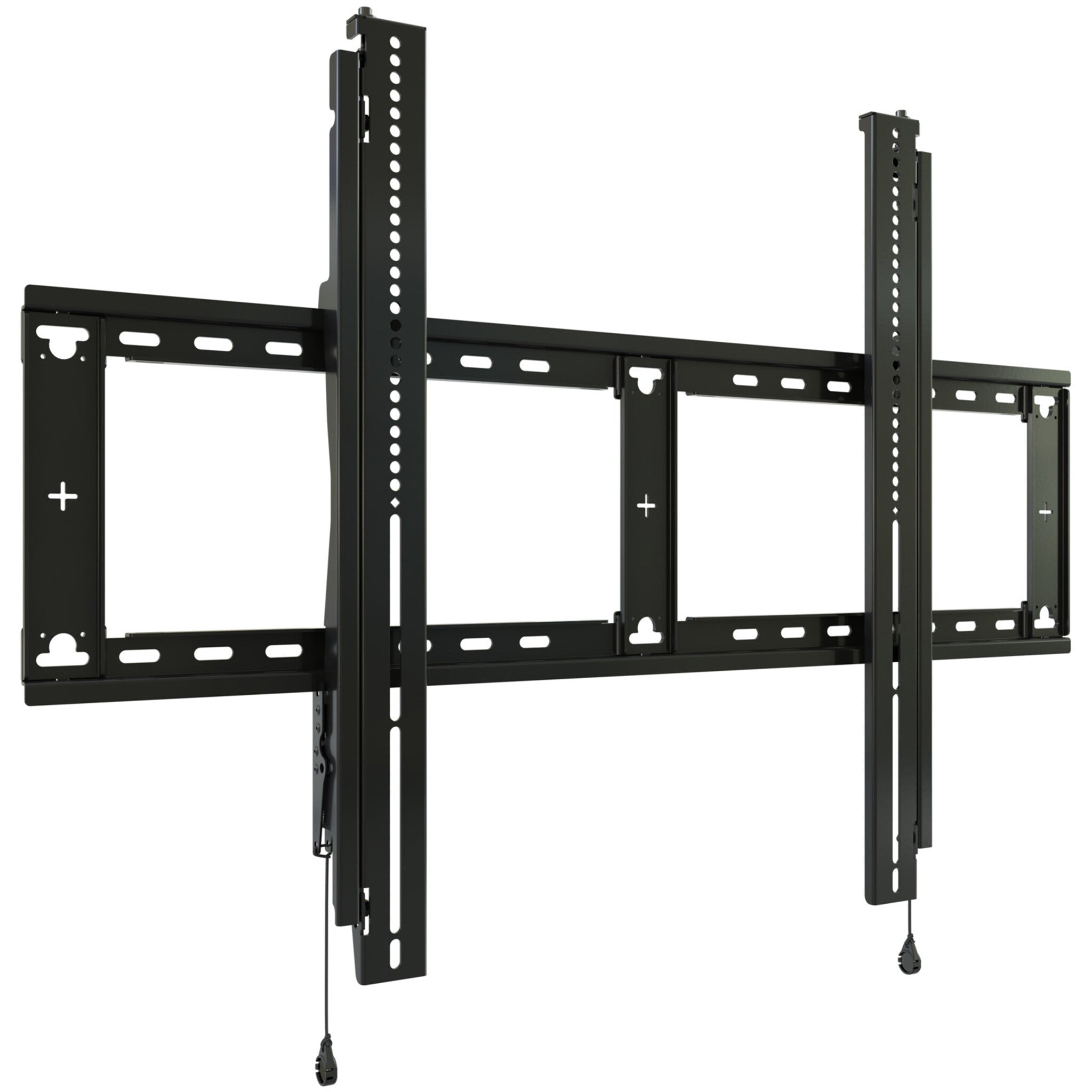

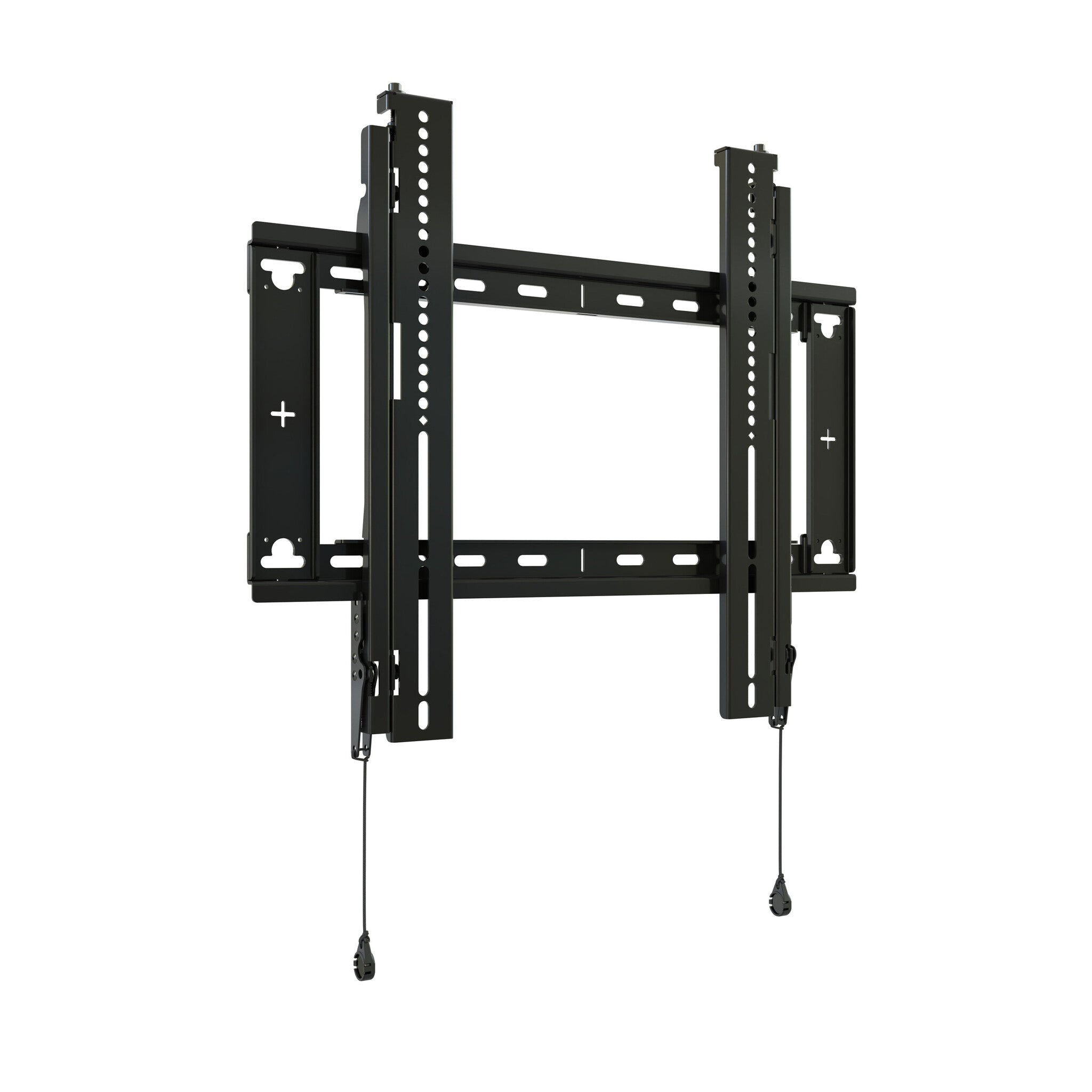

The Fit series RLF3 is a large fixed display wall mount for 43” to 86” typical display sizes and supports mounting patterns up to 960 x 450 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 200 lbs (90.7 kg), 1” (25 mm) low-profile depth, and UL and TUV safety standard approvals.
| Mounting | |
|---|---|
| Maximum weight capacity | 90.7 kg |
| Minimum screen size | 109.2 cm (43") |
| Maximum screen size | 2.18 m (86") |
| Mounting type | Wall |
| Maximum VESA mount | 960 x 450 mm |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Height adjustment range | 0 - 19.1 mm |
| Design | |
|---|---|
| Product colour | Black |
| Technical details | |
|---|---|
| Compliance certificates | cTUVus, cUL |
| Orientation | Landscape |
| Quantity per pack | 1 pc(s) |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Width | 965 mm |
| Depth (min) | 2.5 cm |
| Height | 487 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package weight | 6.8 kg |
