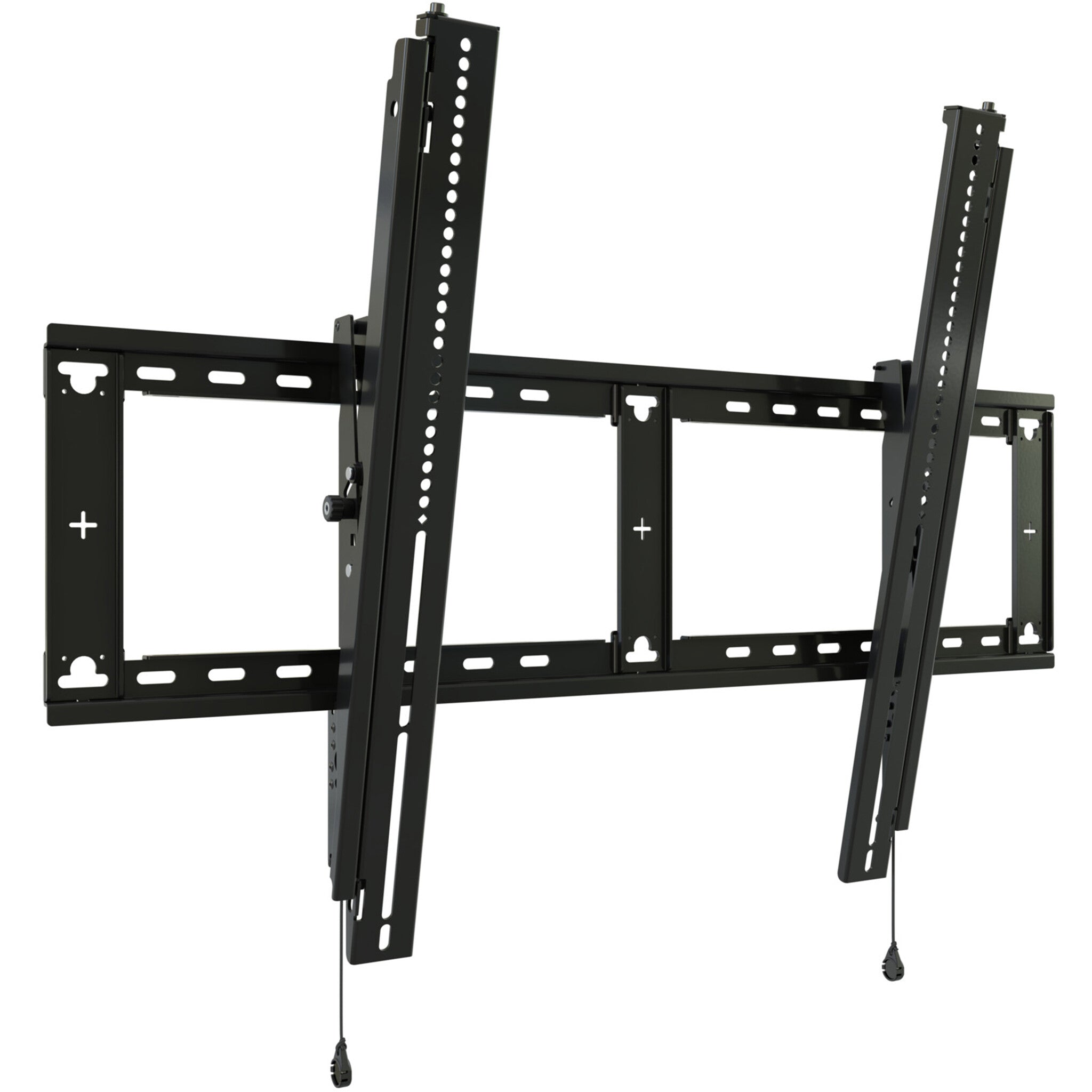

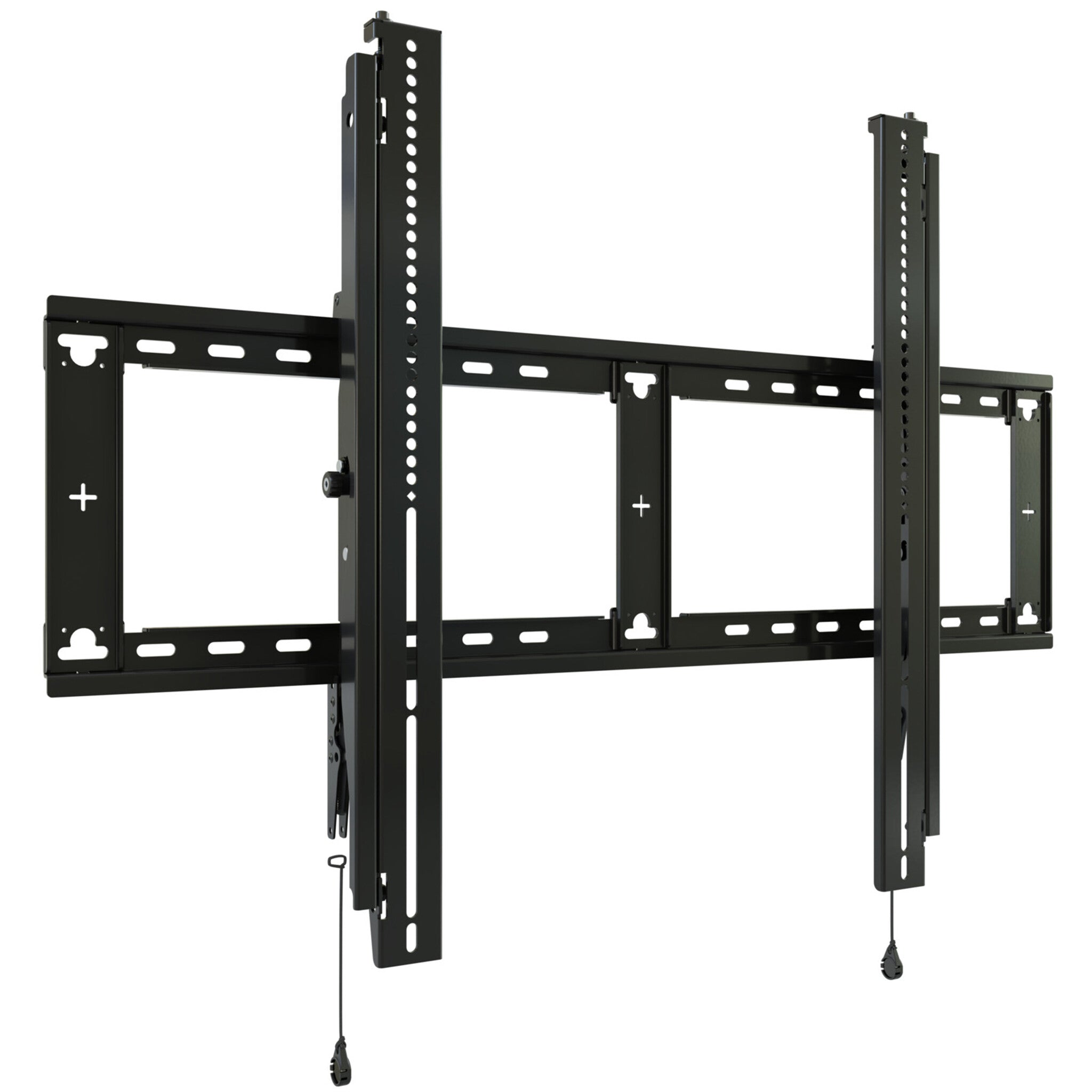

Chief Extra-Large FitTM Tilt Display Wall Mount
£130.99
Couldn't load pickup availability
- Easy to reach 0.75” (19 mm) post-installation leveling screw and 10” (254 mm) ball end hex-key included
- Display can be tilted up to 12° to set the optimal viewing angle
- Open wall plate allows for flexible positioning around power and data wall boxes
- Supports display mounting patterns up to 915 x 650 mm
- Re-designed rigid wall plate supports up to 250 lbs (113.4 kg) and has additional mounting slots for improved installation experience
- Lateral shift with toolless GlideLock secures display to wall plate and allows perfect positioning of screen
- Easy access magnetic quick-store release pullcords
- Kickstand for easy access to power and signal connections
- Theft deterrent security options (not included)
- UL and TUV safety standards approved
The Fit series RXT3 is an extra-large tilt display wall mount for 49” to 98” typical display sizes and supports mounting patterns up to 915 x 650 mm. This next-generation design features 0.75” (19 mm) post-installation leveling, robust wall plate design supporting up to 250 lbs (113.4 kg), 2.5” (64 mm) low-profile depth, up to 12° tilt, and UL and TUV safety standards approved.
| Mounting | |
|---|---|
| Maximum weight capacity | 113.4 kg |
| Minimum screen size | 124.5 cm (49") |
| Maximum screen size | 2.49 m (98") |
| Mounting type | Wall |
| Maximum VESA mount | 915 x 650 mm |
| Number of displays supported | 1 |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Tilt adjustment | Yes |
| Tilt angle range | -12 - 0° |
| Design | |
|---|---|
| Product colour | Black |
| Certification | TUV, UL Listed |
| Weight & dimensions | |
|---|---|
| Width | 965 mm |
| Depth (min) | 6.4 cm |
| Depth (max) | 6.4 cm |
| Height | 687 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pair(s) |
| Package weight | 9.3 kg |
