CHERRY XS Trackball keyboard Universal USB QWERTZ German Grey
Couldn't load pickup availability
- Universal
- USB
- QWERTZ German
- Full-size (100%) Trackball + mouse buttons
- Windows keys
- Grey

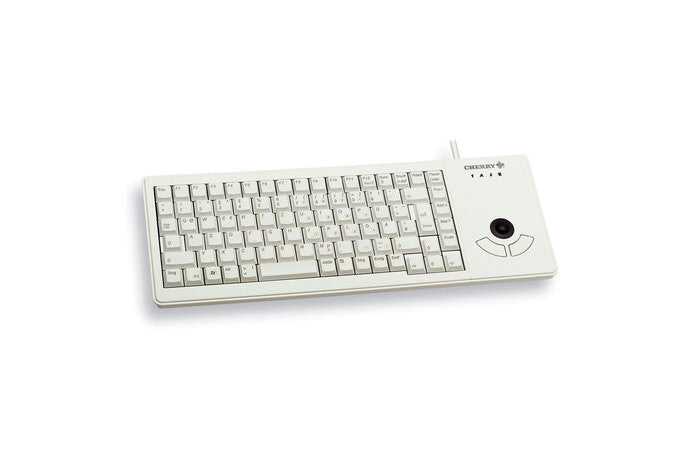

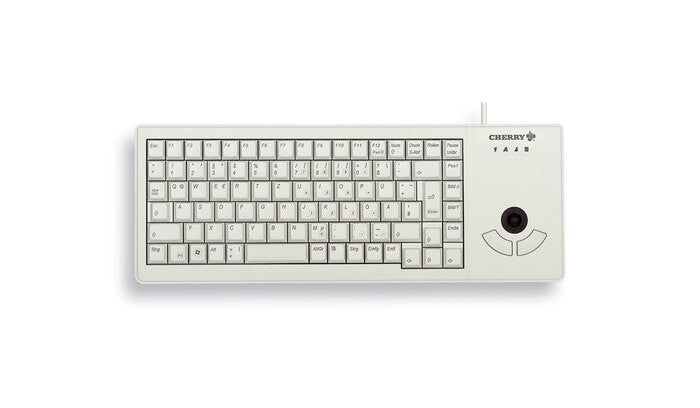

The "XS Trackball Keyboard" (G84-5400) combines comfortable mouse control with compact dimensions. Via the optical trackball with two mouse keys, the cursor can be controlled easily and precisely.
- Optical trackball with two mouse buttons for easy control of the cursor
- High degree of reliability and precise keystroke feel thanks to individual keys with Gold Crosspoint contacts (Cherry ML technology)
- Ideal for continuous usage due to the long operating life in excess of 20 million key confirmations per individual key
- Compact dimensions and very low overall build height, ideal for restricted spaces and for 19" applications
- Standardised measurements and installation dimensions of the complete XS product family - the keyboard can be adapted to every application
- Lightweight - for applications where every gram counts
- Plug & Play - can be used with the operating system's standard drivers
- Supports Code Set 3 and UnifiedPOS
- Fastening option for permanent installation
- Detachable pluggable feet for individually adjusting the tilt of the keyboard
- Freely programmable keys for even more time-saving operation
| Keyboard | |
|---|---|
| Certification | cURus, c-tick, VCCI, CE, FCC, VDE, BSMI |
| Fingerprint reader | No |
| Purpose | Universal |
| USB hub | No |
| Windows keys | Yes |
| Keyboard keys operating life | 20 million characters |
| Keyboard number of keys | 89 |
| Numeric keypad | No |
| Keyboard form factor | Full-size (100%) |
| Pointing device | Trackball + mouse buttons |
| Keyboard language | German |
| Keyboard layout | QWERTZ |
| Device interface | USB |
| Connectivity technology | Wired |
| Recommended usage | Universal |
| Design | |
|---|---|
| Surface coloration | Monochromatic |
| Product colour | Grey |
| Wrist rest | No |
| Keyboard style | Straight |
| Backlight | No |
| Features | |
|---|---|
| Plug and Play | Yes |
| Cable length | 2.5 m |
| Power | |
|---|---|
| Power consumption | 35 mA |
| Power source type | USB |
| Mouse | |
|---|---|
| Buttons quantity | 2 |
| Movement resolution | 500 DPI |
| Movement detection technology | Optical |
| Mouse included | No |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| General | |
|---|---|
| Product family | XS |
| Weight & dimensions | |
|---|---|
| Keyboard weight | 540 g |
| Keyboard dimensions (WxDxH) | 374 x 139 x 20 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Packaging data | |
|---|---|
| Package weight | 670 g |
| Package height | 33 mm |
| Package depth | 196 mm |
| Package width | 393 mm |
| Logistics data | |
|---|---|
| Master (outer) cases per pallet | 12 pc(s) |
| Products per master (outer) case | 21 pc(s) |
| Harmonized System (HS) code | 84716060 |
