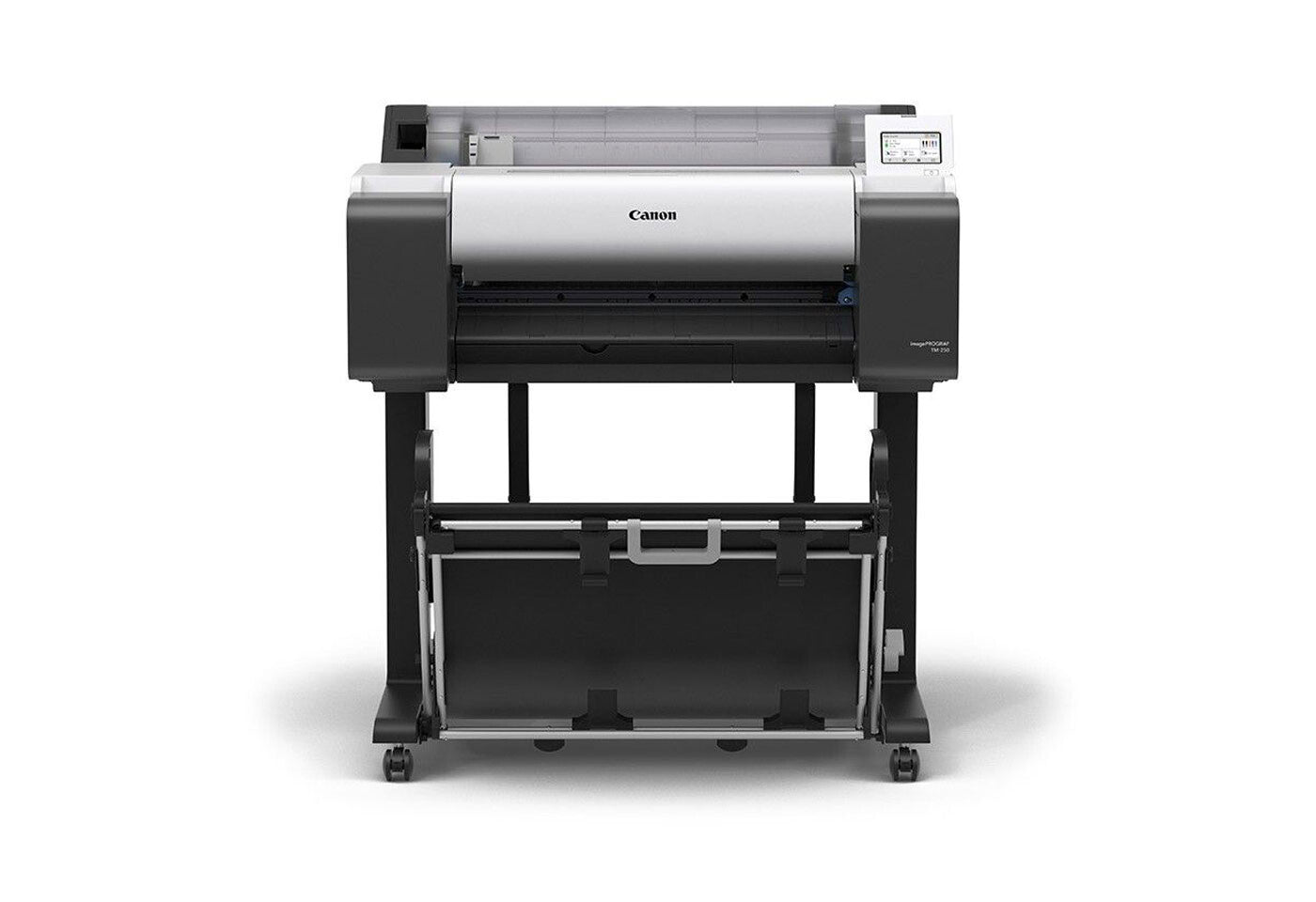

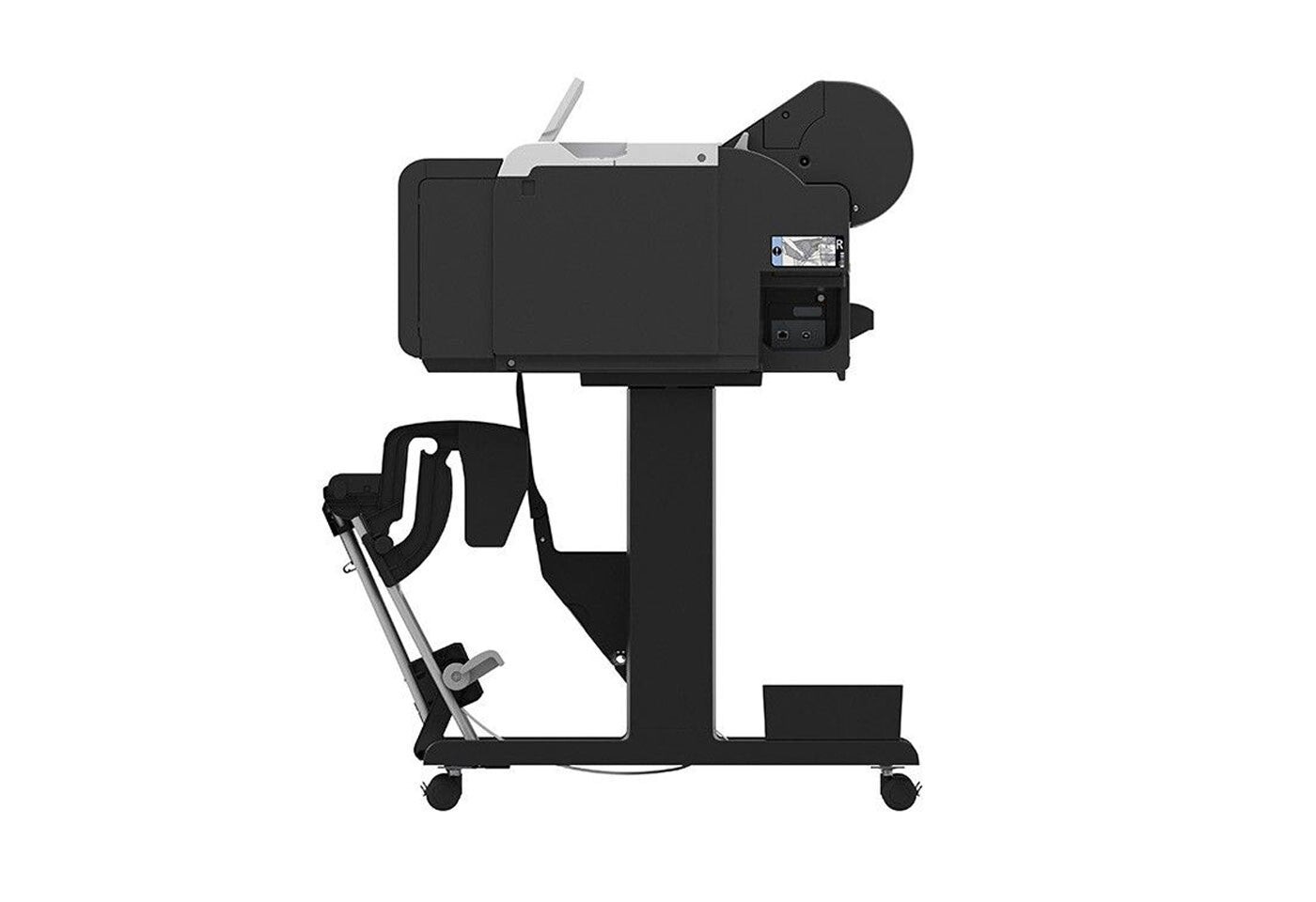

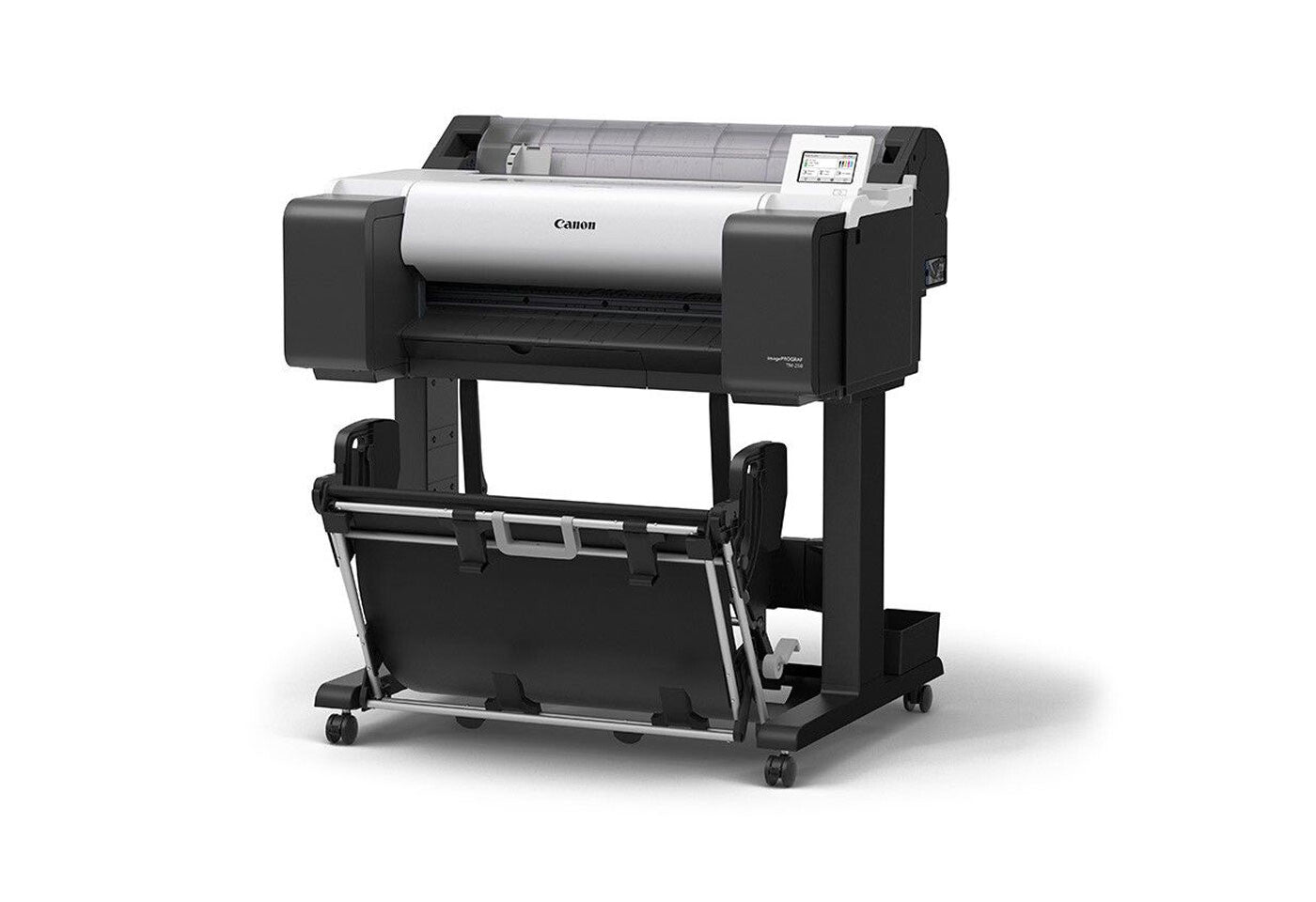

Canon imagePROGRAF TM-250 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Couldn't load pickup availability
- Inkjet 2400 x 1200 DPI Colour
- A1 (594 x 841 mm) Cut sheets Printing colours: Black, Cyan, Magenta, Matte black, Yellow
- USB port Ethernet LAN Wi-Fi
Multi-purpose versatile printer
Canon imagePROGRAF TM-250 is built to print technical drawings and posters. The TM-250 has improved paper handling and fast print operation as well as workflow software to help manage all print tasks.
Quick and efficient
The TM-250 prints A1 CAD drawing in 20 seconds*. In addition, it quickly detects media type and length for an efficient working process.
Borderless print on any size of poster
Printing from edge to edge on any supported size of paper provides a professional finish with no trimming operation.
| Printing | |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 5 |
| Page description languages | CALS G4, HP-GL/2, HP-RTL, JPEG |
| Printing colours | Black, Cyan, Magenta, Matte black, Yellow |
| Copying | |
|---|---|
| Copying | No |
| Scanning | |
|---|---|
| Scanning | No |
| Paper handling | |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Cut sheet, Roll |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A3+ |
| Cut sheets | Yes |
| Media thickness | 0.07 – 0.8 |
| Maximum roll diameter | 15 cm |
| Ports & interfaces | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB connector | USB Type-B |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
|---|---|
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Power | |
|---|---|
| Power consumption (typical) | 62 W |
| Power consumption (off) | 0.1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| System requirements | |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8.1 |
| Weight & dimensions | |
|---|---|
| Width | 978 mm |
| Depth | 885 mm |
| Height | 1060 mm |
| Weight | 54.5 kg |
| General | |
|---|---|
| Product family | imagePROGRAF |
