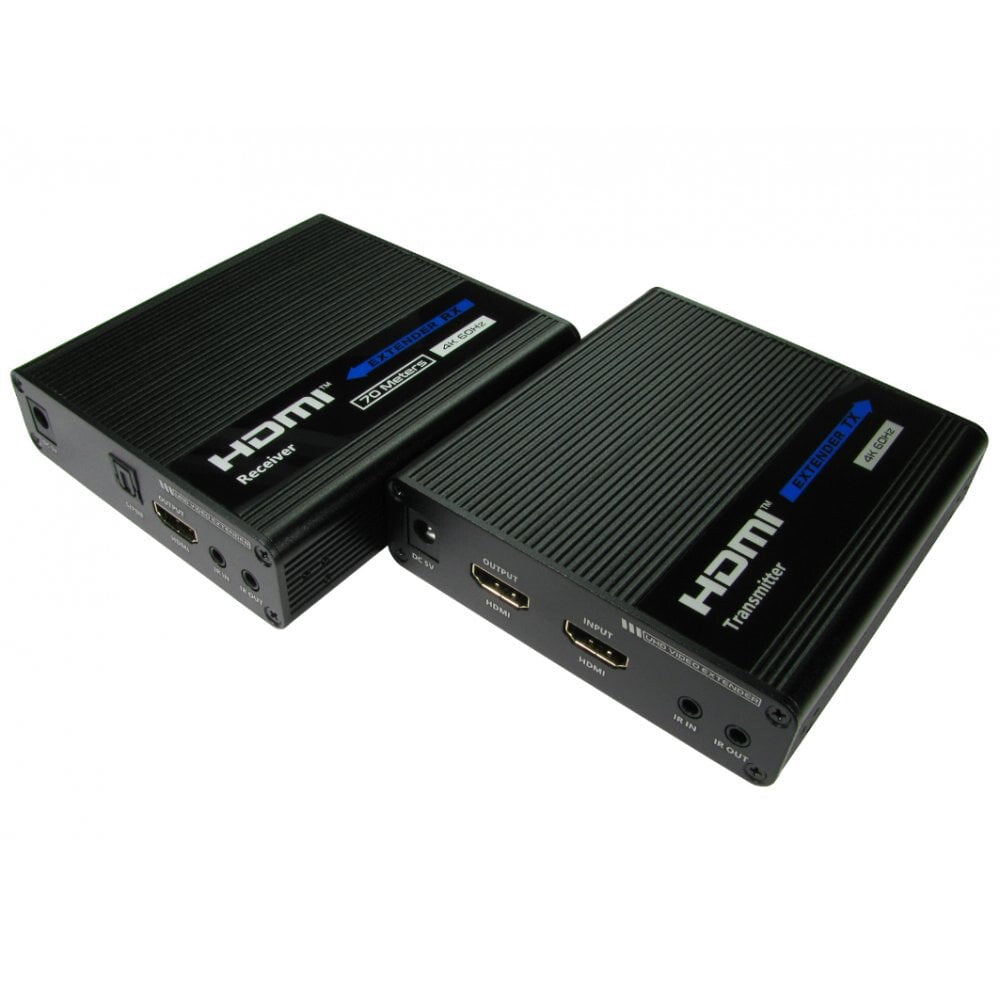

Cables Direct HD-EX270 AV extender AV transmitter & receiver Black
£122.99
Couldn't load pickup availability
- HDMI Version: HDMI 2.0 (HDMI 1.4 compatible)
- HDCP Version: HDCP 2.2 (HDCP 1.4 compatible)
- Transmission Medium: Cat6 / Cat6A / Cat7
- Transmission Distance: Up to 70 metres
- Video Bandwidth: 18Gbps
- Max Input Cable Length: 8m (24AWG)
- Max Output Cable Length: 8m (24AWG)
- Audio Support: LPCM / DTS-HD / DTS-Audio / Dolby Digital 5.1CH
The HD-EX270 HDMI extender allows you to extend the distance of your HDMI 2.0 signal up to 70m via a single Cat6 / Cat6A / Cat7 Ethernet cable. The extender supports resolutions of up to 2016p at 60Hz, whilst also supporting High Dynamic Range with HDR10. It also supports I/R pass through via the supplied adapters.
| Features | |
|---|---|
| Product colour | Black |
| HDCP | Yes |
| HDCP version | 2.2 |
| Audio formats supported | DTS, LPCM |
| Cable length | 8 m |
| Plug and Play | Yes |
| Bandwidth | 18 Gbit/s |
| Audio output channels | 5.1 channels |
| Extended display identification data (EDID) | Yes |
| Maximum refresh rate | 60 Hz |
| Maximum transfer distance | 70 m |
| Cable types supported | Cat6, Cat6a, Cat7 |
| Maximum resolution | 3840 x 2160 pixels |
| Type | AV transmitter & receiver |
| Ports & interfaces | |
|---|---|
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 2 |
| HDMI version | 2.0 |
| Connectivity technology | Wired |
| Packaging content | |
|---|---|
| IR blaster included | Yes |
| IR receiver included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
