C2G
£97.99

Stock Available: 0
  • AV transmitter & receiver 1920 x 1080 pixels Black
  • Maximum transfer distance: 50 m
  • Wired DC-in jack

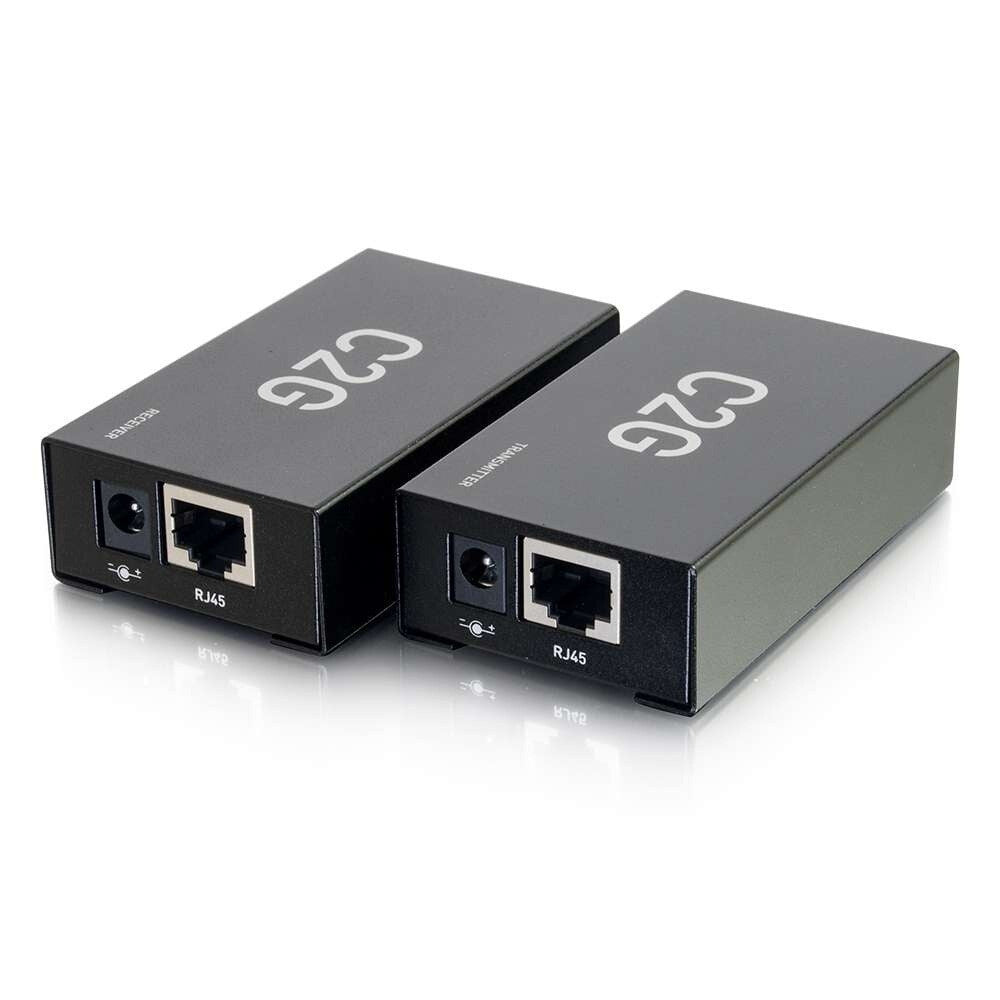

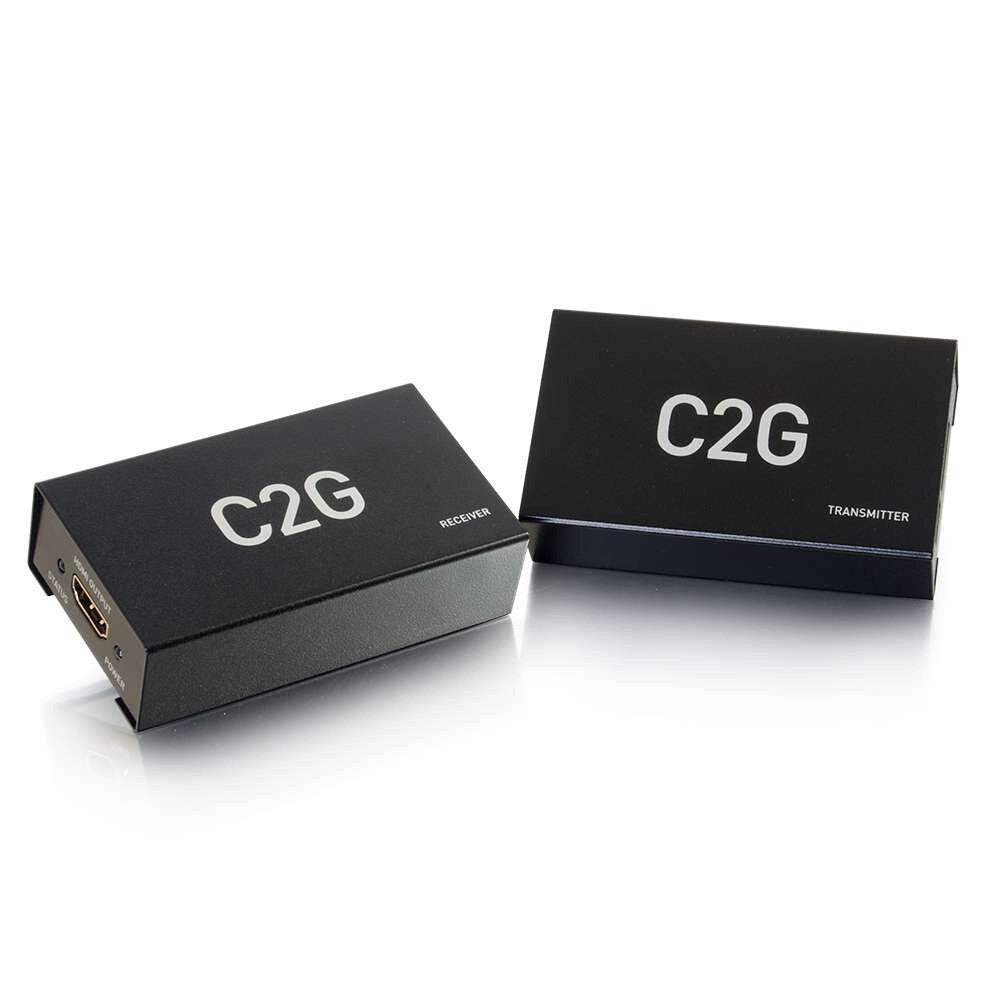

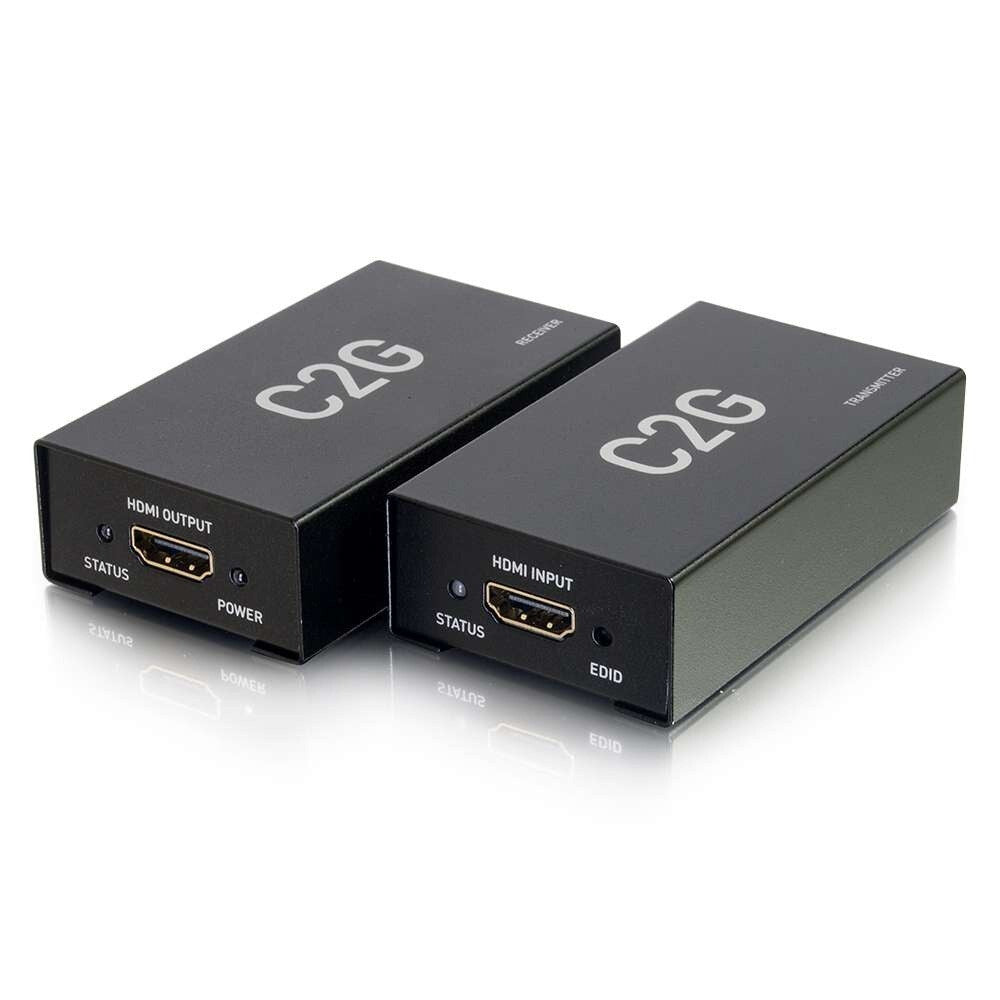

HDMI Over Cat5/6 Extender up to 164ft (50m)

The HDMI Over Cat5/6 Extender is ideal for extending digital video and audio, making it a great solution for digital signs, schools, churches, trade show presentations, or any application where the HDMI source is farther than 50 feet from the display. The extender can also send HDMI signals over existing Cat5 or Cat6 cable infrastructure for cost-effective reliability, while maintaining high performance quality.

Convenience

This solution is able to extend HDMI video and audio up to 164 feet and requires the use of a single Cat5 or Cat6 patch cable. With no drivers or software to install, the HDMI over Cat5/6 Extender provides total plug and play convenience. Simply connect the transmitter to the video source, the receiver to the display, and extend with a single category cable for quality video and audio.

Performance

Supporting resolutions up to 1080p at 60Hz and delivering quality sound allows the HDMI extender to meet the requirements for high performance applications and adds greater functionality to displays.

Features
Type AV transmitter & receiver
Maximum resolution 1920 x 1080 pixels
Cable types supported Cat5, Cat6
Maximum transfer distance 50 m
3D Yes
Bandwidth 6.75 Gbit/s
Cable length 1.5 m
Supported video modes 1080p
Product colour Black
Certification CE,FCC,REACH
Ports & interfaces
Connectivity technology Wired
RJ-45 input ports 1
RJ-45 output ports 1
Number of HDMI outputs 1
HDMI in 1
DC-in jack Yes
Power
AC input voltage 100-240 V
AC input frequency 50-60 Hz
Input current 0.5 A
Output current 1 A
Operational conditions
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) 0 - 40 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Width 84.5 mm
Depth 49 mm
Height 24 mm
Technical details
Compliance certificates REACH, Federal Communications Commission (FCC), CE
