C2G
£38.99

Stock Available: 0
  • VGA resolutions up to 1920 x 1200
  • Adapter in cable form factor
  • Active Mini DisplayPort to VGA conversion
  • Plug and Play — no driver required

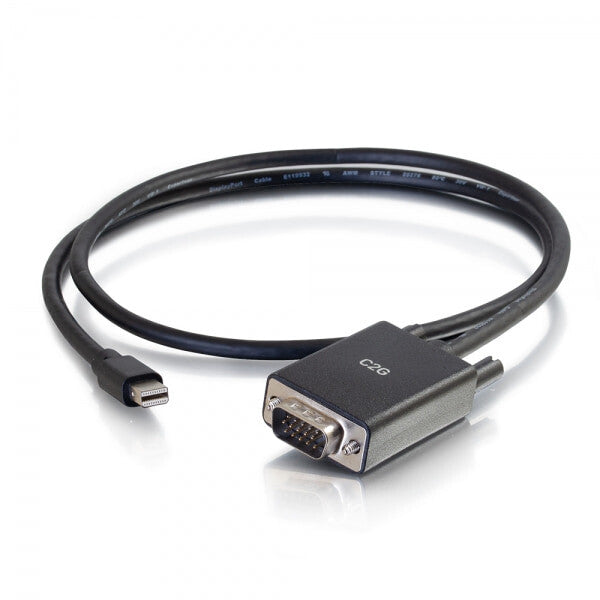

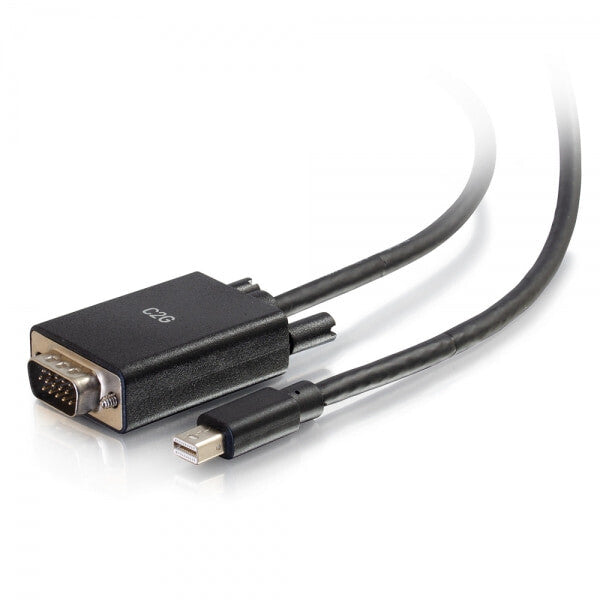

The Mini DisplayPort Male to VGA Male Active Adapter Cable allows you to connect the Mini DisplayPort or Thunderbolt[TM] 2 output of a PC or Mac[R] to a projector or display which accepts a VGA input ― making it an ideal solution for the office, work space applications, or home use.

[B]Convenience[/B]
The cable form factor of this adapter provides a simple and convenient solution that eliminates the need for a separate adapter and cable, reducing possible failure points.

[B]Performance[/B]
This cable is a simple plug and play solution and carries an active video signal, supporting high-definition resolutions up to 1920 x 1200, allowing it to deliver a high quality video image to the connected display.

Features
Connector gender Male/Male
Plug and Play Yes
AWG wire size 30
Jacket material Polyvinyl chloride (PVC)
Chipset RTD2166
Impedance 100 Ω
Product colour Black
Voltage rating 30 V
Supported graphics resolutions 1920 x 1200 (WUXGA)
Maximum resolution 1920 x 1200 pixels
Connector contacts plating Nickel/Gold
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector 2 VGA (D-Sub)
Connector 1 Mini DisplayPort
Cable length 1.8 m
Operational conditions
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 50 °C
Certificates
Certification CE
Compliance certificates RoHS
Weight & dimensions
Weight 100 g
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Harmonized System (HS) code 84733080
