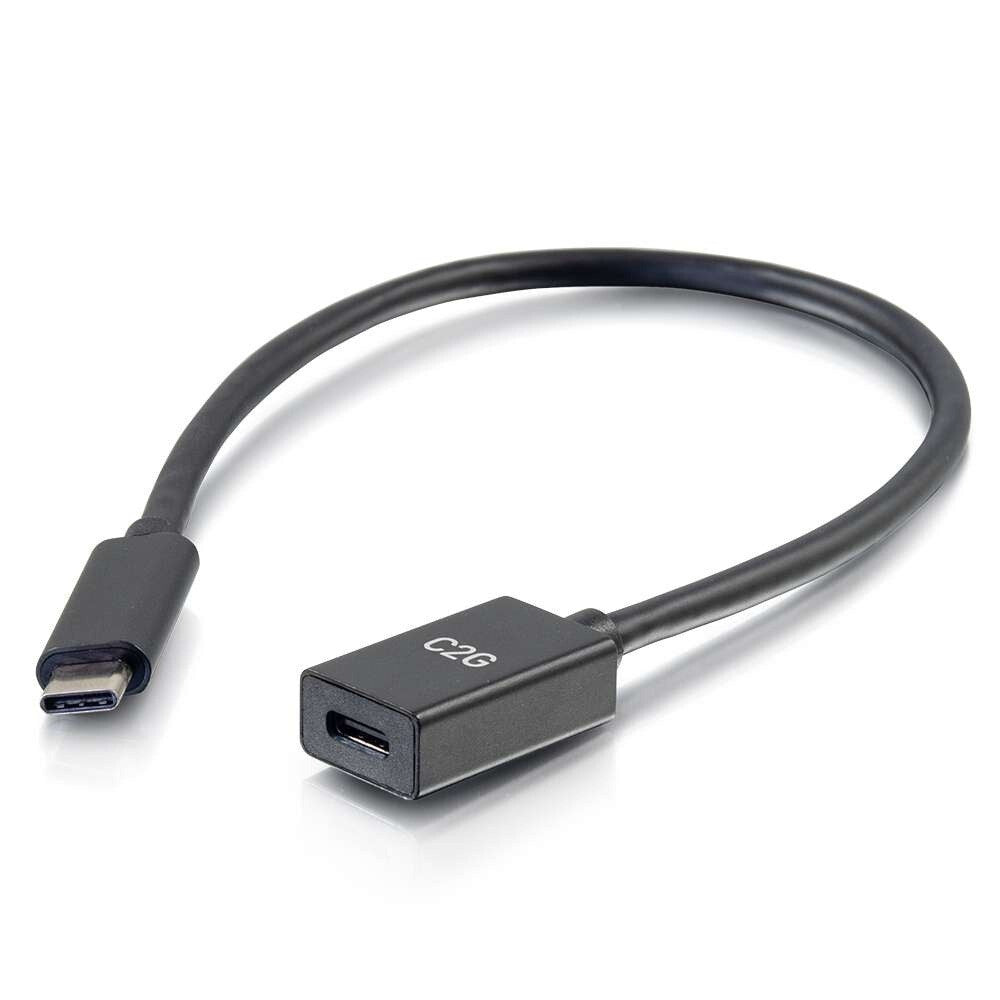

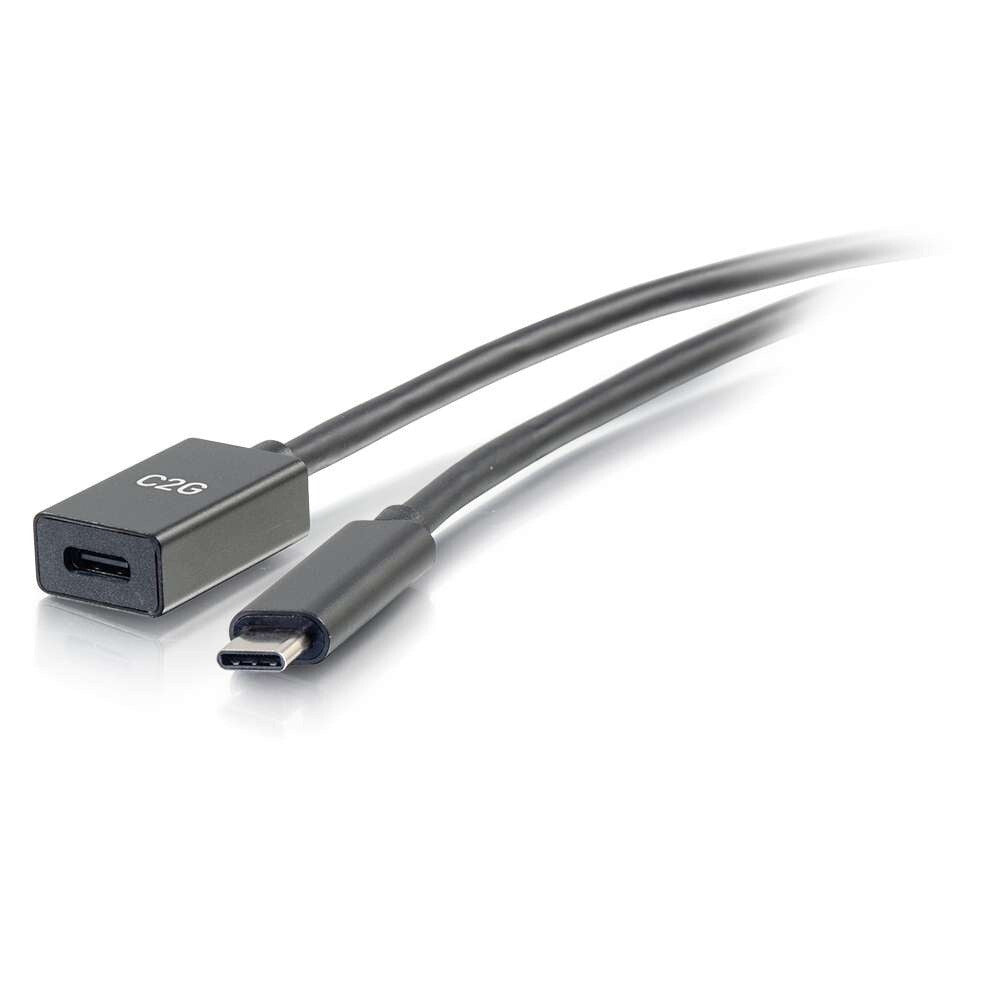

The USB-C to C 3.2 (Gen 1) Male to Female Extension Cable is perfect for extending a USB-C connection on a USB-C equipped laptop, smartphone, or tablet. The extension cable supports fast charging and data transfer speeds up to 5 Gbps.
The USB-C connector has a symmetrical design which is identical on both sides, so no more worrying about whether it's upside-down or right-side-up. It will plug in the first time, every time—while preventing damage to the connector port from frequent plugging and unplugging.
Features and Benefits
USB-C Male to USB-C Female connection
Data transfer speeds up to 5 Gbps
3A charging output
Compatible with USB-C and Thunderbolt™ 3 ports
Reversible, symmetrical USB-C connector
Supports all 'Alt' mode features outputting full DisplayPort, including multi-streaming
Additional Technical Specifications
Electrical Specifications
USB 3.2 OD:4.5mm ~ Black
Rated Temperature: 80°C ; Voltage: 30V
Conductor Resistance: At 20°C max 32AWG: 588.5 OHMS/KM
Insulation Resistance: 10M-KM min at 20°C DC 500V.(EIA—364—21)
Dielectric Strength: AC 500V/1 Minute No Breakdown.(EIA—364—20)
Physical Specifications
Operating Temperature: 0 ~ +50°C; 15-85% RH (Non-Condensing)
Storage Temperature: -25 ~ +70°C; 15-85% RH (Non-Condensing)
Connector: P1: USB3.2 C Type Male: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation
Connector: P2: USB3.2 C Type Female: Contacts Terminal Gold Flash, Nickel Plated Shell; Black Insulation
Molding Material: P1: Black PVC Conform RoHS
Molding Material: P2: Black PVC Conform RoHS
Product is CE marked and conforms to 2011/65/EU RoHS2
