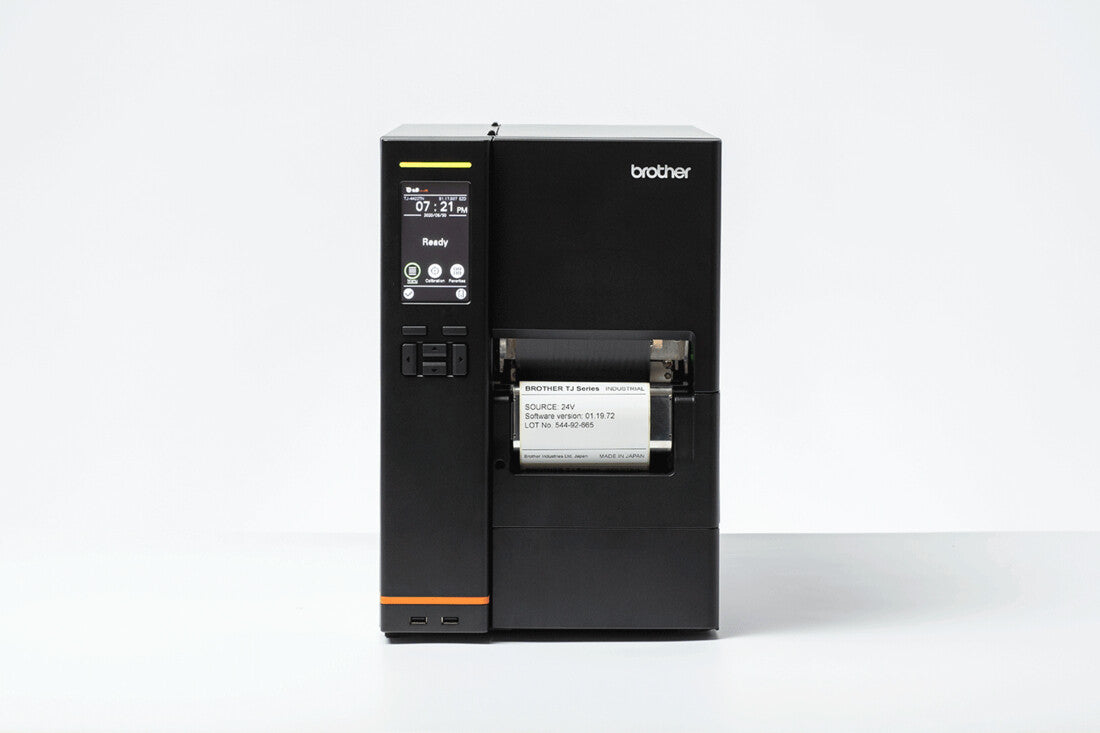

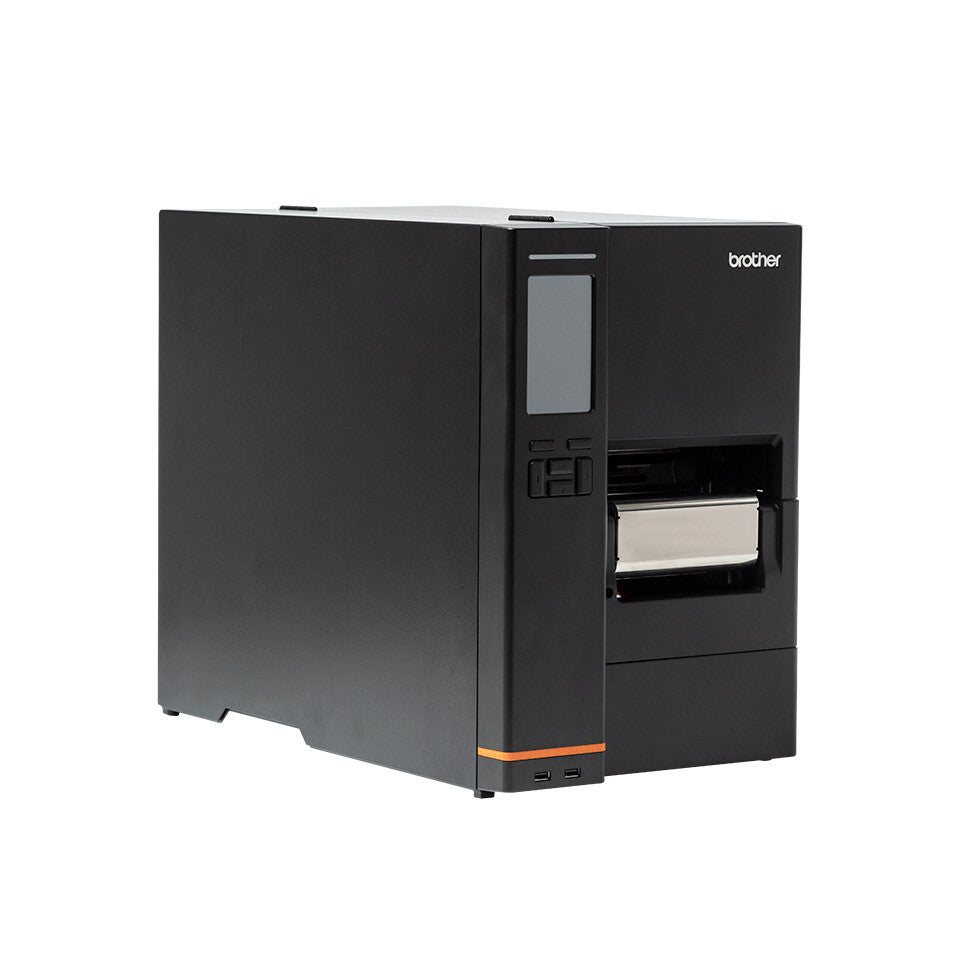

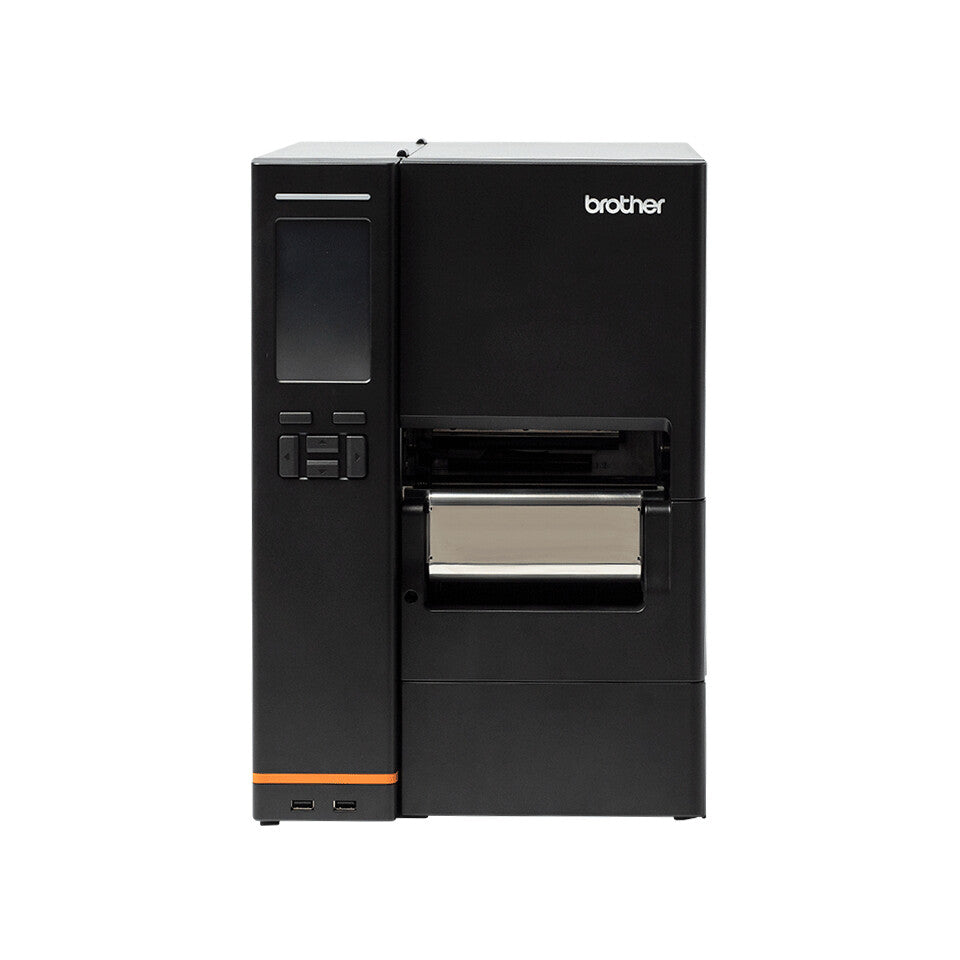

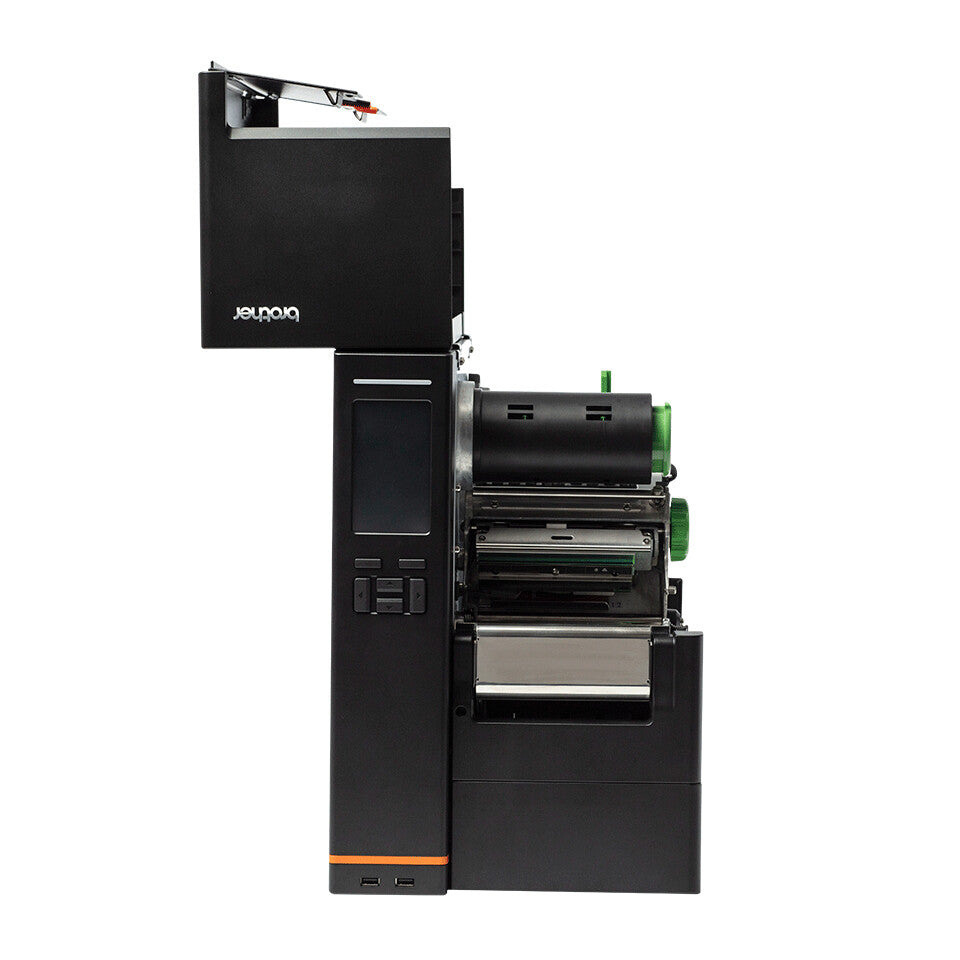

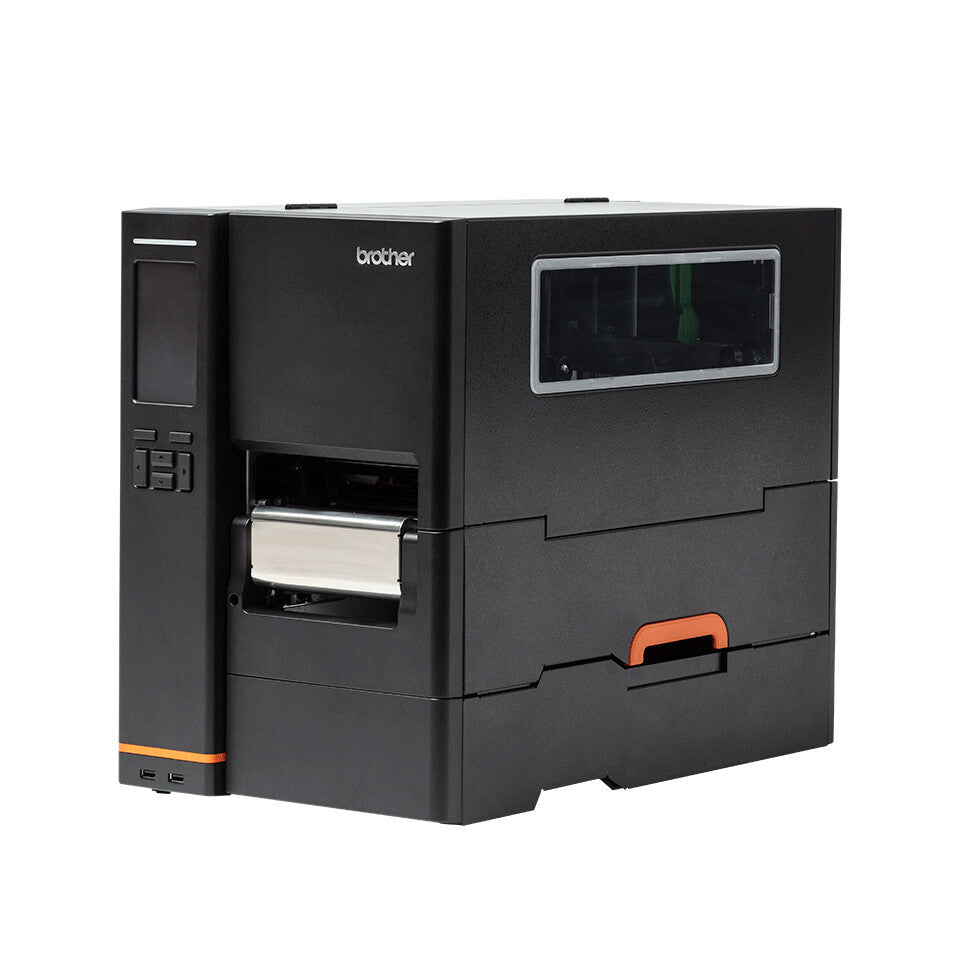

Brother TJ4522TN label printer Direct thermal / Thermal transfer 300 x 300 DPI 305 mm/sec Wired Ethernet LAN
£1,495.99
Couldn't load pickup availability
- Print speeds of up to 12ips with 300dpi resolution
- Touch panel display designed for first-class user experience
- Print width of up to 104mm
- FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
- High capacity 600m thermal transfer ribbon means fewer media changes
- Connect easily with USB, USB Host, Serial, Ethernet and optional dual wireless interface (WiFi and Bluetooth)
Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4522TN industrial label printer. With fast print speeds, ZPL2 emulation compatibility, high ribbon capacity and an internal rewinder - this durable industrial printer has been built with you in mind.Experience efficient labelling solutions and performance you can rely on with the TJ-4522TN industrial label printer.Brother's 5-year return-to-base warranty and optional service packs for this product can help protect your business from costly downtime, disruptions, and inconveniences.
| Printing | |
|---|---|
| Print technology | Direct thermal / Thermal transfer |
| Colour | No |
| Maximum resolution | 300 x 300 DPI |
| Print speed | 305 mm/sec |
| Maximum printing width | 10.4 cm |
| Minimum print length | 5 mm |
| Maximum print length | 11.43 m |
| Paper handling | |
|---|---|
| Ribbon width | 11.4 cm |
| Ribbon length | 600 m |
| Core diameter | 7.62 cm |
| Maximum roll diameter | 20.3 cm |
| Maximum label width | 11.4 cm |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| USB port | Yes |
| RS-232 ports | 1 |
| Optional connectivity | Bluetooth, Wireless LAN |
| Performance | |
|---|---|
| Page description languages | DPL, EPL2, ZPL II |
| Internal memory | 256 MB |
| Flash memory | 512 MB |
| Built-in barcodes | AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, ITF-14, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39, UPC-E |
| Number of fonts | 8 |
| Design | |
|---|---|
| Product colour | Black |
| Colour display | Yes |
| Control type | Buttons, Touch |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Mobile operating systems supported | Android, iOS |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 25 - 85% |
| Storage relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Width | 400 mm |
| Depth | 635 mm |
| Height | 545 mm |
| Weight | 19.4 kg |
| Packaging data | |
|---|---|
| Package weight | 21.7 kg |
| Packaging content | |
|---|---|
| Cables included | AC |
| Software development kit (SDK) | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Pallet gross height | 17.9 cm |
| Pallet gross weight | 205.2 kg |
| Master (outer) cases per pallet | 9 pc(s) |
| Master (outer) cases per pallet layer | 3 pc(s) |
| Layers per pallet | 3 pc(s) |
| Products per pallet | 9 pc(s) |
| Technical details | |
|---|---|
| Pallet type | 800 x 1200 mm |
| Other features | |
|---|---|
| LED indicators | Error, Power, Status |
| Languages support | Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Norwegian, Portuguese, Swedish |
| Country of origin | Taiwan |
