£239.99

Stock Available: 0
  • Direct thermal
  • 300 x 300 DPI
  • Print speed: 110 mm/sec
  • Built-in barcodes: Codabar (NW-7), EAN13, EAN8, Maxicode, Postnet, QR Code, UPC-A, UPC-E
  • 2.43 kg

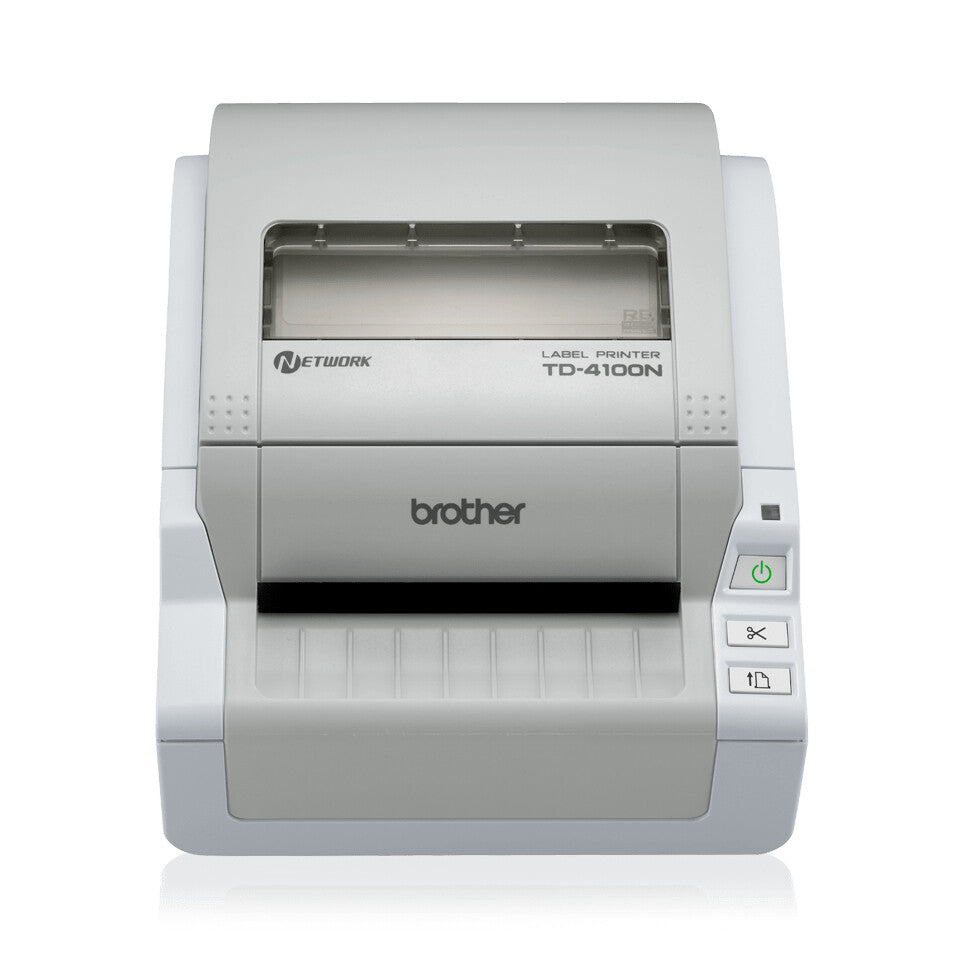

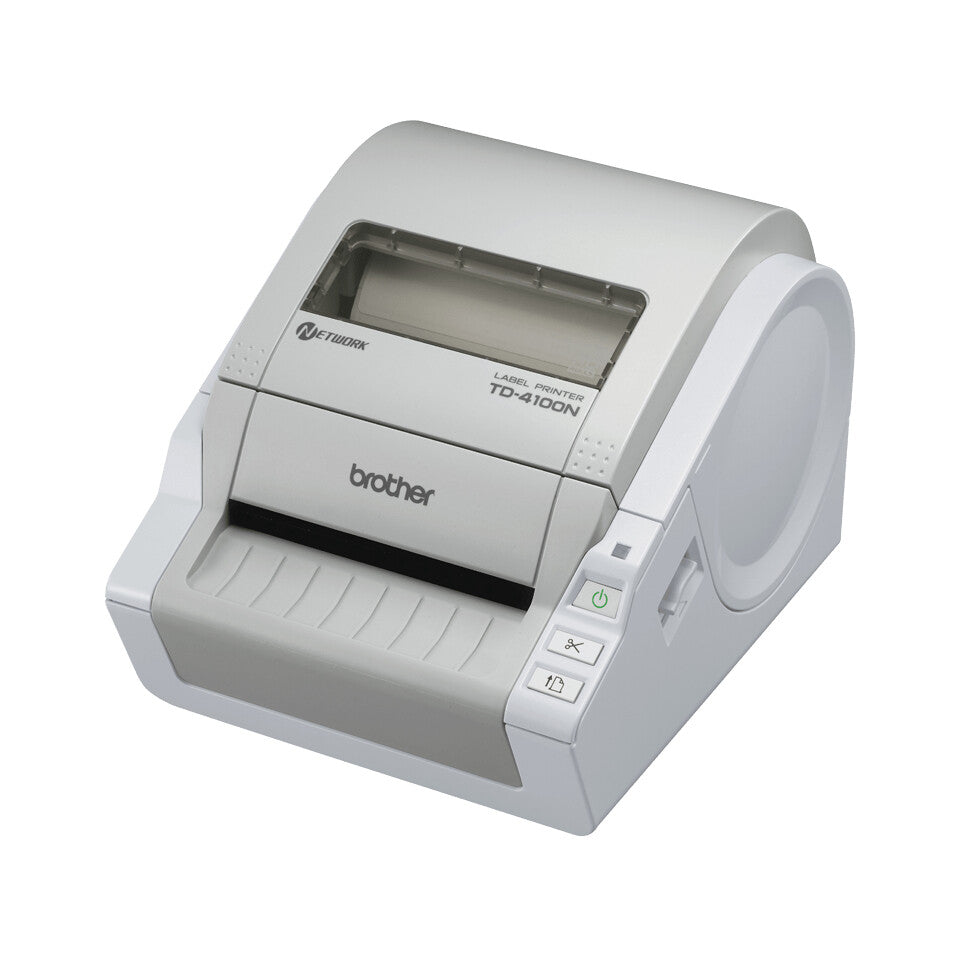

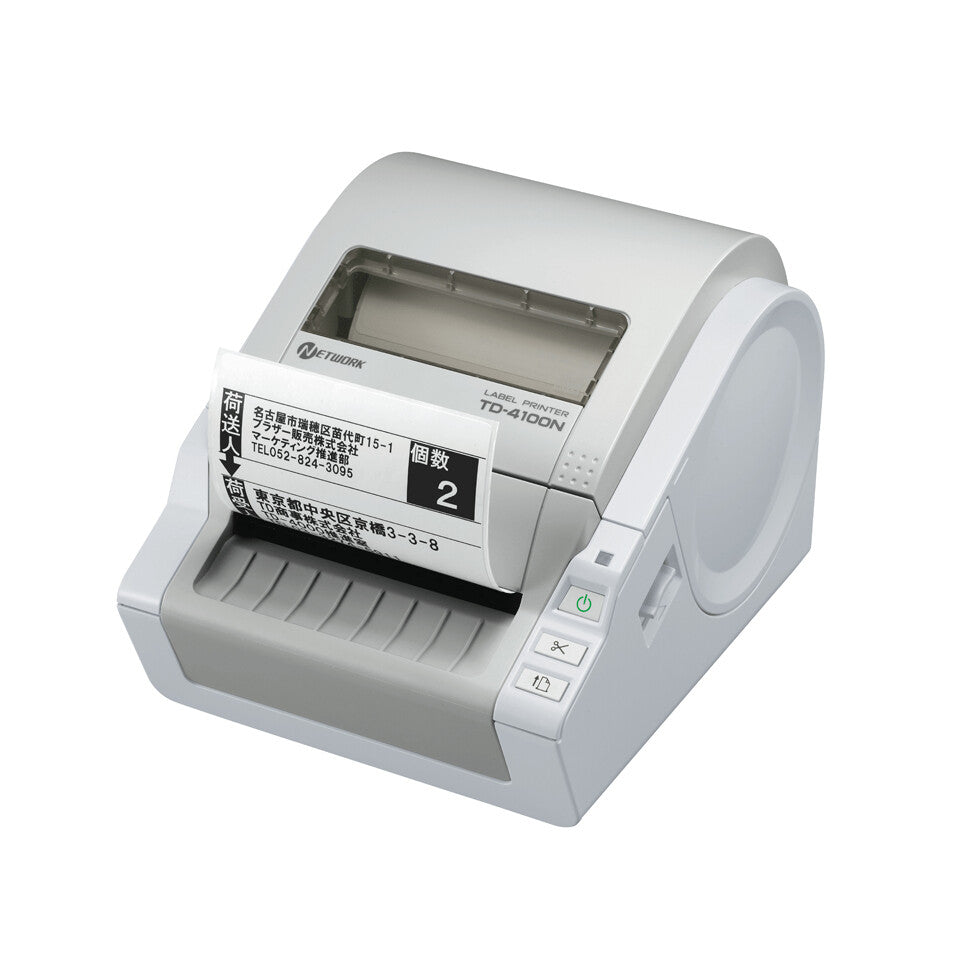

TD-4100N
Desktop Bar Code Network Printer

Windows® GDI technology revolutionized how we view and use software today, so why limit how you print your labels, receipts and tags with legacy printer restrictions?

The TD-4100N desktop bar code printer is a true GDI network printer, fully compatible with Windows® OS computers – including Windows® 7¹. The TD-4100N will print on most medium/high sensitivity direct thermal media in high quality 300 dots/inch print resolution, and comes ready with everything you need to start printing including the USB cable and PT-Editor, powerful but easy to use design software application.

Use PT-Editor to add bar codes, lines, curves, text and graphics, and print by typing in your data or link to a Microsoft® Excel® or Access® database file or SQL server and select one or multiple records. Or, use your own Windows®-based software application as the TD-4100N comes with a WHQL certified Windows®-based printer driver and is compatible with many third party Windows®-based software applications.

Unlike competitive models that require printing using their resident fonts and bar codes, the TD-4100N is host-based and can print text, bar codes and graphics from software, up to 4.3 inches/second. The built-in automatic cutter reliably trims receipts and continuous labels to your desirable length, or configure it to cut after printing die cut labels – either one at a time or after printing a strip of multiple labels.

The TD-4100N is built around a mechanism with a history of reliability and comes with a 1 year limited warranty and toll free customer support. With this combination of high performance, value add and reliability, why not experience this for yourself and see why the TD-4100N is the best value desktop bar code printer for your Windows®-based application.

Main Features
- High performance, 4” wide desktop bar code printer
- Uses Genuine Brother or most medium/high sensitivity direct thermal label, receipt and tag media
- Fully compatible with Windows® OS computers, including Windows® 7¹
- Bundled with PT-Editor print application design software
- Prints high quality 300 dpi text, graphics and bar codes
- Fast, host based printing – up to 4.3 ips
- Reliable built-in automatic cutter
- 10/100 Base TX Ethernet, USB 2.0 and RS-232C serial interface connectivity

Printing
Vertical printing Yes
Print speed 92 lpm
Maximum resolution 300 x 300 DPI
Print technology Direct thermal
Paper handling
Media thickness 0.076 - 0.153/0.178 mm
Maximum label width 10.2 cm
Maximum label length 3 m
Maximum roll diameter 10.2 cm
Ports & interfaces
Standard interfaces USB 2.0, Ethernet
PC connected Yes
Performance
Number of styles 7
Tape cutting Automatic
Number of fonts 5
Built-in barcodes Codabar (NW-7), EAN13, EAN8, Maxicode, Postnet, QR Code, UPC-A, UPC-E
Internal memory 2 MB
Design
Built-in display No
Product colour Grey
Power
Power requirements 220-240VAC, 50/60 Hz, 1.8A
System requirements
Minimum storage drive space 70 MB
Minimum RAM 128 MB
Compatible operating systems Windows XP/7, Windows Vista, Windows Server 2003/2008
Mac compatibility No
Operational conditions
Operating temperature (T-T) 10 - 35 °C
Operating relative humidity (H-H) 20 - 80%
Weight & dimensions
Weight 2.43 kg
Height 310 mm
Depth 253 mm
Width 104 mm
Packaging data
Package weight 2.9 kg
Package dimensions (WxDxH) 360 x 229 x 248 mm
Packaging content
Bundled software P-touch PT-Editor 5.0, Transfer Manager 2.1, Transfer Express, Library 2.1
Logistics data
Products per pallet 54 pc(s)
Layers per pallet 6 pc(s)
Master (outer) cases per pallet layer 3 pc(s)
Master (outer) cases per pallet 18 pc(s)
Pallet gross weight 183.6 kg
Pallet gross height 17.3 cm
Harmonized System (HS) code 84433210
Technical details
Pallet type 800 x 1200 mm
Other features
Dimensions (WxDxH) 173 x 229 x 158 mm
Country of origin China
Network ready Yes
Spare part retention 5 year(s)
Label type RD
