£592.99

Stock Available: 0
  • Direct thermal
  • 203 x 203 DPI
  • Maximum printing width: 5.9 cm Print speed: 152.4 mm/sec
  • Built-in barcodes: AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93
  • Connectivity technology: Wired
  • USB port Ethernet LAN
  • 8.89 cm (3.5") Colour display
  • 1.77 kg

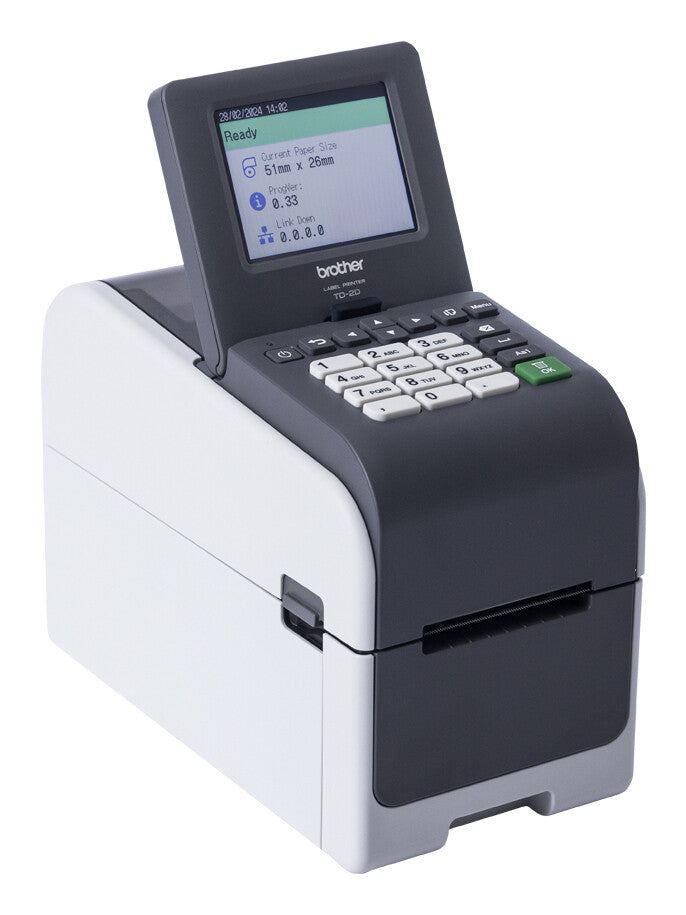

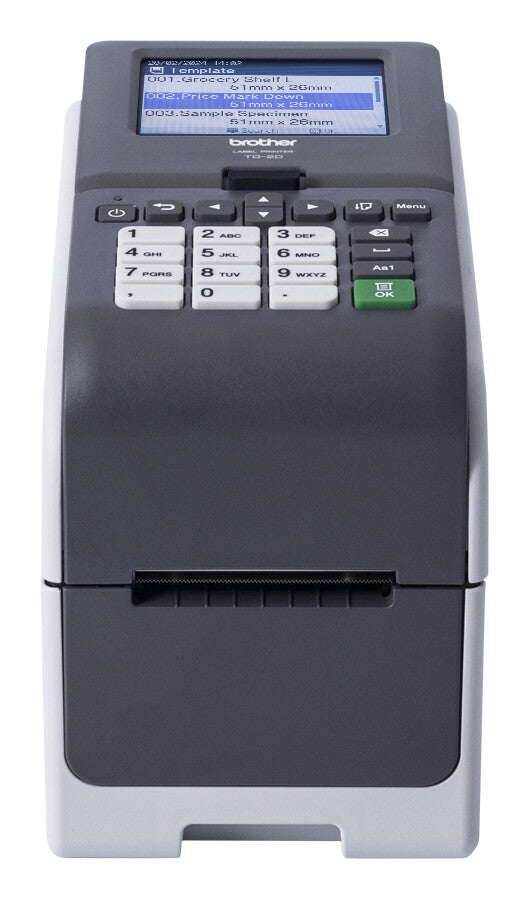

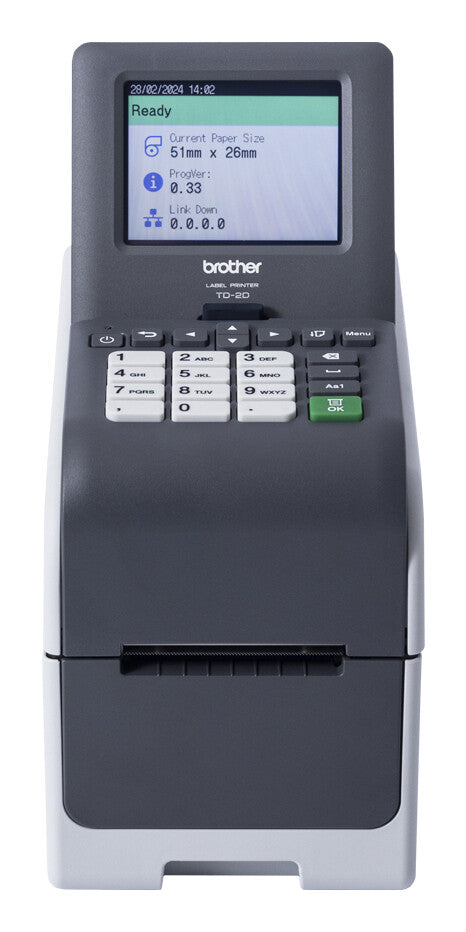

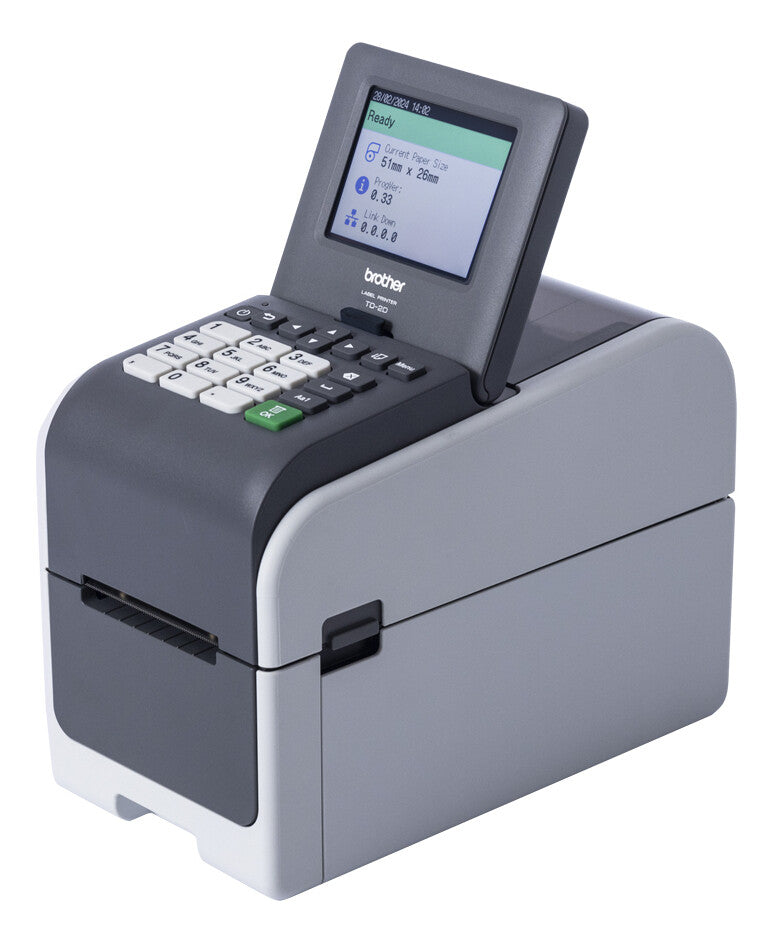

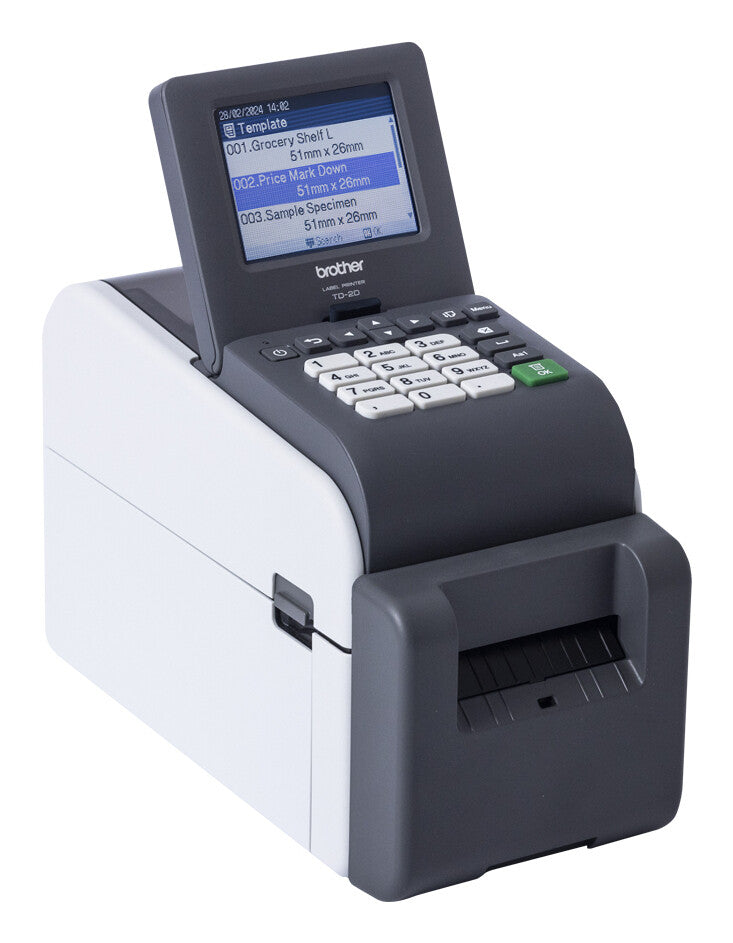

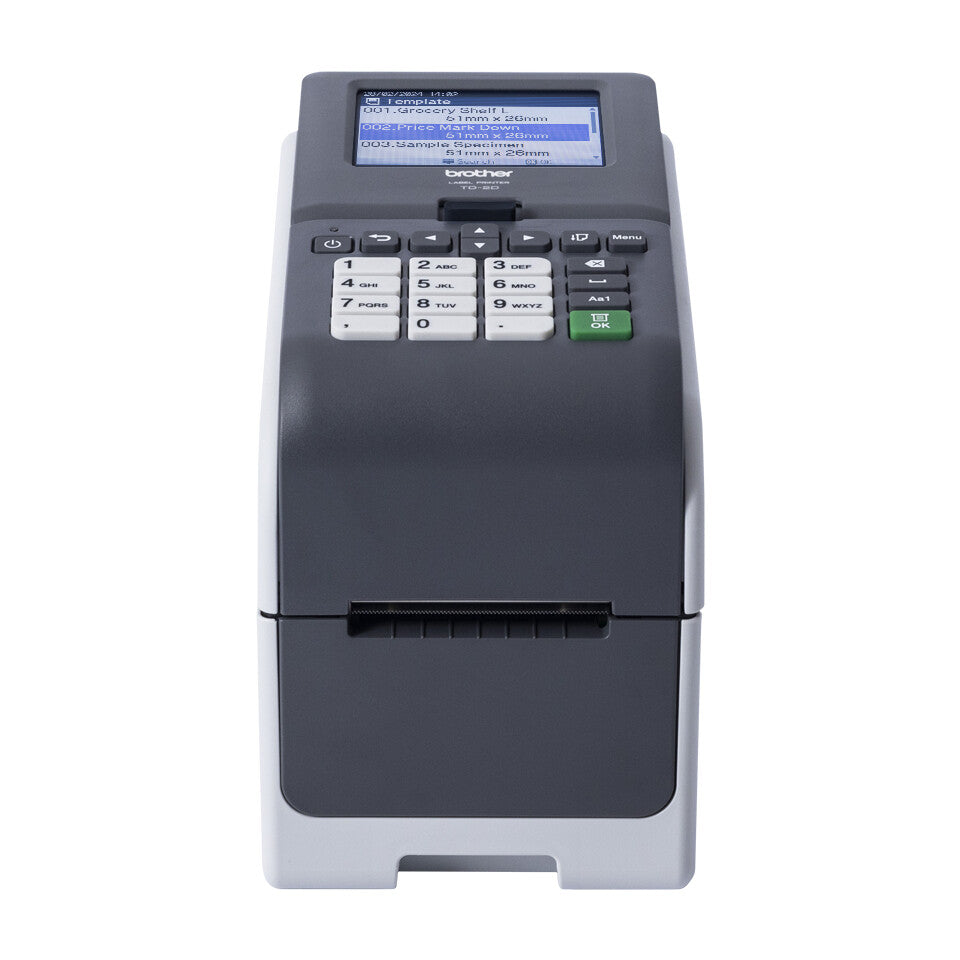

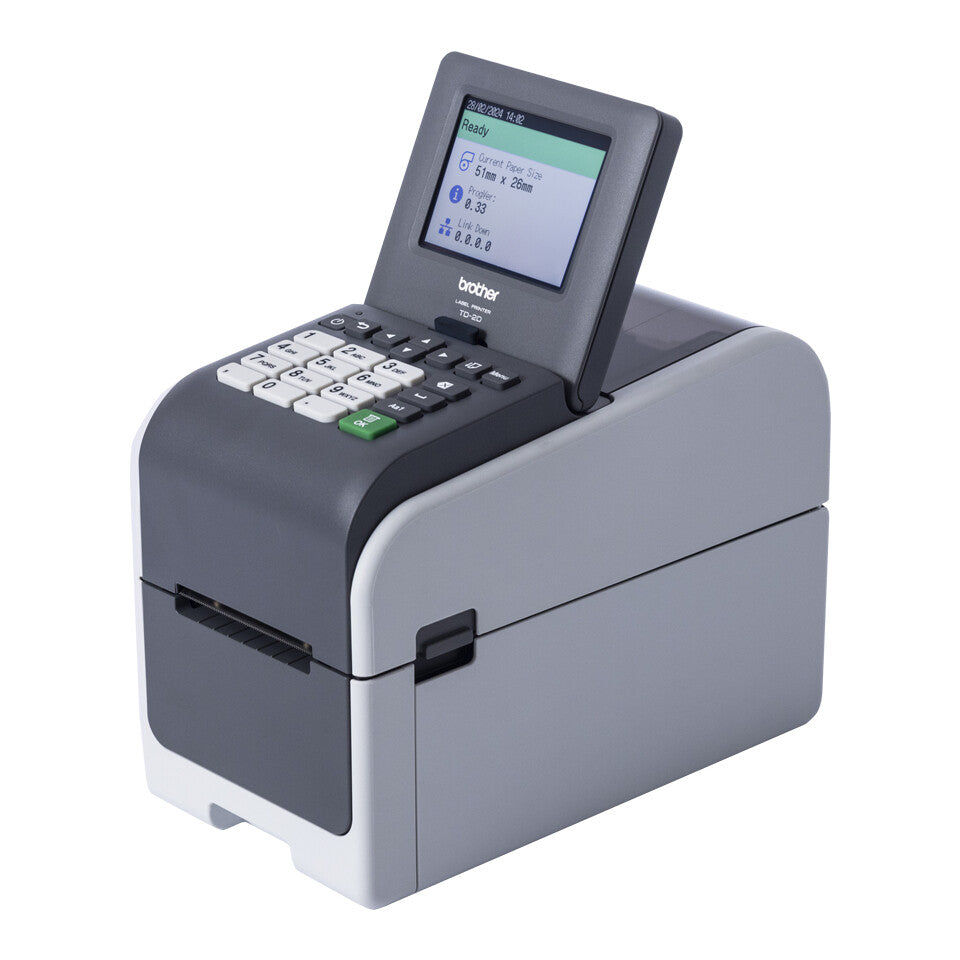

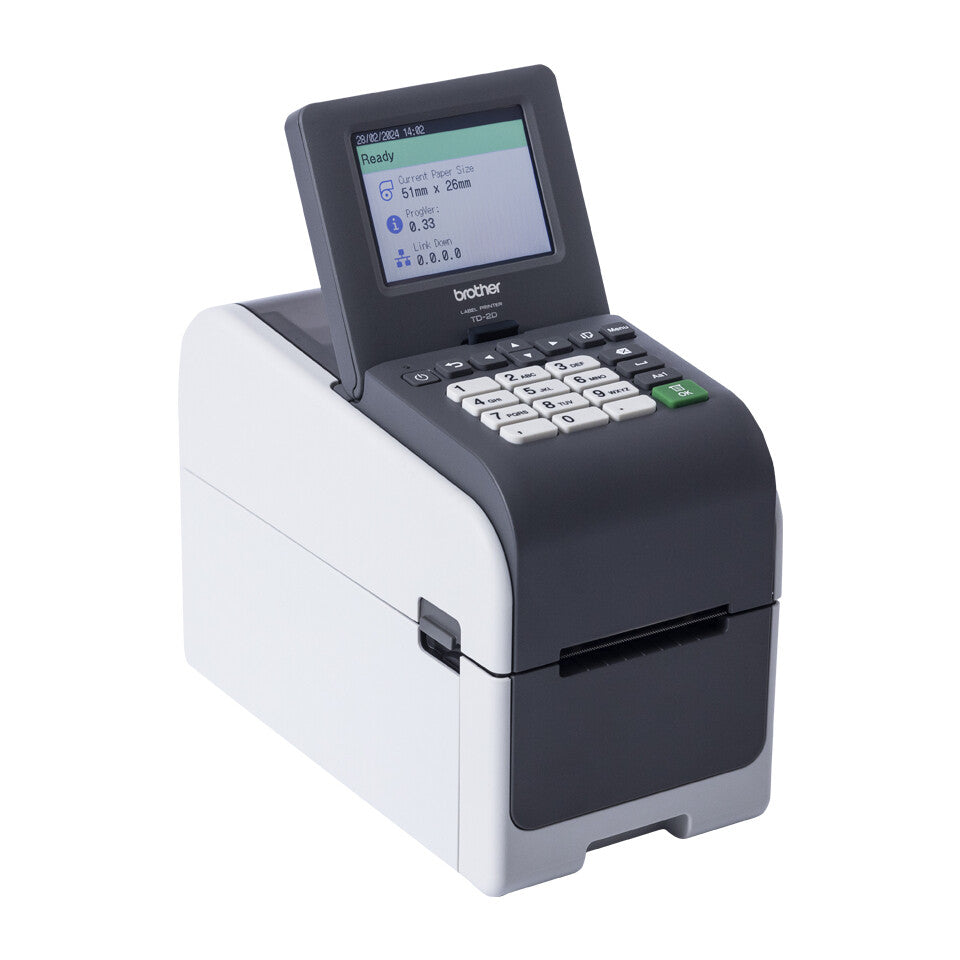

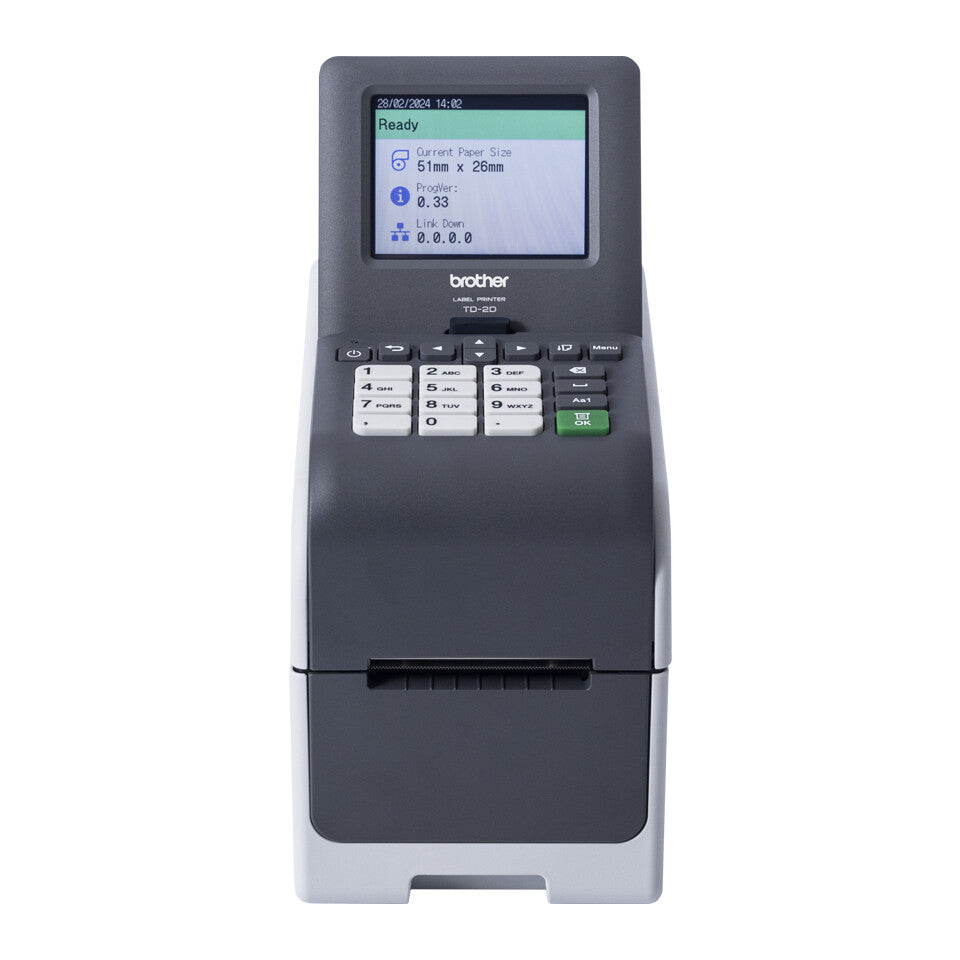

The Professional, 2" desktop network label printer with 3.5" colour touch screen display.

Increasing productivity and reducing costs are key priorities in any workplace. And when it comes to label printing, the TD-2320DSA203 combines proven desktop printer performance with the versatility to operate in multiple locations, helping you to achieve greater efficiencies across your business. The TD-2320DSA203 works as a standalone printing solution with its 3.5" colour touch screen display and keyboard.

With a range of specialised features and high-quality print resolutions, the TD-2D is the perfect label printer for retail price mark down labels and food traceability ingredient labels – where you need to print high-quality labels in any location.

Complete print solution
Optional accessories to suit your business needs.

Accessories include battery (PA-BT-004), cutter (PA-CU-004) or label peeler (PA-LP-002).

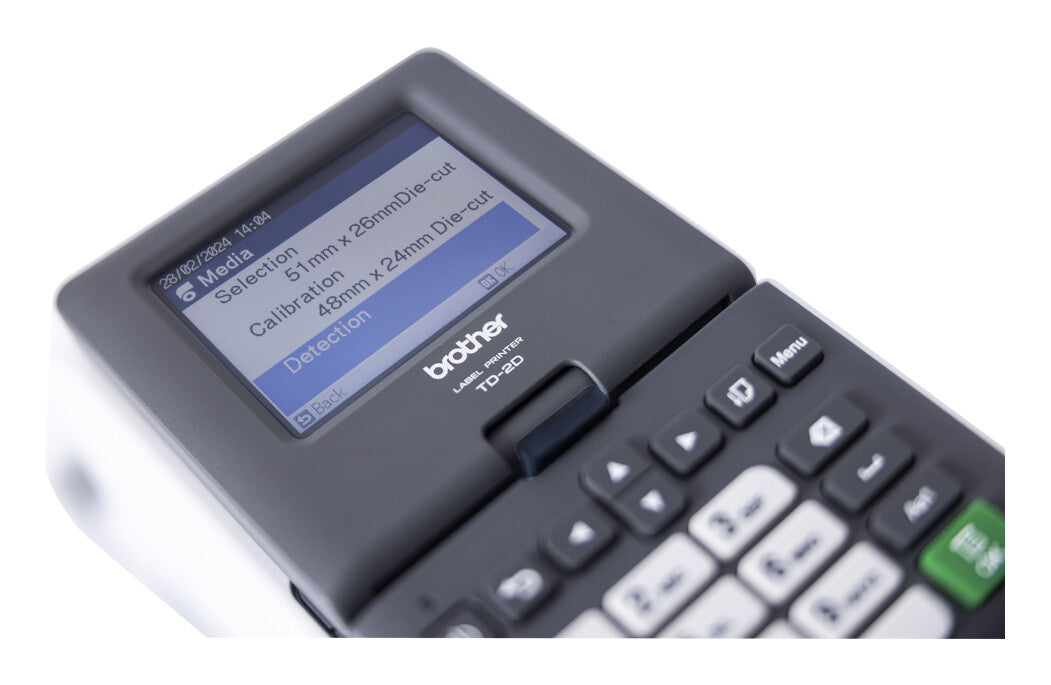

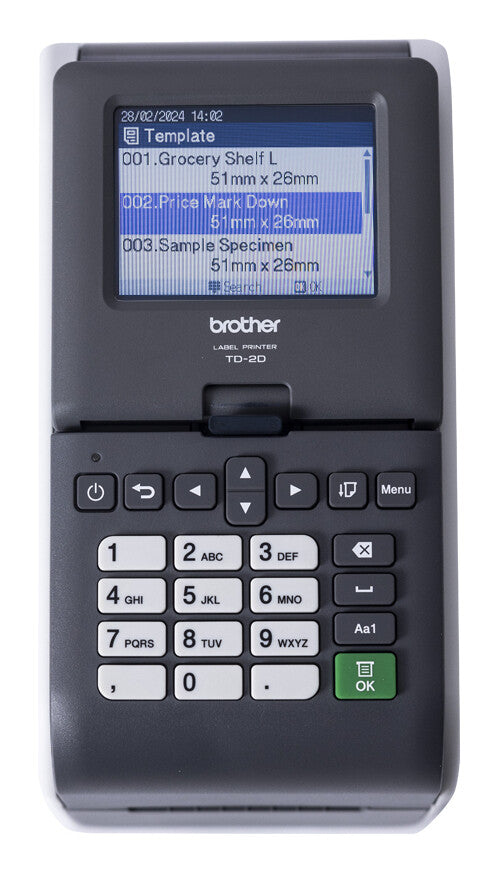

3.5" Colour touch screen
A user-friendly colour touch screen display allows for stand alone printing and on-the-go editing of templates.

Space saving design
A compact 2 inch label printer, designed to fit on most worksurfaces without compromising on working space.

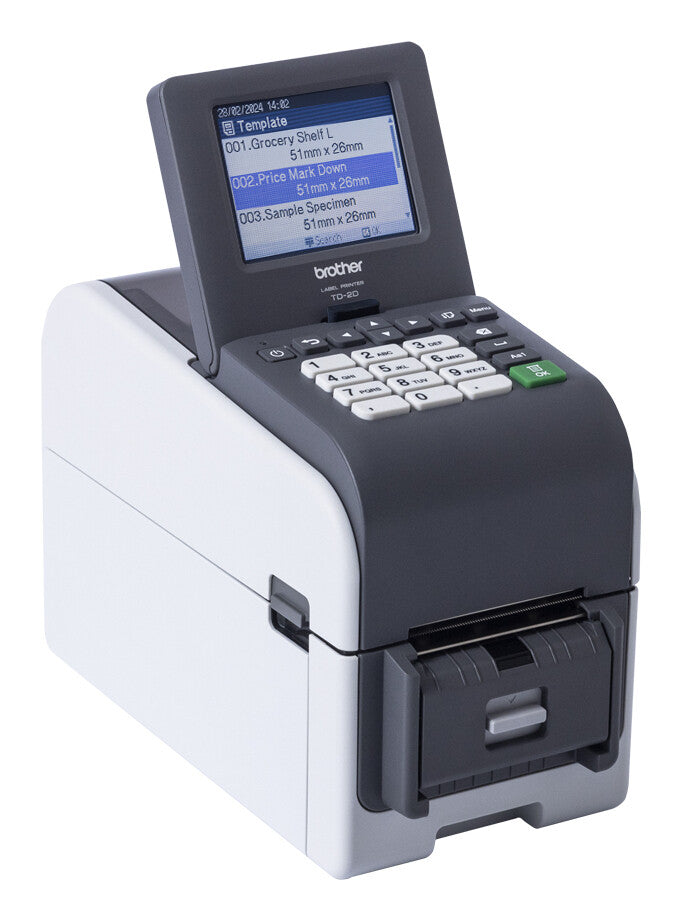

Cut or peel
A Cutter or peeler are the perfect accessories for adding efficiencies to your business.

Software support
Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems.

Integrated USB host
A USB-host port is built-in as standard, enabling a barcode reader or weighing scales to be connected. Barcodes are scanned to create print information.

Using pre-defined templates, your information is printed on to labels.

Professional print quality
Print in high resolution up to 203dpi for any professional setting.

Printing
Maximum printing width 5.9 cm
Print speed 152.4 mm/sec
Maximum resolution 203 x 203 DPI
Colour No
Print technology Direct thermal
Ports & interfaces
RS-232 ports 1
USB 2.0 ports quantity 1
USB port Yes
Wi-Fi No
Ethernet LAN Yes
Connectivity technology Wired
Performance
Built-in barcodes AZTECCODE, Data Matrix, MSI, CODABAR (NW-7), UPC-A, MaxiCode, Micro QR Code, UPC-E, EAN13, Code 128 (A/B/C), EAN8, POSTNET, Code 39, GS1 DataBar, QR Code, Code 93
Flash memory 64 MB
Internal memory 256 MB
Design
Control type Buttons, Touch
Colour display Yes
Display diagonal 8.89 cm (3.5")
Built-in display Yes
Product colour Black, Grey
System requirements
Server operating systems supported Windows Server 2016, Windows Server 2019, Windows Server 2022
Windows operating systems supported Windows 10, Windows 11
Operational conditions
Operating temperature (T-T) 5 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 20 - 80%
Weight & dimensions
Weight 1.77 kg
Height 176 mm
Depth 119 mm
Width 224 mm
Packaging content
Cables included AC, USB
Other features
Warranty period 3 year(s)
