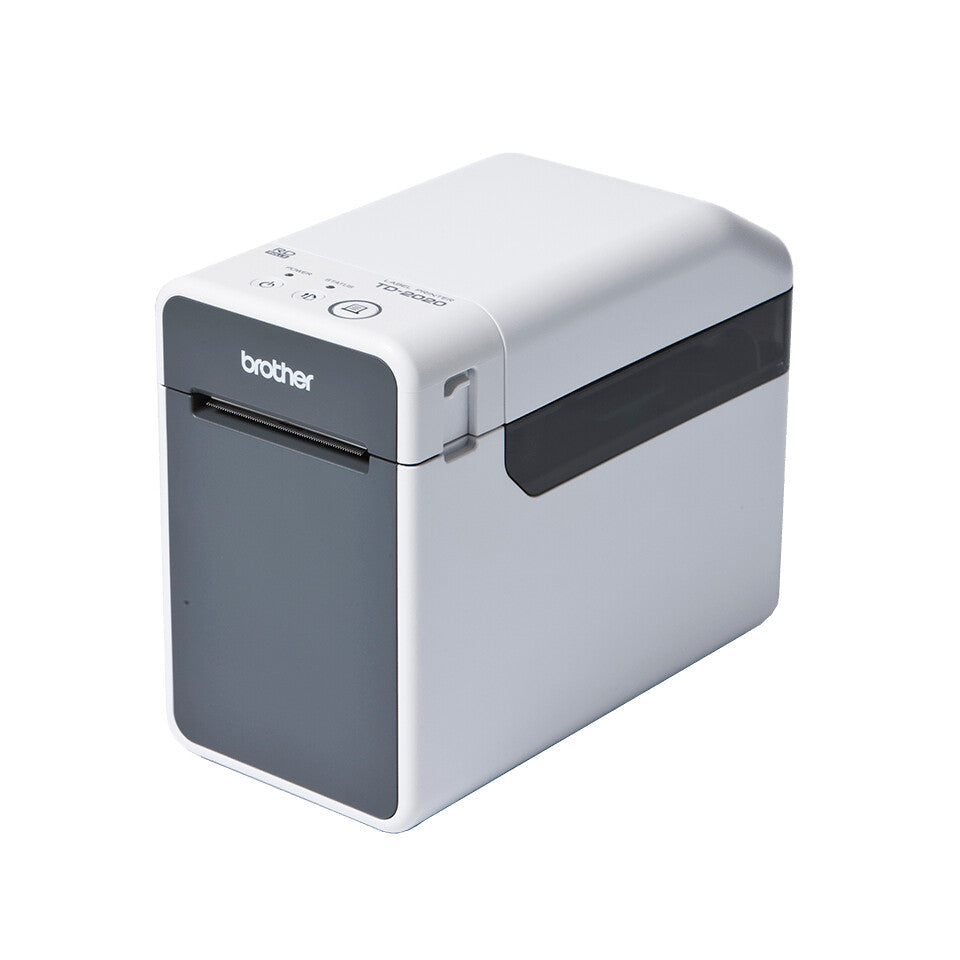

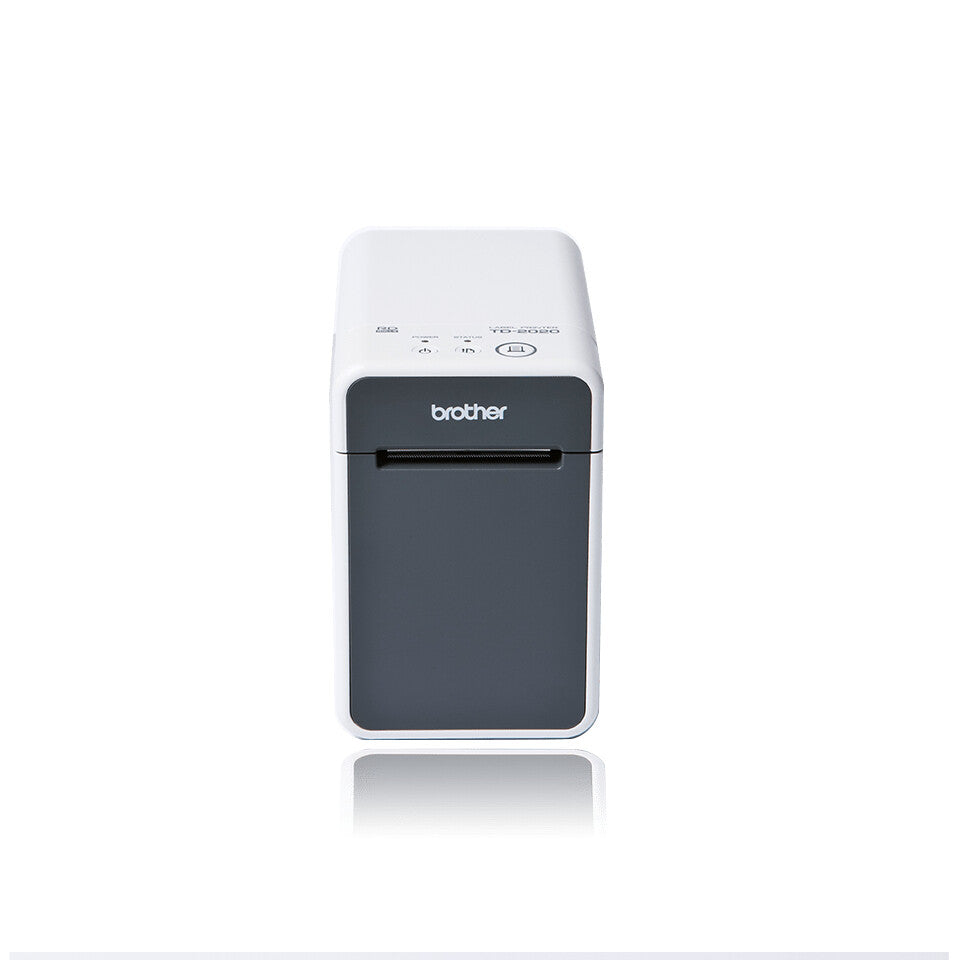

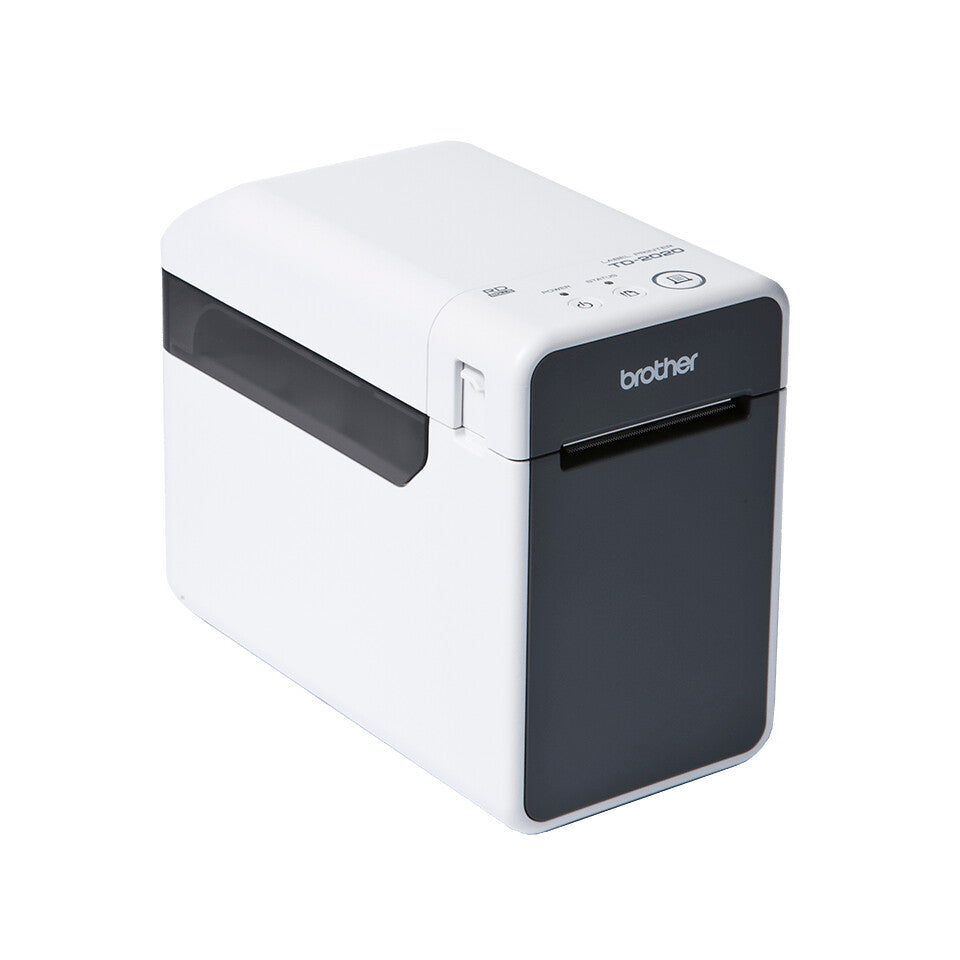

Brother TD-2020 label printer Direct thermal 203 x 203 DPI 152.4 mm/sec Wired
£61.99
Couldn't load pickup availability
- Up to 6 inches per second print speed
- 203dpi print resolution
- USB Connectivity
- 32MB RAM, 16MB Flash
- ZPL II printer language
- P-touch Editor 5 software - works on Windows
Increasing productivity and reducing costs are priorities in any workplace. And when it comes to label printing, the TD-2020 combines proven desktop printer performance with new levels of efficiency to help you do more for less.
| Printing | |
|---|---|
| Maximum print height | 9.86 cm |
| Maximum printing width | 5.6 cm |
| Print speed | 152.4 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Maximum label length | 1 m |
| Ribbon length | 1 m |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| Optional connectivity | Serial (RS-232), USB 2.0 |
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Wi-Fi | No |
| Ethernet LAN | No |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Underline | Yes |
| Tape cutting | Automatic |
| Number of fonts | 7 |
| Built-in barcodes | QR Code |
| Flash memory | 8 MB |
| Internal memory | 6 MB |
| Page description languages | ESC P |
| Design | |
|---|---|
| Built-in display | No |
| Product colour | White |
| Power | |
|---|---|
| AC adapter output current | 6 A |
| AC adapter output voltage | 25 V |
| System requirements | |
|---|---|
| Minimum storage drive space | 70 MB |
| Minimum RAM | 128 MB |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 2.12 kg |
| Height | 266 mm |
| Depth | 181 mm |
| Width | 285 mm |
| Packaging data | |
|---|---|
| Package weight | 2.83 kg |
| Packaging content | |
|---|---|
| Drivers included | Yes |
| Bundled software | Thermal Printer PLUS Brother Label Design/Print |
| AC adapter included | Yes |
| Cables included | USB |
| Logistics data | |
|---|---|
| Products per pallet | 60 pc(s) |
| Layers per pallet | 5 pc(s) |
| Master (outer) cases per pallet layer | 4 pc(s) |
| Master (outer) cases per pallet | 20 pc(s) |
| Pallet gross weight | 186 kg |
| Pallet gross height | 15.5 cm |
| Harmonized System (HS) code | 84433210 |
| Technical details | |
|---|---|
| Pallet type | 800 x 1200 mm |
| Other features | |
|---|---|
| Country of origin | China |
| Spare part retention | 5 year(s) |
| Character sets | Abicomp, ASCII, BRASCII, ISO 8859-15, ISO Latin 1, Italic, PC437, PC850, PC858, PC860, PC861, PC863, PC865, Roman 8 |
| LED indicators | Yes |
| Media types supported | 0.75 - 2.48" (19 - 63mm) Wide, 2.3 - 11mil (0.058 - 0.279mm) Thick, 5" (127mm) OD |
| Maximum resolution | 203 x 203 pixels |
