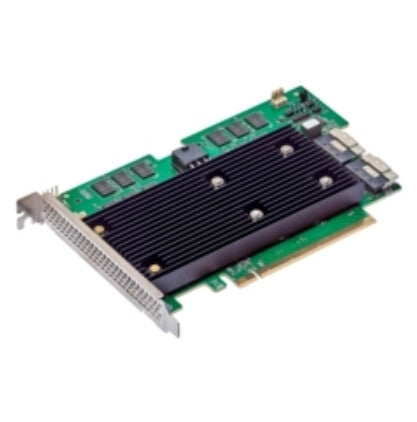

Broadcom MegaRAID 9670W-16i RAID controller PCI Express x16 4.0 6 Gbit/s
Broadcom MegaRAID 9670W-16i RAID controller PCI Express x16 4.0 6 Gbit/s

Broadcom MegaRAID 9670W-16i RAID controller PCI Express x16 4.0 6 Gbit/s

Broadcom · MPN: 05-50113-00
£2,122.99
inc. VAT
£1,769.16 ex. VAT
Spread the cost with Klarna, PayPal, Float or SnapFrom 3 interest-free payments of £707.66 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

In stock

FREE delivery

Express £9.99

Price drop alert

Broadcom MegaRAID 9670W-16i RAID controller PCI Express x16 4.0 6 Gbit/s
Now £2,122.99

We'll email you if the price of this item drops in the next 90 days.

By setting an alert you agree to receive price drop emails from Back to the Office for this item and others you view. No newsletters. Unsubscribe at any time. Privacy policy

Overview
  • x16 PCIe Gen 4.0 Host Interface
  • Connect up to 240 SAS/SATA devices or 32 NVMe devices per controller
  • SFF-8654 (SlimSAS) x8 connectors
  • Form-factor friendly cable exit
  • Hardware Secure Boot and SPDM Attestation support
  • Balance protection and performance for critical applications with RAID 0, 1, 5, 6, 10, 50 and 60 and JBOD
  • SFF-TA-1005 Universal Bay Management (UBM) Ready
  • Add more protection and peace of mind with CacheVault flash cache protection

The MegaRAID 9600 series is the third generation of Broadcom’s industry leading Tri-Mode x8 and x16 NVMe/SAS/SATA storage adapters. Designed to deliver the best possible performance for NVMe SSD-based storage systems, the 9600 family delivers 2x the bandwidth, over 4x the IOPs, 25x reduction in write latency, and 60x increase in performance during rebuilds over the previous generation.

The MegaRAID 9670W-16i based on the SAS4116W RAID-on-Chip (RoC) delivers more than 4x increase in RAID5 Random Write Ops and twice the bandwidth over the previous generation. The 9670W-16i’s advanced thermal solution enables these major performance enhancements without increasing airflow requirements when compared to previous generation adapters. Users can incorporate the 9670W-16i into existing platforms to enable breakthrough SSD performance without burdening the system with additional cooling and airflow requirements.

Specifications

Ports & interfaces

Supported storage drive interfacesSAS, Serial ATA
Host interfacePCI Express x16
PCI Express slots version4.0
Internal SAS ports2

Performance

RAID levels0, 1, 5, 6, 10, 50, 60
Data transfer rate6 Gbit/s
Form factorMD2
SSD supportYes
Channels quantity16 channels
Number of devices supported240
S.M.A.R.T. supportYes
Mean time between failures (MTBF)3000000 h
CertificationAustralia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Show all 23 specificationsShow fewer specifications

Power

Power consumption (typical)25 W

Technical details

Compliance certificatesRoHS, WEEE

System requirements

Windows operating systems supportedYes
Linux operating systems supportedYes
Server operating systems supportedSUSE Linux Enterprise Server

Operational conditions

Operating temperature (T-T)0 - 55 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Width155.6 mm
Depth111.1 mm

Other features

Other operating systems supportedVMware vSphere ESXi
