Broadcom eHBA 9600-24i interface cards/adapter Internal SAS, SATA

Broadcom eHBA 9600-24i interface cards/adapter Internal SAS, SATA

Broadcom

iFrame
×
£937.99
Stock Available: 1
  • Low profile, half-length x8 PCIe Gen 4.0 adapter
  • Connect up to 240 SAS/SATA devices or 32 NVMe devices
  • Hardware Secure Boot and SPDM Attestation support
  • SMART monitoring
  • Drive temperature monitoring
  • SafeStore key management for attached SEDs
  • Universal Bay Management (UBM) Ready

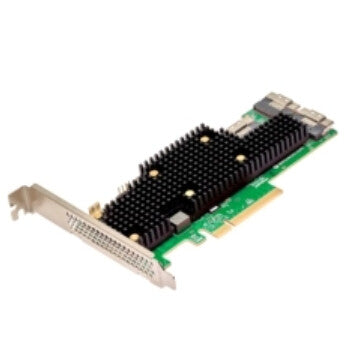

The 9600-24i Tri-Mode, PCIe Gen 4.0 enhanced HBA (eHBA) is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9600-24i eHBA delivers the performance and scalability needed by critical applications.

Ports & interfaces
Host interface PCIe
Output interface SAS, SATA
Expansion card form factor Full-height / Low-profile
Expansion card standard PCIe 4.0
NVMe Yes
Design
Internal Yes
Product colour Green, Silver
Mean time between failures (MTBF) 5000000 h
Certification Australia/New Zealand RCM (AS/NZS CISPR 32; CISPR 32:2015, Class A; AS/NZS CISPR 32:2015, Class A), Canada EMC (ICES-003:2016 Issue 6: 2016, Class A; CAN/CSA CISPR 22-10; CISPR 22:2008), Europe (CE) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020), Korea (KN32/KN35), Taiwan BSMI (CNS 13438; CNS15663), USA/Canada Safety (UL Listed) (UL 62368-1, Second Edition; CAN/CSA C22.2 No. 62368-1-14), USA/Canada (FCC) (47 CFR FCC Part 15, Subpart B, Class A; ANSI C63.4:2014; CISPR 32:2008) CB (IEC 62368-1:2014 (Second edition); EN 62368-1:2014+A11: 2017), Japan (V-3/2015.04, Class A; V-4/2012.04; VCCI-CISPR 32:2016; CISPR 32:2015), Morocco (CMIM) (EN 55024, EN 55032, EN 55035; EN 55032:2015 +AC:2016, Class A; EN 55024:2010 +A1:2015; EN 55035:2017 +A11:2020)
Features
Data transfer rate (max) 12 Gbit/s
S.M.A.R.T. support Yes
Plug and Play Yes
Power
Power consumption (typical) 17 W
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Operating relative humidity (H-H) 5 - 90%
Technical details
Compliance certificates RoHS, WEEE
System requirements
Windows operating systems supported Yes
Linux operating systems supported Yes
Server operating systems supported SUSE Linux Enterprise Server
Other operating systems supported Yes
Weight & dimensions
Width 155.6 mm
Depth 68.9 mm
Packaging data
Quantity per pack 1 pc(s)
Other features
Channels quantity 24 channels
