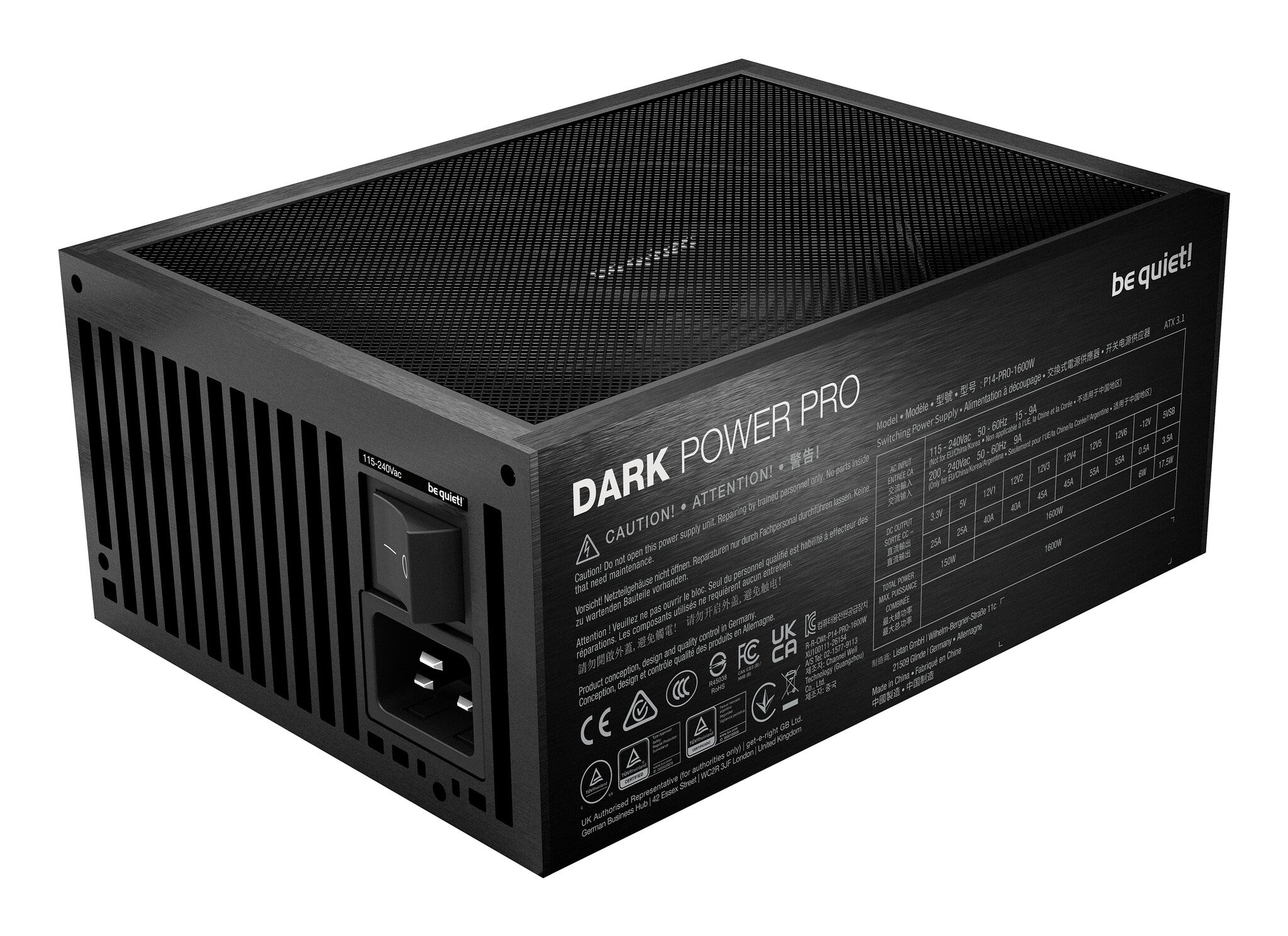

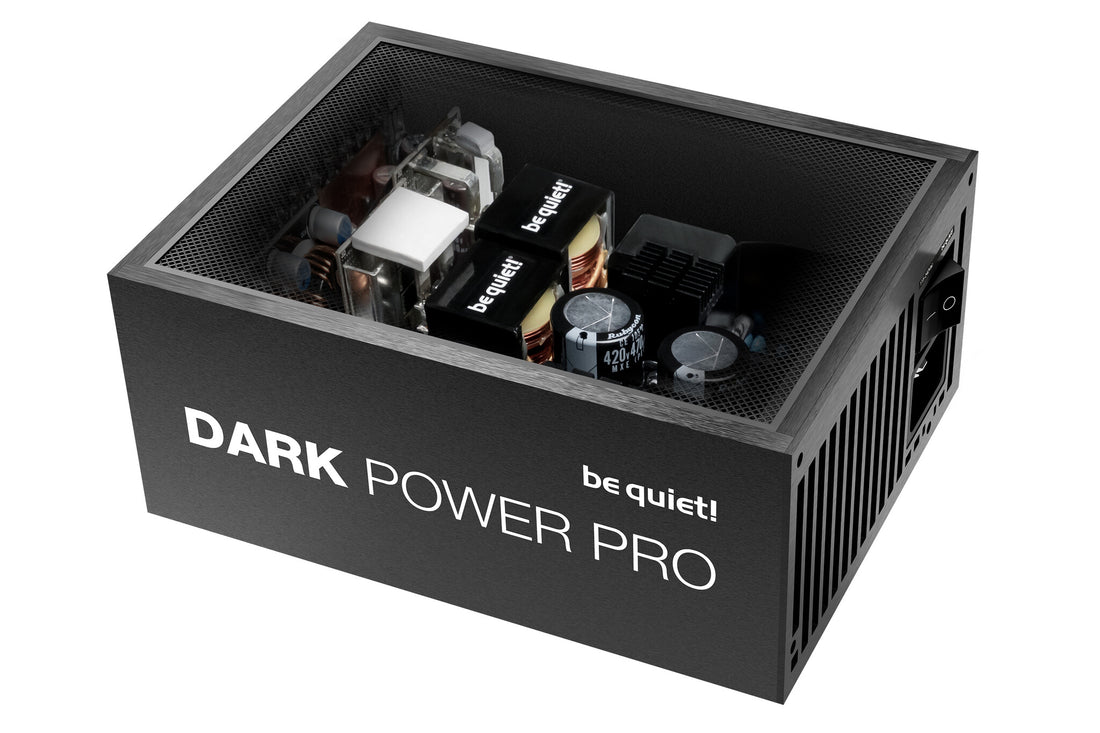

be quiet! Dark Power Pro 14 IO power supply unit 1600 W 20+4 pin ATX ATX Black
£437.99
Couldn't load pickup availability

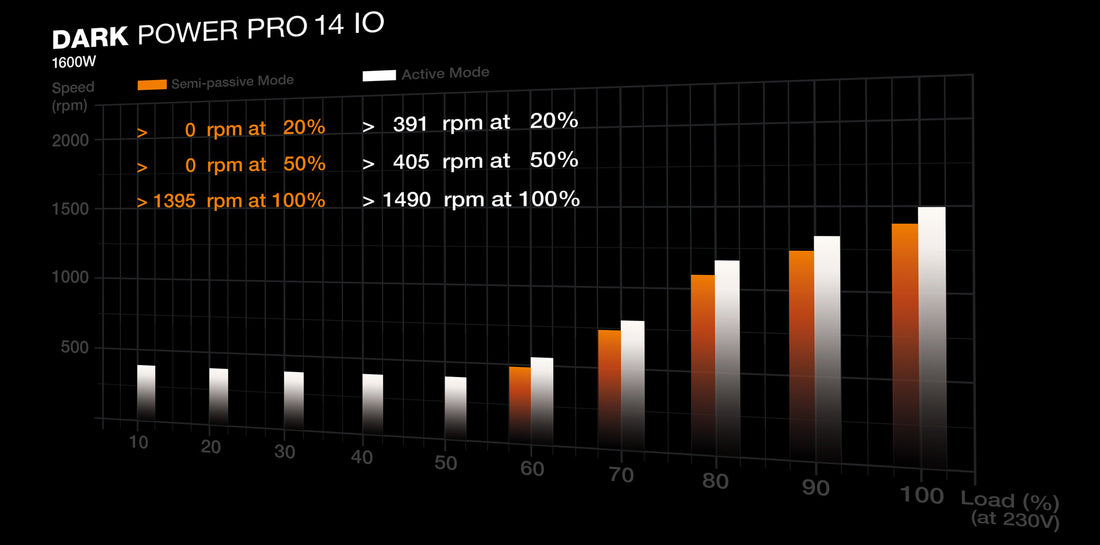

- Active and semi-passive cooling can be selected with the be quiet! IO Center software
- Aluminum heat sink to support the semi-passive cooling concept and improve longevity of the components
- 80 PLUS® Titanium and Cybenetics Titanium efficiency (up to 94.9%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2-pin connector
- Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability

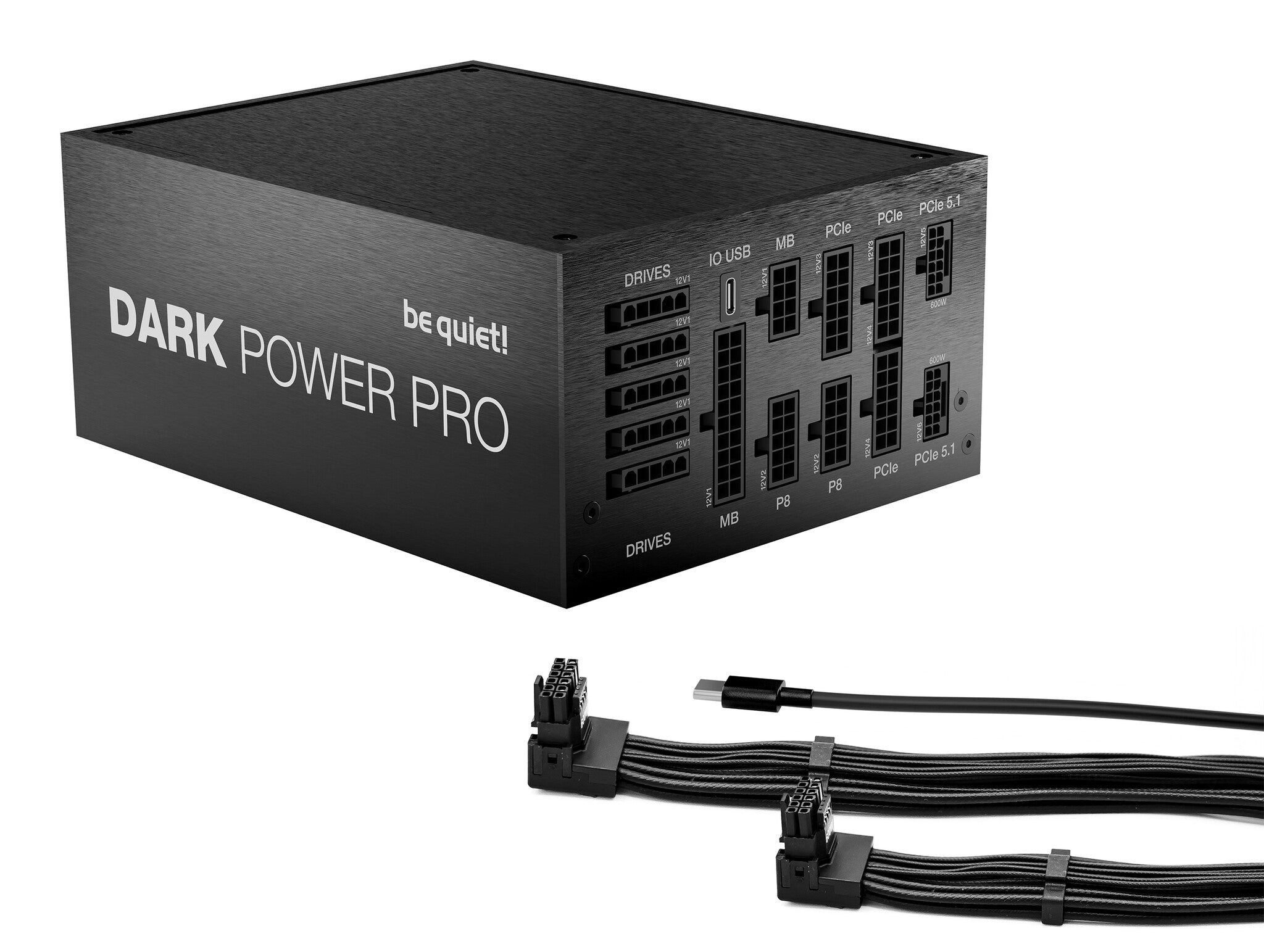

- Modular single sleeved cables for maximum convenience
CONTROL SILENCE AND PERFORMANCE

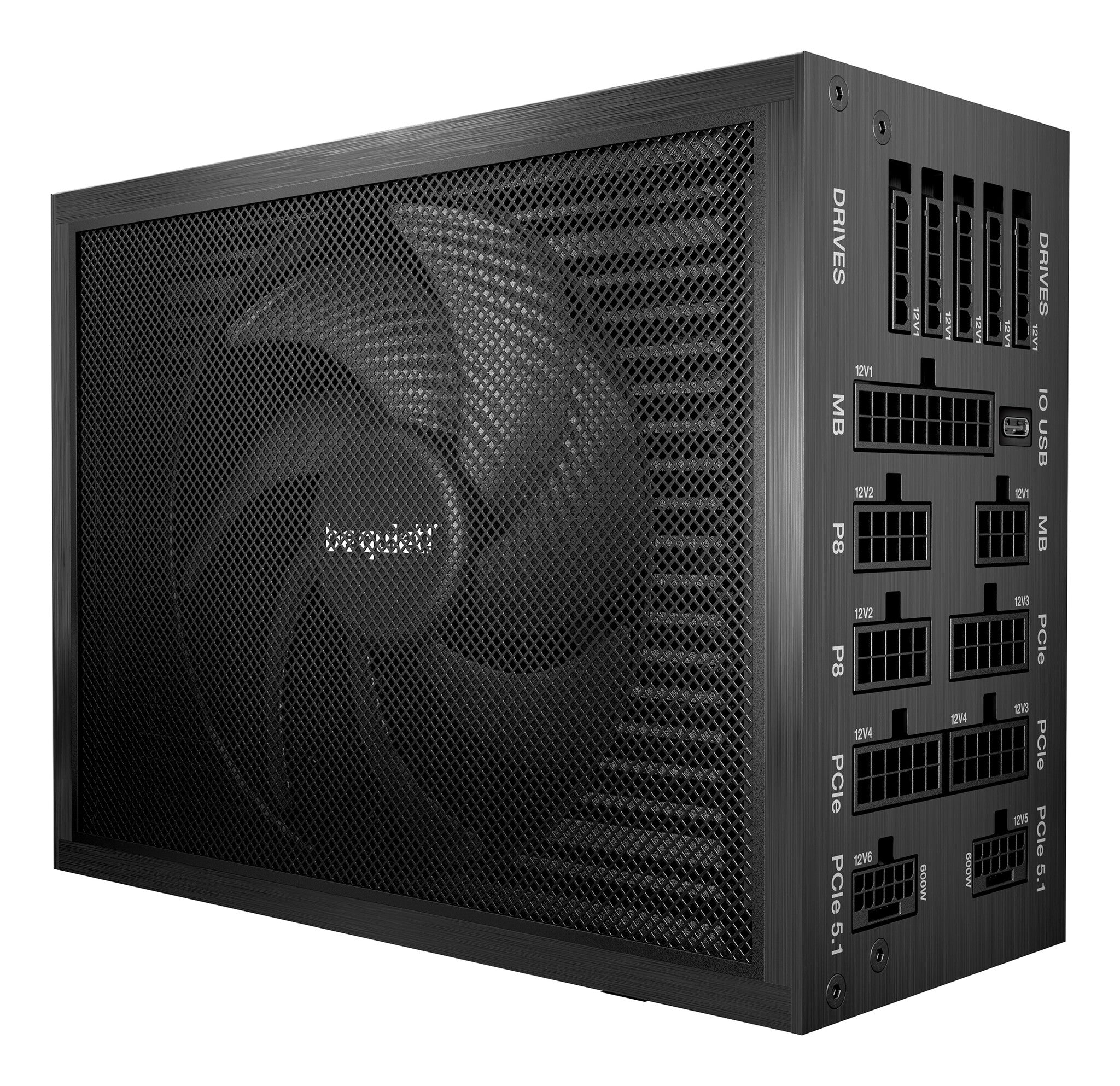

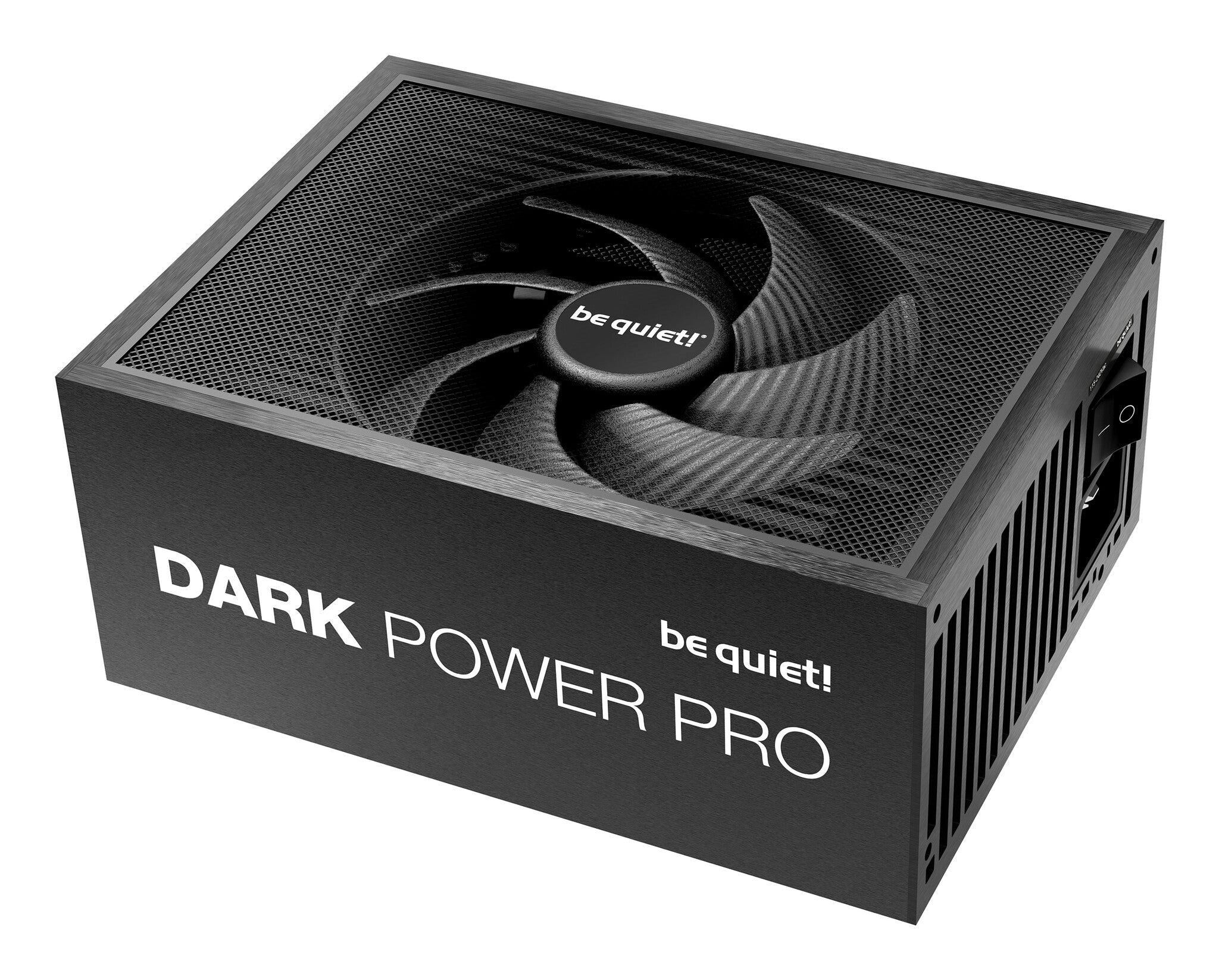

Dark Power Pro 14 IO 1600W features a high-performance heat sink design with an integrated fan that can be configured in the be quiet! IO Center software.
| Power | |
|---|---|
| Total power | 1600 W |
| Peak power | 1700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Maximum input current (@110V) | 15 A |
| Maximum input current (@220V) | 9 A |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 6 |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 40 A |
| Max output current (+12V2) | 40 A |
| Max output current (+12V4) | 45 A |
| Max output current (+12V3) | 45 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Efficiency | 93.4% |
| Hold time | 14.5 ms |
| Power protection features | Over current, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage, Over power |
| Ports & interfaces | |
|---|---|

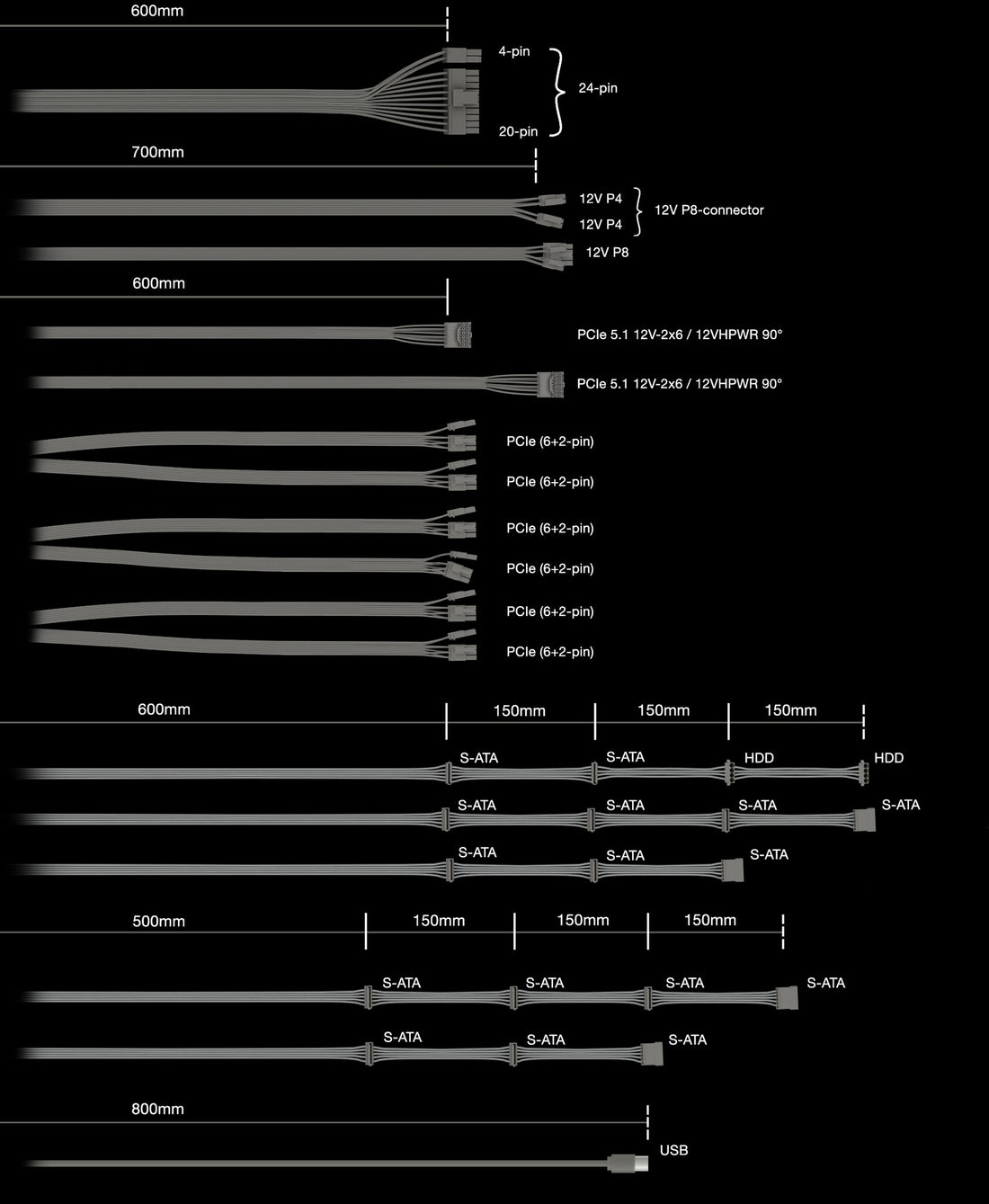

| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 16 |
| SATA power cable length | 600,750,900,1050 mm |
| Number of SATA power cables | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 900,1050 mm |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (12-pin) | 2 |
| PCI Express power cable length | 60 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| Cybenetics certification | Titanium |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 29.1 dB |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Design | |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2600 RPM |
| Illumination | No |
| On/off fan switch | Yes |
| On/off switch | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |

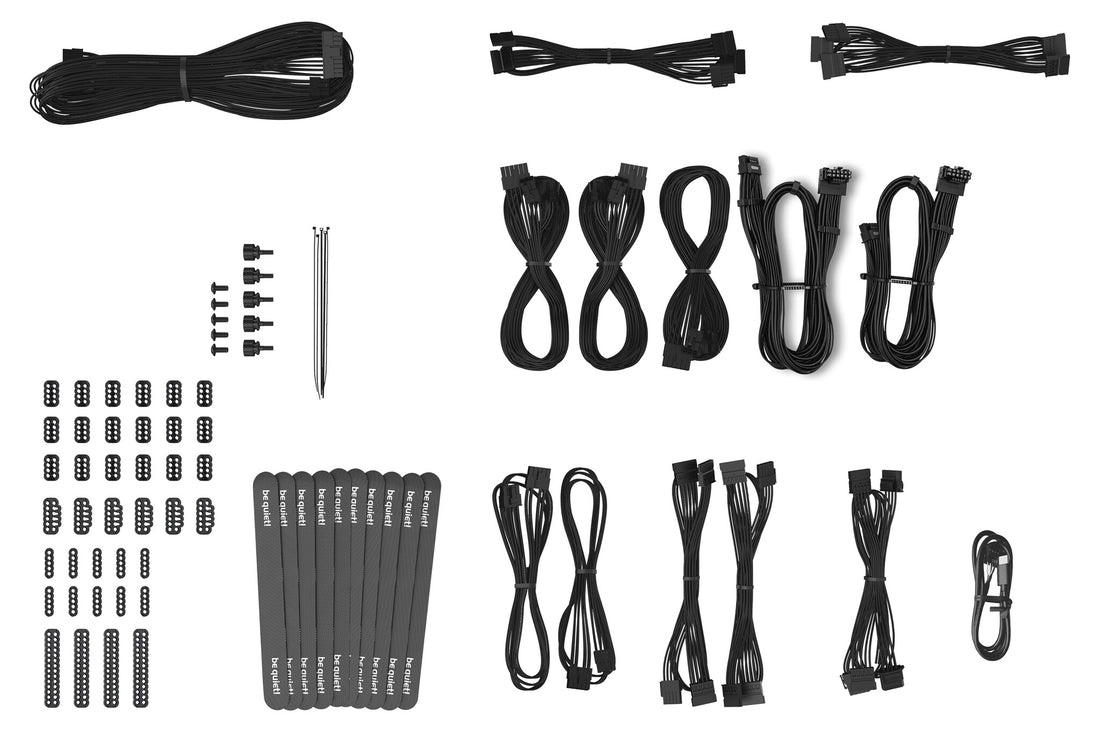

| Packaging content | |
|---|---|
| Cable tie(s) included | Yes |
| USB cable length | 0.8 m |
| Certificates | |
|---|---|
| Compliance certificates | CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus, BSMI, CCC, CE, RCM |
| Weight & dimensions | |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.63 kg |
| Packaging data | |
|---|---|
| Manual | Yes |
| Manual languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai |
| Package width | 253 mm |
| Package depth | 417 mm |
| Package height | 152 mm |
| Package weight | 6.68 kg |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
| Products per shipping (inner) case | 2 pc(s) |
| Shipping (inner) case net weight | 15.2 kg |
| Shipping (inner) case height | 28.3 cm |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case length | 44 cm |
| Other features | |
|---|---|
| Screws included | Yes |
| Cable ties included | Yes |
