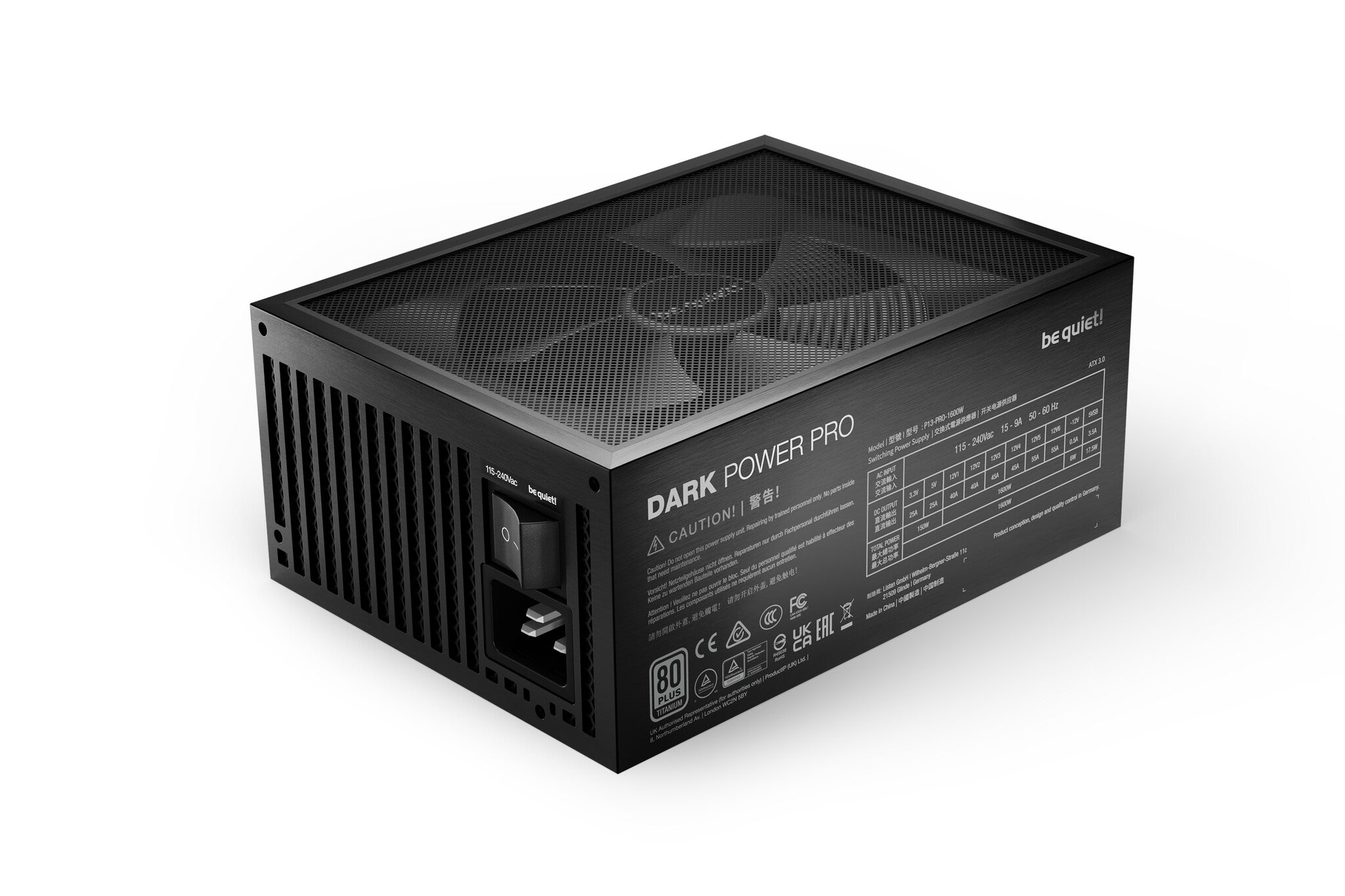

be quiet! Dark Power Pro 13 | 1600W power supply unit 20+4 pin ATX ATX Black
iFrame
£357.99
Couldn't load pickup availability
- 80 PLUS Titanium efficiency (up to 94.5%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Handles massive power excursions
- Fully digital control and Active Rectifier + full bridge LLC technology for unmatched signal stability

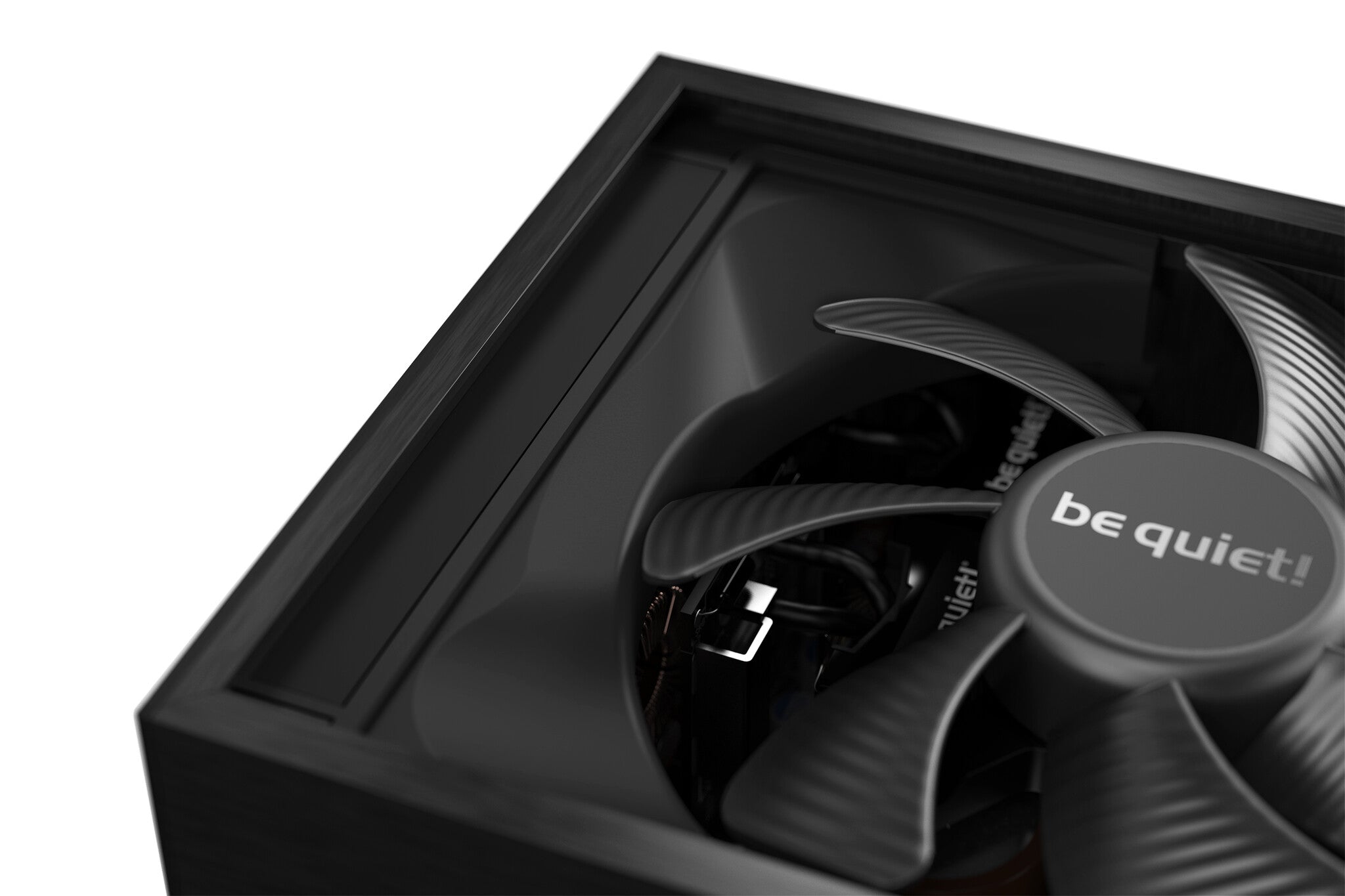

- Improved and patented frameless Silent Wings fan for virtually inaudible operation at ordinary loads

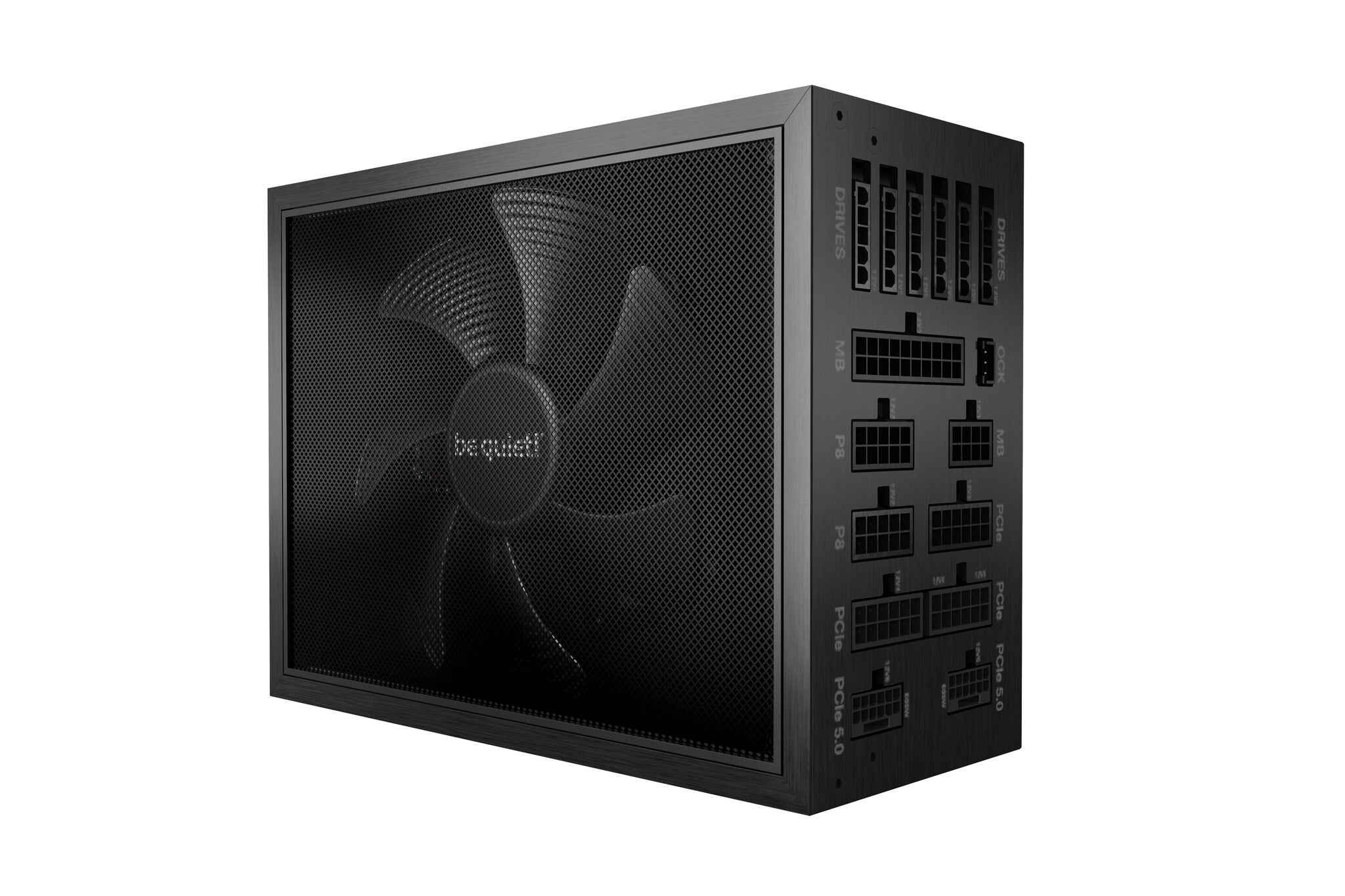

- Full mesh PSU front with funnel-shaped air inlet
- Overclocking key switches between six 12V rails and one massive 12V rail

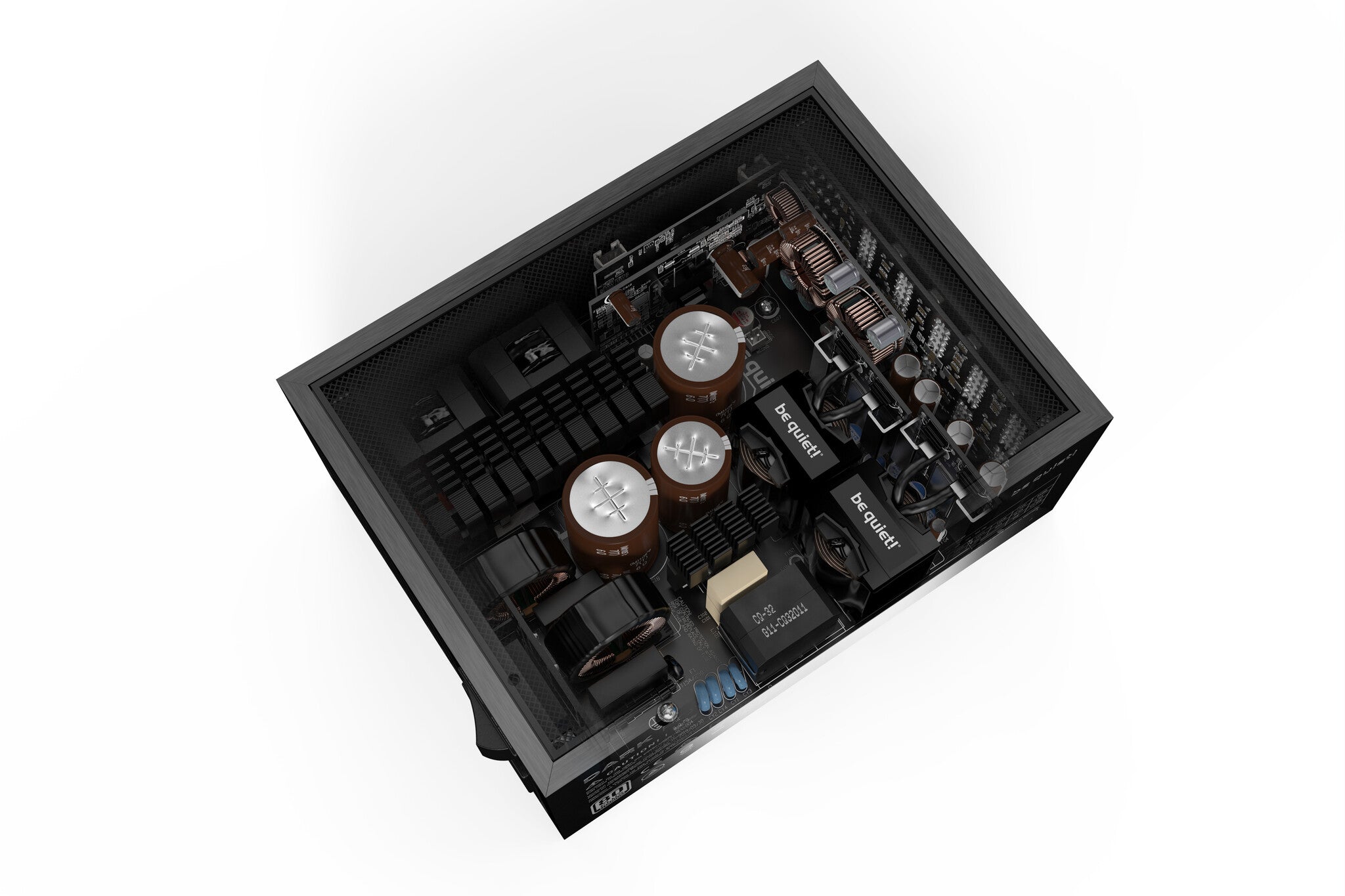

- Japanese 105°C capacitors ensure highest stability and reliability

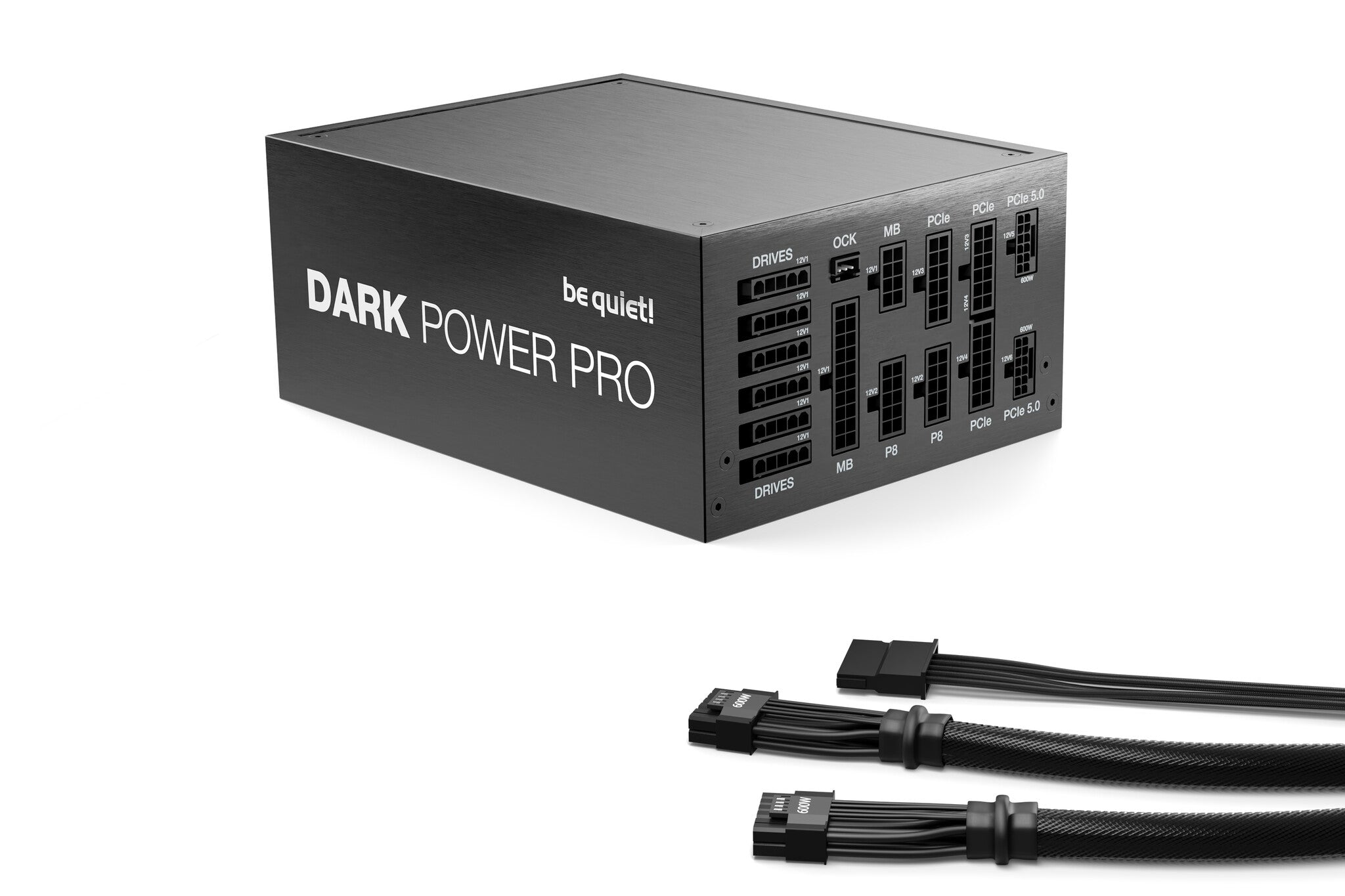

- 2 PCIe 5.1 12V-2x6 600W and 6 PCIe 6+2 connectors for overclocked high-end GPUs

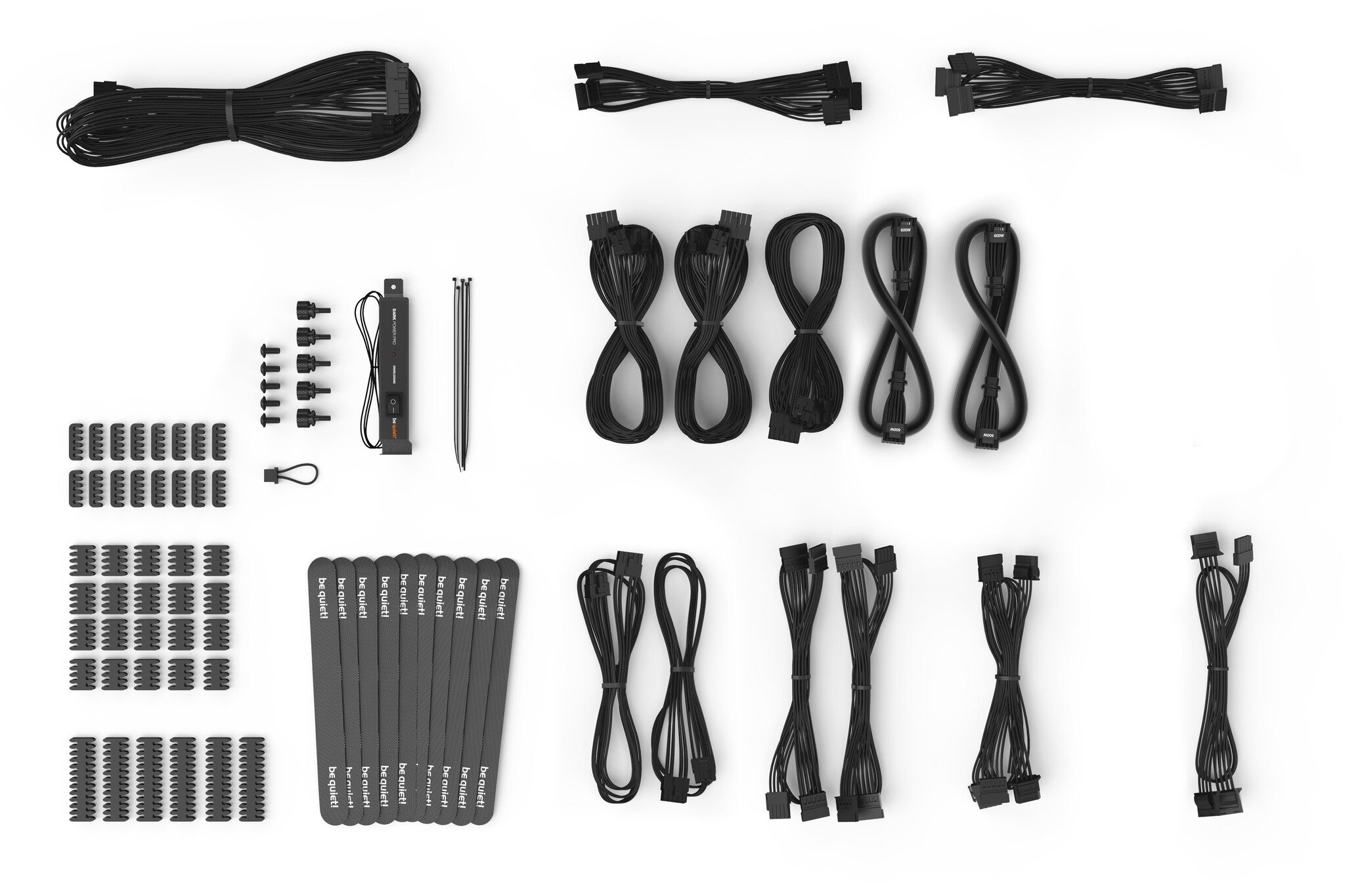

- Aluminum case and modular individually sleeved cables for magnificent appearance
CUTTING EDGE TECHNOLOGIES AND PERFORMANCE
The be quiet! Dark Power Pro 13 1600W offers 80 PLUS® Titanium efficiency and world-class performance due to fully digital control and a frameless fan concept. With the latest PCIe 5.1 compatibility it is predetermined as the ATX 3.1 power supply for your next-gen graphics card.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Hold time | 18 ms |
| Efficiency | 94.5% |
| Max output current (+5Vsb) | 3.5 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V3) | 45 A |
| Max output current (+12V4) | 45 A |
| Max output current (+12V2) | 40 A |
| Max output current (+12V1) | 40 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 17.5 W |
| Combined power (-12V) | 6 W |
| Combined power (+5V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+3.3V) | 150 W |
| Power factor | 0.99 |
| Input current | 15 - 9 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 115 - 240 V |
| Peak power | 1700 W |
| Total power | 1600 W |

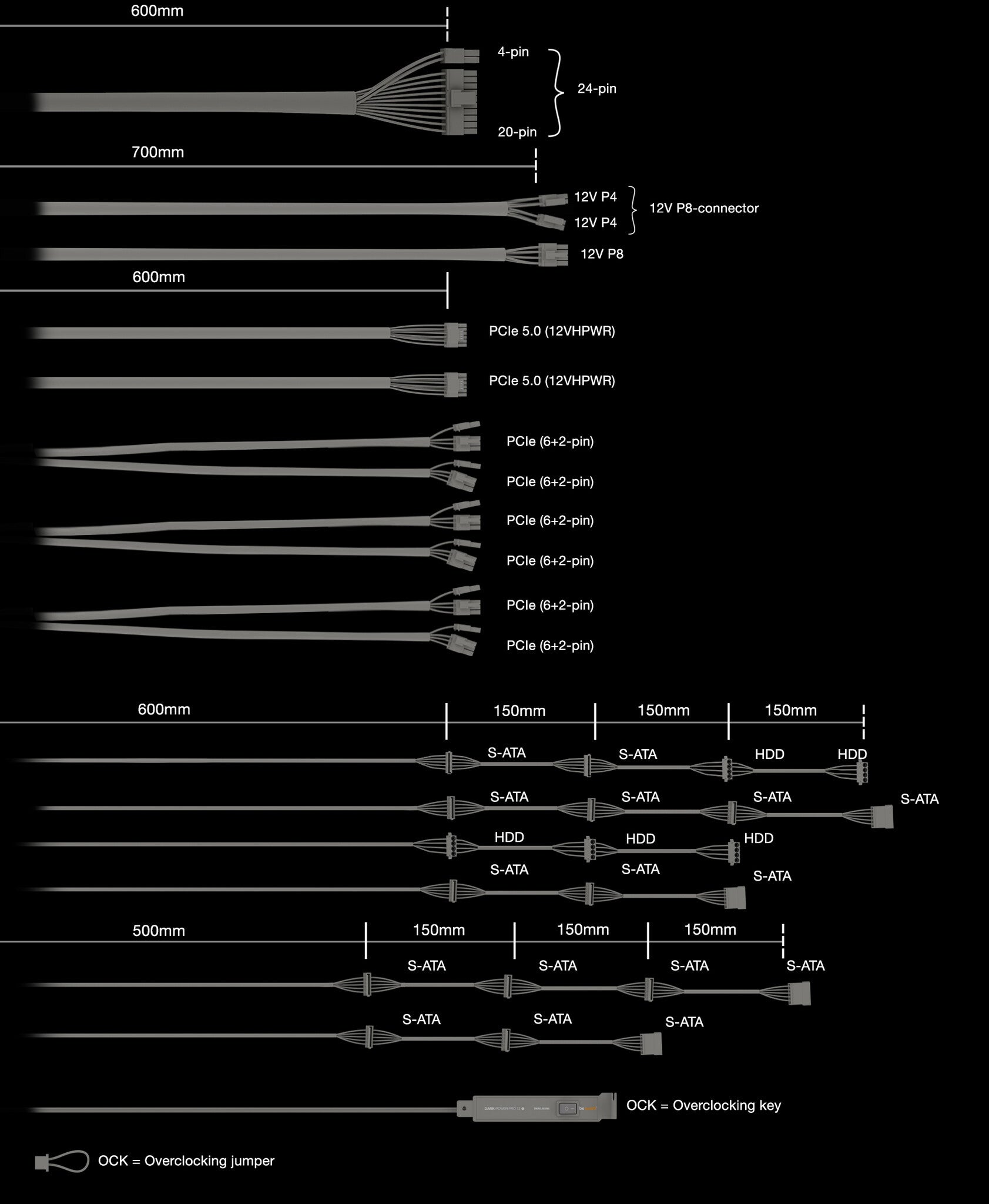

| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power cable length | 70 cm |
| PCI Express power cable length | 60 cm |
| PCI Express power connectors (6+2 pin) | 6 |
| EPS power connector (4+4 pin) | Yes |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power cable length | 600,750,900,1050 mm |
| SATA power cable length | 500,600,750,800,900,950,1050 mm |
| Number of PATA power connectors | 5 |
| Number of SATA power connectors | 16 |
| Motherboard power cable length | 60 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |

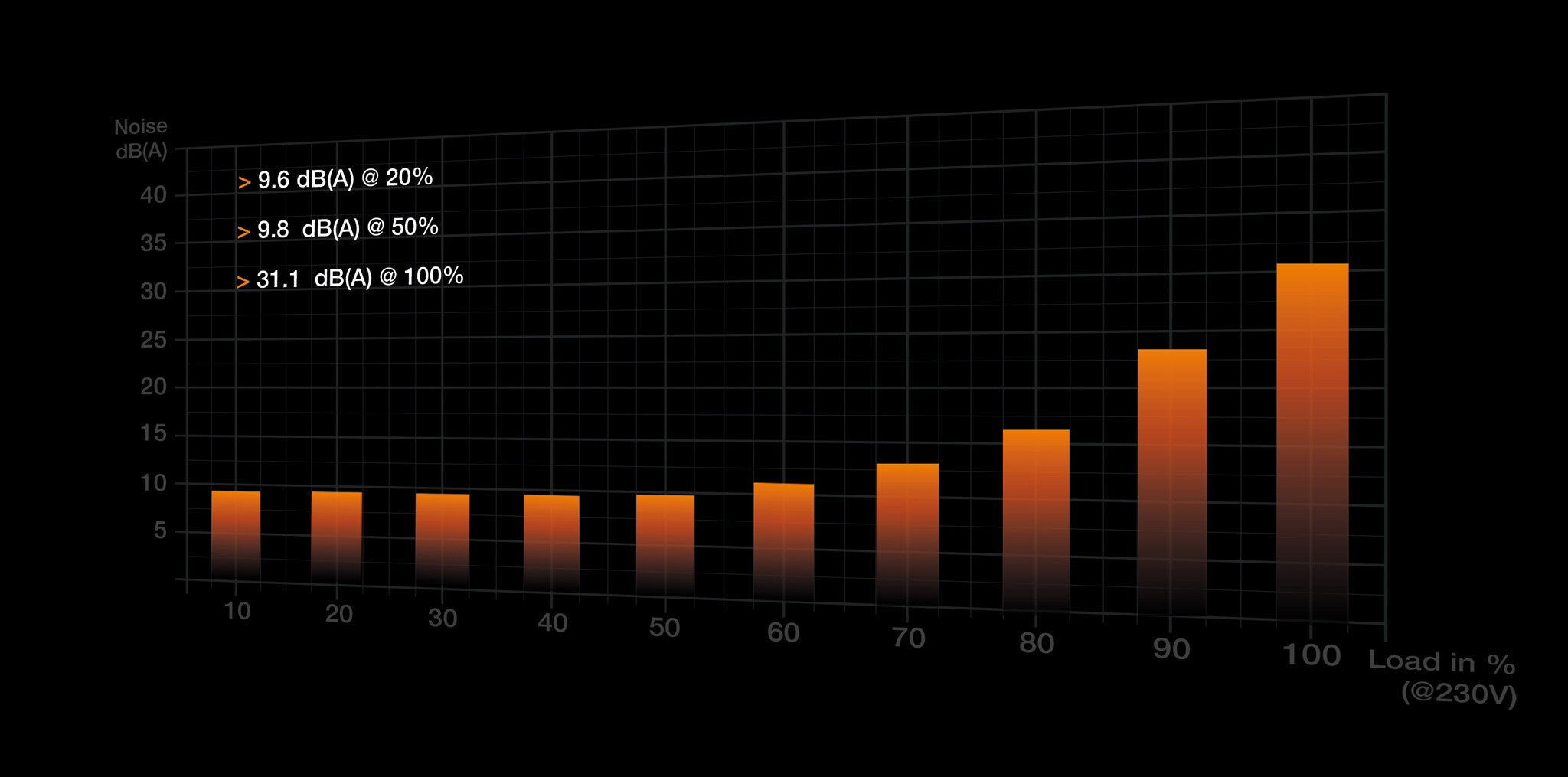

| Noise level | 31.1 dB |
| EPS version | 2.92 |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Titanium |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black |
| Certificates | |
|---|---|
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS, UKCA, WEEE |
| Packaging content | |
|---|---|
| Cable tie(s) included | Yes |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Weight & dimensions | |
|---|---|
| Weight | 2.44 kg |
| Height | 86 mm |
| Depth | 200 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package weight | 6.9 kg |
| Package height | 152 mm |
| Package depth | 417 mm |
| Package width | 253 mm |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Sustainability certificates | ENERGY STAR, ErP, Triman |
| Logistics data | |
|---|---|
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case height | 28.3 cm |
| Shipping (inner) case net weight | 14.6 kg |
| Products per shipping (inner) case | 2 pc(s) |
| Warranty period | 10 year(s) |
