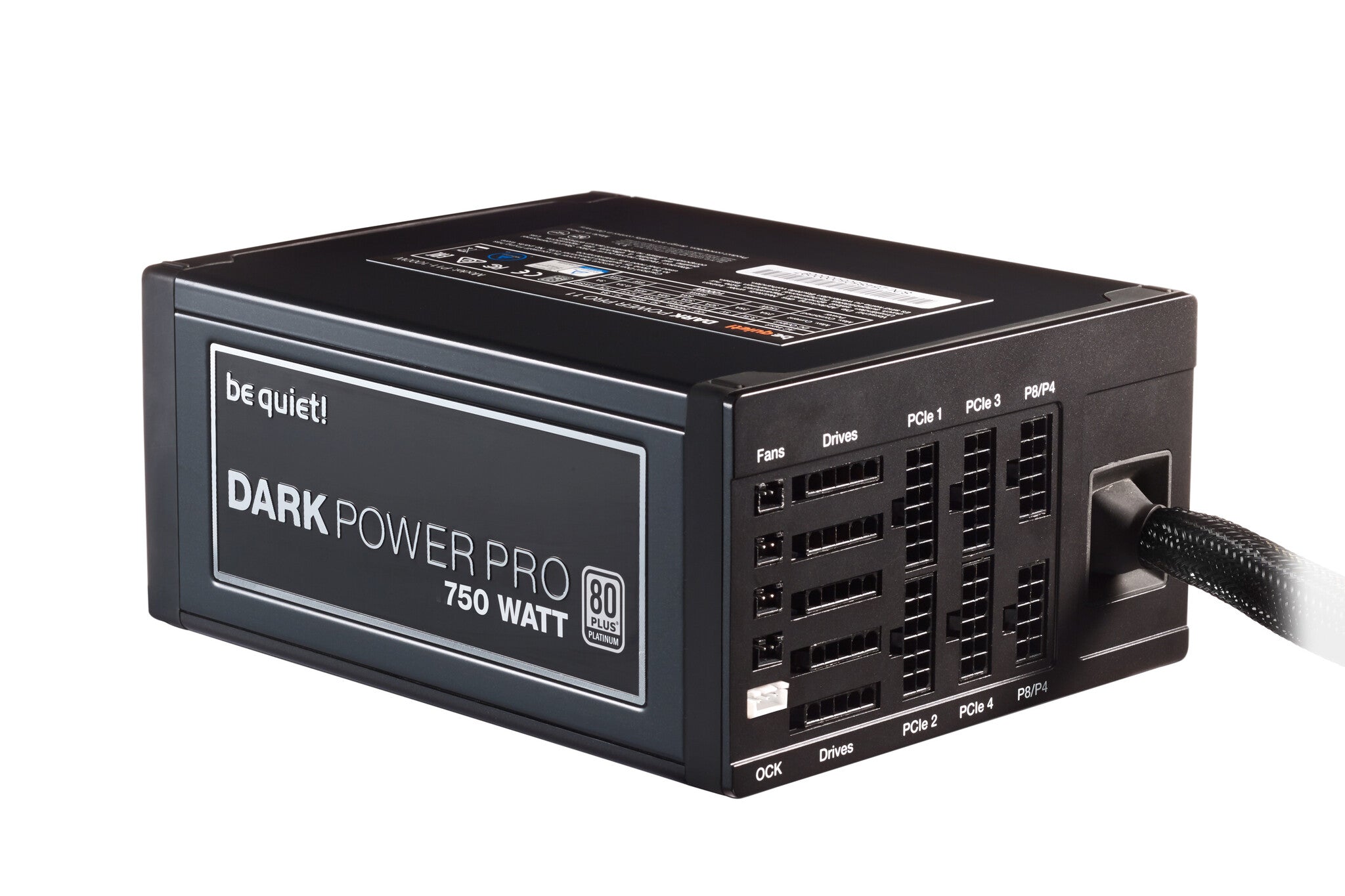

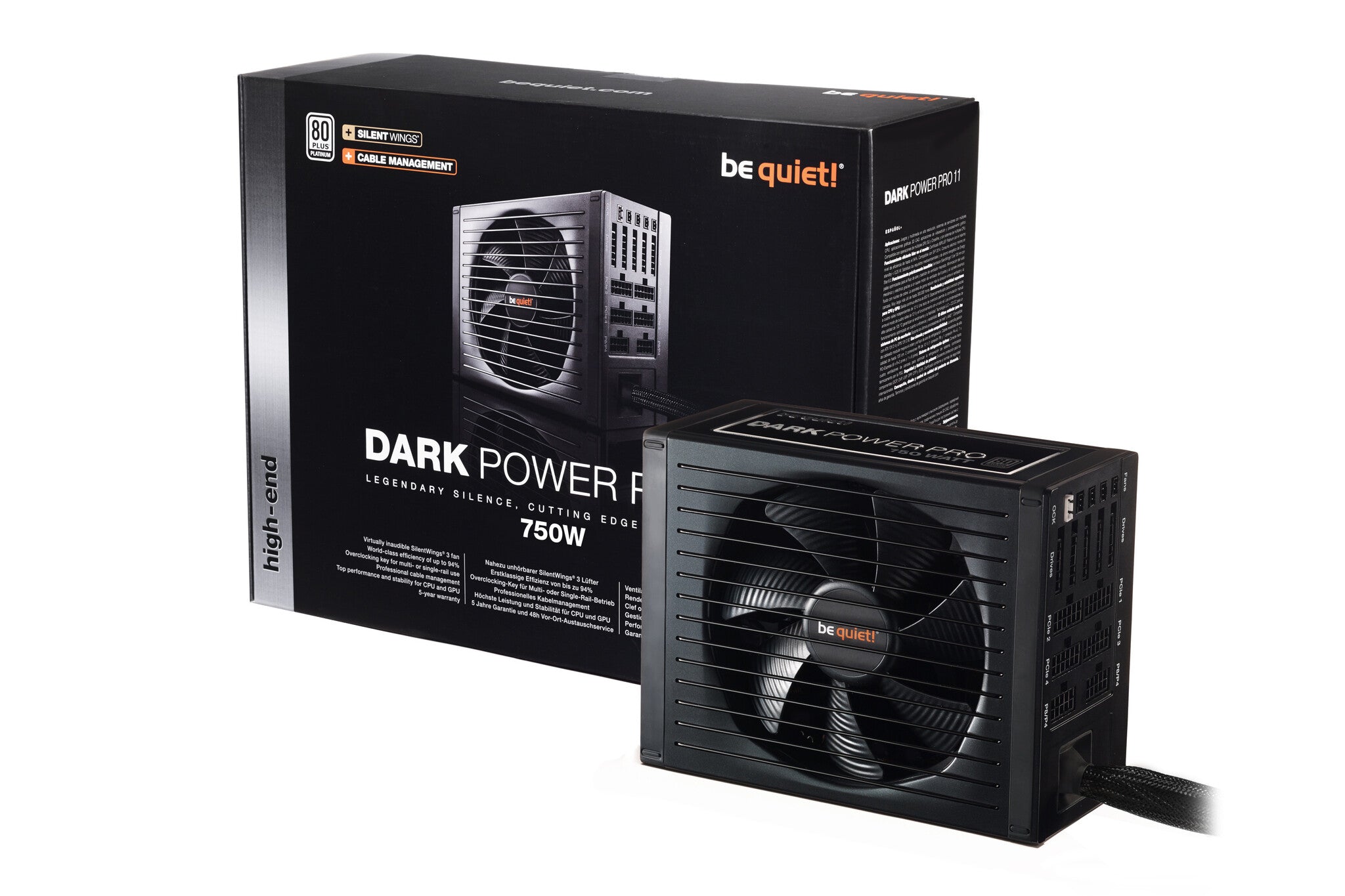

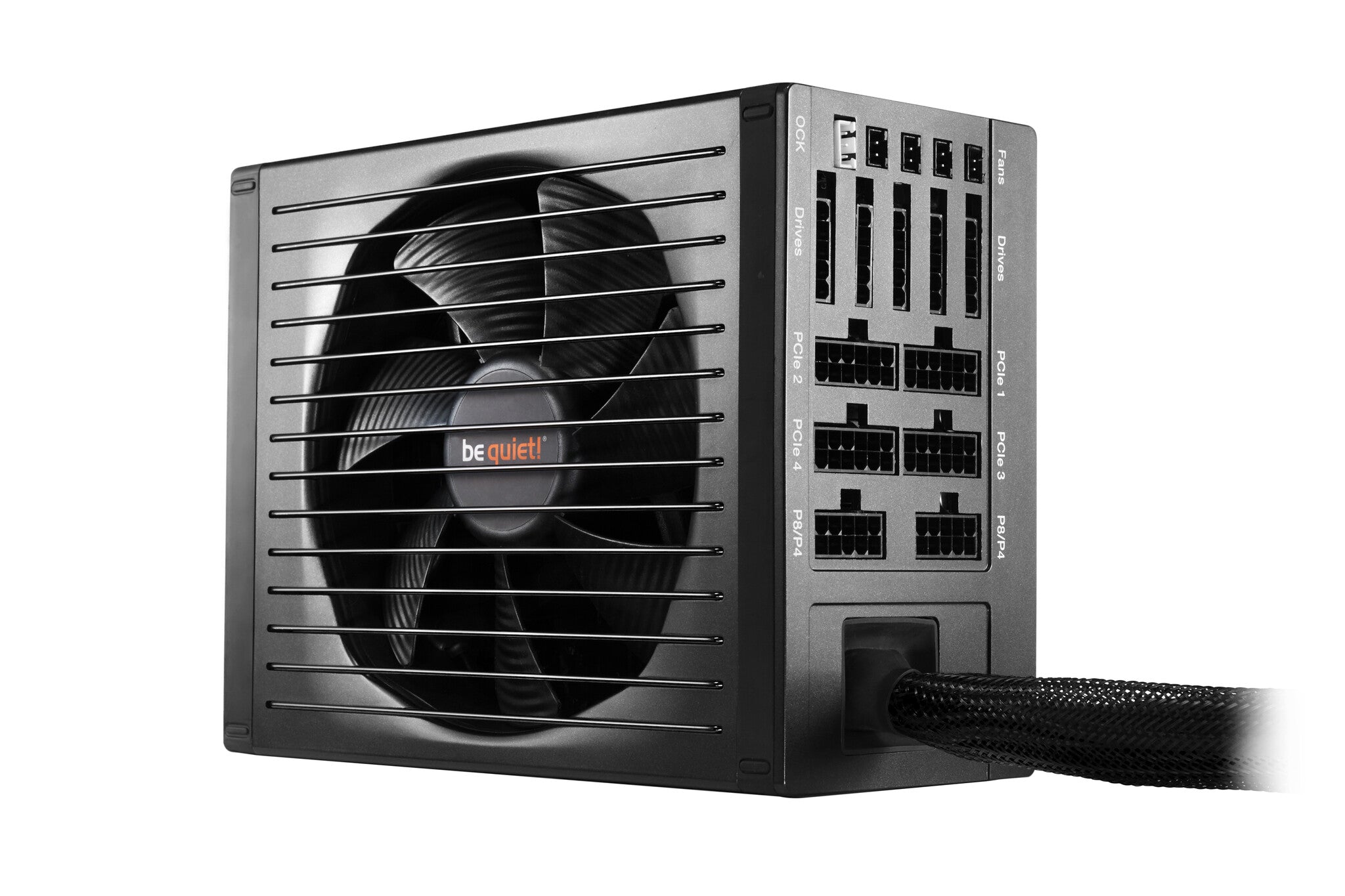

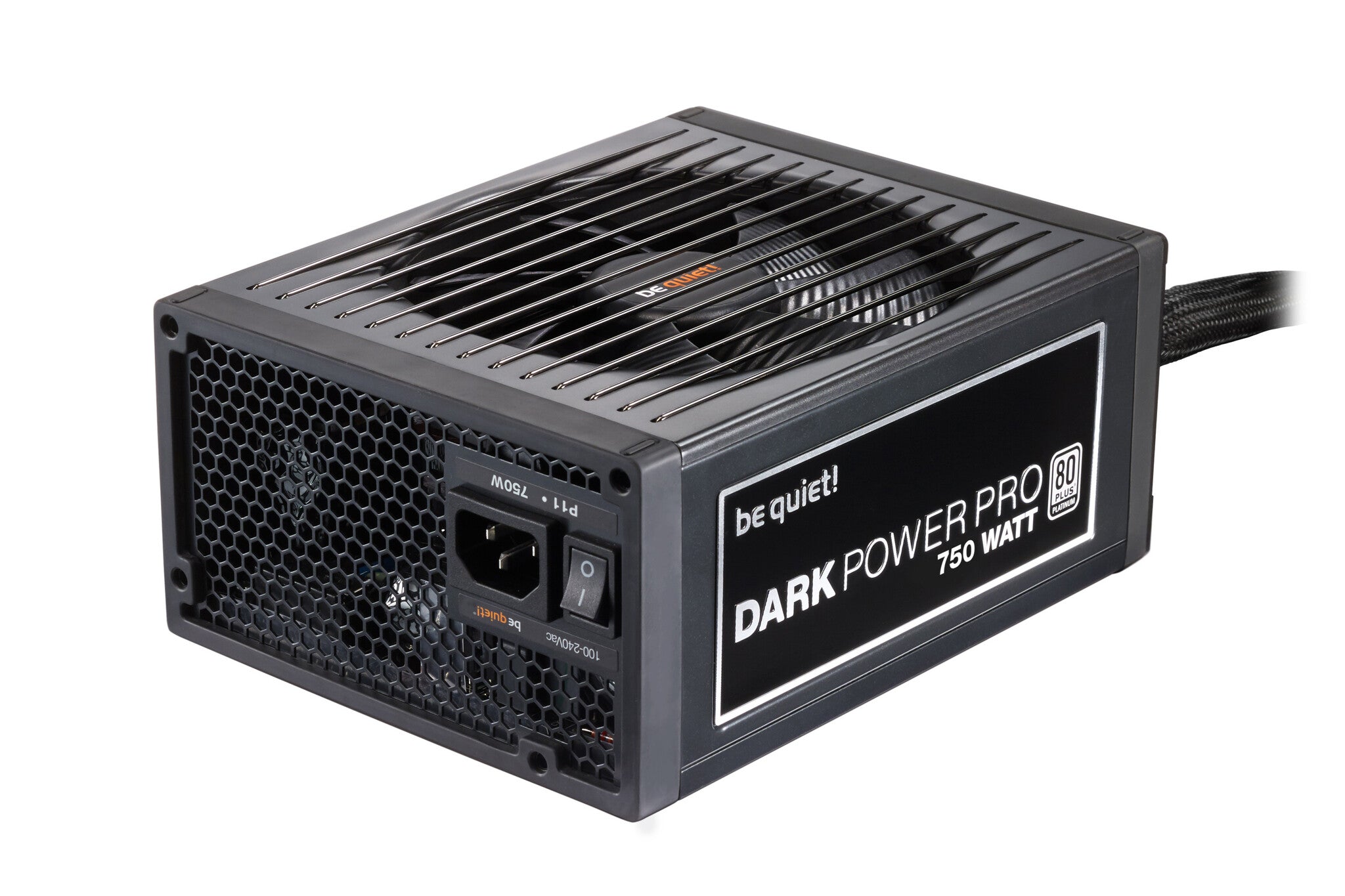

be quiet! Dark Power Pro 11 power supply unit 750 W 20+4 pin ATX ATX Black
Couldn't load pickup availability
- 750 W 100 - 240 V 50 - 60 Hz
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Platinum
- Active 13.5 cm 1800
- Black
Dark Power Pro 11 750W is be quiet!’s most advanced PSU ever, delivering 80PLUS® Platinum efficiency, effortless Quad-GPU support, and unmatched silence. The improved features include:
- 80PLUS® Platinum power efficiency and unmatched power stability (up to 94%) thanks to half bridge, LLC, SR and DC/DC technology
- Virtually inaudible SilentWings® 3 135mm fan with fluid-dynamic bearing
- 6-pole fan motor and IC motor control for smooth low-speed operation and reduced noise

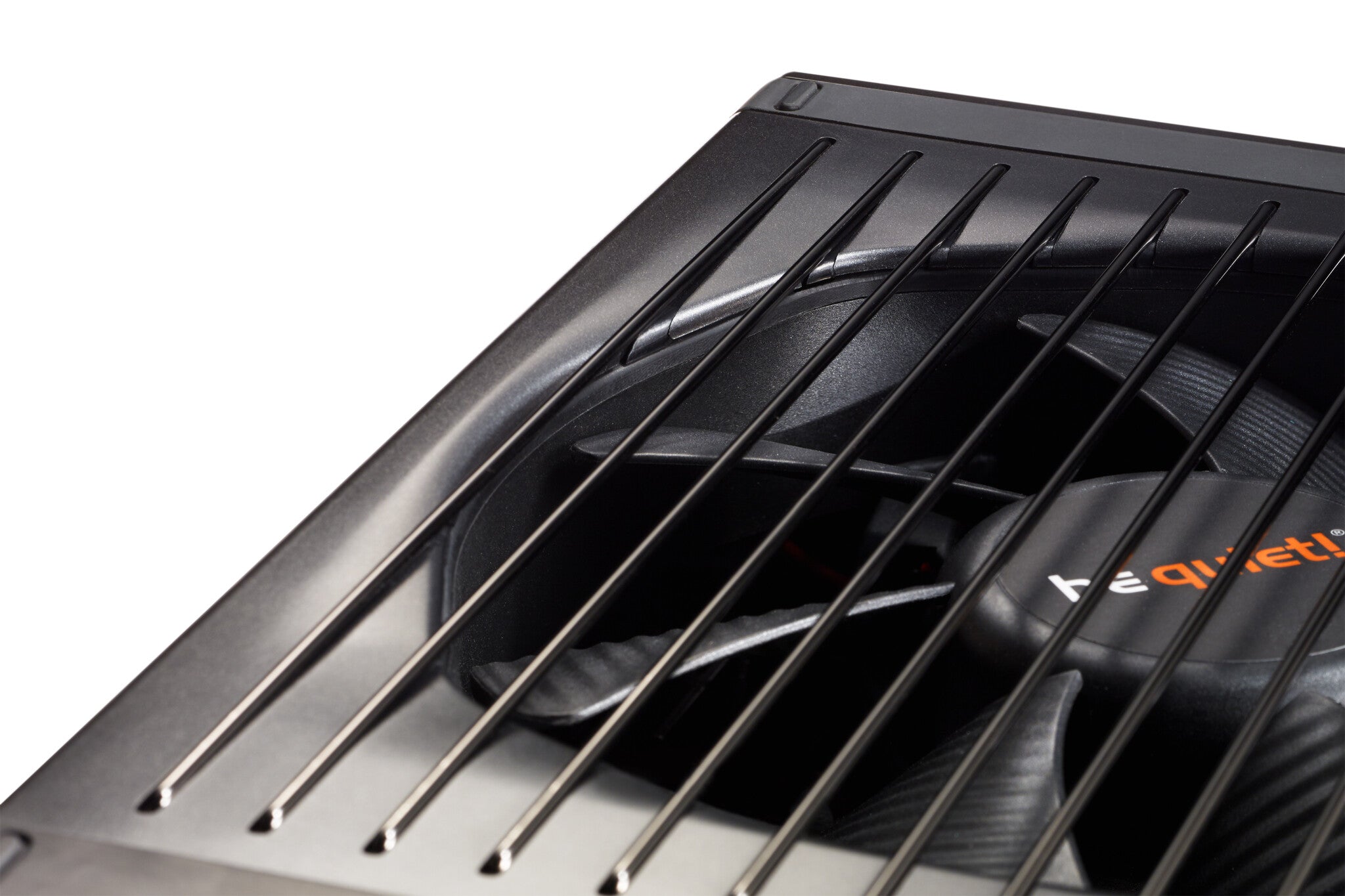

- Large funnel-shaped fan intake facilitates high airflow with less turbulence
- Isolation sleeve reduces transmission of vibrations to case
- Overclocking key switches between four 12V-rails and one massive 12V-rail

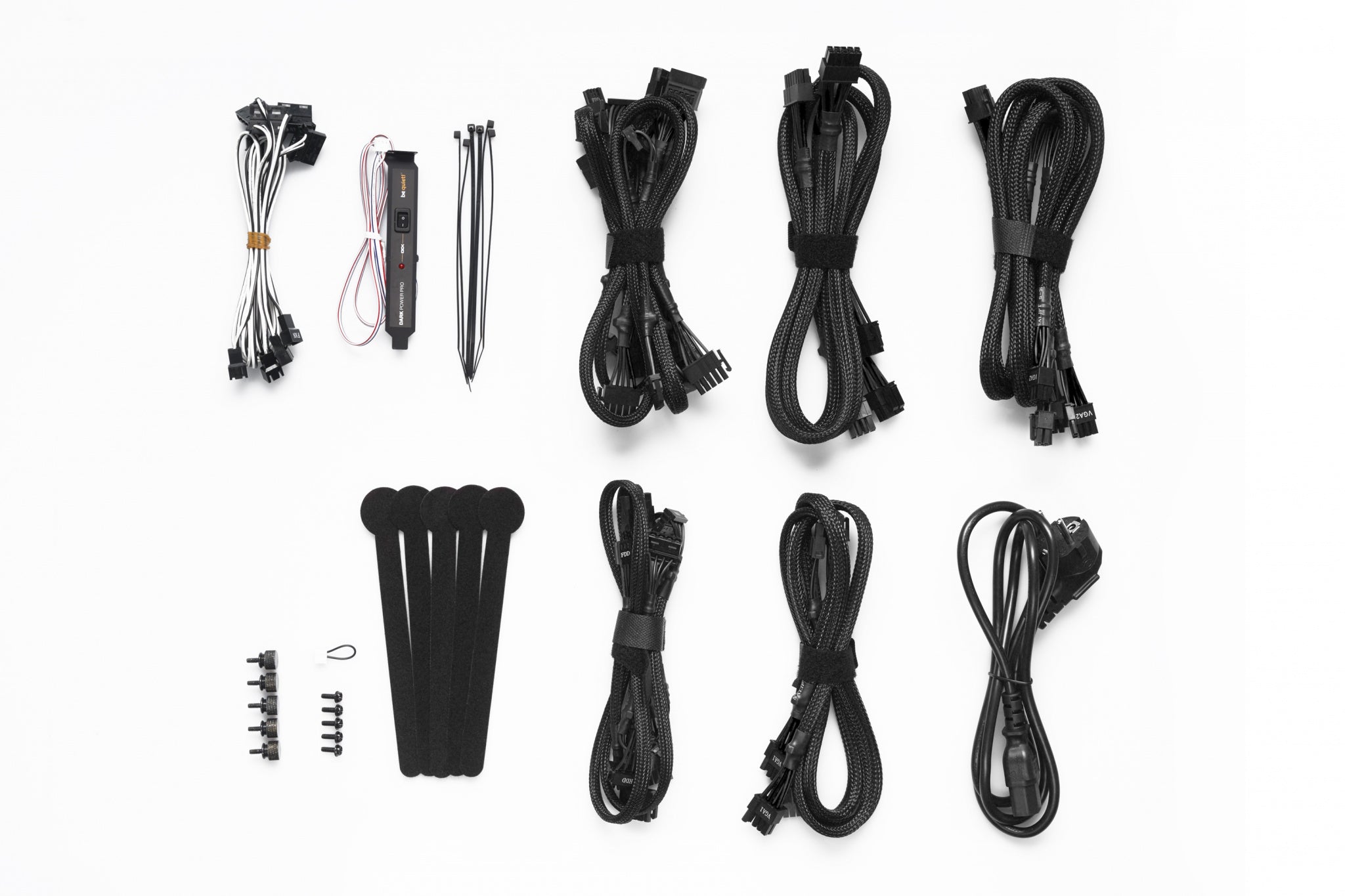

- User-friendly cable management reduces clutter, improves cooling
- Premium 105°C-rated capacitors maximize reliability
- Intelligent control for up to 4 case fans
- German product conception, design and quality control
Choose Dark Power Pro 11 750W and get the most technologically-advanced PSU be quiet! has ever built.
| Power | |
|---|---|
| Power protection features | Overheating, Under voltage, Over current, Over power, Over voltage, Short circuit |
| Hold time | 22.4 ms |
| Efficiency | 92.8% |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5V) | 25 A |
| Max output current (+12V3) | 30 A |
| Max output current (+12V4) | 30 A |
| Max output current (+12V2) | 25 A |
| Max output current (+12V1) | 25 A |
| Max output current (+12V) | 62 A |
| Max output current (+3.3V) | 25 A |
| Combined power (+5Vsb) | 15 W |
| Combined power (-12V) | 6 W |
| Combined power (+5V) | 140 W |
| Combined power (+12V) | 744 W |
| Combined power (+3.3V) | 140 W |
| Power Factor Correction (PFC) type | Active |
| Power factor | 0.99 |
| Maximum input current (@110V) | +5Vsb,+12V1,-12V,+12V2,+3.3V,+12V3,+12V4,+5V |
| Input current | 7 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Peak power | 850 W |
| Total power | 750 W |
| Ports & interfaces | |
|---|---|
| Cabling type | Semi-Modular |
| CPU power connectors (8-pin) | 1 |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| PCI Express power connectors (6-pin) | 1 |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| Number of SATA power connectors | 8 |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 180000 h |
| Noise level | 19.9 dB |
| EPS version | 2.92 |
| ATX version | 2.4 |
| 80 PLUS certification | 80 PLUS Platinum |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| On/off switch | Yes |
| Fan location | Top |
| Fan speed | 1800 |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Cooling type | Active |
| Product colour | Black |
| Certificates | |
|---|---|
| Certification | CE, CB, TÜV, FCC, cTUVus, RCM (Australia), CU (Russia) |
| Compliance certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 2.15 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 180 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.7 kg |
| Package height | 118 mm |
| Package depth | 272 mm |
| Package width | 348 mm |
| Manual | Yes |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Other features | |
|---|---|
| Cable management | Yes |
| Warranty card | Yes |
| Noise level (full-load mode, 100%) | 19.9 dB |
| Noise level (quiet mode, 50%) | 9.5 dB |
| Noise level (silent mode, | 8.7 dB |
