Axis TX1204 InfiniBand/fibre optic cable 10 m 4x LC LC Black
Couldn't load pickup availability
- For use with AXIS TX1401
- Certified for ATEX, IECEx and INMETRO
- Halogen-free, flame-retardant cable
Designed for use in hazardous areas, this kit is ideal for industrial applications in dry, wet, or damp locations. It enables secure connection of an explosion-protected device to AXIS TX1401 Fiber Optic Cable Splice Box.
Secure connections in hazardous areas

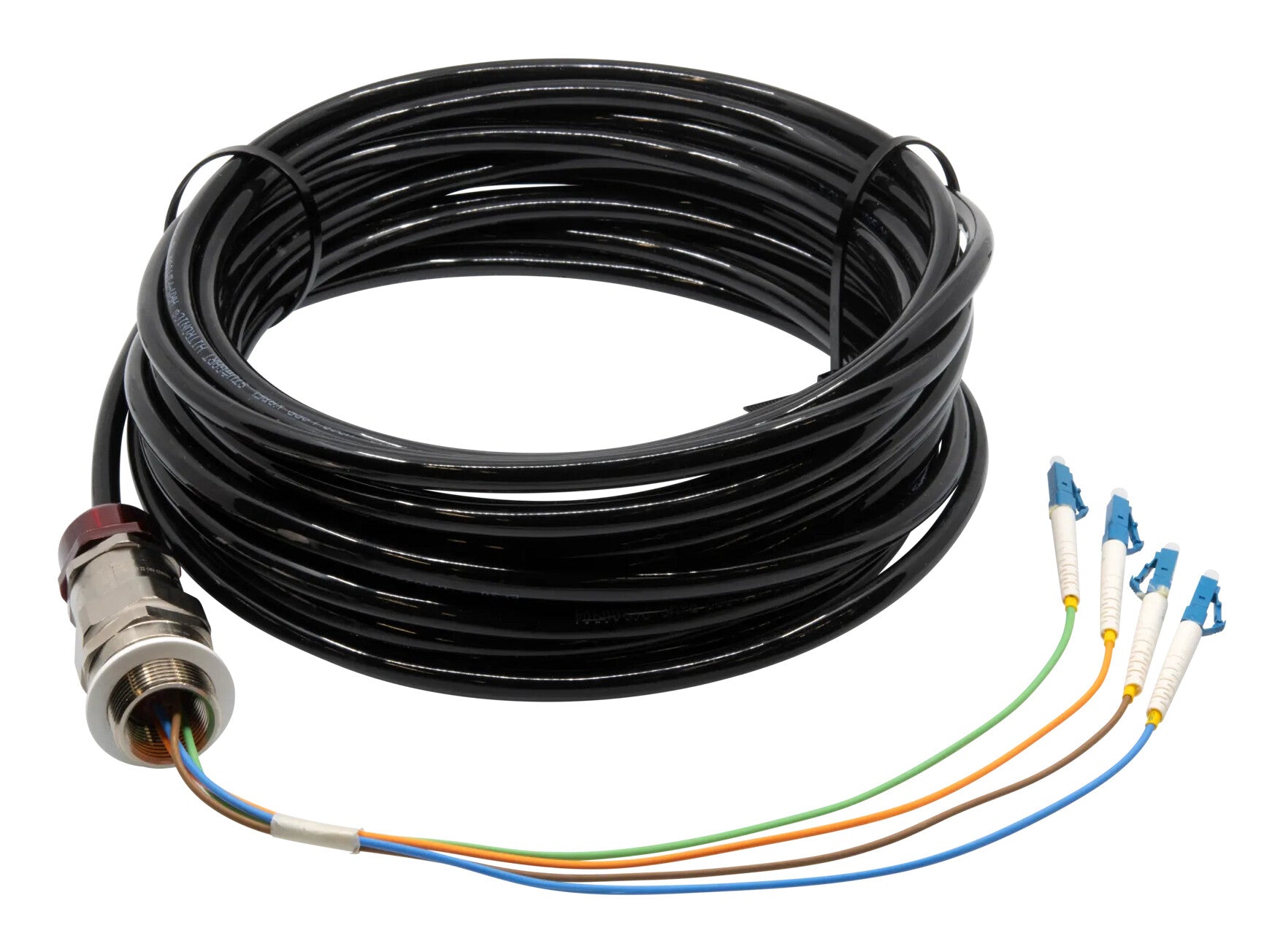

This single mode fiber optic cable kit includes a halogen-free and flame-retardant breakout cable (5 m (16.4 ft) or 10 m (32.8 ft)), that can withstand mechanical stress. It also comes with an Ex d barrier gland which allows you to insert the breakout cable directly into flameproof enclosures, providing a safe and reliable solution for hazardous environments. The kit also includes an M25-to-M20 cable gland adapter. What’s more, it complies with IEC EN 60079-14 requirements for cable installation and wiring in hazardous areas.
| Features | |
|---|---|
| Cable length | 10 m |
| Cable type | LC |
| Fibre optic type | OS2 |
| Cable shape | Round |
| Connector 1 | No |
| Connector 2 | 4x LC |
| Connector 2 gender | Male |
| Connector 1 gender | No |
| Product colour | Black |
| Core diameter | 9 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Single-mode |
| Wavelengths supported | 1260 nm |
| Jacket material | Low smoke zero halogen (LSZH), Polyurethane (PUR) |
| Sustainability | |
|---|---|
| Doesn't contain | Halogen, PVC, Brominated Flame Retardant (BFR), CFR |
| Certificates | |
|---|---|
| Compliance certificates | IECEx, ATEX, cULus, UL, PESO, CCC, RoHS, REACH, IA, KCs, cCSA, INMETRO |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
|---|---|
| Cable diameter | 7.8 mm |
| Weight | 750 g |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
