Axis S1216 Black
Couldn't load pickup availability
- Channels quantity: 96 channels
- USB connectivity
- HDD interface: SATA
- Built-in processor
- 16000 MB
- 120 W
- Black

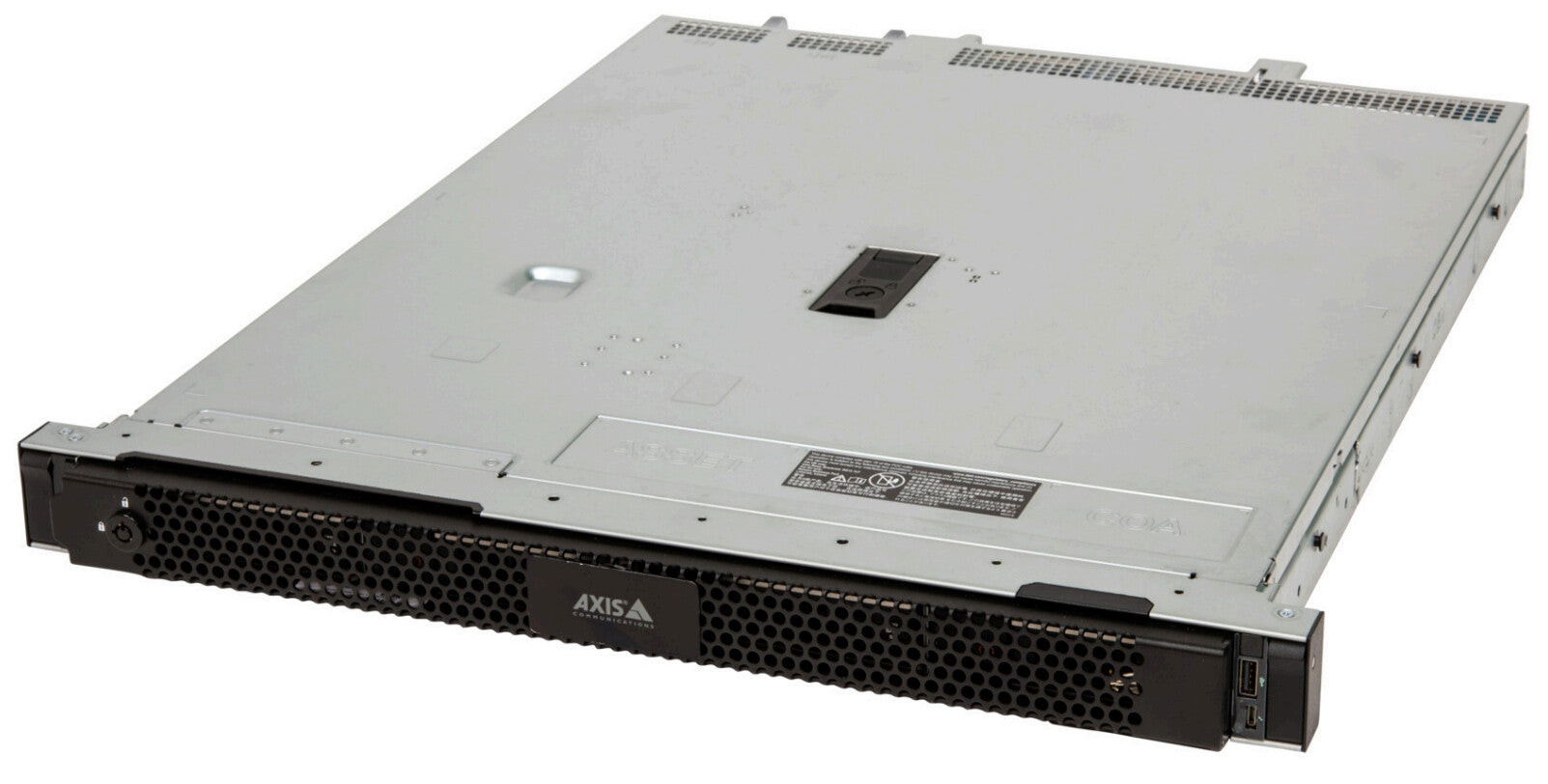

AXIS Camera Station S1216 Rack Recording Server
Featuring powerful components, AXIS S1216 Rack offers high performance and support for powerful applications and features. This secure, scalable recording server includes AXIS Camera Station Pro licenses and several empty hard drive bays for flexible storage configurations. It uses a Trusted Platform Module (FIPS 140-2 level 2 certified) to encrypt both the operating system drive and stored video, comes preloaded with pre-configured software and 8 TB of storage. Plus, all supported products are available in one price list for a one-stop-shop experience. Furthermore, it offers services such as Keep Your Hard Drive, Next Business Day Onsite Support, and a 5-year warranty.
| Performance | |
|---|---|
| Video capturing speed | 30 fps |
| Operating system installed | Windows 11 IoT Enterprise |
| Input bandwidth | 256 Mbit/s |
| USB connectivity | Yes |
| Channels quantity | 96 channels |
| Product colour | Black |
| Rack capacity | 1U |
| Certification | EN 55035, EN 55024, EN 55032 Class A, EN 61000–3–2, EN 61000–3–3, RCM AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A, KS C 9547, KS C 9815, KS C 9835, KS C 9832 Class A, FCC Part 15 Subpart B Class A, CNS 15936, IEC 62236-4 |
| Ports & interfaces | |
|---|---|
| Video input channels | 32 channels |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| Hard drive | |
|---|---|
| Number of HDDs supported | 4 |
| HDD interface | SATA |
| HDD capacity | 8 TB |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Solid state drive | |
|---|---|
| Number of SSDs installed | 1 |
| SSD capacity | 240 GB |
| Processor | |
|---|---|
| Built-in processor | Yes |
| Memory | |
|---|---|
| Internal memory | 16000 MB |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 90 W |
| Power consumption (max) | 120 W |
| Weight & dimensions | |
|---|---|
| Width | 482 mm |
| Depth | 598.6 mm |
| Height | 42.8 mm |
| Weight | 9.2 kg |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Technical details | |
|---|---|
| Compliance certificates | REACH, RoHS, Trade Agreements Act (TAA) |
