Axis · MPN: 02977-002
£3,824.99
inc. VAT
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,274.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Connectivity technologyWired
  • Internal memory4096 MB
  • Weight4.4 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview

  • 1/2" sensor with 31x optical zoom
  • Forensic WDR, Lightfinder, and OptimizedIR
  • Next-generation AI-powered analytics
  • Axis Zipstream with AV1, H.264, H.265
  • Built-in cybersecurity with Axis Edge Vault

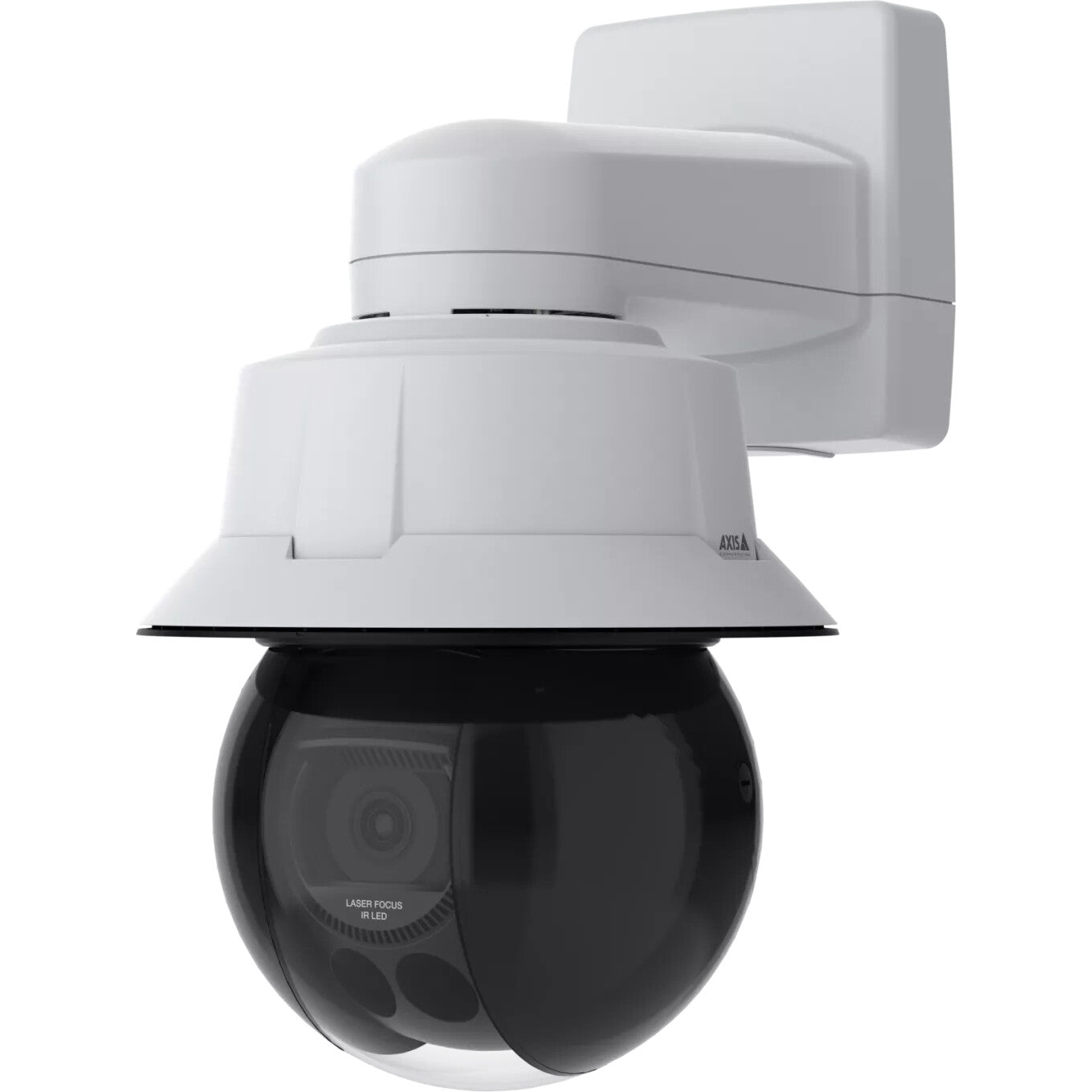

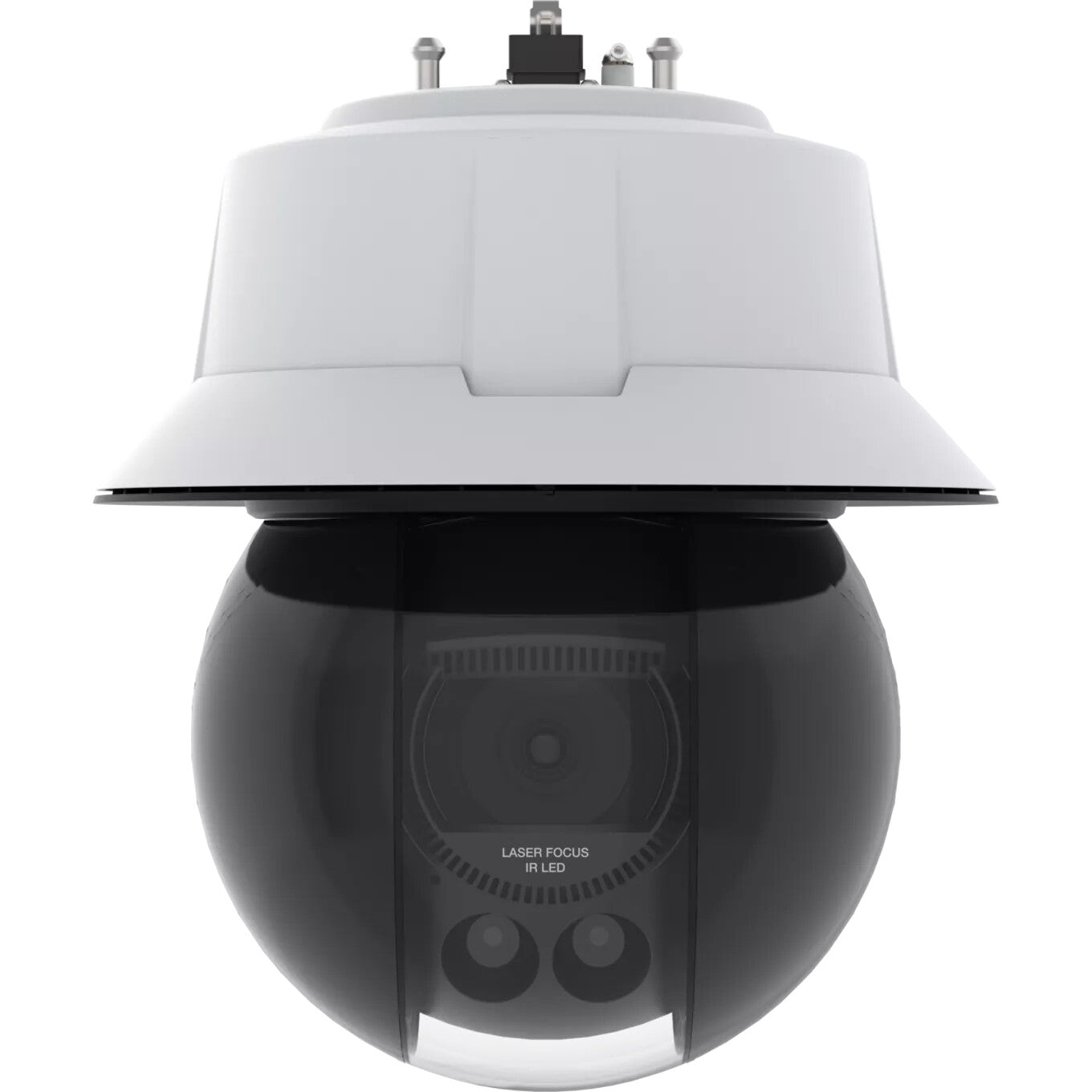

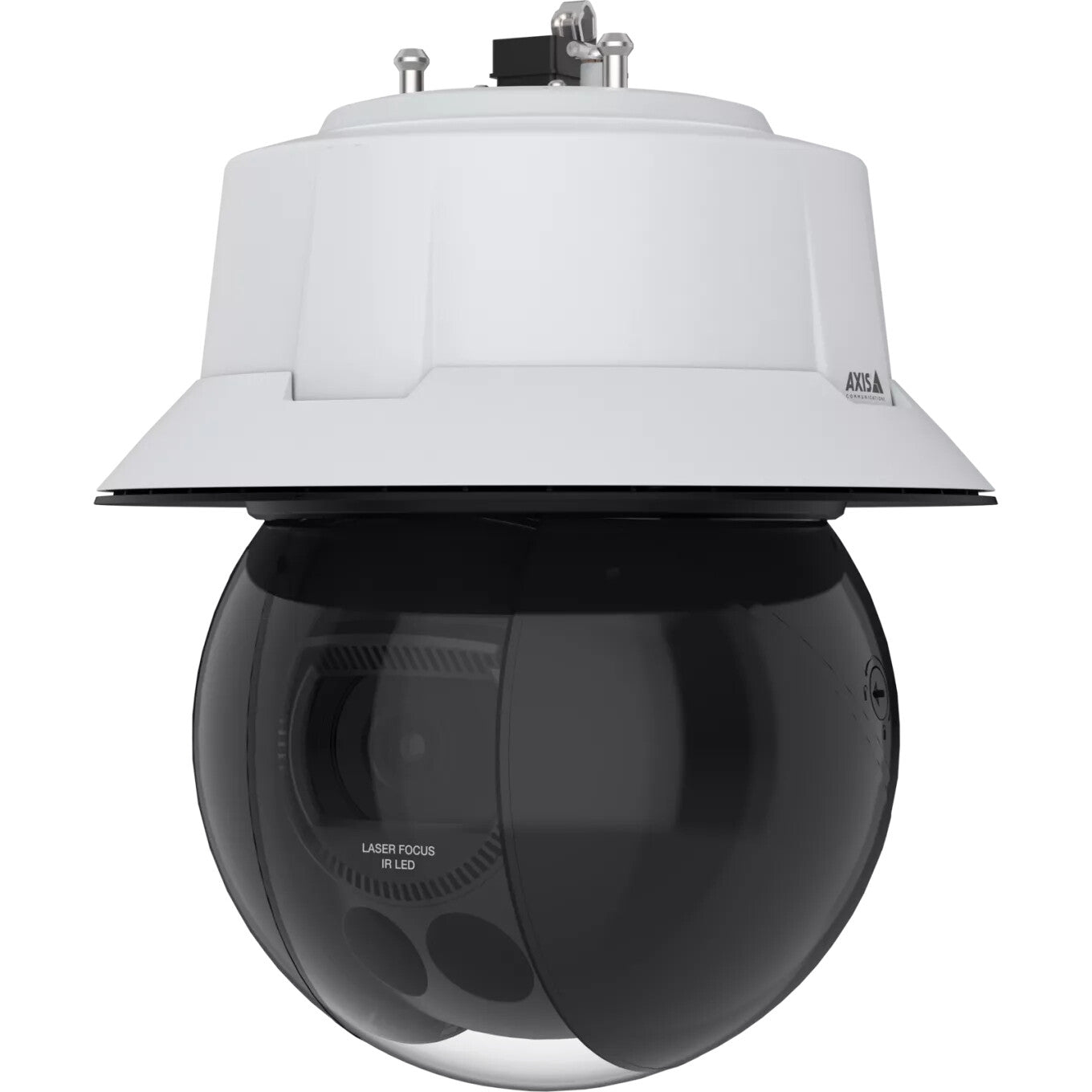

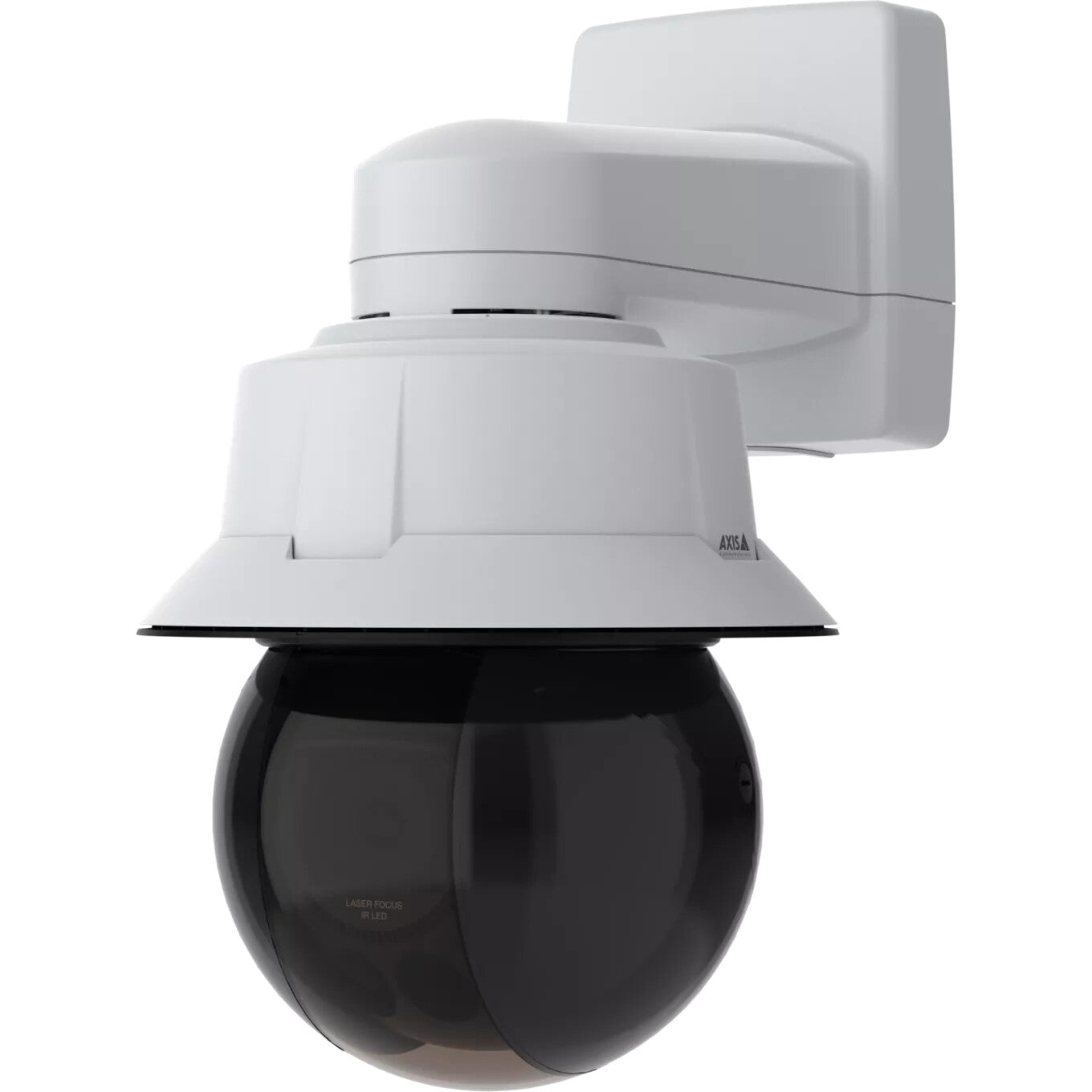

AXIS Q6358-LE PTZ Camera

Built on ARTPEC-9, this high-performance, AI-powered PTZ camera delivers unmatched image quality with great detail and high performance in all light conditions. Axis Edge Vault provides a hardware-based cybersecurity platform that safeguards the device.

Super surveillance

AXIS Q6358-LE offers outstanding 4K UHD and features an extremely light-sensitive ½” inch sensor to deliver clear, bright images and better handling of shadows. Lightfinder and Forensic WDR provide details even in challenging light conditions. Plus, OptimizedIR allows for surveillance in total darkness up to 300 m without the need for extra lighting. With 31x optical zoom and quick zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus– every time. Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements without compromising image quality. Furthermore, this PTZ camera offers support for audio and four I/O ports with the included AXIS TU8003 90 W Connectivity Midspan.

Secure inside and out

AXIS Q6358-LE includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations. This IP66-, IK10-, and NEMA 4x-rated device is impact- and weather-resistant. And its defog functionality ensures clear images despite fog or smog. Thanks to shock detection, you can be informed if there's any attempts to interfere with the camera. Furthermore, with support for fiber connection and PoE, it allows for cost-effective installation and long-distance connections.

ARTPEC-9 for unmatched performance

ARTPEC-9 refines the remarkable features and capabilities that characterized previous generations of our in-house-designed SoC: low bitrate, AI-powered analytics, superior imaging, and built-in cybersecurity. It also introduces AV1, an open-source video encoding standard from the Alliance for Open Media. With support for AV1 and enhanced image processing, ARTPEC-9 delivers high-quality video with uncompromised detail and clarity, and best-in-class bitrate. Together with Axis Zipstream, AV1 also ensures hassle-free video both on-prem and in the cloud. What’s more, ARTPEC-9 powers advanced analytics applications that detect objects earlier and analyze events more precisely.

AI-powered with advanced features

Featuring a deep learning processing unit (DLPU), this AI-based camera lets you run advanced features and powerful analytics on the edge. It comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. With AXIS Image Health Analytics preinstalled, you’ll be notified if your image is blocked, degraded, under-exposed, or redirected. It also offers autotracking 2 with click-and-track functionality for active object tracking. And an orientation aid enables dynamic text overlays with street names and a compass symbol for quick orientation. Additionally, where privacy must be kept, chameleon masking makes it possible to automatically change the color of the masking depending on the background color of the image.


Specifications

Performance

CertificationEMCEN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, CISPR 35, EAC, EN 50121-4Australia/New Zealand: RCM AS/NZS CISPR 32 Class ACanada: ICES-3(A)/NMB-3(A)Japan: VCCI Class AKorea: KS C 9835, KS C 9832 Class AUSA: FCC Part 15 Subpart B Class ARailway: IEC 62236-4IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471 risk group 2, IEC 60825-1 Class 1IEC/EN 62262 IK10, IEC/EN 60529 IP66, IEC/EN 60529 IP67, NEMA 250, Type 4X, NEMA TS 2 (2.2.7–2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, ISO 21207 (Method B), ISO 12944-6 C5NIST SP500-267ETSI EN 303 645, BSI IT Security Label, FIPS 140
Infrared (IR) cut-off filterYes
Day/night modeYes
Wide Dynamic Range (WDR)Yes
Preset pointsYes
Tour recordingYes
PTZ modesPreset point
PTZ controlYes
Connectivity technologyWired
Placement supportedIndoor & outdoor
TypeIP security camera

Design

WeatherproofYes
IK codeIK10
International Protection (IP) codeIP66, IP67
Protection featuresImpact resistant, Weather resistant
Housing materialAluminium
Product colourBlack, White
Mounting typeCeiling
Form factorDome
Show all 74 specificationsShow fewer specifications

Camera

Camera shutter speed1/111000 - 1/2 s
Pan speed550 °/sec
Pan range0 - 360°
Tilt speed550 °/sec
Tilt angle range-20 - 90°
Lens viewing angle, vertical36.5°
Lens viewing angle, horizontal60.6°
Minimum illumination0.009 lx

Image sensor

Progressive scanYes
Optical sensor size25.4 / 2 mm (1 / 2")
Number of sensors1
Sensor typeCMOS

Panoramic camera

Signal-to-Noise Ratio (SNR) (panoramic camera)55 dB

Lens system

Auto focusYes
Focal length range6.91 – 214.64
Zoom speed1 s
Digital zoom12x
Optical zoom31x
Zoom capabilityYes
Number of lenses1

Night vision

Infra-red wavelength850 nm
LED typeIR
Night vision distance300 m
Night visionYes

Video

Text caption overlayYes
Image quality adjustmentBrightness, Contrast, Sharpness
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Video streamingYes
Frame rate60 fps
Video formats supportedAVC, H.264, H.265, HEVC, M-JPEG, MPEG4
Maximum resolution3840 x 2160 pixels

Network

Supported network protocolsIPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Networking standardsIEEE 802.1AE, IEEE 802.1x, IEEE 802.3bt
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LANYes

Storage

Internal memory4096 MB
Flash memory8192 MB
Compatible memory cardsSD, SDHC, SDXC
Card reader integratedYes

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresLine crossing detection, Moving object
Security algorithms256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP

Power

Power consumption (max)51 W
Power consumption (typical)13.7 W

Operational conditions

Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)10 - 100%
Storage temperature (T-T)-40 - 65 °C
Operating temperature (T-T)-50 - 55 °C

Weight & dimensions

Weight4.4 kg
Height291 mm
Depth239 mm
Width239 mm

Sustainability

Compliance certificatesREACH, RoHS

Packaging content

Number of cameras1

Other features

Doesn't containCFR, PVC/BFR
