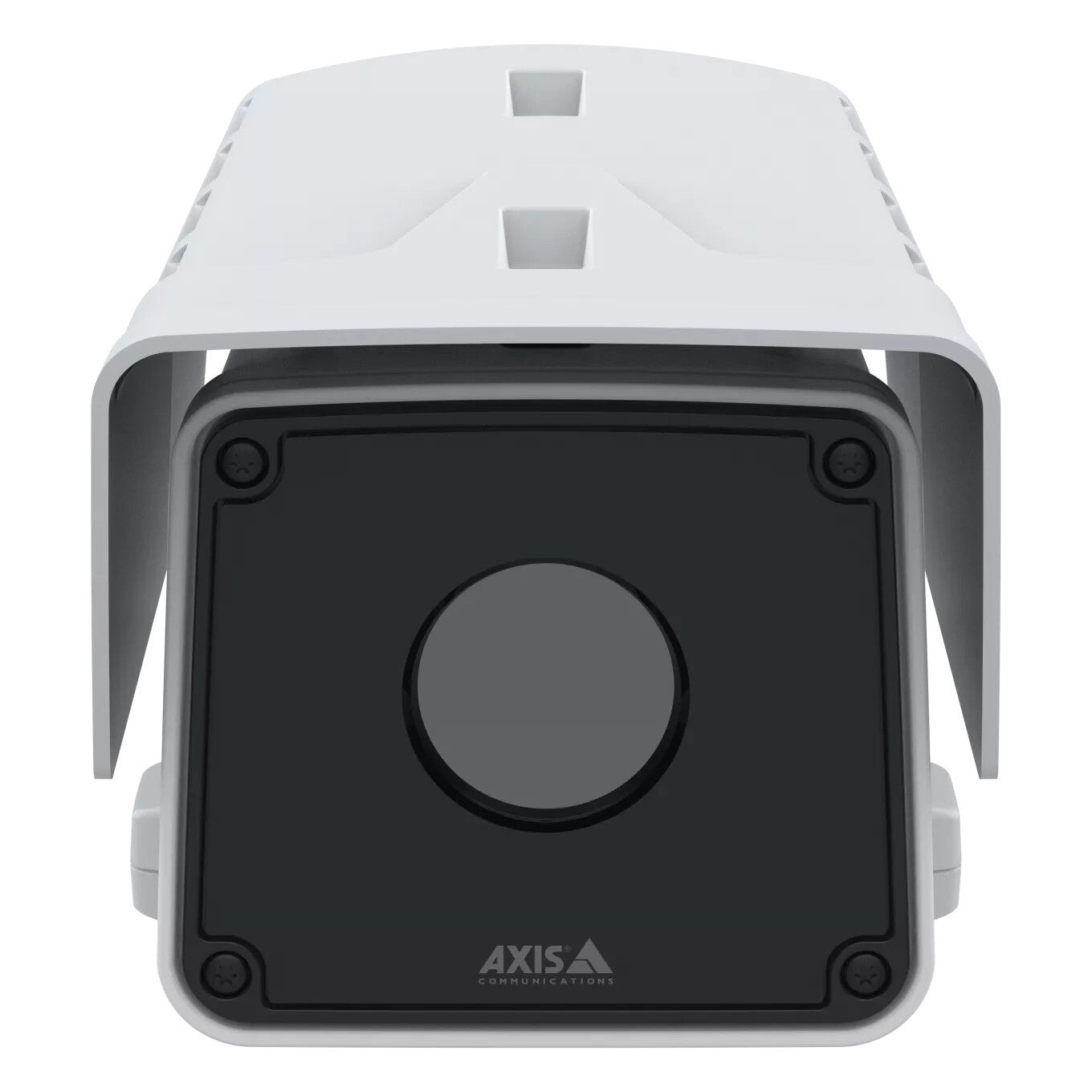

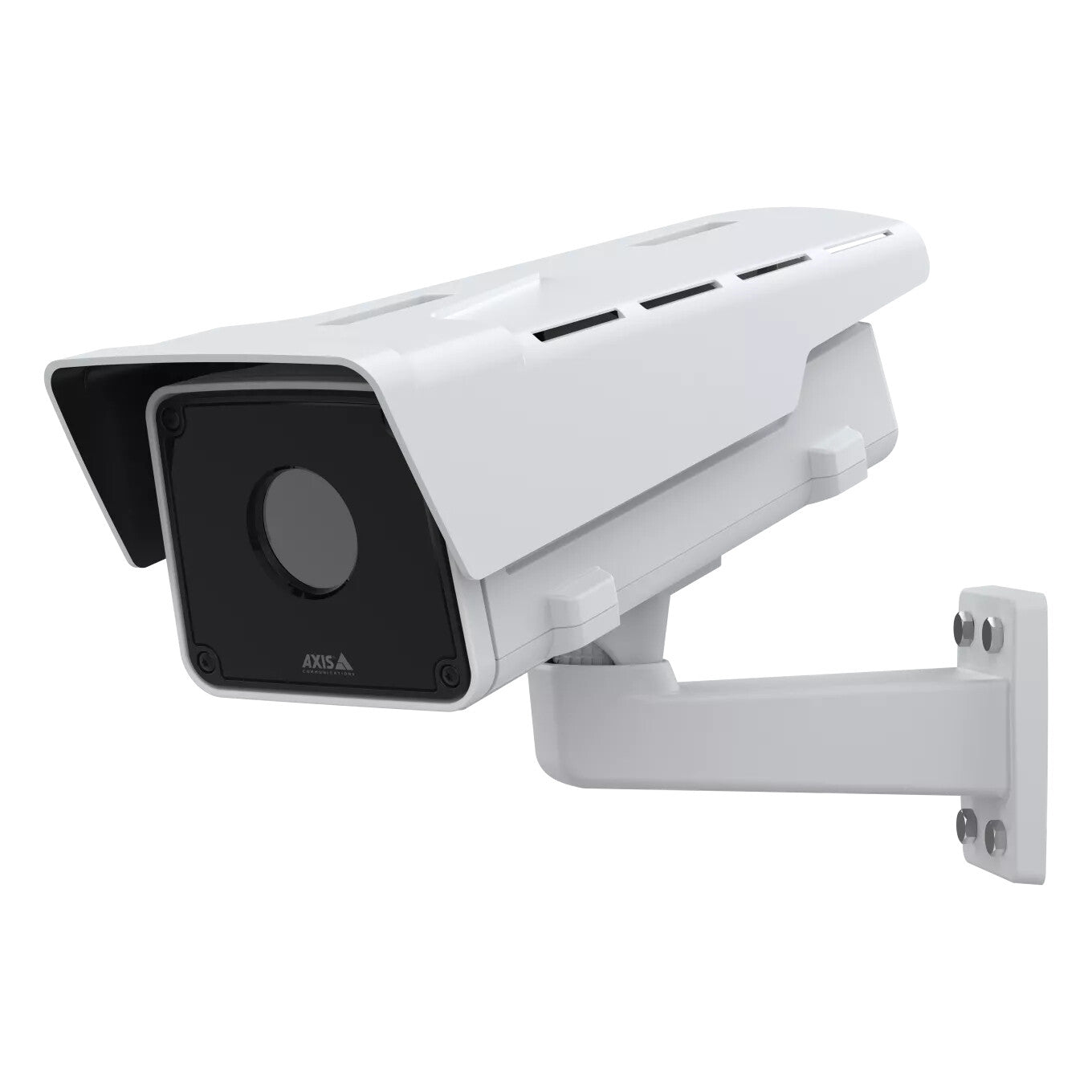

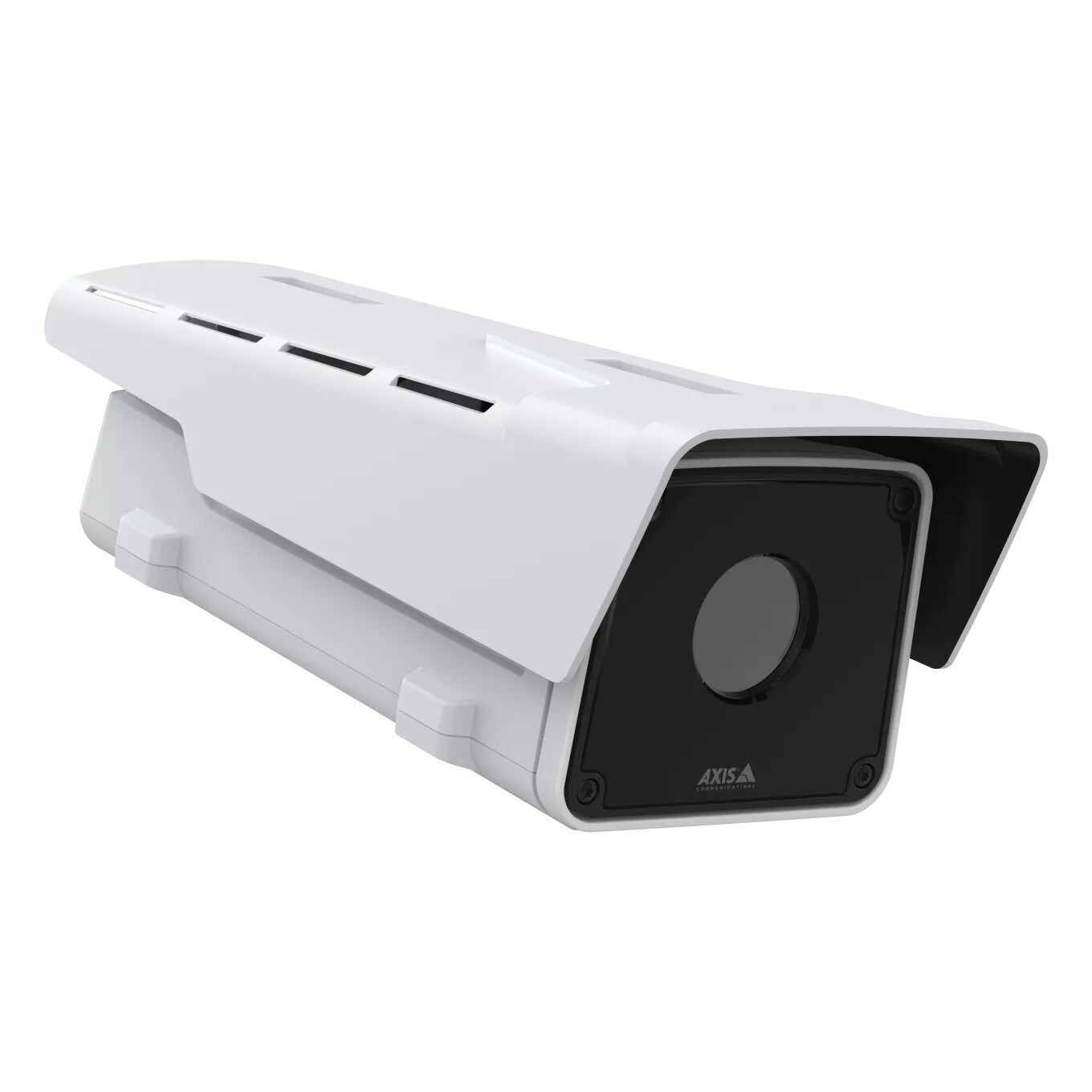

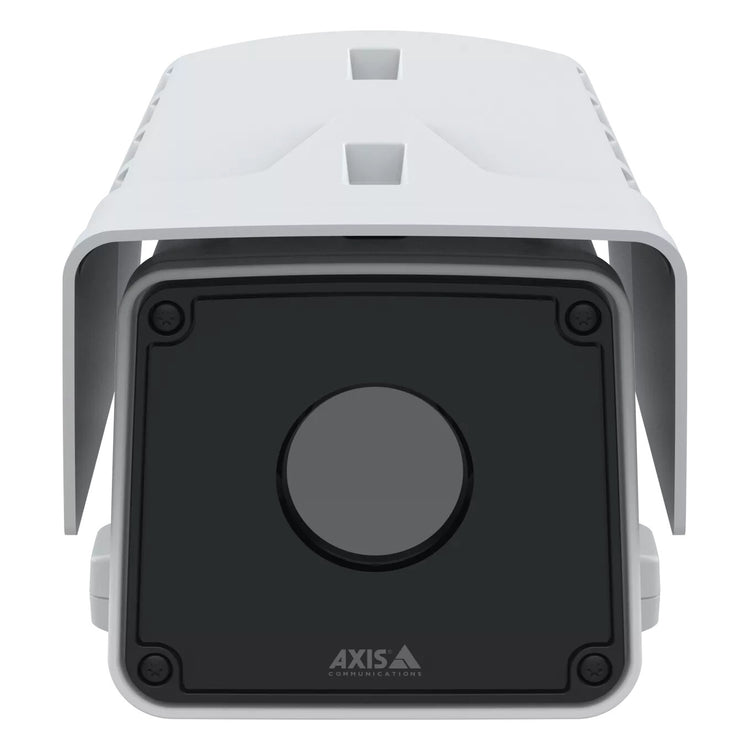

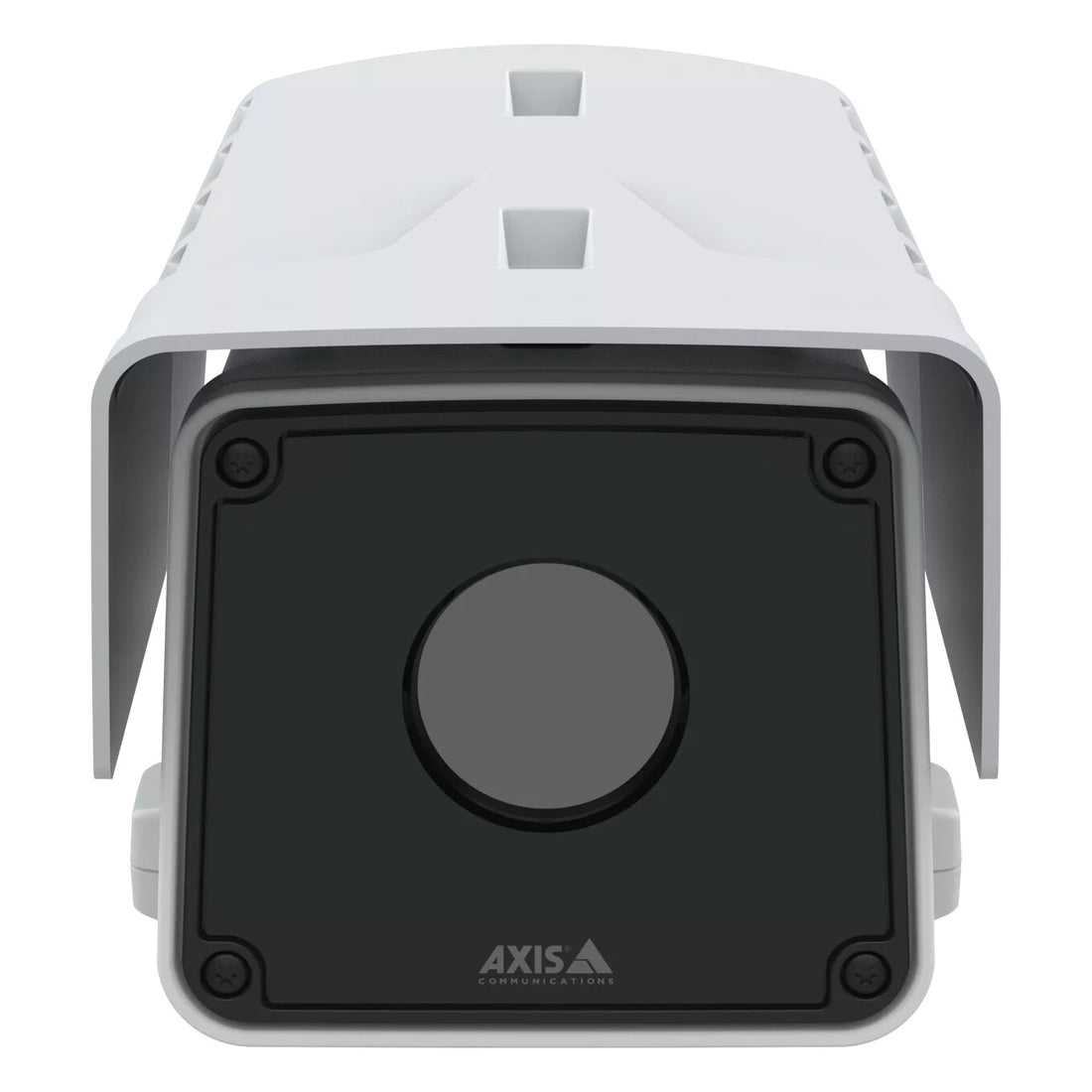

Axis Q2112-E 100 mm 8.3 fps Box IP security camera Outdoor 640 x 480 pixels Wall
Couldn't load pickup availability
- High-resolution detection, low false alarm rate
- Lens options available
- Flexible mounting options (not included)
- Support for powerful analytics
- Built-in cybersecurity with Axis Edge Vault
Ideal for perimeter security, this robust camera offers reliable high-resolution detection and verification 24/7, while protecting privacy. With flexible mounting options, it can be mounted on a positioning unit for better scene understanding.
Reliable detection and verification—always

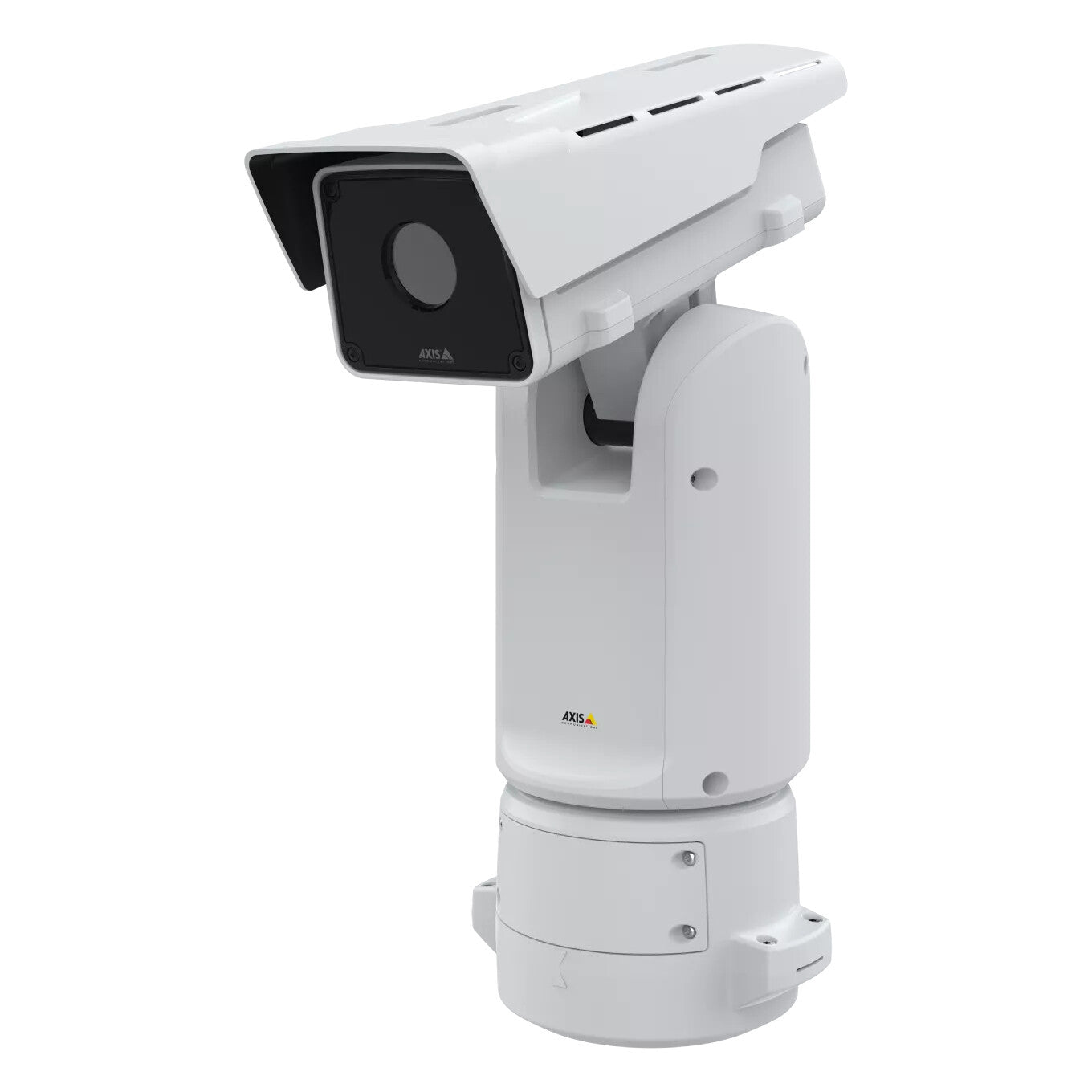

Using thermal technology, AXIS Q2112-E offers reliable detection and verification 24/7 in all light conditions and even in smoke and light fog—all while protecting privacy. It features a powerful sensor with extremely high thermal sensitivity for a low false alarm rate. Plus, there’s a choice of five lens options (10 mm, 19 mm, 25 mm, 35 mm, 60 mm) for a wider or longer and narrower field of view. When mounted on a positioning unit (sold separately), this robust camera provides a 360° overview. This unobstructed field of view combined with the camera’s high resolution ensures great scene understanding, especially in low-contrast scenes. What’s more, electronic image stabilization (EIS) ensures stable, reliable video in all environments.
Powerful analytics platform
This powerful thermal camera delivers actionable insights helping you make informed decisions about your operations. It comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for enhanced protection. Built on a powerful analytics platform, it’s possible to add custom-made third-party analytics. And, with four I/O ports, one RS485 serial port, and edge-to-edge technology, you can easily integrate and trigger other devices such as a network speaker or strobe siren.
Robust and secure
With IK10-, IP66/67-, NEMA 4X, and NEMA TS2 ratings, this robust thermal camera is impact- and weather-resistant. It includes Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Plus, it offers secure key storage with FIPS 140-2 Level 2 certified secure cryptographic key storage and operations. Furthermore, this sustainable camera is made from halogen-free materials and offers a low carbon footprint.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Preset points | Yes |
| Processor model | ARTPEC-8 |
| Thermal sensitivity (NETD) | 20 mK |
| Design | |
|---|---|
| Form factor | Box |
| Mounting type | Wall |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Aluminium |
| International Protection (IP) code | IP66, IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
| Camera | |
|---|---|
| Vertical field of view (thermal module) | 4.6° |
| Horizontal field of view (thermal module) | 6.2° |
| Lens viewing angle, horizontal | 17° |
| Camera pixel size | 17 µm |
| Image sensor | |
|---|---|
| Sensor type | Microbolometer |
| Number of sensors | 1 |
| Effective sensor resolution (thermal module) | 640 x 480 pixels |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Lens diameter | 3.5 cm |
| Maximum aperture number | 1.4 |
| Infrared spectral band | 8 - 14 µm |
| Closest focusing distance | 190 m |
| Video | |
|---|---|
| Maximum resolution | 640 x 480 pixels |
| Video formats supported | H.264, H.265, HEVC, AVC, MPEG4, M-JPEG |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Frame rate | 8.3 fps |
| Video streaming | Yes |
| Image stabilizer type | Electronic Image Stabilization (EIS) |
| Gain control type | Auto |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Image quality adjustment | Brightness, Contrast, Sharpness, Mirror |
| Privacy masking | Yes |
| Audio | |
|---|---|
| Audio system full duplex | Yes |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Sample rates | 8 - 48 kHz |
| Audio detection | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ar |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, RFC 3164/5424, UDP/TCP/TLS, ZeroConf |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8192 MB |
| RAM capacity | 2048 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Microphone in | Yes |
| Terminal block port | Yes |
| DC-in jack | Yes |
| Security | |
|---|---|
| Pixel counter | Yes |
| Alert notification type | |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| Active tampering alarm | Yes |
| Privacy protection | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, FIPS 140-2, MSCHAPv2, PEAP, HTTPS |
| Video motion detection | Yes |
| Power | |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 4.6 W |
| Power consumption (max) | 25.5 W |
| Power consumption (Power over Ethernet (PoE)) | 5.2 W |
| Power consumption (Power over Ethernet (PoE)) (max) | 25.5 W |
| DC output voltage | 10, 28, 12, 15, 16, 24 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 159 mm |
| Depth | 404 mm |
| Height | 150 mm |
| Weight | 3.5 kg |
| Sustainability | |
|---|---|
| Compliance certificates | REACH, RoHS, RCM, KC, CE, UL, cUL, CSA, TAA, Federal Communications Commission (FCC), ICES |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
| Other features | |
|---|---|
| Warranty period | 5 year(s) |
| Doesn't contain | CFR, PVC/BFR |
