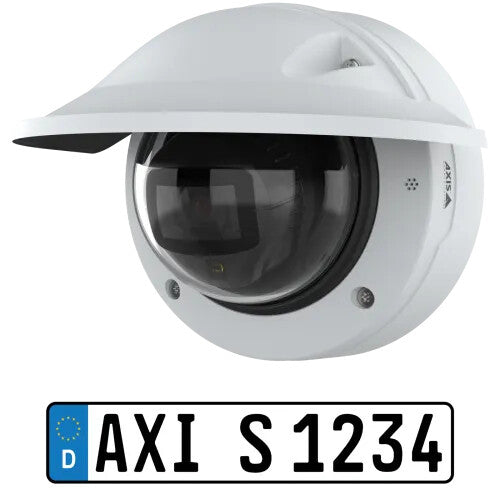

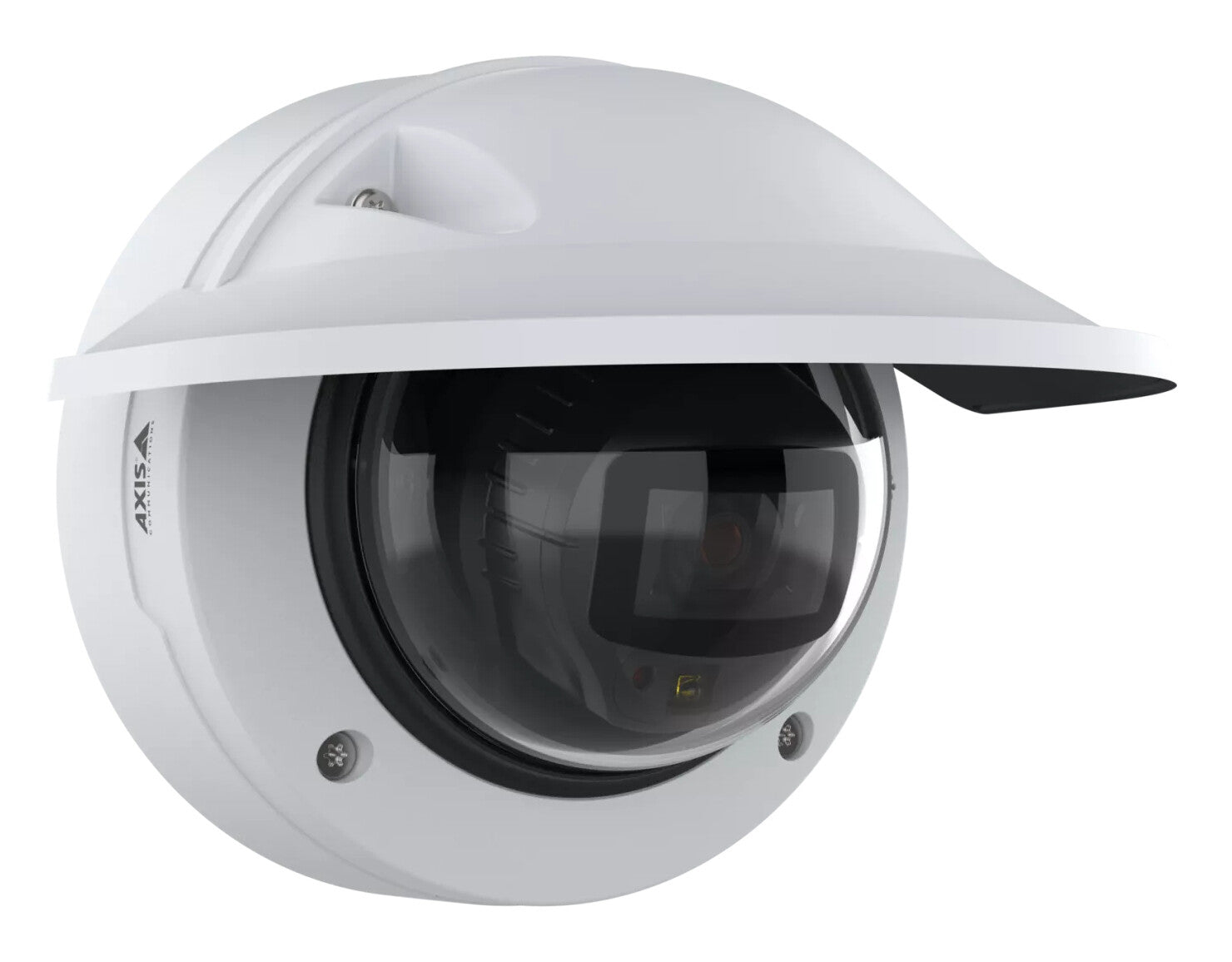

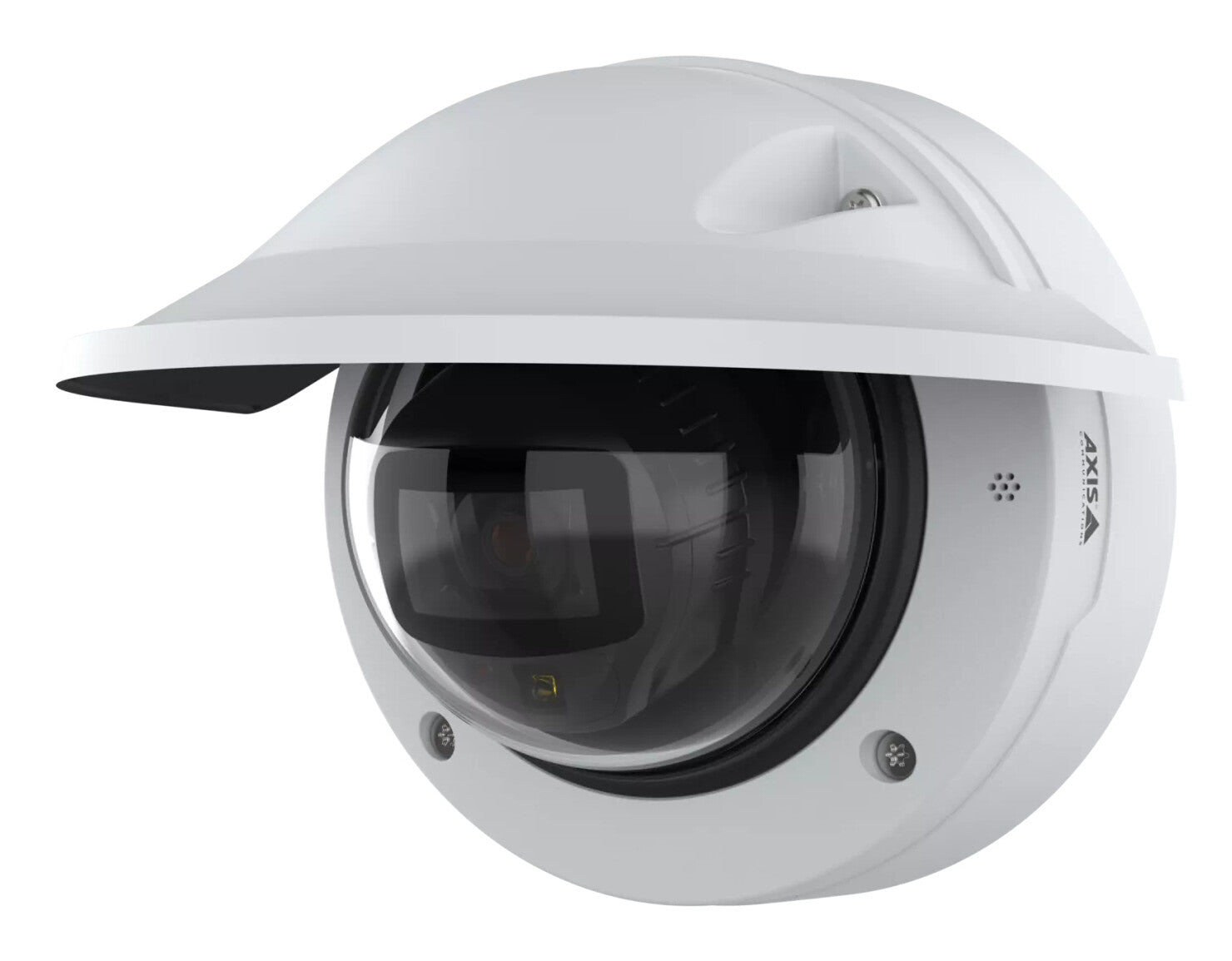

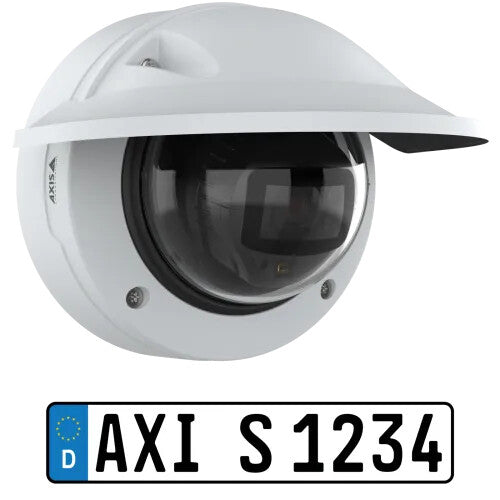

Axis P3285-LVE Kit License Plate Verifier
Couldn't load pickup availability
- AXIS License Plate Verifier preinstalled
- Purpose-tuned for license plate recognition
- Recognizes vehicle type, color, make, and model
- Discreet, vandal- and weather-resistant
- Supports access control applications
LPR dome camera kit for slow speed traffic
Built for slow speed traffic, this vandal-resistant, all-in-one LPR kit offers an easy, cost-effective way to capture license plates and other vehicle details. Purpose-tuned and easy to deploy, it supports added access control capabilities.
Enable easy, edge-based license plate recognition
AXIS P3285-LVE Kit License Plate Verifier offers a 2 MP purpose-tuned Axis dome camera with AXIS License Plate Verifier preinstalled. Easy to deploy and intuitive to use, it’s out-of-the-box ready for close-up license plate capture. With a powerful deep learning processing unit (DLPU), it can recognize vehicle details under optimal conditions, including type, color, make, and model - no external servers required. It's easy to manage allow and block lists directly on the camera to determine if a vehicle can enter a controlled area. Advanced search and filtering make it quick to locate specific vehicles.
Scale with access control capabilities
This LPR kit supports vehicle access control, from simple entry and exit to advanced access control. Built-in I/O can trigger actions such as opening gates based on LPR events. Axis network door controllers enable scalable access control with support for advanced credential management and fallback card readers. This IP-based device can trigger automated visual and audio alerts on other devices, such as activating a strobe speaker. Built on open APIs, it seamlessly integrates with your existing VMS and third-party platforms. When integrated with AXIS Camera Station Secure Entry and AXIS Camera Station, you can manage vehicle access and building security events through a single interface.
Capture sharp images 24/7 in all environments
With 2 MP resolution at 25/30 fps, AXIS P3285-LVE Kit delivers the image clarity and frame rate needed for accurate and highly reliable license plate recognition. Thanks to Lightfinder 2.0 and OptimizedIR, it captures sharp, high-contrast images and ensures readability 24/7 - even in challenging light like strong headlights and pitch darkness. This vandal-resistant, IK10-rated camera is safe to use even when installed at lower, accessible heights. It operates from -40 to 50 °C (-40 to 122 °F) and shock detection notifies you if there’s any attempts to interfere with the camera. Furthermore, Axis Edge Vault safeguards the device and protects sensitive information from unauthorized access.
| Performance | |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | UL/cUL, CE, KC, EAC, VCCI, RCM, ICES, UKCA, FCC |
| Design | |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| LED indicators | Yes |
| Housing material | Plastic, Polycarbonate (PC) |
| Protection features | Impact resistant, Vandal proof |
| International Protection (IP) code | IP66 |
| IK code | IK10 |
| Weatherproof | Yes |
| Camera | |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.02 lx |
| Angle of rotation | 190° |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 52° |
| Tilt angle range | -45 - 80° |
| Pan range | -190 - 190° |
| Camera pixel size | 2.9 µm |
| Camera shutter speed | 1/37000 - 2 s |
| Image sensor | |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Lens system | |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Lens diameter | 1 cm |
| Focal length range | 3.4 - 9.8 mm |
| Auto focus | Yes |
| Minimum aperture number | 1.7 |
| Maximum aperture number | 1.76 |
| Identify distance (wide) | 4.8 m |
| Recognize distance (tele) | 27 m |
| Recognize distance (wide) | 9.6 m |
| Observe distance (tele) | 54 m |
| Observe distance (wide) | 19 m |
| Detect distance (tele) | 135 m |
| Detect distance (wide) | 48 m |
| Identify distance (tele) | 14 m |
| Closest focusing distance | 1 m |
| Night vision | |
|---|---|
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Video | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video formats supported | AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 1280 x 800 (WXGA), 1440 x 1080, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Audio | |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio detection | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/ 2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/ RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/ v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Streaming method | Multicast |
| Storage | |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 2000 MB |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| Security | |
|---|---|
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Alert notification type | |
| Active tampering alarm | Yes |
| Privacy protection | Yes |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP |
| Video motion detection | Yes |
| Management features | |
|---|---|
| Behavior analysis | Line crossing detection |
| Power | |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 3.4 W |
| Power consumption (max) | 10 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 183 mm |
| Depth | 156 mm |
| Height | 149 mm |
| Weight | 850 g |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Sun shield included | Yes |
| Manual | Yes |
| Other features | |
|---|---|
| Doesn't contain | CFR, PVC, PVC/BFR |
