Axis P1265 Mk II Covert IP security camera Indoor 1920 x 1080 pixels Ceiling
Couldn't load pickup availability
- Indoor IP security camera
- CMOS 1920 x 1080 pixels
- Wired Ethernet LAN
- Covert Ceiling
- IPX3
- Black, White
- 75 g

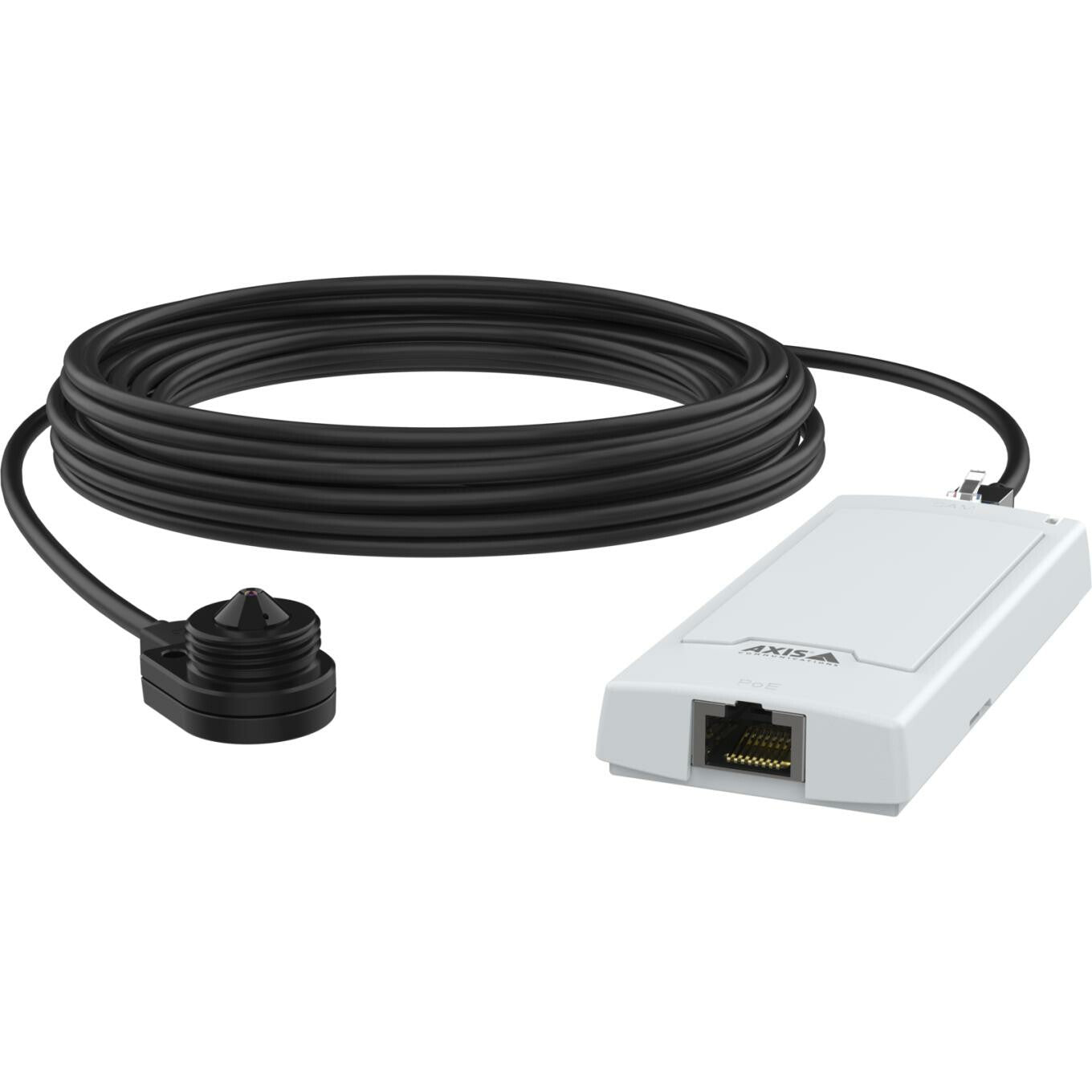

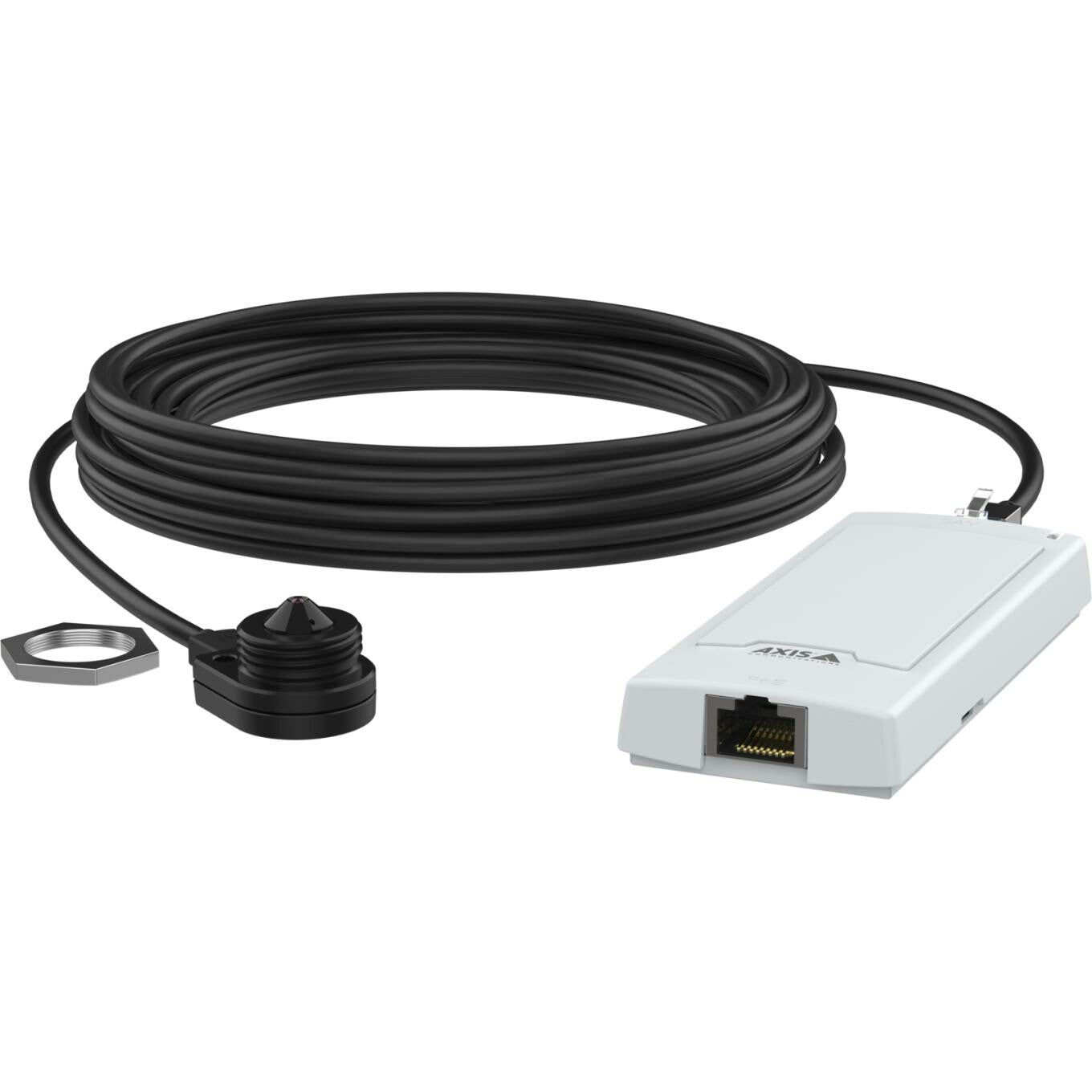

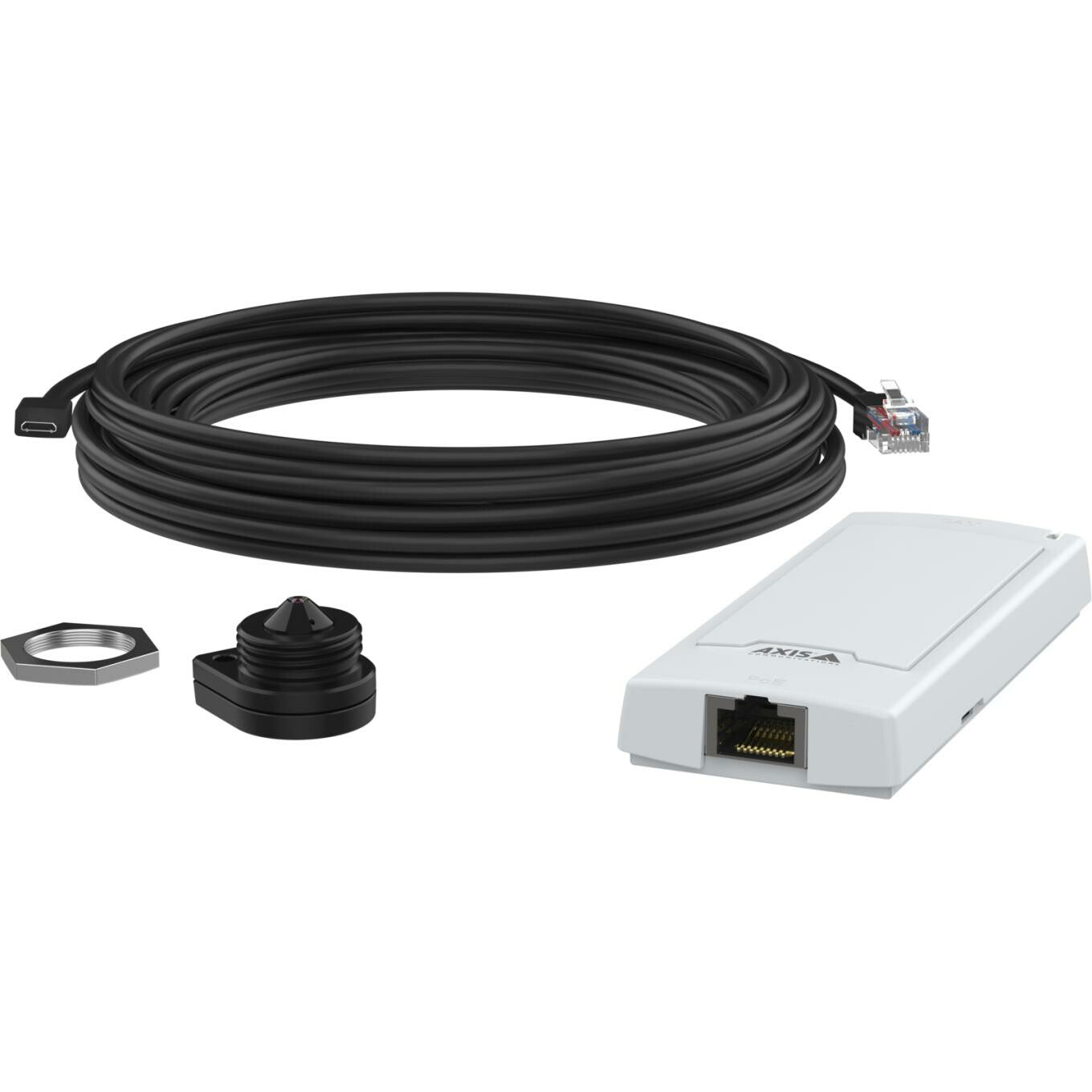

AXIS P1265 Mk II Modular Pinhole Camera
Ideal for mounting in tight spaces, this indoor modular camera includes a tiny, pinhole-sized sensor unit for extremely discreet installation. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Highly discreet
AXIS P1265 Mk II Modular Pinhole Camera includes a tiny sensor unit that’s easy to install and hard to notice. In fact, only a tiny pinhole is visible externally. This sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.
Highly flexible
Based on the divided modular camera concept, AXIS P1265 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it’s easy to integrate with other devices. This indoor modular camera system includes a tiny pinhole sensor unit that suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1265 Mk II offers HDTV 1080p with a 91° horizontal field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. With support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy.
| Performance | |
|---|---|
| Wide Dynamic Range (WDR) | Yes |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Design | |
|---|---|
| International Protection (IP) code | IPX3 |
| Housing material | Plastic, Steel |
| LED indicators | Yes |
| Product colour | Black, White |
| Mounting type | Ceiling |
| Form factor | Covert |
| Camera | |
|---|---|
| Camera shutter speed | 1/6500 - 1/5 s |
| Lens viewing angle, vertical | 45° |
| Lens viewing angle, horizontal | 91° |
| Minimum illumination | 0.2 lx |
| Image sensor | |
|---|---|
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Closest focusing distance | 0.2 m |
| Fixed focal length | 3.7 mm |
| Maximum aperture number | 2.5 |
| Number of lenses | 1 |
| Video | |
|---|---|
| Flip & mirror | Yes |
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Privacy masking | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 480 x 360, 640 x 360, 1024 x 640, 1024 x 768 (XGA), 1920 x 1080 (HD 1080) |
| Video formats supported | AVC, H.264, HEVC, M-JPEG, MPEG4 |
| Maximum resolution | 1920 x 1080 pixels |
| Audio | |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Network | |
|---|---|
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Human and vehicle targets classification | Yes |
| Video motion detection | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection, Human detection, Vehicle detection |
| Security algorithms | 802.1x RADIUS, EAP-TLS, HTTPS, PEAP, TLS |
| Alert notification type | |
| Pixel counter | Yes |
| Management features | |
|---|---|
| Behavior analysis | Line crossing detection, Scene change detection |
| Power | |
|---|---|
| Power consumption (max) | 4.1 W |
| Power consumption (typical) | 3.4 W |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | -20 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 75 g |
| Sustainability | |
|---|---|
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Manual | Yes |
| Number of cameras | 1 |
| Other features | |
|---|---|
| Doesn't contain | PVC |
