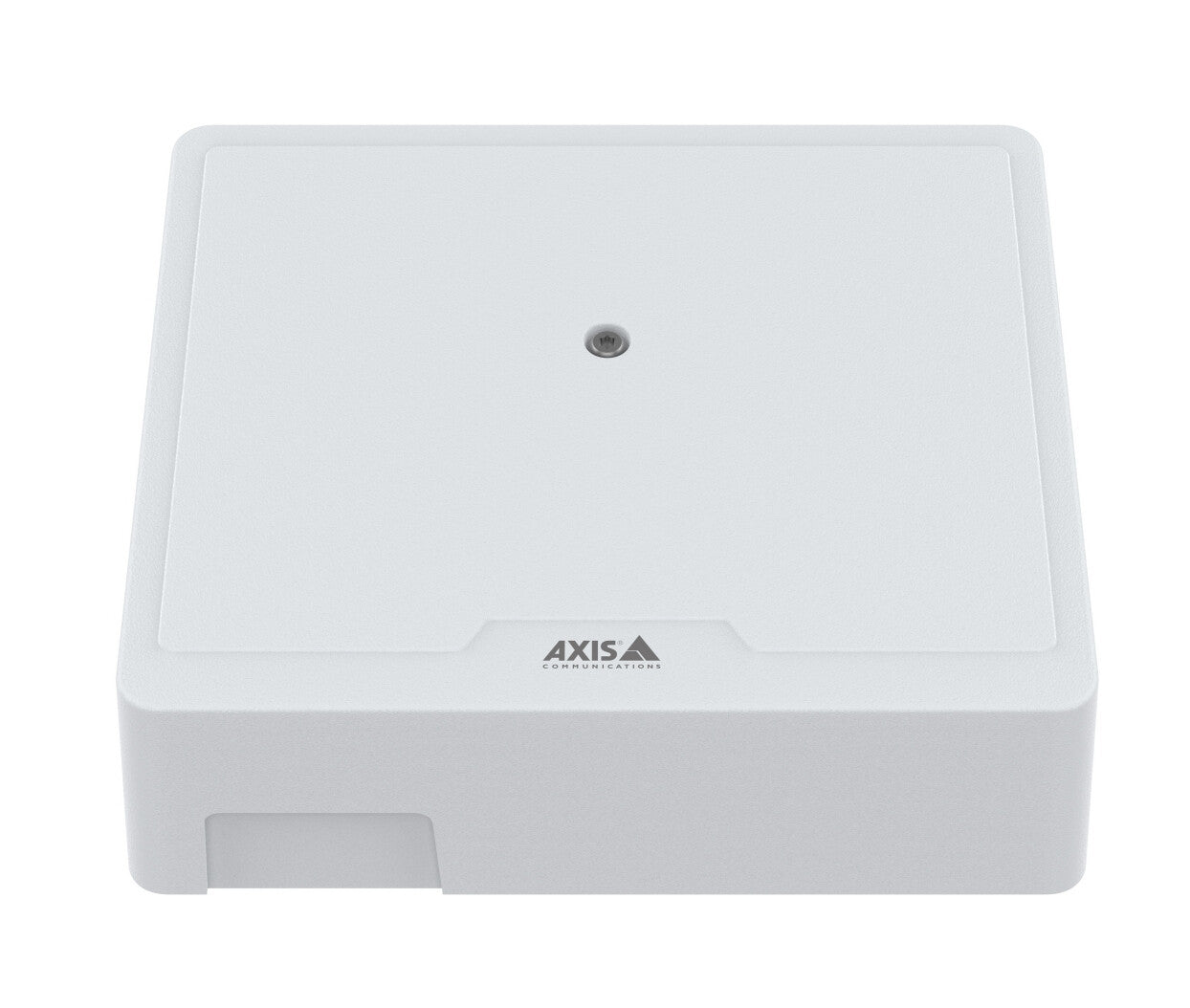

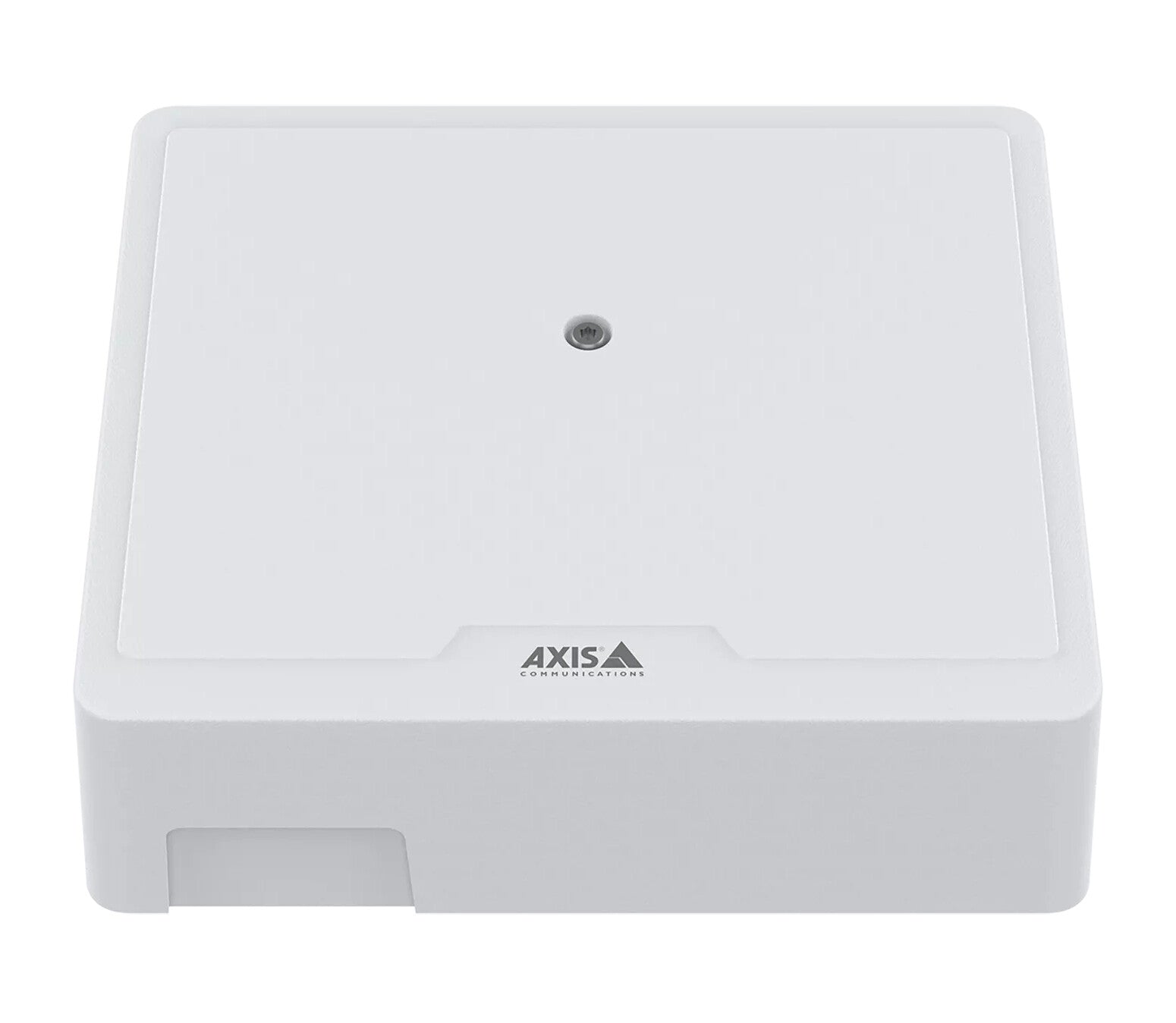

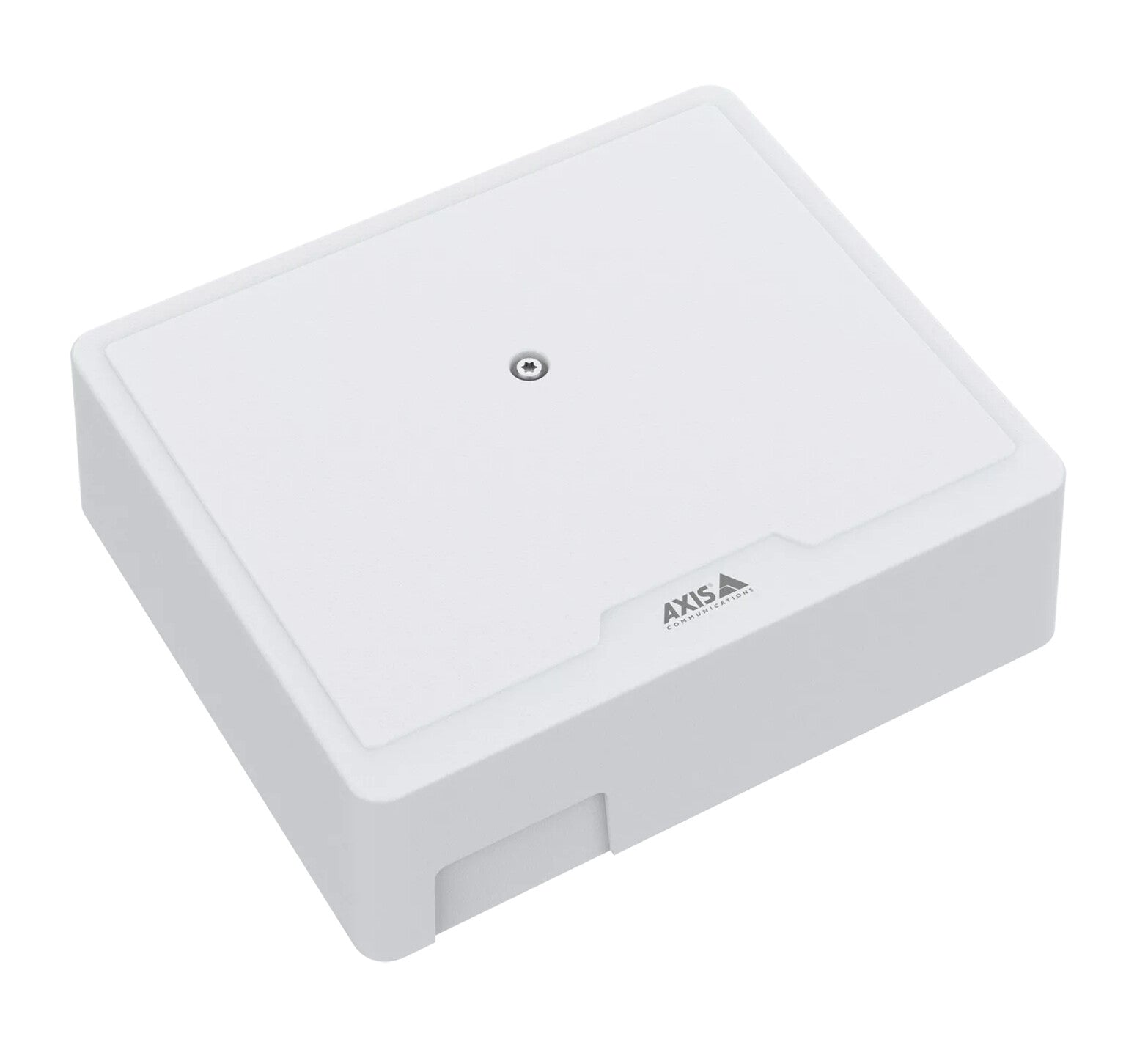

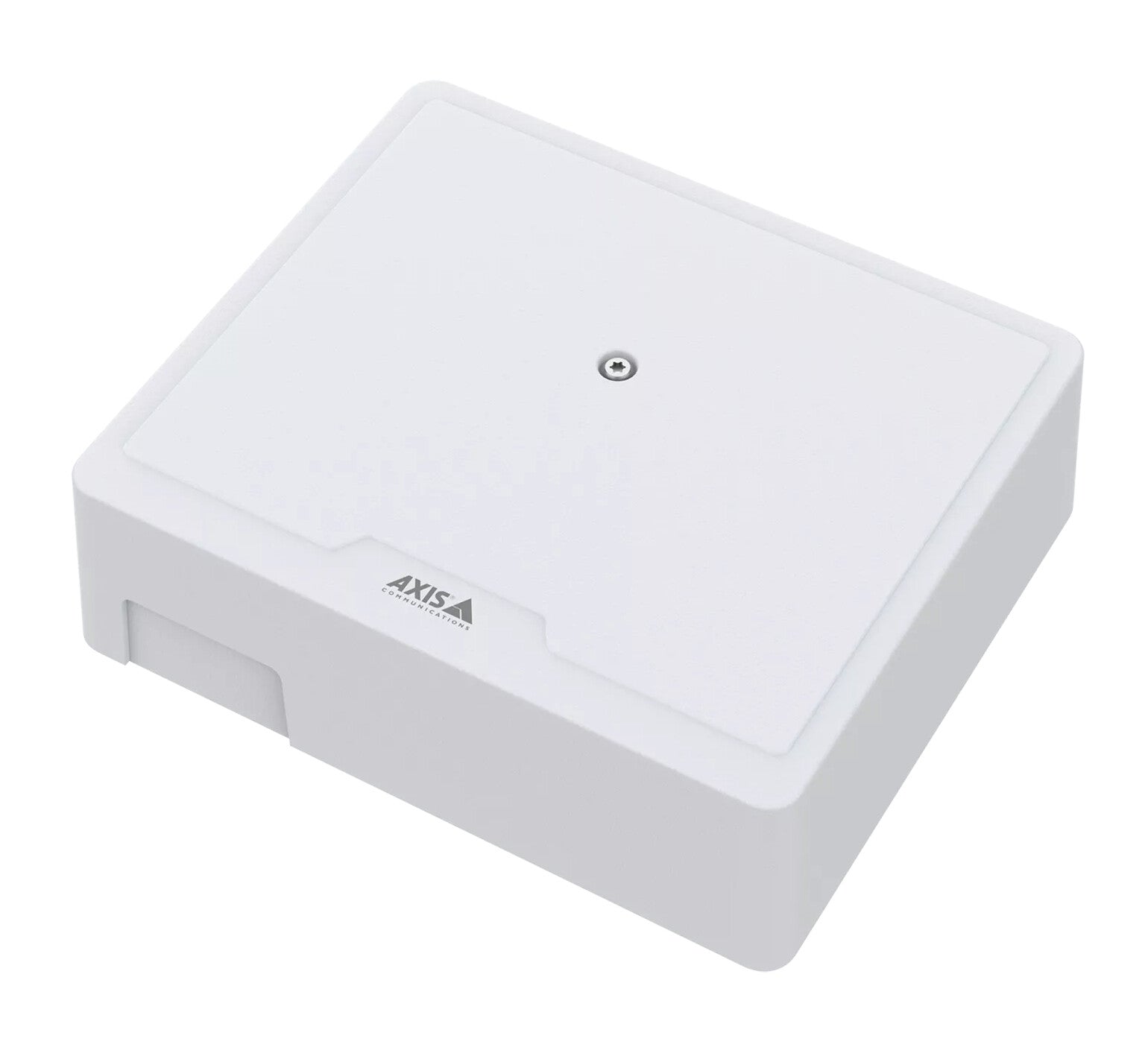

Axis 02368-001 security door controller Housing 1 door(s)
Axis 02368-001 security door controller Housing 1 door(s)
Axis 02368-001 security door controller Housing 1 door(s)
Axis 02368-001 security door controller Housing 1 door(s)
Axis 02368-001 security door controller Housing 1 door(s)
Axis 02368-001 security door controller Housing 1 door(s)
Axis 02368-001 security door controller Housing 1 door(s)
Axis 02368-001 security door controller Housing 1 door(s)

Axis 02368-001 security door controller Housing 1 door(s)

Axis
£544.99
Stock Available: 0
  • Built-in cybersecurity features; Compact form factor; Complete control for one door; Fully integrated within Axis end-to-end solutions; Intelligence on the edge

Suitable for installation anywhere, this compact, competitively priced product offers fast and easy installation on walls. Plus, it’s suitable for plenum spaces. It includes everything needed to control one door all powered by one PoE cable. With intelligence on the edge, it can internally handle all tasks related to door access—even if the network is down. Fully integrated within Axis end-to-end solutions, this scalable product is optimized for both small and large installations and supports flexible authentication using different types of credentials. Furthermore, with built-in cybersecurity features, it prevents unauthorized access and safeguards your system.

Technical details
Case design Housing
Maximum number of doors 1 door(s)
Supported network protocols IPv4, IPv6, HTTP, HTTPSc, TLSc, QoS Layer 3 DiffServ, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SOCKS, SSH, MQTT v3.1.1, Syslog
Performance
Internal memory 0.512 GB
Internal storage capacity 2 GB
Storage media Flash
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Number of built-in relays 1
Wiegand interface Yes
Alarm input channels 7
Certification UL 2043
UL294
EAC, EN 55035, EN 55032 Class B, EN 50130-4, EN 61000-3-2,
EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-003 Class A,
VCCI Class A, RCM AS/NZS CISPR 32 Class A, KC KN32 Class B,
KC KN35
IEC/EN/UL 62368-1, UL 294, UL 2043
Environment
NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2,
IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,
IEC 60068-2-78
CSA C22.2 No. 205-1983
Power
Operating voltage 12 V
DC voltage range 11.5 - 12.5 V
Ports & interfaces
Ethernet LAN (RJ-45) ports 1
Operational conditions
Operating temperature (T-T) 0 - 55 °C
Storage temperature (T-T) -40 - 70 °C
Operating relative humidity (H-H) 20 - 85%
Weight & dimensions
Weight 645 g
Height 50 mm
Depth 122 mm
Width 144 mm
