Axis 01191-003 network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
£480.99
Couldn't load pickup availability
- 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 130 W; Gigabit switch; Intuitive graphic topology for system overview

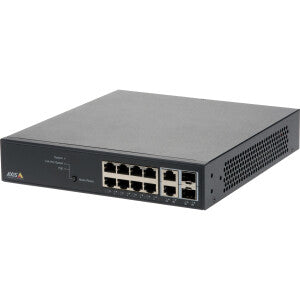

AXIS T8508 PoE+ Network Switch is an 8-port managed Gigabit switch with a compact, fan-less design for installation in noise sensitive environments or to be used as an edge switch. AXIS T8508 is a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 8 PoE cameras.
| Management features | |
|---|---|
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Combo SFP ports quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Network | |
|---|---|
| Virtual LAN features | Private VLAN |
| VLAN support | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3z |
| Data transmission | |
|---|---|
| Jumbo frames | 9216 |
| Jumbo frames support | Yes |
| Throughput | 14.9 Mpps |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Security algorithms | 802.1x RADIUS, HTTPS, SSH |
| Authentication | Port-based authentication |
| Authentication type | IEEE 802.1x, RADIUS |
| Password protection | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server, DHCP snooping |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6, HTTP, HTTPS, QoS, Bonjour, UPnP, SNMP v1/v2c/v3, DNS, NTP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, STP, RSTP, MSTP, LLDP, LLDP-MED, TFTP, SMTP, BPDU |
| Management protocols | SNMP v1/v2c/v3 |
| Design | |
|---|---|
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Black |
| Form factor | 1U |
| Power | |
|---|---|
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 130 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.1 kg |
| Height | 44 mm |
| Depth | 242 mm |
| Width | 220 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Certificates | |
|---|---|
| Certification | EN 55032 AEN 55024FCC 15 B /AVCCI ARCM AS/NZS CISPR 32 AICES-003 AIEC/EN/UL 60950-1EN 62368-1EACITE, JATE |
| Compliance certificates | CE |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
