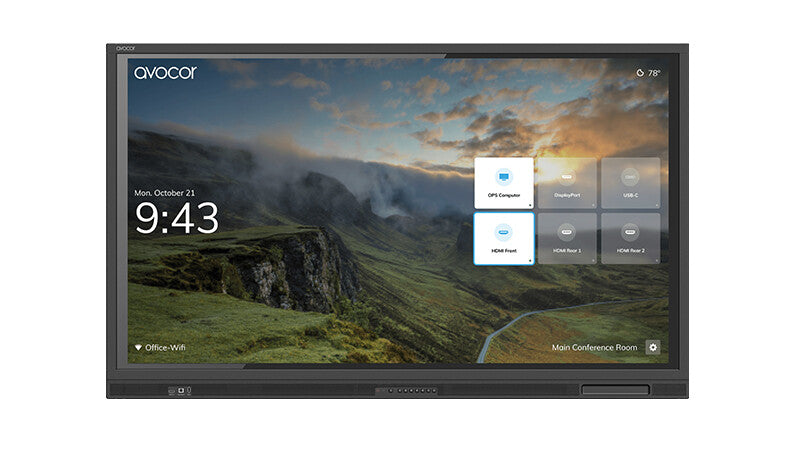

Avocor E series E-40 Series 86" 4K IR LED Interactive Display
£3,889.99
Couldn't load pickup availability
- 4K Ultra HD
- 16:9 aspect ratio
- Sleek design with an ultra-thin Bezel
- Superior glass technology provides an extremely accurate writing experience
- Zero parallax optically bonded glass surface for pixel-perfect inking
- Single Type-C connectivity delivering audio, video, touch, Ethernet and power
- Intel OPS PC slot for expanded functionality
- Avocor UiQ - smart touch enabled dynamic user interface
- FUSE - Remote management software platform for AV/IT Managers
The new and improved E series displays utilize the very latest optimized touch technology, that supports up to 20 points of touch using Avocor Intelligent Touch, and superior optically bonded glass technology providing a smooth and extremely accurate, low latency writing experience as well as object recognition.
The ability to easily switch between using a pen, finger, and palm creates a fluid collaborative environment for users in real-time, with an array of front-facing guest connectivity options now including a Type-C* connection along the Connect and Control bar, and features Avocor’s UiQ touch-enabled interface, enhancing the user experience and FUSE remote management, completely free-of-charge.
| Display | |
|---|---|
| Display diagonal | 2.18 m (86") |
| Display brightness | 400 cd/m² |
| Display number of colours | 1.07 billion colours |
| Display resolution | 3840 x 2610 pixels |
| Anti-glare screen | Yes |
| HD type | 4K Ultra HD |
| LED backlighting type | Direct-LED |
| Native aspect ratio | 16:9 |
| Contrast ratio (typical) | 4000:1 |
| Response time | 8 ms |
| Maximum refresh rate | 60 Hz |
| Touchscreen | Yes |
| Touch technology | Multi-touch |
| Touchscreen type | Infrared |
| Number of simultaneous touchpoints | 20 |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Palm erase | Yes |
| Pen & touch differentiation | Yes |
| Technology | Infrared (IR) |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Speaker power | 60 W |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| HDCP version | 2.2 |
| USB 2.0 Type-A hub ports quantity | 2 |
| USB 2.0 Type-B Touch ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB Type-C ports quantity | 1 |
| HDMI ports quantity | 3 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI version | 2.0 |
| HDMI output ports quantity | 1 |
| USB Power Delivery up to | 45 W |
| USB Power Delivery (USB PD) | Yes |
| DisplayPort version | 1.2 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Line-out | Yes |
| OPS slot | 1 |
| S/PDIF out port | Yes |
| RS-232 ports | 1 |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Wall mountable | Yes |
| Performance | |
|---|---|
| Ambient light sensor | Yes |
| Power | |
|---|---|
| Power consumption (max) | 320 W |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| System requirements | |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 8 |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Width | 2018 mm |
| Depth | 112 mm |
| Height | 1211 mm |
| Weight | 61.5 kg |
| Packaging data | |
|---|---|
| Package width | 2170 mm |
| Package depth | 270 mm |
| Package height | 1380 mm |
| Package weight | 78 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| USB cable length | 3 m |
| Pen tray included | Yes |
| Cables included | HDMI, Power, USB Type-A to USB Type-B, USB Type-C |
| Quick start guide | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Stylus included | Yes |
| Stylus pen type | Passive |
| Number of stylus pens | 2 |
| Stylus tip diameter | 3 mm |
| General | |
|---|---|
| Product family | E series |
| Other features | |
|---|---|
| Warranty period | 3 year(s) |
| Country of origin | China |
