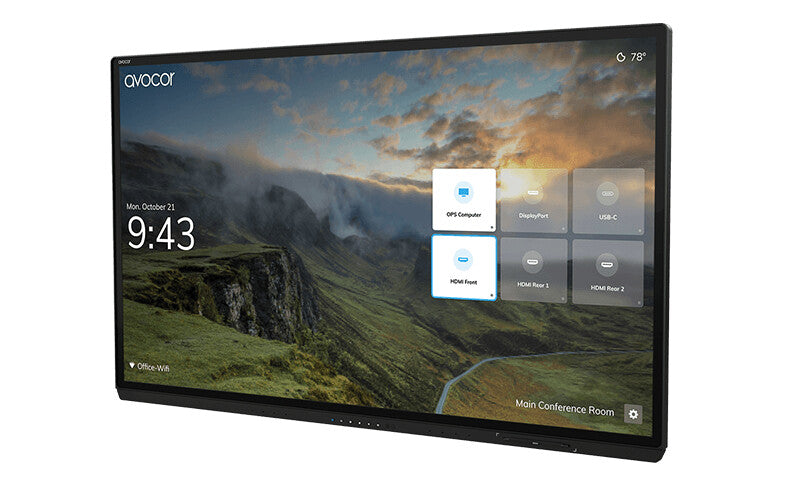

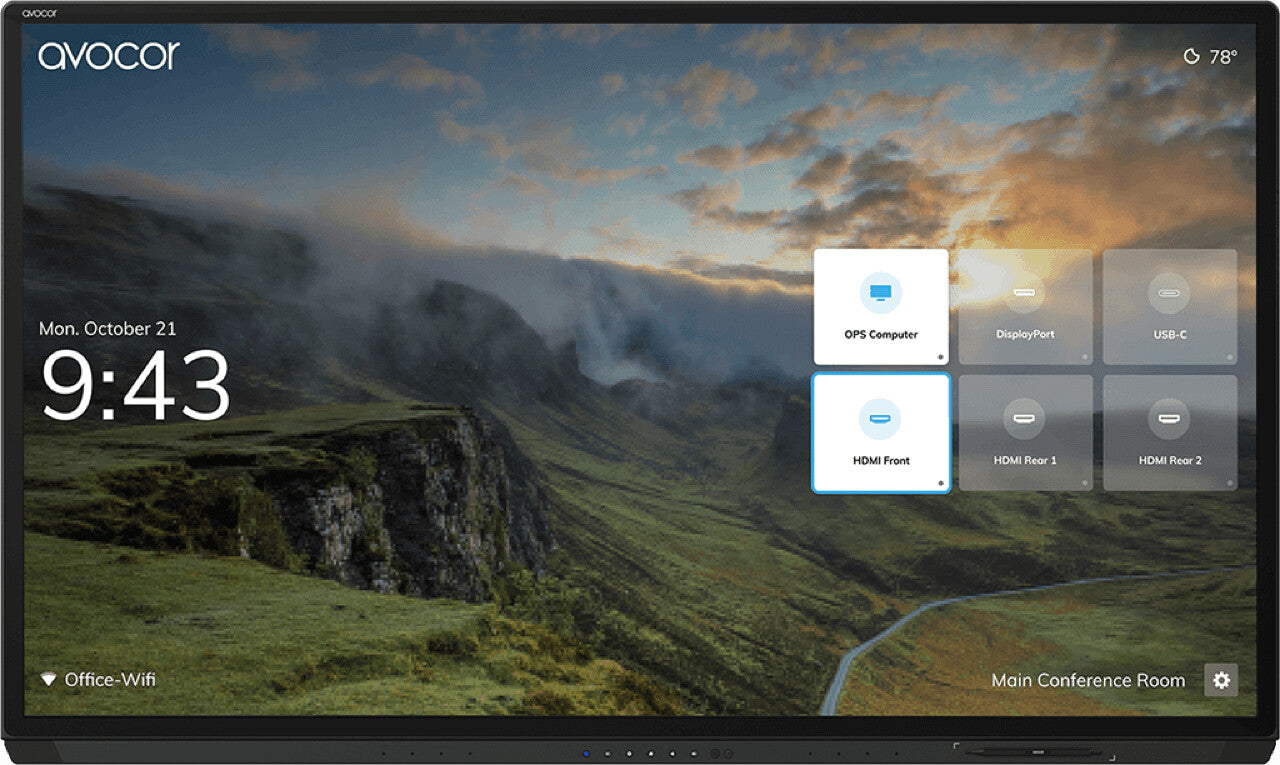

Avocor AVG-6560 G-Series - 65" 4K InGlass™ LED Interactive Display
Couldn't load pickup availability
- 4K Ultra HD
- 16:9 aspect ratio
- Sleek design with an ultra-thin Bezel
- InGlass technology supporting palm rejection and 4 passive styluses
- Zero parallax optically bonded glass surface for pixel-perfect inking
- Presence Detection Sensor
- Single Type-C connectivity delivering audio, video, touch, Ethernet and power
- Intel OPS PC slot for expanded functionality
- Avocor UiQ - smart touch enabled dynamic user interface
- FUSE - Remote management software platform for AV/IT Managers
The Avocor G series is a range of sleek, bezel-less, edge-to-edge interactive displays designed to streamline workplace collaboration. These crystalclear 4K collaboration displays use the latest InGlassTM technology combined with bonded glass to deliver ultra-fast touch performance, supporting up to 20 individual touch points and 4 passive styluses. The G series also provides a 40W crystal-clear audio experience with built-in active microphones. The result is a pixel-perfect user experience and high performance.
Available in stunning 65”, 75”, and 85” sizes, the G series collaboration displays give users an intuitive and interactive experience for participants in the room and meeting equity for those who are remote.
| Display | |
|---|---|
| Pen & touch differentiation | Yes |
| Palm rejection | Yes |
| Palm erase | Yes |
| Screen glass thickness | 3 mm |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Number of simultaneous touchpoints | 20 |
| Touch technology | Multi-touch |
| Touchscreen | Yes |
| Maximum refresh rate | 60 Hz |
| Response time | 9.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Native aspect ratio | 16:9 |
| LED backlighting type | Direct-lit LED |
| Panel type | LCD |
| LED backlight | Yes |
| HD type | 4K Ultra HD |
| Anti-glare screen | Yes |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| Display diagonal | 165.1 cm (65") |
| Audio | |
|---|---|
| Number of microphone arrays | 4 |
| Built-in microphone | Yes |
| Speaker power | 10 W |
| Number of built-in speakers | 4 |
| Built-in speaker(s) | Yes |
| Network | |
|---|---|
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Audio output | 1 |
| S/PDIF out port | Yes |
| OPS slot | 1 |
| Line-out | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| USB Power Delivery up to | 60 W |
| USB Power Delivery (USB PD) | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI output ports quantity | 1 |
| HDMI version | 2.0 |
| USB Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-A hub ports quantity | 5 |
| USB 2.0 Type-B Touch ports quantity | 3 |
| HDCP version | 2.2 |
| HDCP | Yes |
| Ergonomics | |
|---|---|
| Fanless | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 400 x 400 mm |
| VESA mounting | Yes |
| Product colour | Brushed steel |
| Performance | |
|---|---|
| Proximity sensor | Yes |
| Ambient light sensor | Yes |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 335 W |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 11, Windows 8 |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 56 kg |
| Height | 884.4 mm |
| Depth | 116 mm |
| Width | 1481.4 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package weight | 75.5 kg |
| Package height | 1156 mm |
| Package depth | 253 mm |
| Package width | 1672 mm |
| Packaging content | |
|---|---|
| Stylus tip diameter | 3 mm |
| Number of stylus pens | 2 |
| Stylus pen type | Passive |
| Stylus included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Cables included | HDMI, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C |
| USB cable length | 3 m |
| Other features | |
|---|---|
| Country of origin | Taiwan |
| Warranty period | 3 year(s) |
