AudioCodes RXV200 for Microsoft Teams room, small to mid size meeting room. With MDEP. Bundle 360
£2,020.99
Couldn't load pickup availability
- Group video conferencing system 18 person(s)
- Bluetooth
- 4K Ultra HD 3840 x 2160 pixels 30 fps
- Built-in speaker(s) 100 - 20000 Hz RMS rated power: 8 W
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi VLAN support
- Quad camera 5 MP 1/2.7"
- Power source type: DC
- Black
The RXV200-B360 bundle includes the center-of-room RXVCam360 panoramic video camera with built-in speakers and microphones and is ideal for small/medium rooms with participants seated around a round table.
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Number of persons | 18 person(s) |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Maximum frame rate | 30 fps |
| Aspect ratio | 16:9 |
| Resolution at capture speed | 640x480@30fps, 1280x720@30fps, 1920x1080@30fps, 2560x1440@30fps, 3840x2160@30fps |
| Video formats supported | MJPG, NV12, YUV |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Frequency range | 100 - 20000 Hz |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Automatic gain control | Yes |
| Microphone pick-up range | 3 m |
| RMS rated power | 8 W |

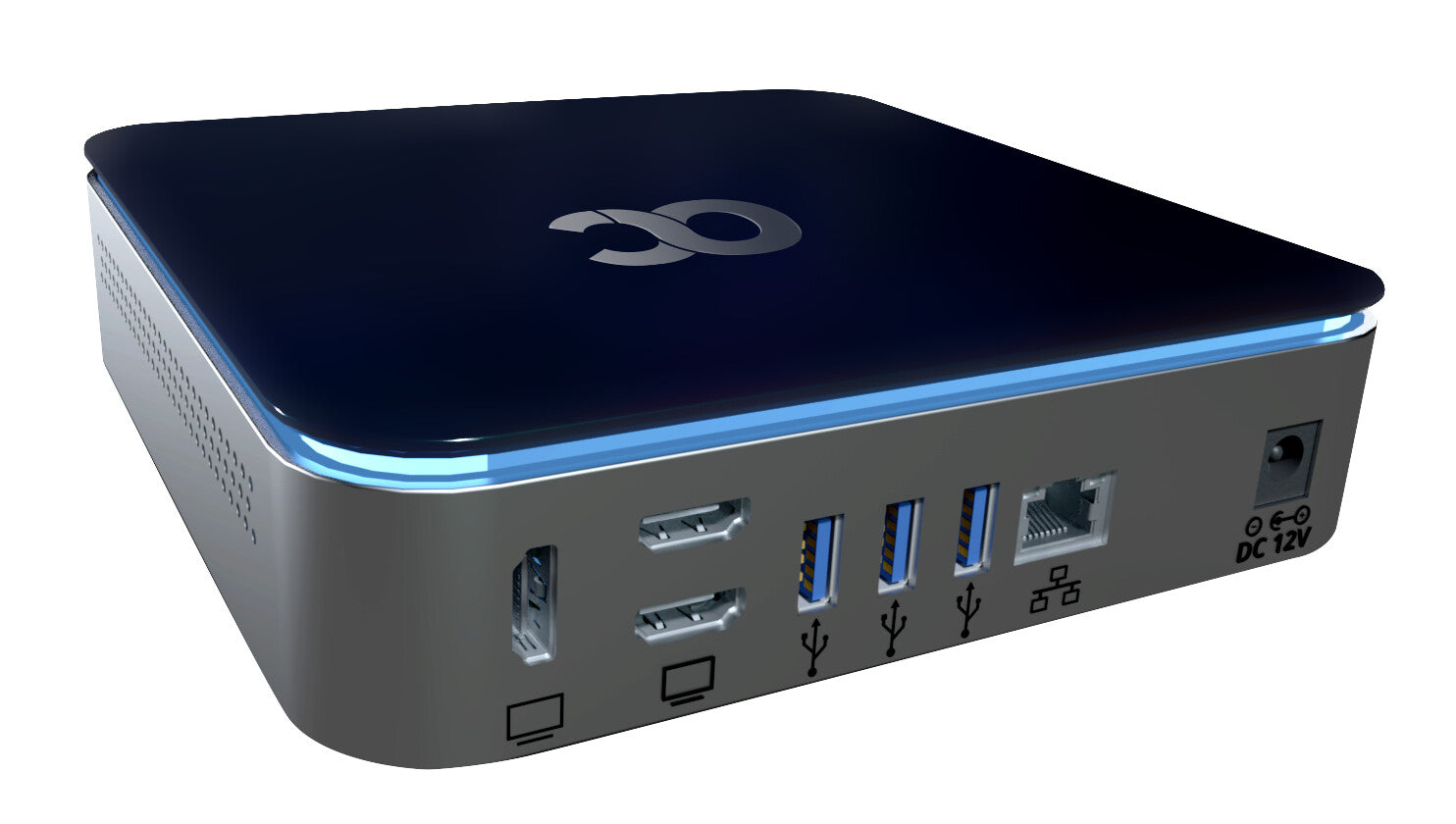

| Ports & interfaces | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Interface module | |
|---|---|
| Interface module HDMI ports quantity | 3 |
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI output ports quantity | 2 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| Supported network protocols | TCP/IP (IPv4) |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Security algorithms | 256-bit AES |
| Camera | |
|---|---|
| Megapixel (approx.) | 5 MP |
| Camera type | Quad camera |
| Zoom capability | Yes |
| Effective sensor resolution | 5 MP |
| Image sensor size | 1/2.7" |
| Focal length range | 2.49 mm |
| Field of view (FOV) angle | 360° |

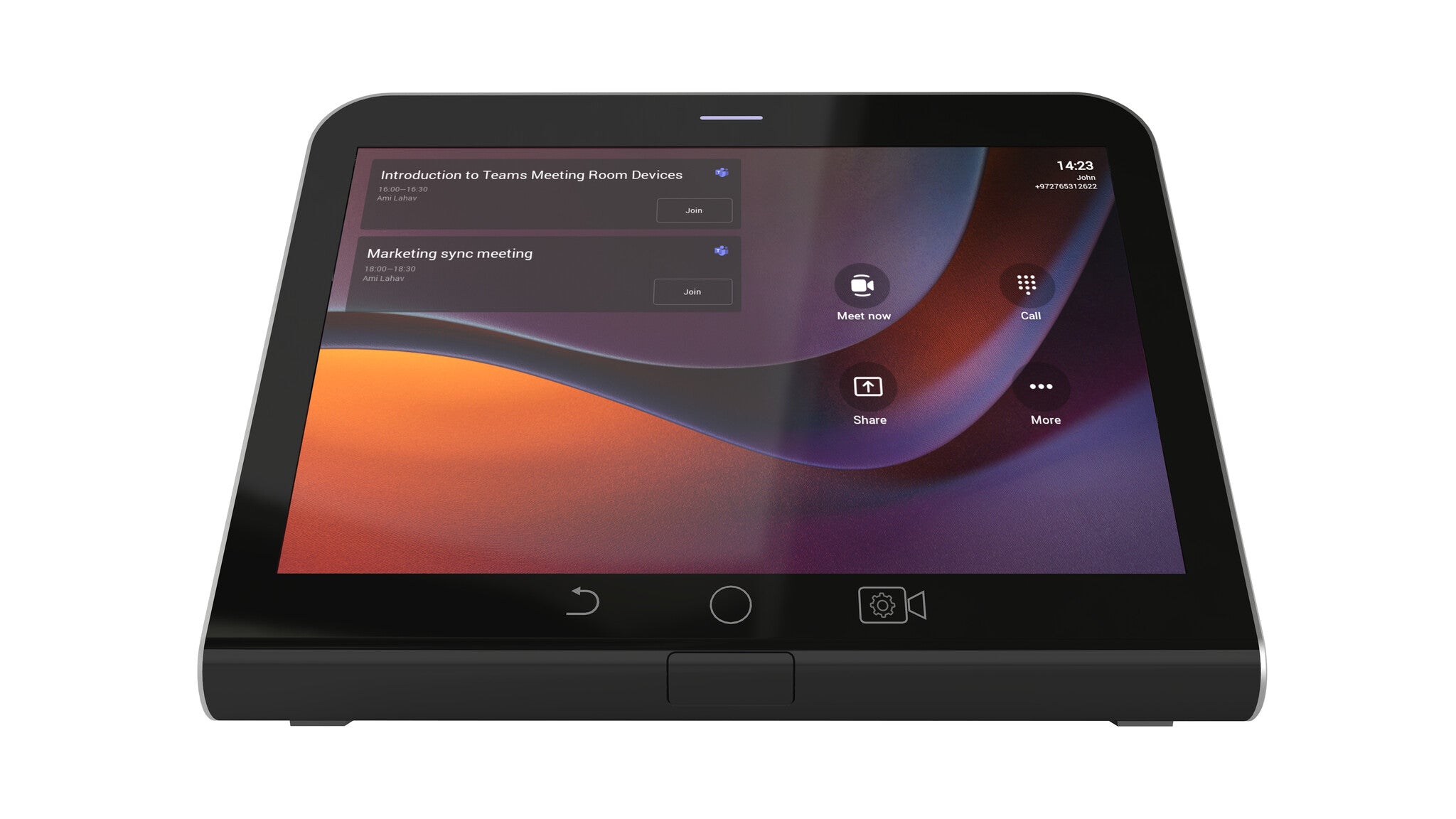

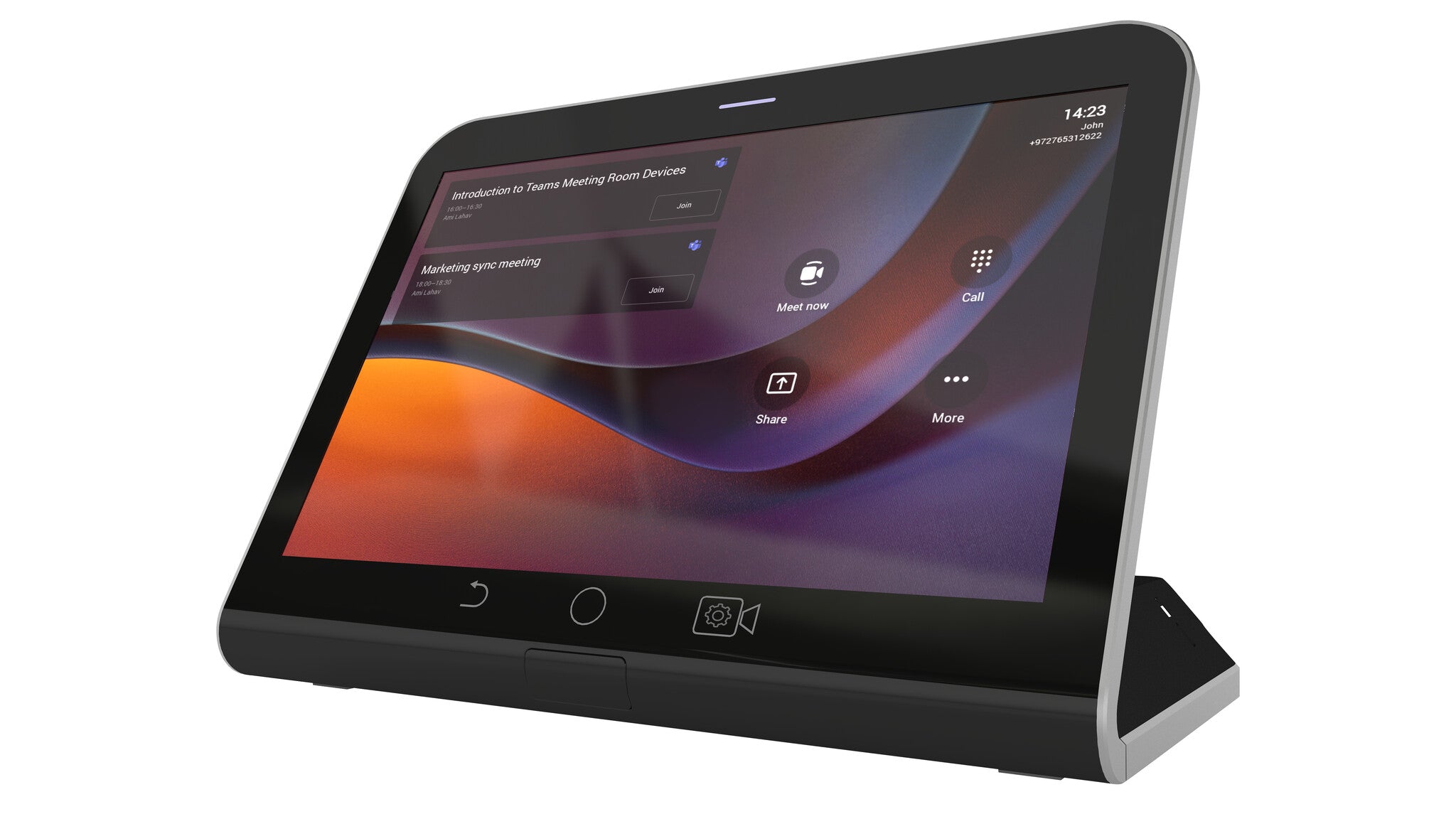

| Display | |
|---|---|
| Built-in display | Yes |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Microphone | |
|---|---|
| Microphone colour | Black |
| Microphone sensitivity | 38 dB |
| Microphone frequency | 100 - 8000 Hz |
| Microphone mute | Yes |
| Sound pressure level (max) | 75 dB |
| Number of microphones | 4 |
| Computer system | |
|---|---|
| Computer system type | Mini PC |
| Processor family | Snapdragon |
| Processor model | QCS8250 |
| Operating system installed | Android |
| Features | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | -10 - 50 °C |
| Power | |
|---|---|
| Power source type | DC |
| Current | 3 A |
| DC input voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Interface module dimensions (W x D x H) | 170 x 170 x 41.3 mm |
| Interface module weight | 750 g |
| Camera dimensions (WxDxH) | 84.5 x 84.5 x 274.9 mm |
| Camera weight | 800 g |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45), USB Type-C |
| AC adapter included | Yes |
| Packaging content | ✓ RXV200 ✓ RXVCam360 ✓ RX-PAD ✓ 12V 3A Power Adapter (100-240V) ✓ USB Type C cable ✓ Ethernet cable |
