AudioCodes RXV200 for Microsoft Teams room, mid size meeting room. With MDEP. Bundle 50
Couldn't load pickup availability
- Fully controllable by the RX-PAD center-of-room intelligent touch controller
- RXVCam50M provides a superb video quality (HD 4K video at 30fps)
- RXV200 Android compute MTR is a robust, dependable and adaptable solution that enables an easy upgrade of any component within the meeting room
- Excellent sound quality in larger rooms leveraging Dolby technology
- 10x digital zoom for focusing and zooming in on distant users and objects
- RX40 AudioBar with satellite speakers provides superior call quality in large meeting rooms
The RXV200-B40 bundle takes your medium to large meeting space to a complete meeting room with compute device (RXV200), camera (RXVCam50M), meeting room controller (RX-PAD), and sound bar with satellite speakers (RX40).Modern meeting devices must be adaptable enough to accommodate any room size or shape, while minimizing the number of table-mounted accessories and devices apart from a microphone and a meeting room controller like the AudioCodes RX-PAD. The RXV200 Android compute MTR is a robust, dependable and adaptable solution that enables an easy upgrade of any component within the meeting room, thereby facilitating the adoption of new and advanced devices to keep up with latest technology trends without excessive expenditure. Together with the RX-PAD meeting controller, it provides an easy meeting room experience that significantly boosts productivity.
RXV200-B50 Bundle for Medium Rooms
Ideal for 6 - 12 people
The RXV200-B50 bundle offers a truly immersive experience for medium-sized meeting rooms thanks to an HD wide-angle camera and a powerful front-of-room audio bar with full-room pickup and rich, clear playback.

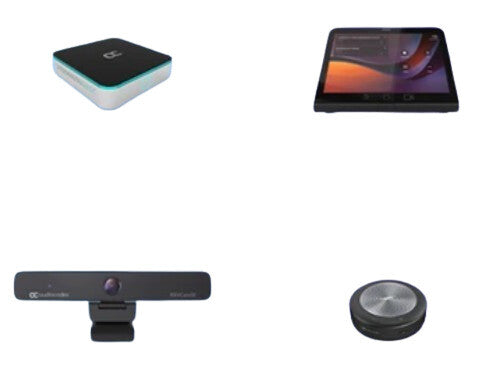

Bundle includes:
- Video: RXVCam50M
- Audio: RX-HDL200
- Controller: RX-PAD
- Compute Unit: RXV200
Additional options:
- Productivity: Meeting Insights
- Monitoring and Management: Device Manager
| Performance | |
|---|---|
| Product type | Group video conferencing system |
| Number of persons | 12 person(s) |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Product colour | Black |
| PTZ control | Yes |
| Video | |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Aspect ratio | 16:9 |
| Resolution at capture speed | 640x480@25fps, 640x480@30fps, 1280x720@25fps, 1280x720@30fps, 1920x1080@25fps, 1920x1080@30fps, 3840x2160@30fps |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| Frequency range | 125 - 20000 Hz |
| Output voltage Total Harmonic Distortion (THD) | 0.25% |
| Noise reduction | Yes |
| Microphone pick-up range | 5.5 m |
| RMS rated power | 40 W |
| Ports & interfaces | |
|---|---|
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Interface module | |
|---|---|
| Interface module HDMI ports quantity | 3 |
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI output ports quantity | 2 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards | IEEE 802.1Q, IEEE 802.1p |
| Supported network protocols | TCP/IP (IPv4) |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SRTP, TLS |
| Camera | |
|---|---|
| Megapixel (approx.) | 8.28 MP |
| Camera type | Single camera |
| Zoom capability | Yes |
| Digital zoom | 10x |
| Sensor type | CCD |
| Image sensor size | 1/2.5" |
| Focal length range | 2.26 mm |
| Horizontal field of view | 100° |
| Vertical field of view | 64° |
| Diagonal field of view | 102° |
| 3D NR (Noise Reduction) | Yes |
| Minimum illumination | 0.1 lx |
| Display | |
|---|---|
| Built-in display | Yes |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Microphone | |
|---|---|
| Microphone colour | Black |
| Microphone frequency | 300 - 8000 Hz |
| Number of microphones | 2 |
| Computer system | |
|---|---|
| Computer system type | Mini PC |
| Processor family | Snapdragon |
| Processor model | QCS8250 |
| Operating system installed | Android |
| Features | |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | -10 - 50 °C |
| Power | |
|---|---|
| Power source type | DC |
| Current | 3 A |
| DC input voltage | 12 V |
| Weight & dimensions | |
|---|---|
| Interface module dimensions (W x D x H) | 170 x 170 x 41.3 mm |
| Interface module weight | 750 g |
| Speaker weight | 4.5 kg |
| Speaker dimensions (WxDxH) | 1179 x 36 x 122 mm |
| Camera dimensions (WxDxH) | 220 x 93.75 x 56.5 mm |
