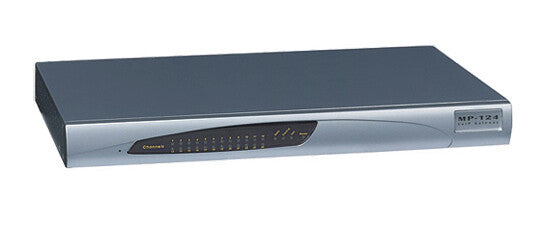

AudioCodes MediaPack 124 gateway/controller
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £375.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
AudioCodes’ MediaPack 1xx series of Analog VoIP Gateways are cost-effective, stand-alone VoIP gateways that provide superior voice technology for connecting legacy telephones, fax machines and PBX systems with IP telephony networks and IP-based PBX systems. The MediaPack 1xx series gateways support a wide variety of service provider and enterprise applications:
- Service providers can use MediaPack gateways to connect Multi-Tenant Units (MTUs), IP Centrex subscribers, payphones, and rural users over wireless and satellite links
- Enterprises can use MediaPack gateways to connect their legacy PBX systems over an IP infrastructure. In addition, in IP Centrex and central IP-PBX applications, MediaPack enhances remote location availability and provides Stand Alone Survivability (SAS) when there is no IP connection between branch locations and a central SIP server, SIP proxy or central IP-PBX
The MediaPack 1xx gateways are fully interoperable with leading softswitches, SIP servers and H.323 systems.
Features
- Support for 2 to 24 analog ports
- T.38 fax compliant
- Rich subscriber feature set: 3-way conference with local mixing, call pickup, hunt groups, call forwarding, call hold and call transfer
- Echo cancellation, jitter buffer, voice activity detection (VAD) and comfort noise generation (CNG)
- Complies with MGCP, H.323v4 and SIP control protocols
Benefits
- Leverage investment in existing analog telephone, modem, and fax systems – easing VoIP migration
- Lifeline for fallback to PSTN for E911 (Emergency number PSTN breakthrough) or upon network/power failure (FXO and/or FXS configurations)
- Standalone Survivability (SAS) keeps your business running in the event of a network failure
Specifications
Design
| LED indicators | Yes |
|---|
Features
| Voice codecs | G.711, G.722, G.723.1, G.726, G.729A, G.729B |
|---|
Show all 17 specificationsShow fewer specifications
Protocols
| Management protocols | BootP, DHCP, TFTP, HTTP, DHCP, EMS, SNMP V3 |
|---|
Network
| Cabling technology | 10/100Base-T(X) |
|---|
Security
| Security algorithms | HTTPS, SRTP, SSL/TLS |
|---|
Ports & interfaces
| Interface | 24 x FXS |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Input voltage | 100 - 240 V |
|---|---|
| Input frequency | 50/60 Hz |
Weight & dimensions
| Weight | 1.8 kg |
|---|---|
| Dimensions (WxDxH) | 445 x 269 x 44 mm |
Packaging content
| AC adapter included | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 5 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Safety | EN60950-1 |
|---|---|
| Certification | EN55022 , CFR, EN55024, EN61000-3-3, EN61000-3-2, VCCI Class X1 |
