• Extends the distance between the DVI source and DVI display device
• Long distance transmission – up to 60 m
• Uses Cat 5e cable to connect the local and remote units
• Employs ATEN EDID technology that allows signal transmission over one Cat 5e cable
• Uses a second (Sub) Cat 5e cable for dual link signals*
• Supports EDID Learning – Automatically learns and saves the EDID data of the display to which the Transmitter (VE602T) is connected
• Superior video quality – DVI Dual Link up to 2560 x 1600 @ 60 Hz (40 m); DVI Single Link up to 1920x1200 @ 60 Hz (40 m), 1024 x 768 @ 60 Hz (60 m)
• Audio enabled
• 8 segment equalization adjustment switch optimizes display quality
• Built-in 8KV/15KV ESD protection
• Supports widescreen formats
• Rack mountable
• Note:
• * The length of the two Cat 5e cables must be the same.
• ** Note: HDCP is not supported

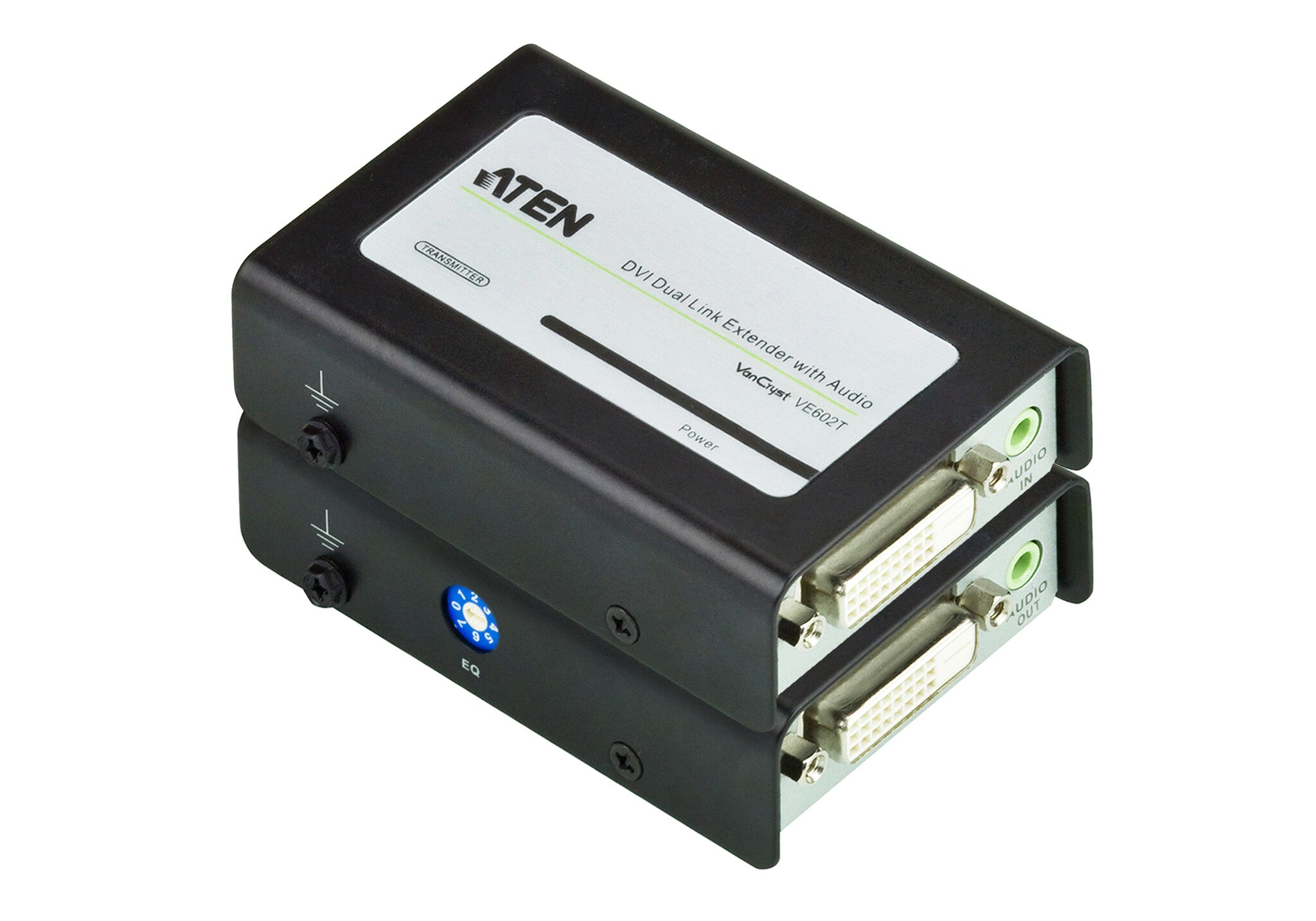

The VE602 DVI Dual Link Extender with Audio extends your DVI display up to 60 m away from your DVI source using Cat 5e cables. The use of Cat 5e cables provides a simple and reliable connection method that takes advantage of the wiring system in most modern office buildings.
