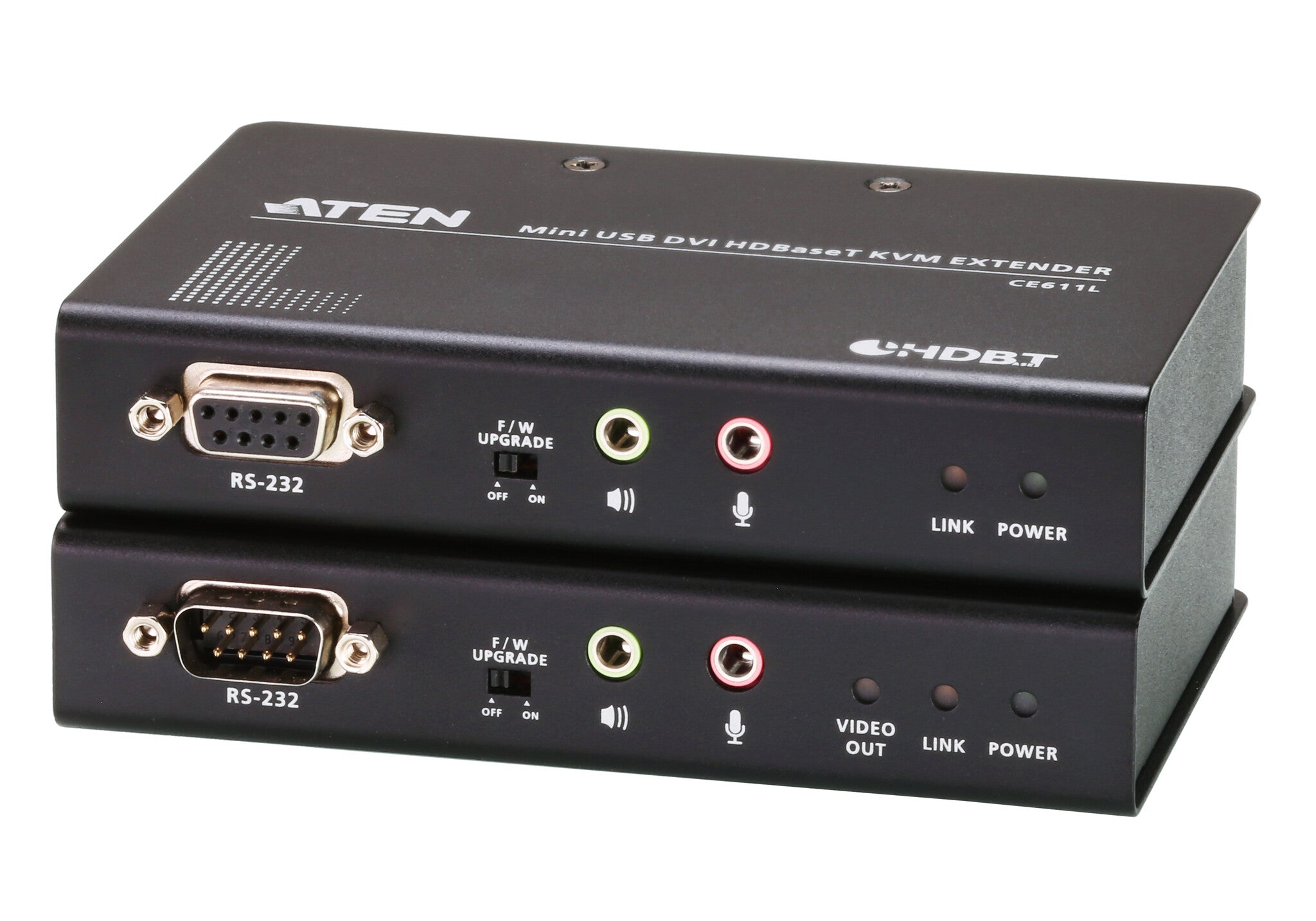

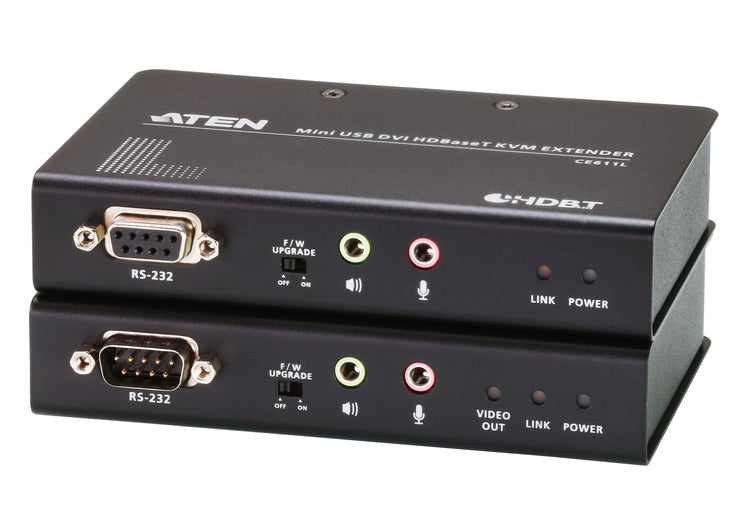

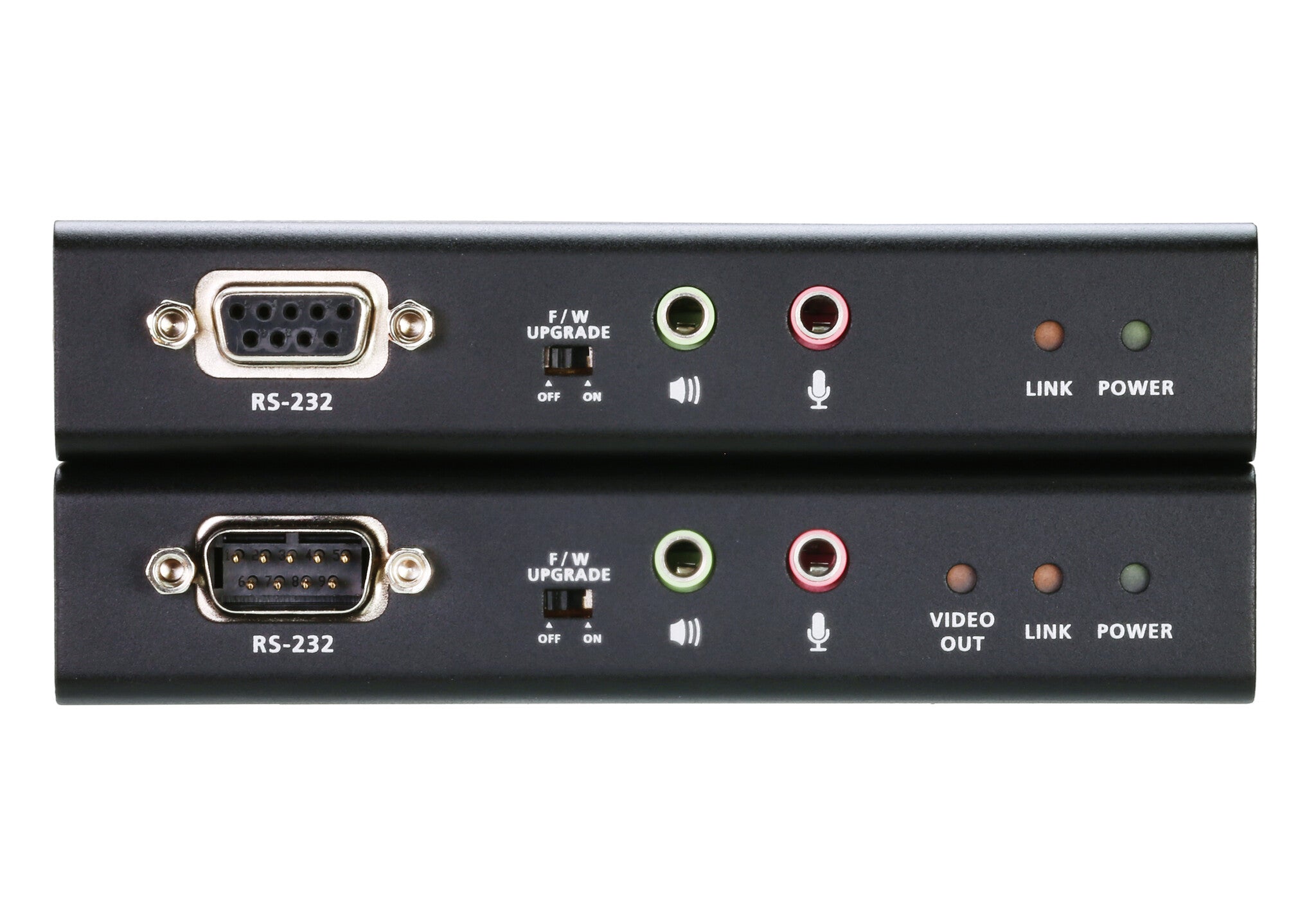

ATEN CE611 KVM extender Transmitter & receiver
£521.99
Couldn't load pickup availability
- Supports HDBaseT™ technology
- • Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / ATEN 2L-2910 Cat 6 cable
- • Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
- • Status detection and LED indication for HDBaseT™ signal transmission
- Long distance with superior video quality – up to 1920 x 1200 @ 100m (Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable)
- USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
- Supports individual 2-channel stereo audio for high-quality audio applications
- Built-in 8KV / 15KV ESD protection (contact voltage 8KV; air voltage 15KV)
The ATEN CE611 is a USB DVI HDBaseT™ KVM Extender that integrates the latest HDBaseT™ technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
| Features | |
|---|---|
| Certification | RoHS |
| LED indicators | Yes |
| Material | Metal |
| Product colour | Black |
| Supported resolutions | 1920x12001920x10801600x1200 |
| Maximum digital resolution | 1920 x 1200 pixels |
| Cable types supported | Cat6, Cat6a |
| Maximum transfer distance | 100 m |
| Connectivity technology | Wired |
| Type | Transmitter & receiver |
| Transmitter | |
|---|---|
| RJ-45 ports quantity (transmitter) | 1 |
| Transmitter local keyboard/mouse port type | USB |
| Transmitter video port type | DVI-D |
| Receiver | |
|---|---|
| RJ-45 ports quantity (receiver) | 1 |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| Ports & interfaces | |
|---|---|
| PC Audio out | Yes |
| PC Audio in | Yes |
| RS-232 ports | 2 |
| RJ-45 ports quantity | 2 |
| USB data transfer rates | 480 Mbit/s |
| Power | |
|---|---|
| Power consumption (receiver) (max) | 4.816 W |
| Power consumption (transmitter) (max) | 2.494 W |
| Weight & dimensions | |
|---|---|
| Receiver weight | 340 g |
| Receiver height | 2.5 cm |
| Receiver depth | 8.69 cm |
| Receiver width | 12.8 cm |
| Transmitter weight | 350 g |
| Transmitter height | 2.5 cm |
| Transmitter depth | 8.69 cm |
| Transmitter width | 12.8 cm |
| Packaging content | |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Other features | |
|---|---|
| Firmware upgradeable | Yes |
| Technical details | |
|---|---|
| Power requirements | DC |
