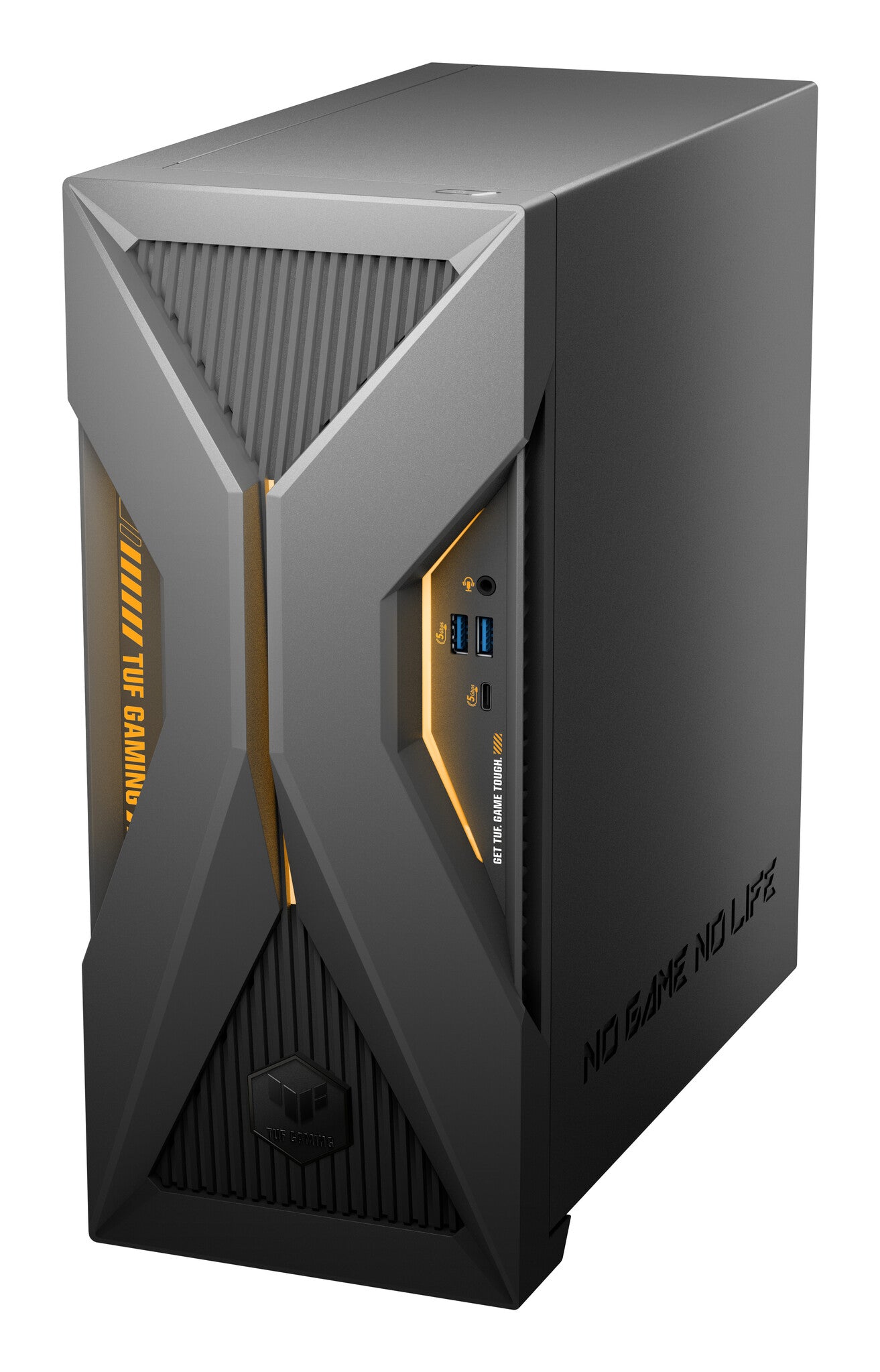

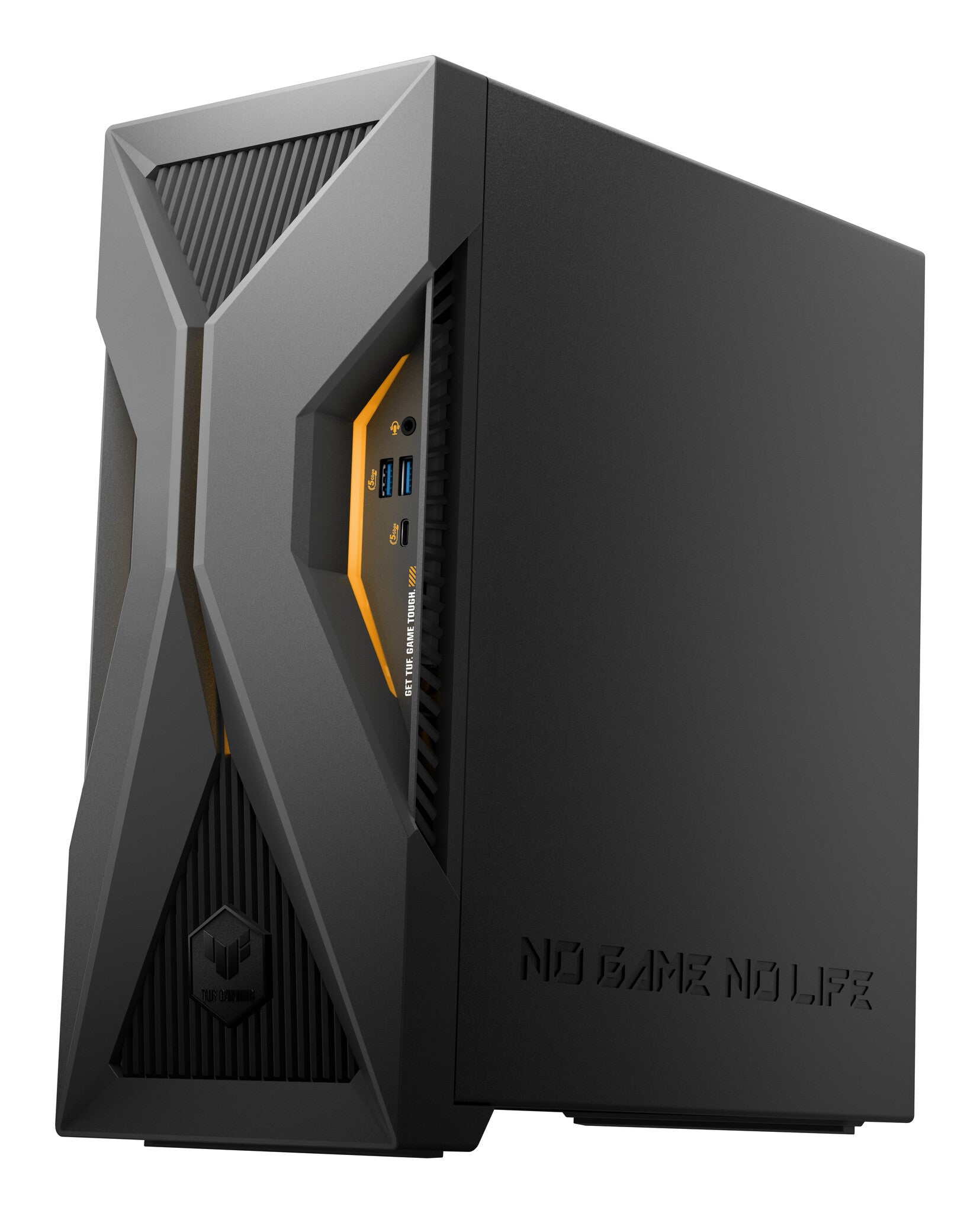

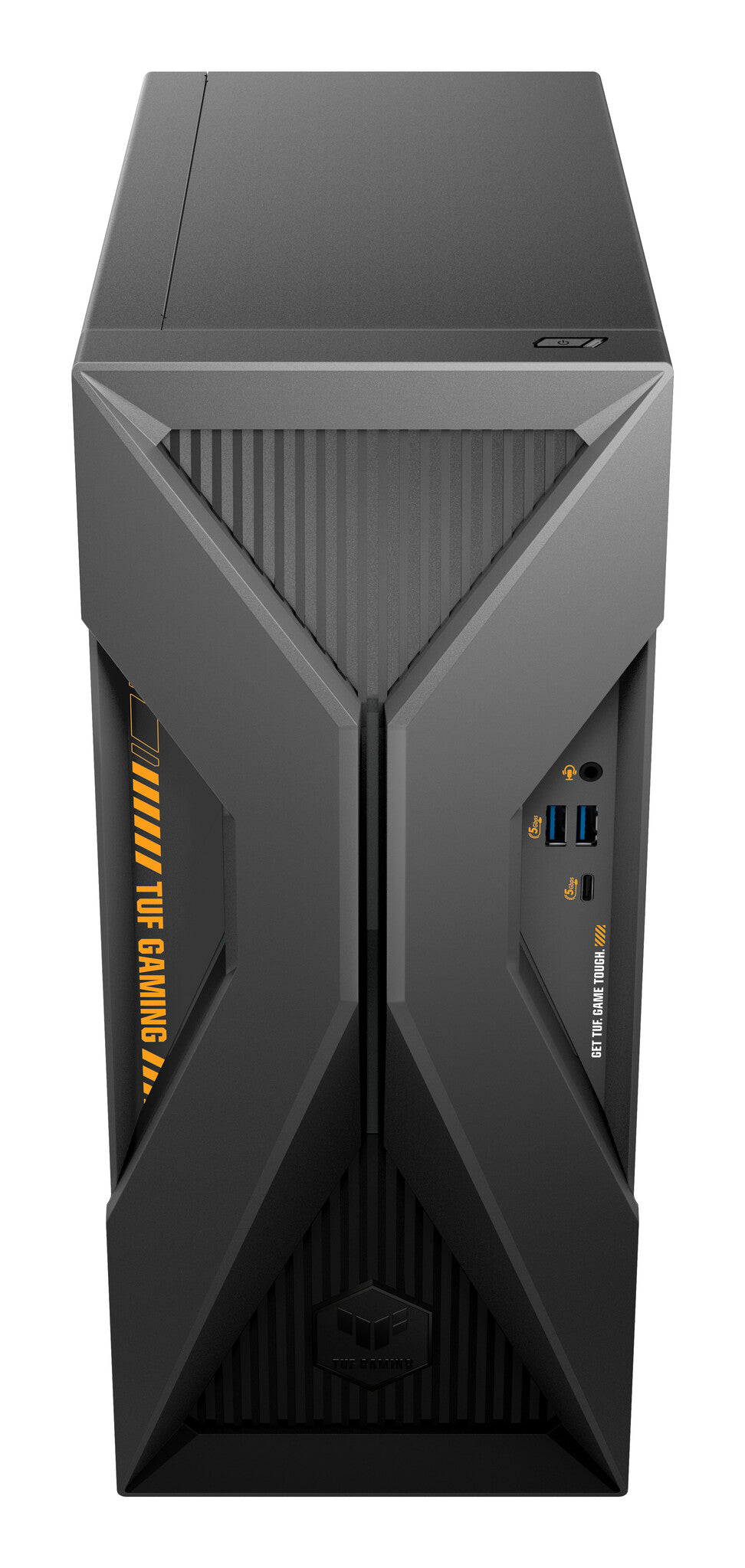

ASUS TUF Gaming T500 T500MV-07240H133W Intel Core 7 240H 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 5060 Ti Windows 11 Home Mini Tower PC Black, Grey
£1,806.99
Couldn't load pickup availability
- Windows 11 Home 64-bit
- Intel Core 7 240H (24MB Cache)
- NVIDIA GeForce RTX 5060 Ti (8GB GDDR7)
- 16GB (5600MHz) DDR5-SDRAM & 512GB SSD
Built for combat.
ASUS made its name on PC components like motherboards and graphics cards, so we know what a quality PC looks like. We carefully designed this entire system from the ground up, rigorously tested it for rock-solid stability and reliability, and tuned it for incredible power efficiency, and thermal performance.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core 7 |
| Processor generation | Intel Core (Series 2) |
| Processor model | 240H |
| Processor cores | 10 |
| Processor threads | 16 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 5.2 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor socket | BGA 1744 |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 115 W |
| Processor base power | 45 W |
| Memory | |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
| Storage | |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5060 Ti |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR7 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel WGI219V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

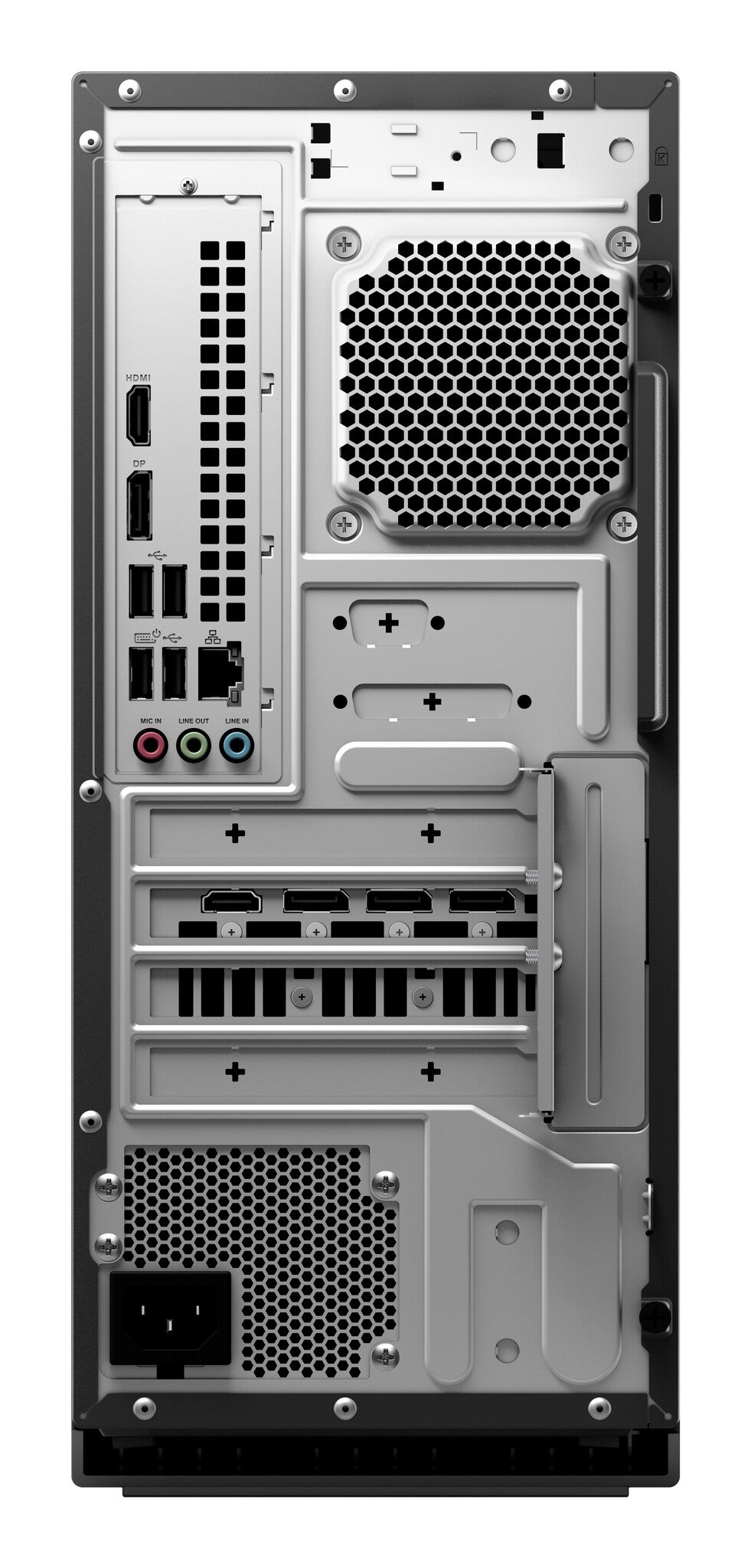

| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 1 |
| Design | |
|---|---|
| Chassis type | Mini Tower |
| Colour name | Solar Eclipse Gray |
| Volume | 15 L |
| Placement supported | Vertical |
| Water cooling system | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black, Grey |
| Country of origin | China |
| Certified refurbished | No |
| Performance | |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Virtual Reality (VR) ready | Yes |
| Audio system | High Definition Audio |
| Audio output channels | 7.1 channels |
| Password protection | Yes |
| Password protection type | HDD, User |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | Windows 11 Home |
| Copilot+ PC | No |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days |
| Power | |
|---|---|
| Power supply | 500 W |
| 80 PLUS certification | 80 PLUS Platinum |
| Certificates | |
|---|---|
| Compliance certificates | REACH |
| Weight & dimensions | |
|---|---|
| Width | 158.5 mm |
| Depth | 337.9 mm |
| Height | 364.3 mm |
| Weight | 5.9 kg |
| Package width | 590 mm |
| Package depth | 340 mm |
| Package height | 430 mm |
| Package weight | 13.6 kg |
| Packaging content | |
|---|---|
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
| General | |
|---|---|
| Product family | TUF Gaming T500 |
| Logistics data | |
|---|---|
| Commodity code | 8471500000 |
