£225.71

Stock Available: 0
  • Beyond-fast WiFi 7 (802.11be) - New 320MHz channels in the 6 GHz band and 4096-QAM significantly increase network capacity and throughput, with speeds of up to 9700 Mbps
  • Multi-link Operation - Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
  • Versatile WAN configuration options - Establish always-on internet through AI WAN detection and a convenient USB port ready for 4G LTE and 5G Mobile tethering
  • Smart Home Master - Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls
  • Subscription-free network security - Commercial-grade AiProtection Pro powered by Trend Micro, plus a one-tap security scan and Safe Browsing
  • Comprehensive VPN features - Including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
  • Hassle-free AiMesh Extendable Network - AiMesh extendable routers enable the whole home seamless roaming with rich, advanced features

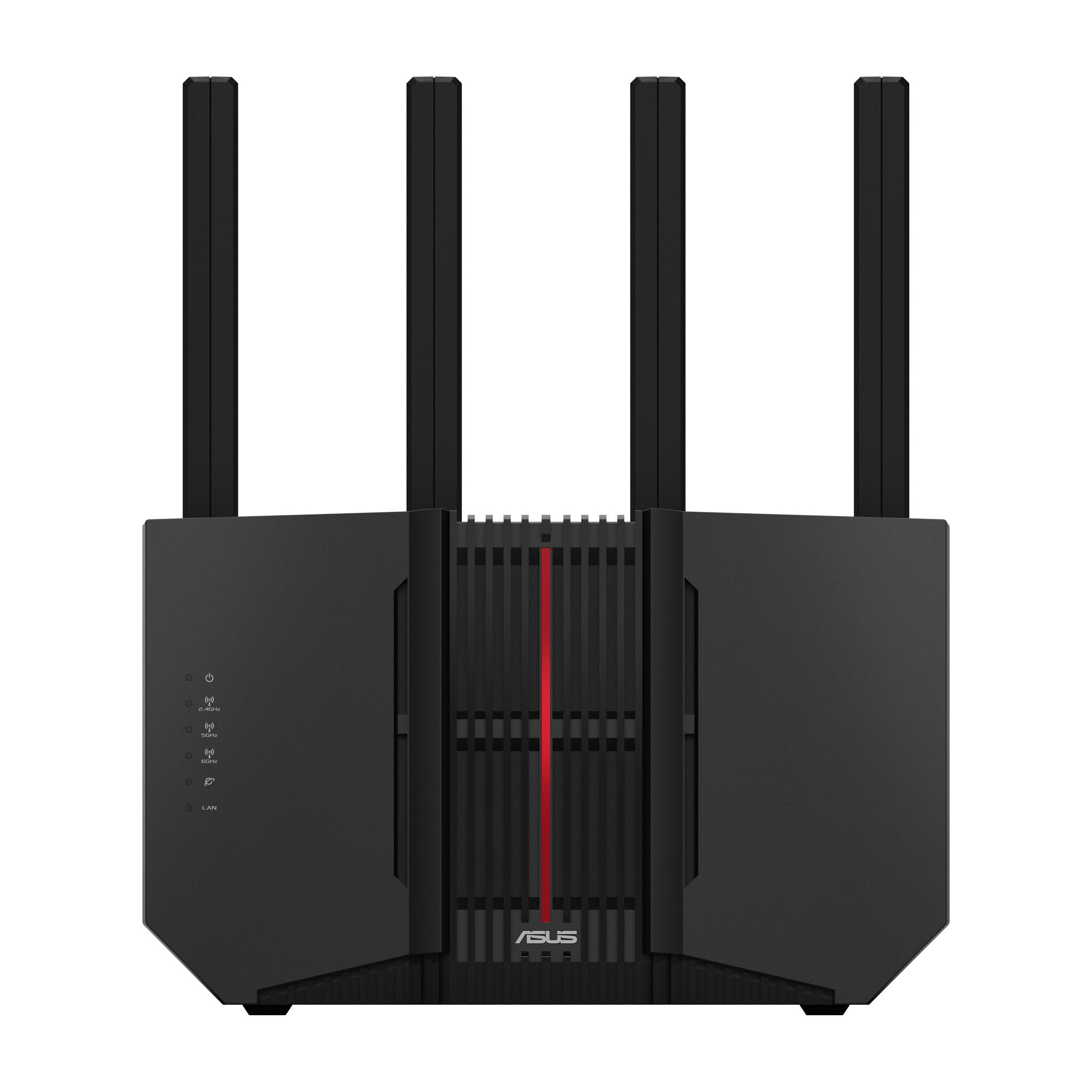

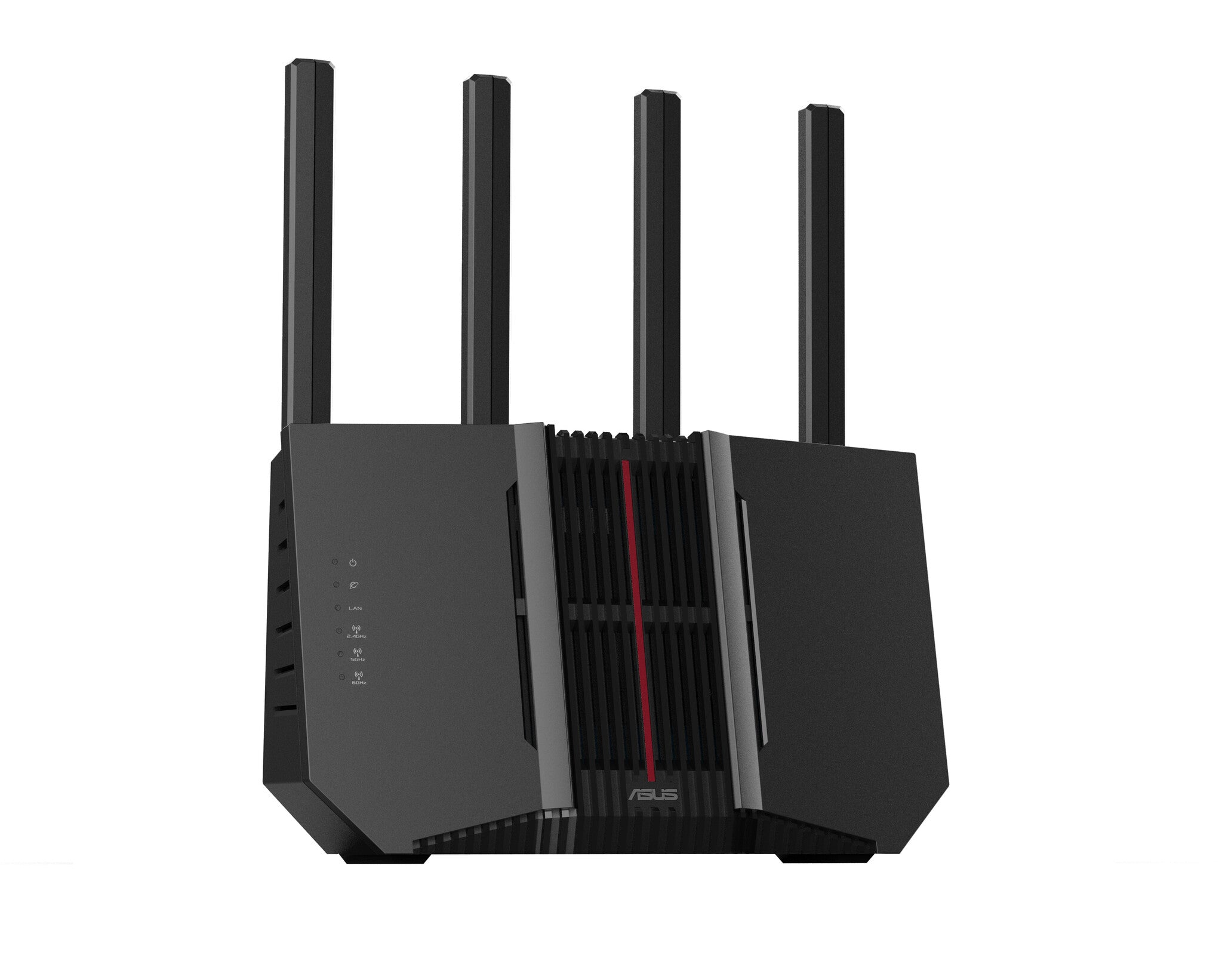

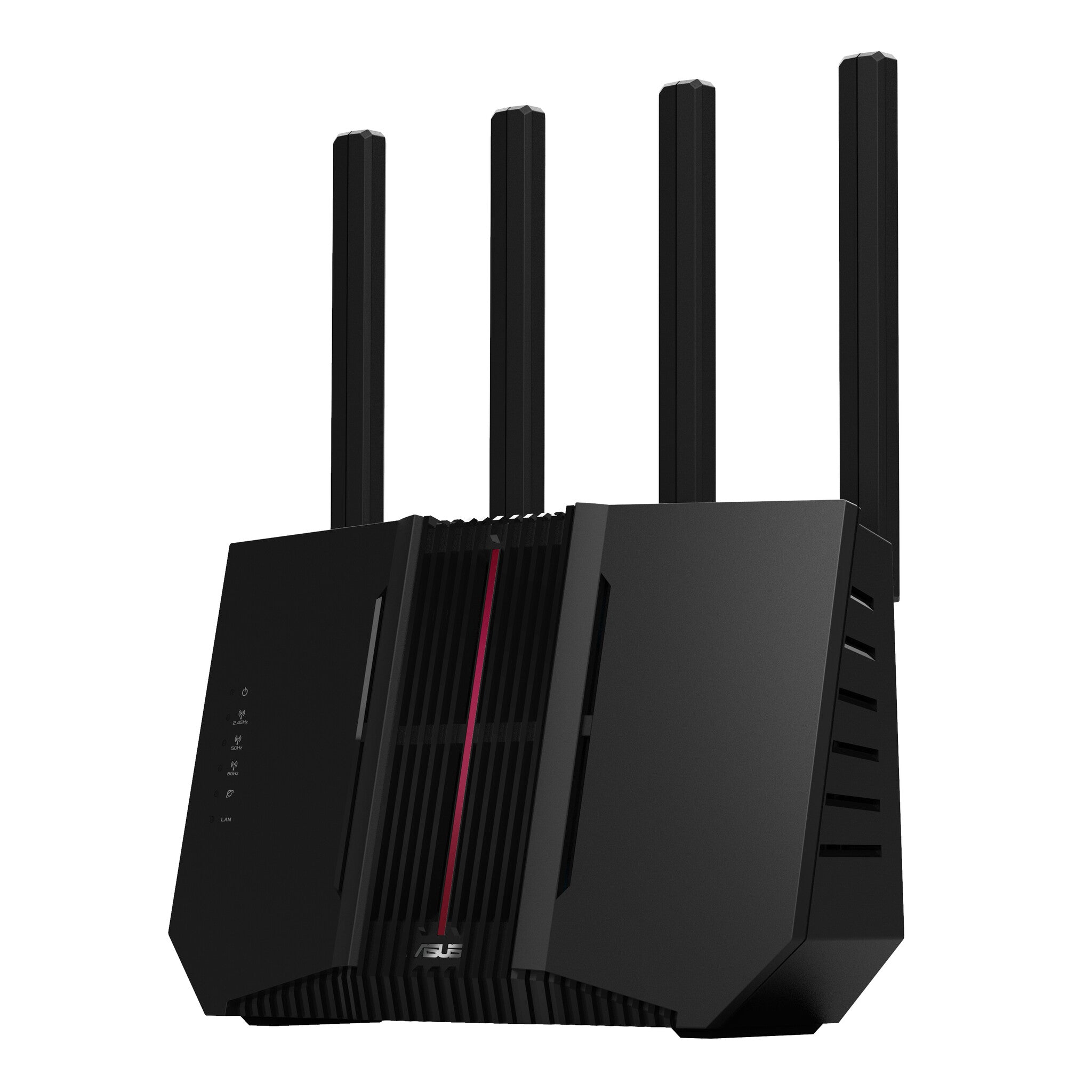

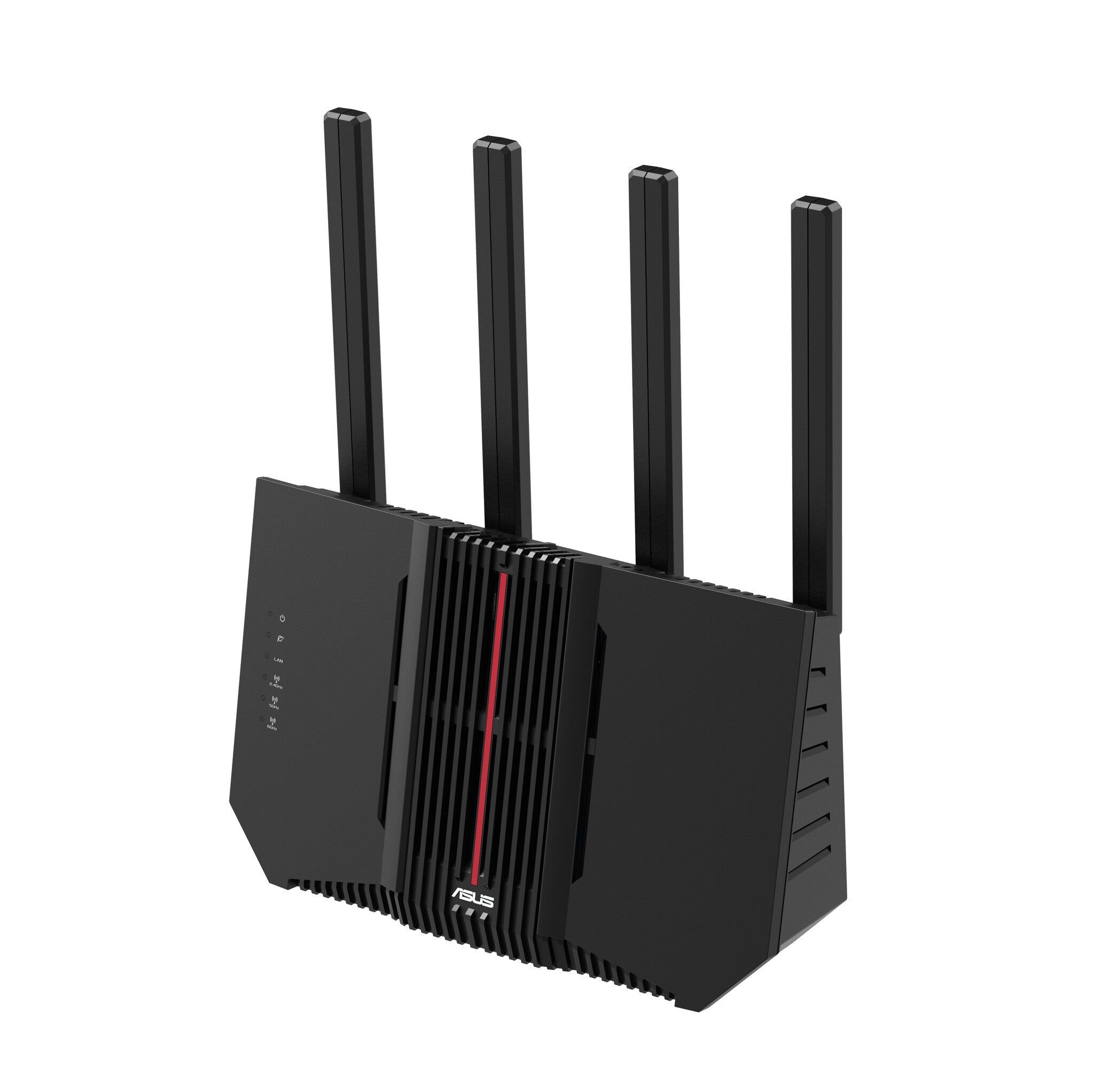

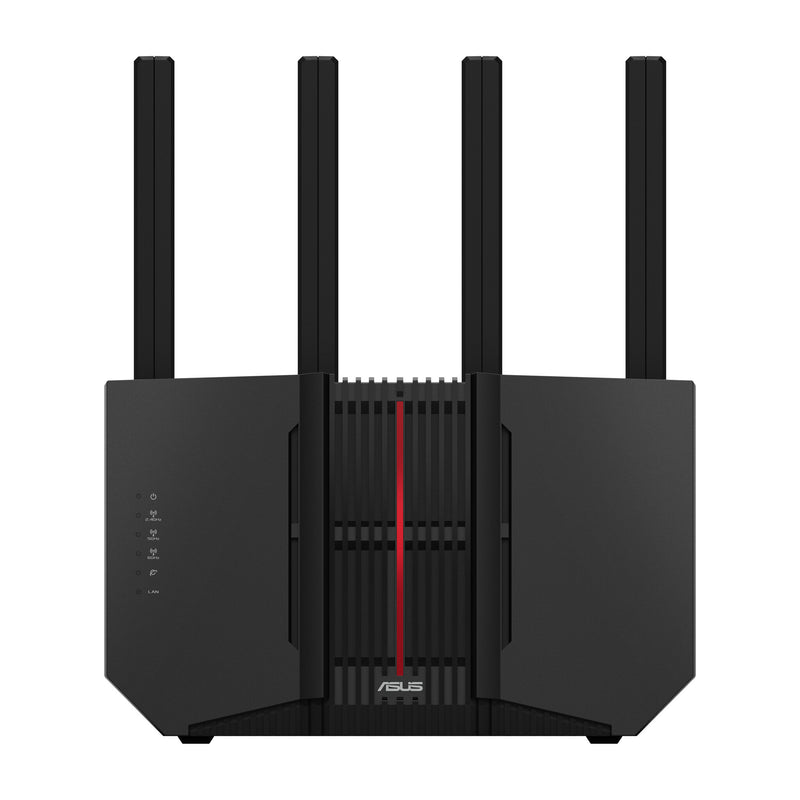

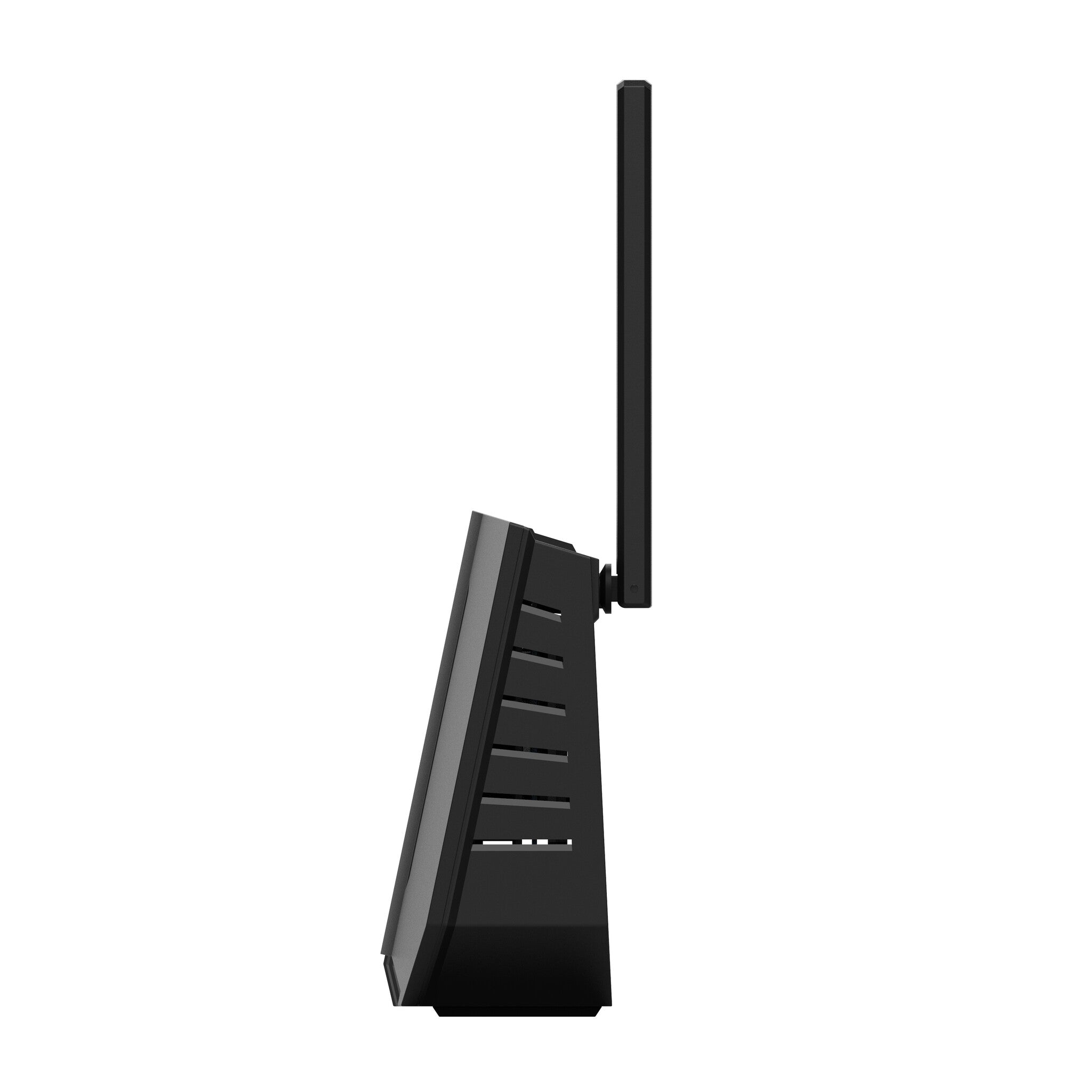

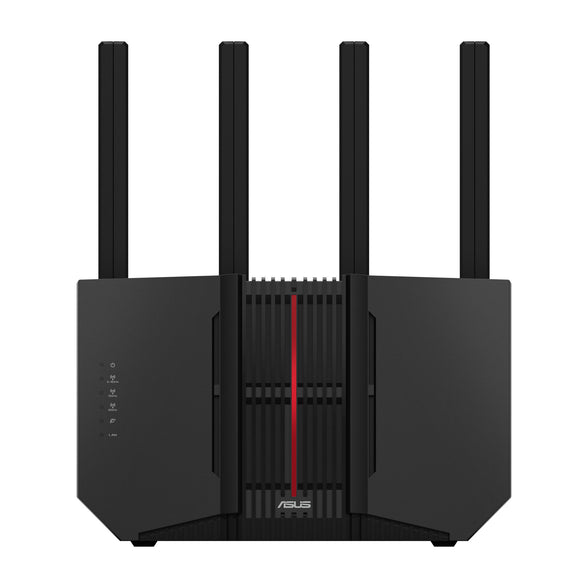

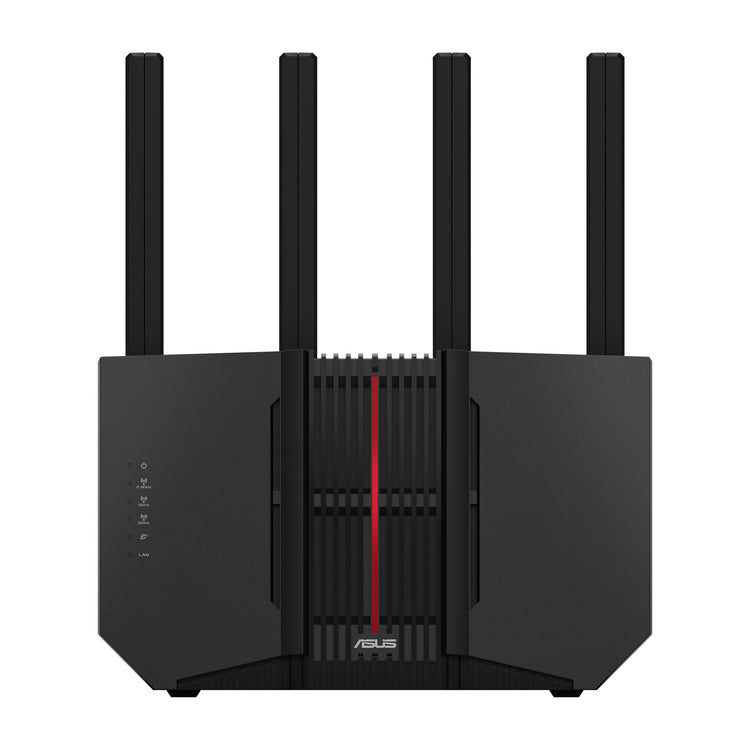

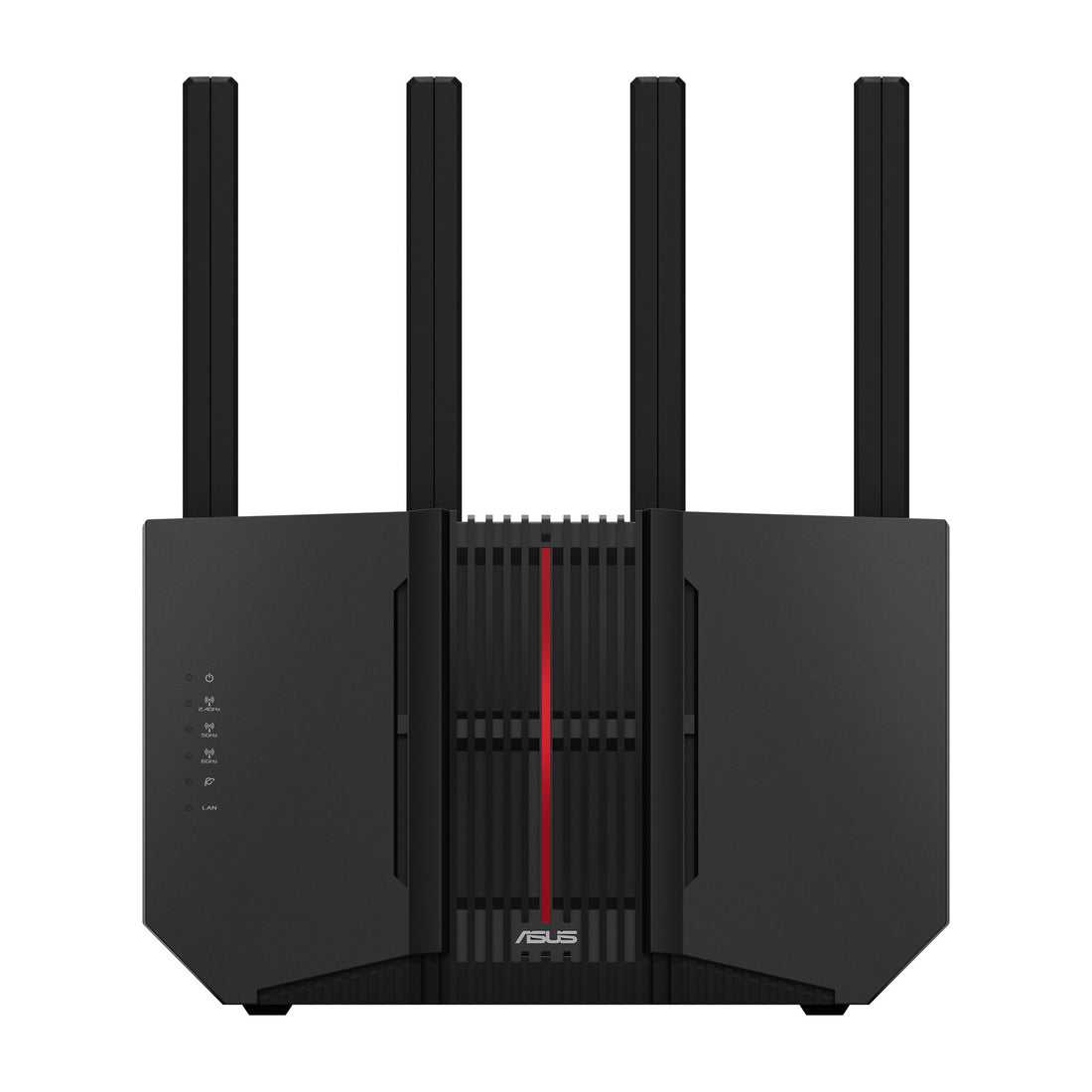

BE9700 Tri-band WiFi 7 Router, supports new 320MHz bandwidth & 4096-QAM, Multi-link operation (MLO), AI WAN detection, AiMesh support, subscription-free network security, and comprehensive VPN features, Smart Home Master

  • Beyond-fast WiFi 7 (802.11be) - New 320MHz channels in the 6 GHz band and 4096-QAM significantly increase network capacity and throughput, with speeds of up to 9700 Mbps
  • Multi-link Operation - Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers
  • Versatile WAN configuration options - Establish always-on internet through AI WAN detection and a convenient USB port ready for 4G LTE and 5G Mobile tethering.
  • Smart Home Master - Easily establish up to three SSIDs with Smart Home Master for easy IoT device setup and management, instant VPN connections, and convenient parental controls.
  • Subscription-free network security - Commercial-grade AiProtection Pro powered by Trend Micro, plus a one-tap security scan and Safe Browsing
  • Comprehensive VPN features - Including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
  • Hassle-free AiMesh Extendable Network - AiMesh extendable routers enable the whole home seamless roaming with rich, advanced features.
WAN connection
WAN connection type RJ-45
3G/4G USB modem compatibility No
SIM card slot No
DSL WAN No
Ethernet WAN Yes
Wireless LAN features
WLAN data transfer rate (third band) 5764 Mbit/s
WLAN data transfer rate (second band) 2882 Mbit/s
WLAN data transfer rate (first band) 1032 Mbit/s
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN data transfer rate (max) 5764 Mbit/s
Top Wi-Fi standard Wi-Fi 7 (802.11be)
Wi-Fi band Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Network
Media server Yes
VPN server VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard
Support Samba (storage) Yes
Dynamic DNS (DDNS) Yes
Port forwarding Yes
Port triggering Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates 10,100,1000,2500,10000 Mbit/s
Ethernet LAN interface type 10 Gigabit Ethernet
Ethernet LAN Yes

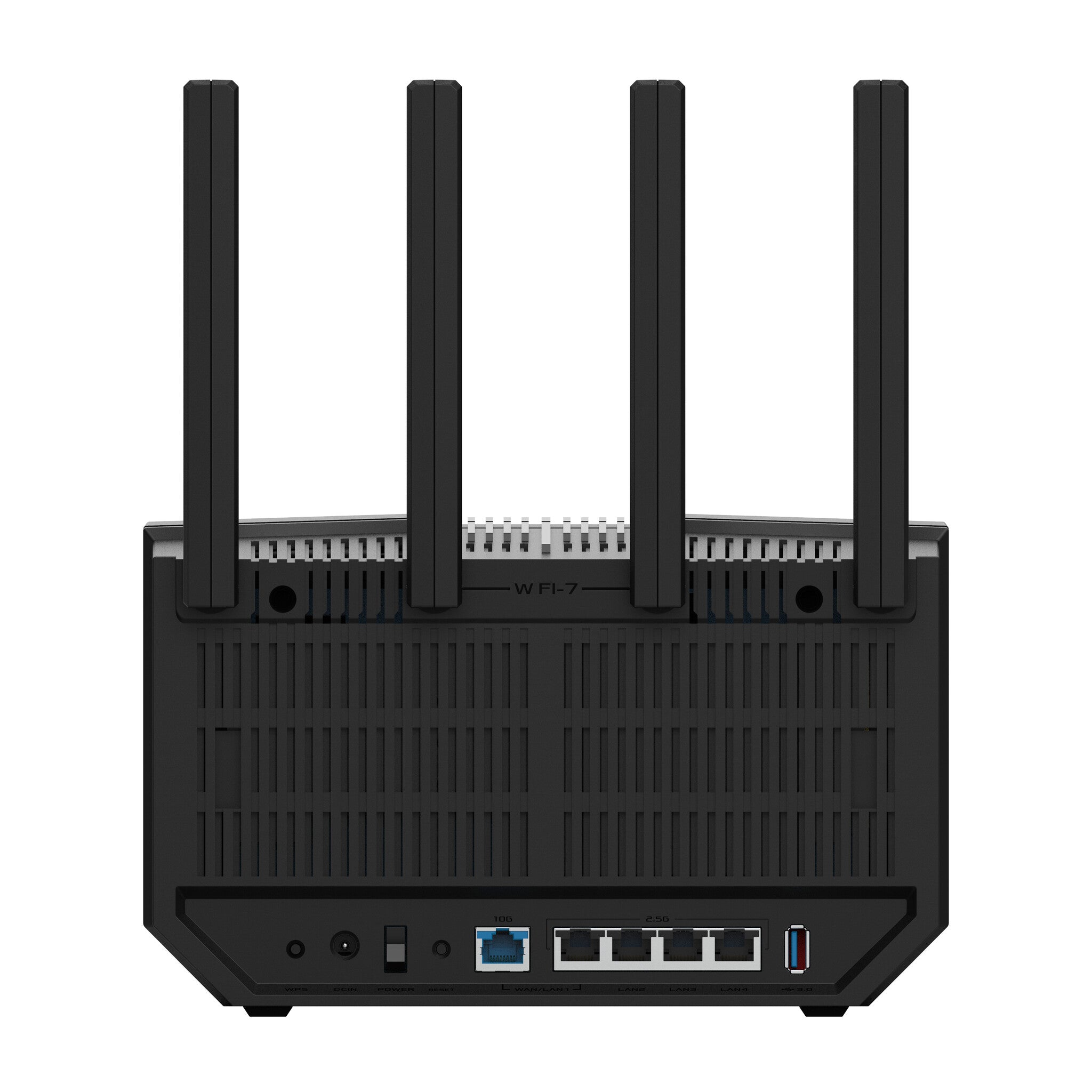

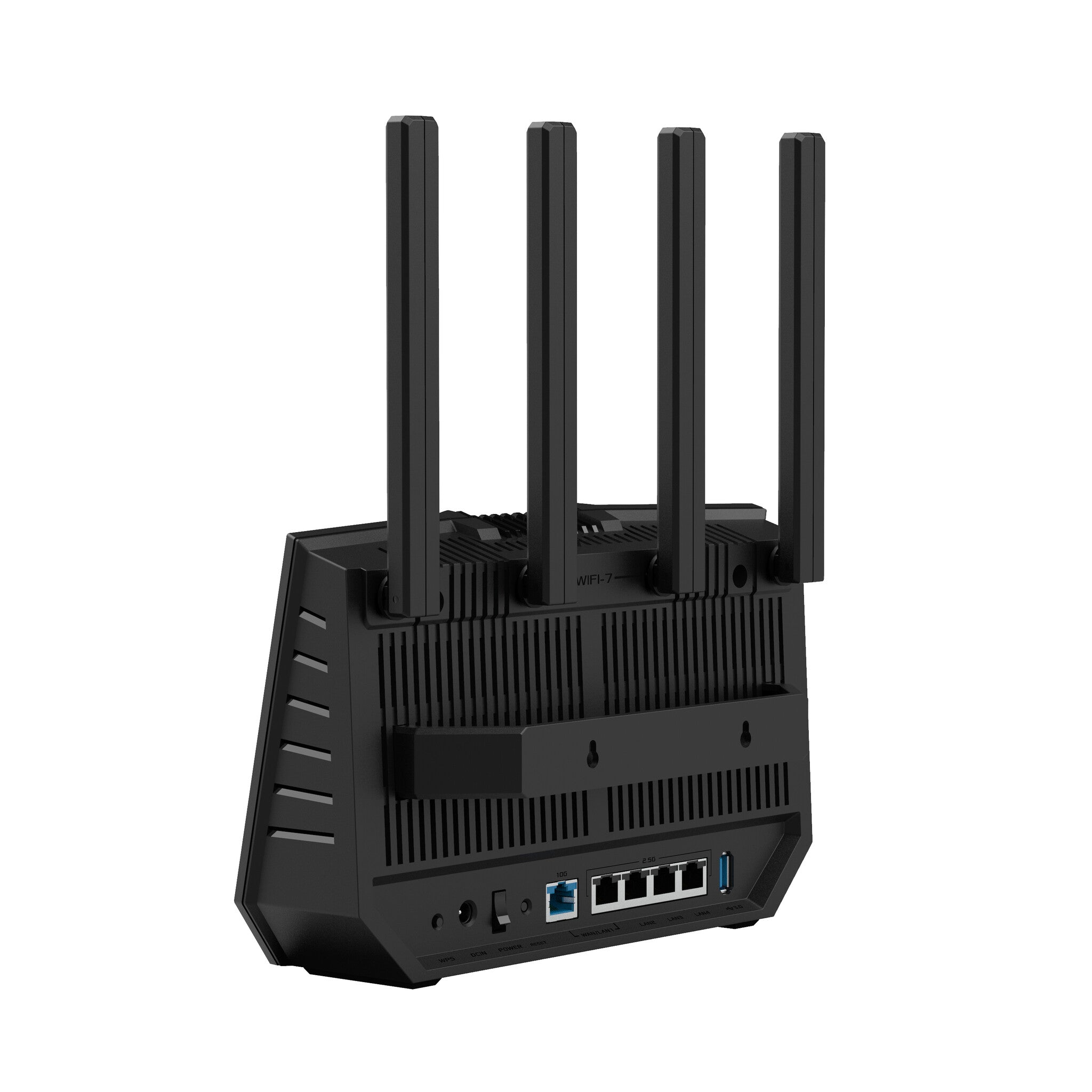

Ports & interfaces
DC-in jack Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB port Yes
Ethernet LAN (RJ-45) ports 3
Management features
MU-MIMO technology Yes
WPS push button Yes
Intelligent Mesh technology Yes
Reset button Yes
Wake-on-LAN ready Yes
Quality of Service (QoS) support Yes
Bandwidth control Yes
Web-based management Yes
Security
NAT functionality PPTP Pass-ThroughL2TP Pass-ThroughIPSec Pass-ThroughRTSP Pass-ThroughH.323 Pass-ThroughSIP Pass-ThroughPPPoE Relay
Network address translation (NAT) Yes
DMZ support Yes
URL filtering Yes
MAC address filtering Yes
MAC address table 64 entries
Filtering Yes
Parental control Yes
Guest access Yes
Firewall Yes
Security algorithms WPA, WPA2, WPA3-Personal
Protocols
DHCP server Yes
Design
On/off switch Yes
LED indicators LAN, Power, WAN
Indication light Yes
Wall mountable Yes
Product colour Black
Product type Tabletop router
Packaging content
Packaging content RT-BE92U WiFi 7 Tri-band Routerwall mount kitRJ-45 cablePower AdapterQuick Start GuideWarranty Card
Quick start guide Yes
Warranty card Yes
AC adapter included Yes
Cables included LAN (RJ-45)
Antenna
Antennas quantity 4
Antenna design External
Features
Firmware upgradeable Yes
Flash memory 256 MB
Internal memory type DDR4
Internal memory 1000 MB
Processor cores 4
Processor frequency 2 MHz
Built-in processor Yes
Power
Output current 3 A
Output voltage 12 V
AC input frequency 50/60 Hz
AC input voltage 110 - 240 V
Power source type DC
Weight & dimensions
Width 247.2 mm
Depth 101.6 mm
Height 287.5 mm
Weight 790 g
Packaging data
Package type Box
Package weight 2.1 kg
Package height 105 mm
Package depth 219 mm
Package width 374 mm
