ASUS ROG -THOR-1600T3-GAMING-EVO power supply unit 1600 W 20+4 pin ATX ATX Grey
Couldn't load pickup availability
- 1600 W 100 - 240 V
- Motherboard power connector: 20+4 pin ATX
- PC ATX 80 PLUS Titanium
- Active
- Grey
Ultimate Power. Unmatched Stability

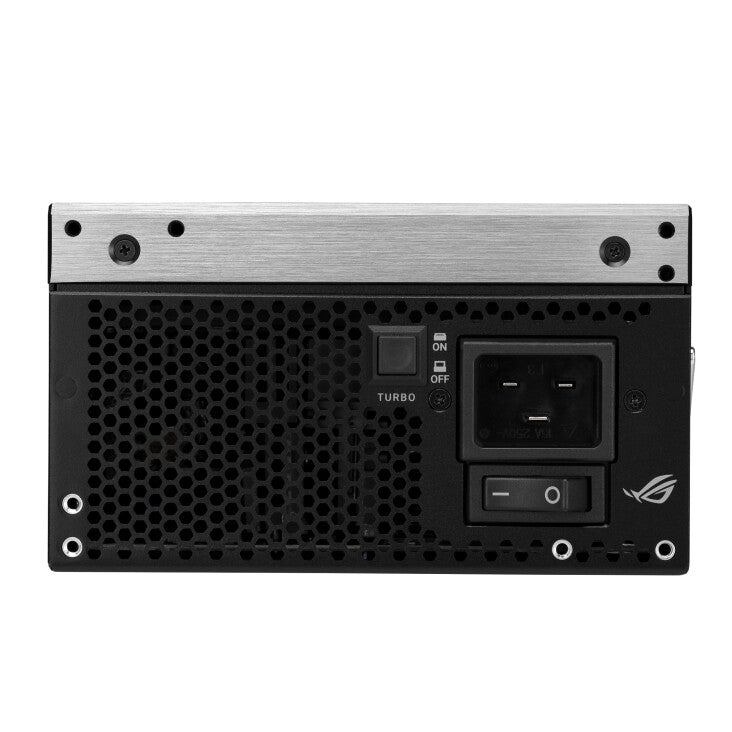

The ROG Thor 1600W Titanium III EVO delivers the power and stability demanded by gamers. A next-gen GaN MOSFET boosts efficiency, while GPU-First voltage sensing with a patented intelligent stabilizer ensures stable, top-tier performance. Turbo Mode maximizes cooling for overclocking and demanding workloads.
The ROG Thor 1600W Titanium III EVO also includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Thor III Titanium Series ensures your high-end rig has the power to conquer any challenge.

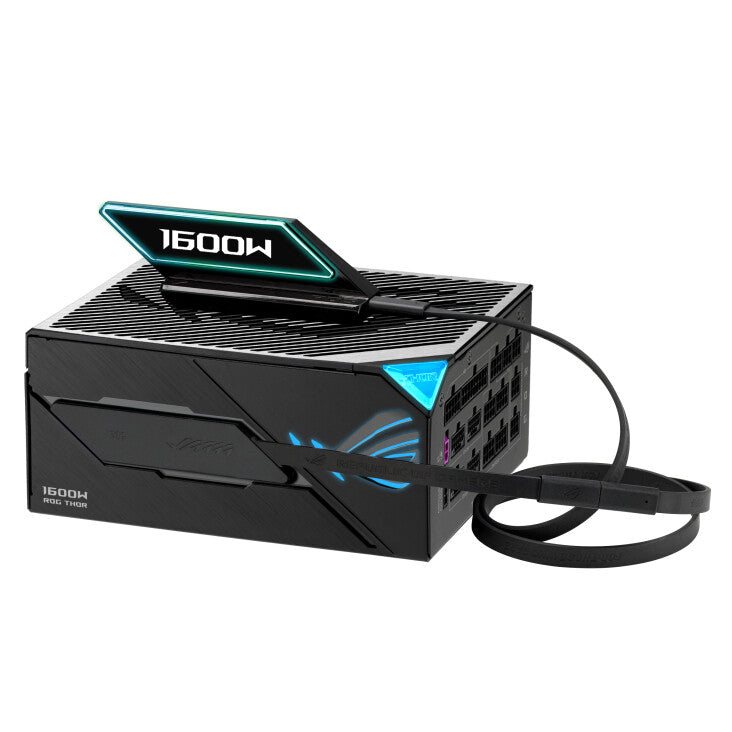

The ROG Thor 1600W Titanium III EVO retains its signature OLED display, now with magnetic attachment for easy swapping to either side, supporting both fan-up and fan-down installations. An included Type-C extender further enables flexible relocation to the chassis front or exterior for maximum visibility.
Patented ROG Equalizer PCIe Cable
Engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card.
| Power | |
|---|---|
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |

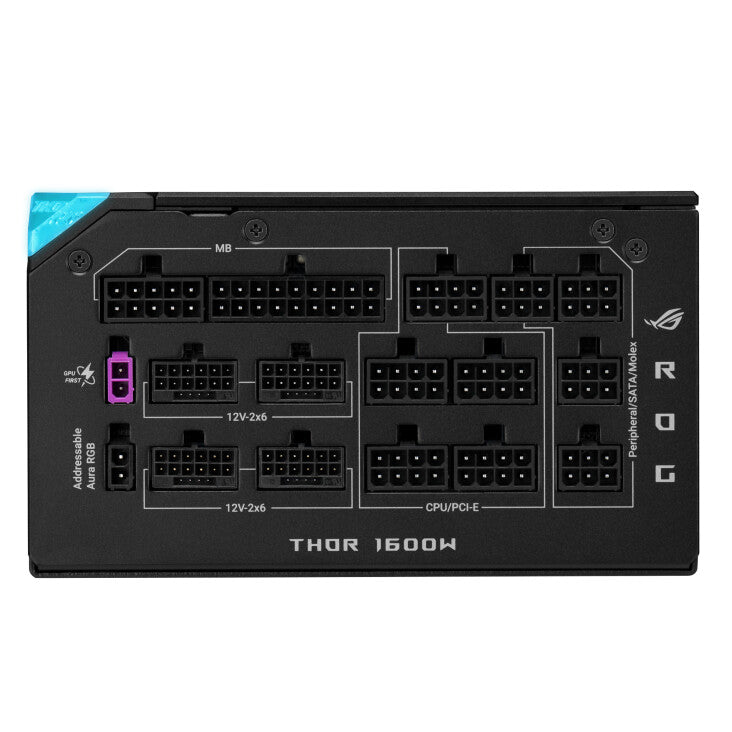

| Ports & interfaces | |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 9 |
| Number of SATA power cables | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Performance | |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 120000 h |
| Design | |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Built-in display | Yes |
| Illumination | Yes |
| Display type | OLED |
| On/off switch | Yes |
| General | |
|---|---|
| Product series | THOR |
| Product family | ROG |
| Packaging content | |
|---|---|

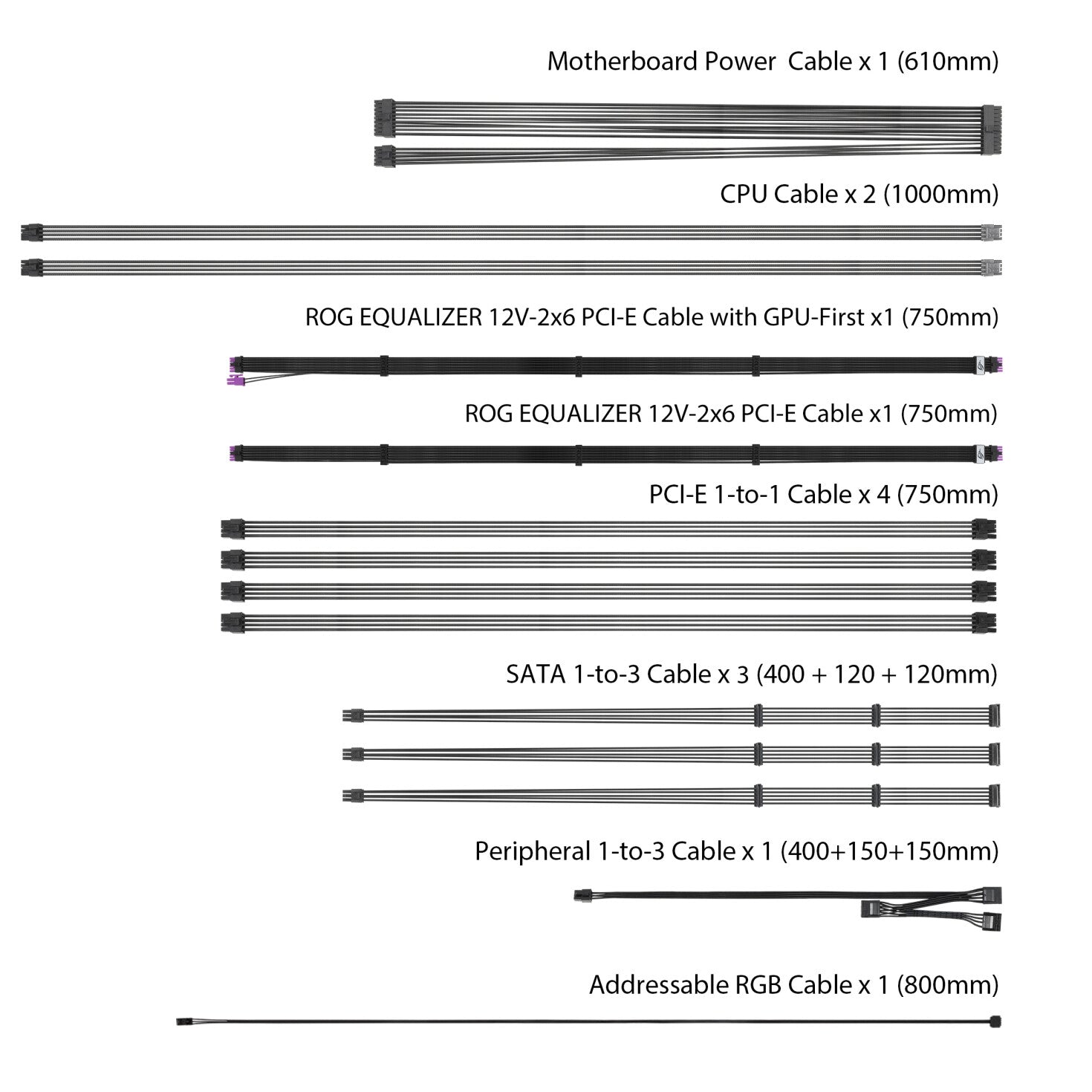

| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
|---|---|
| Width | 190 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.5 kg |
| Packaging data | |
|---|---|
| Package width | 397 mm |
| Package depth | 250 mm |
| Package height | 159 mm |
| Package weight | 5.91 kg |
| Package type | Box |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
