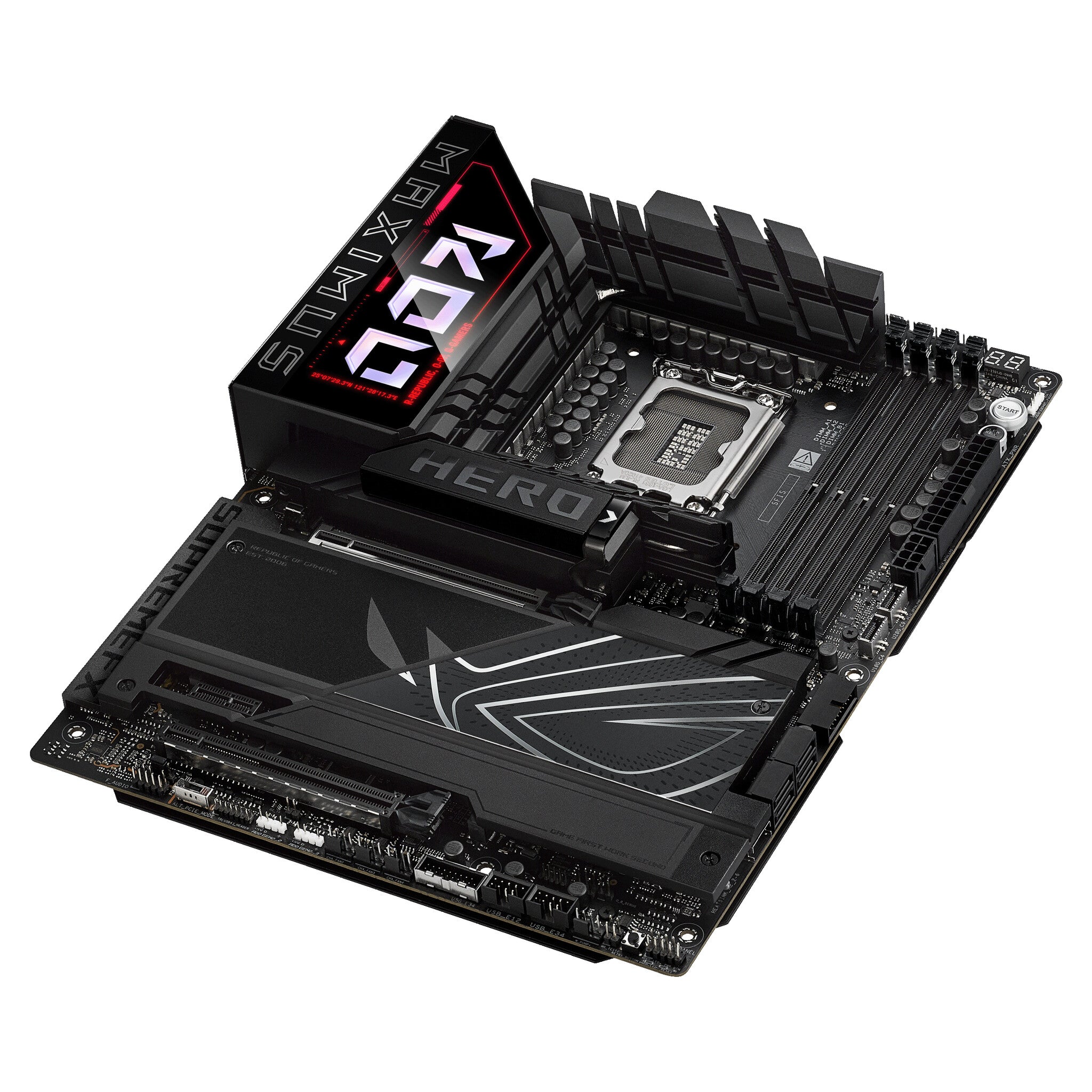

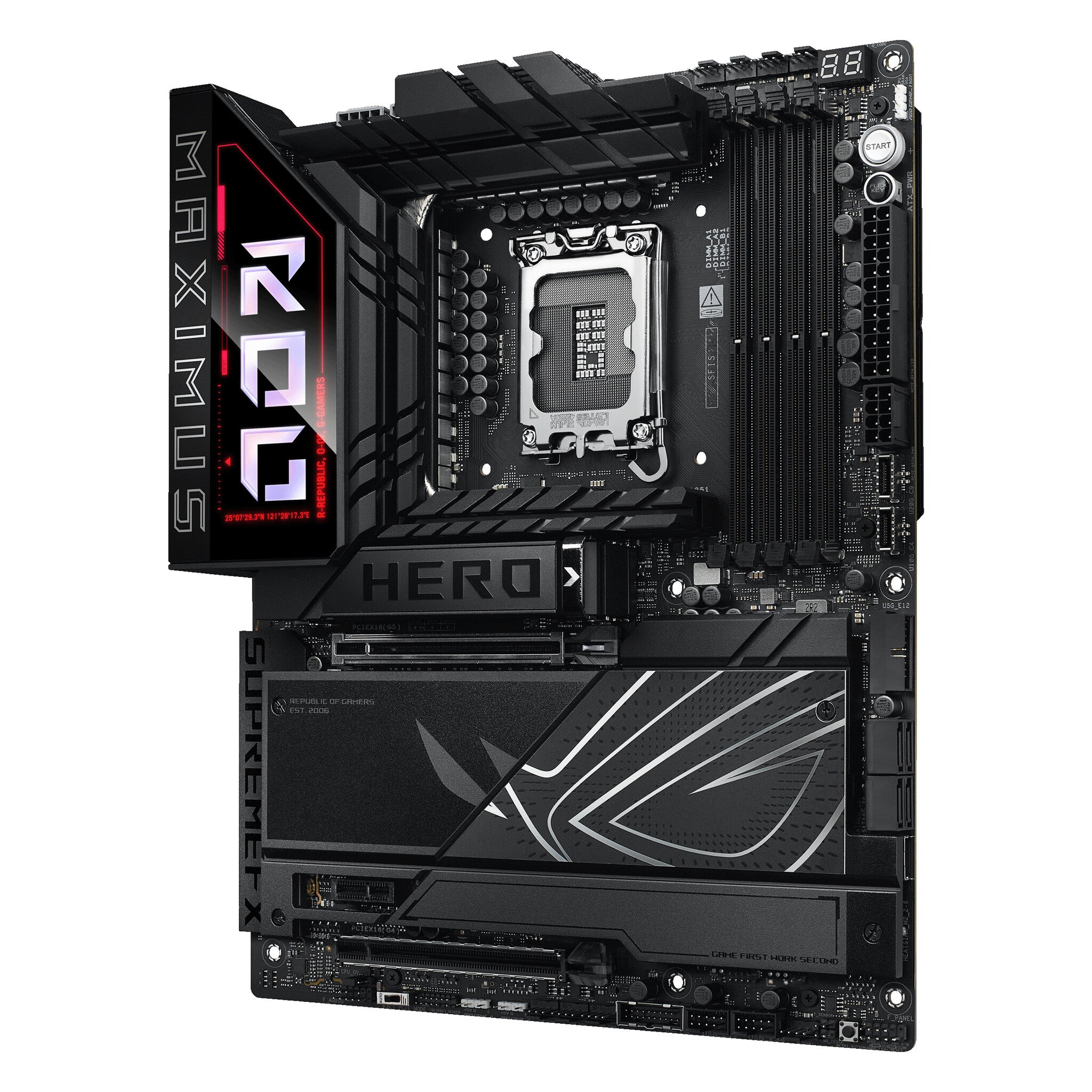

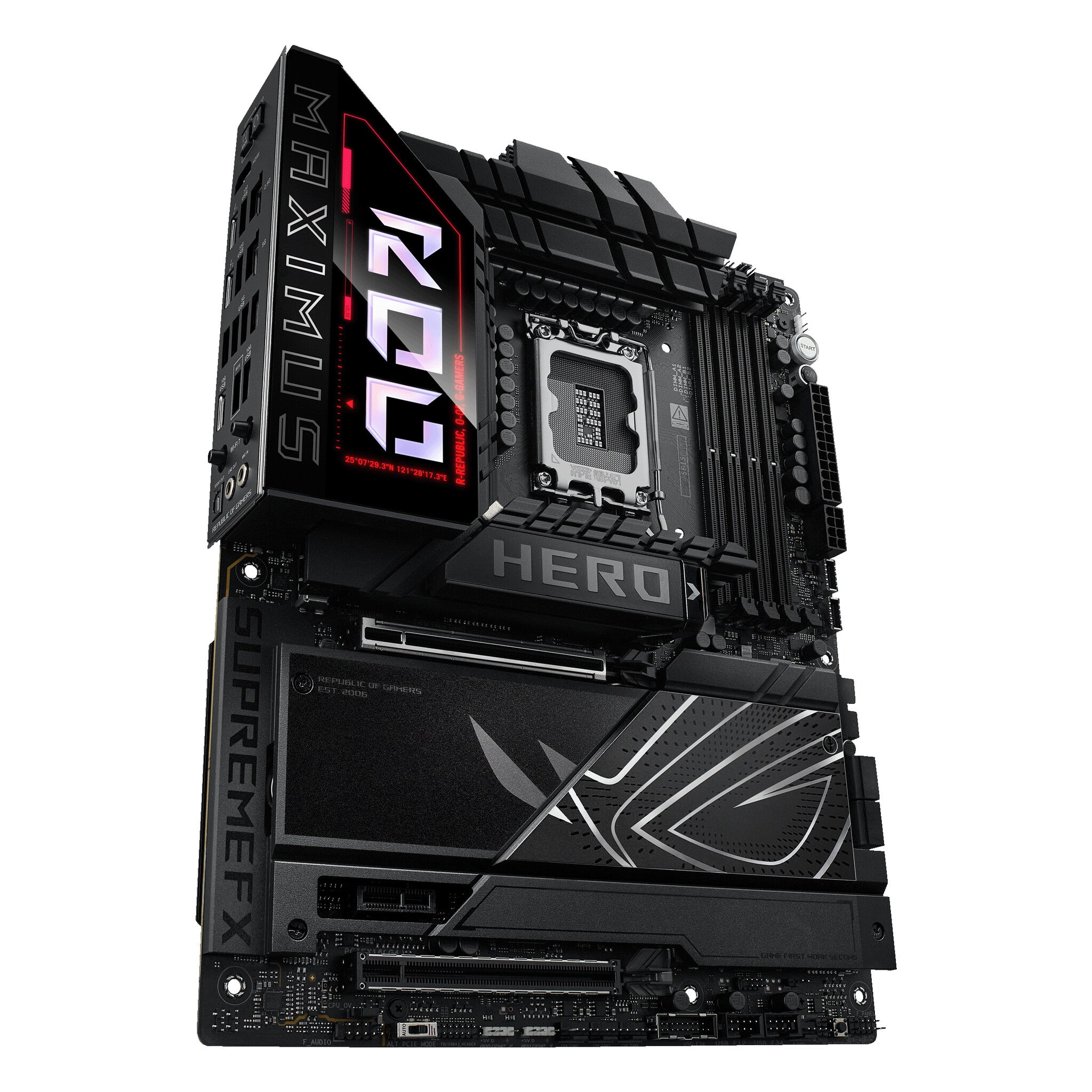

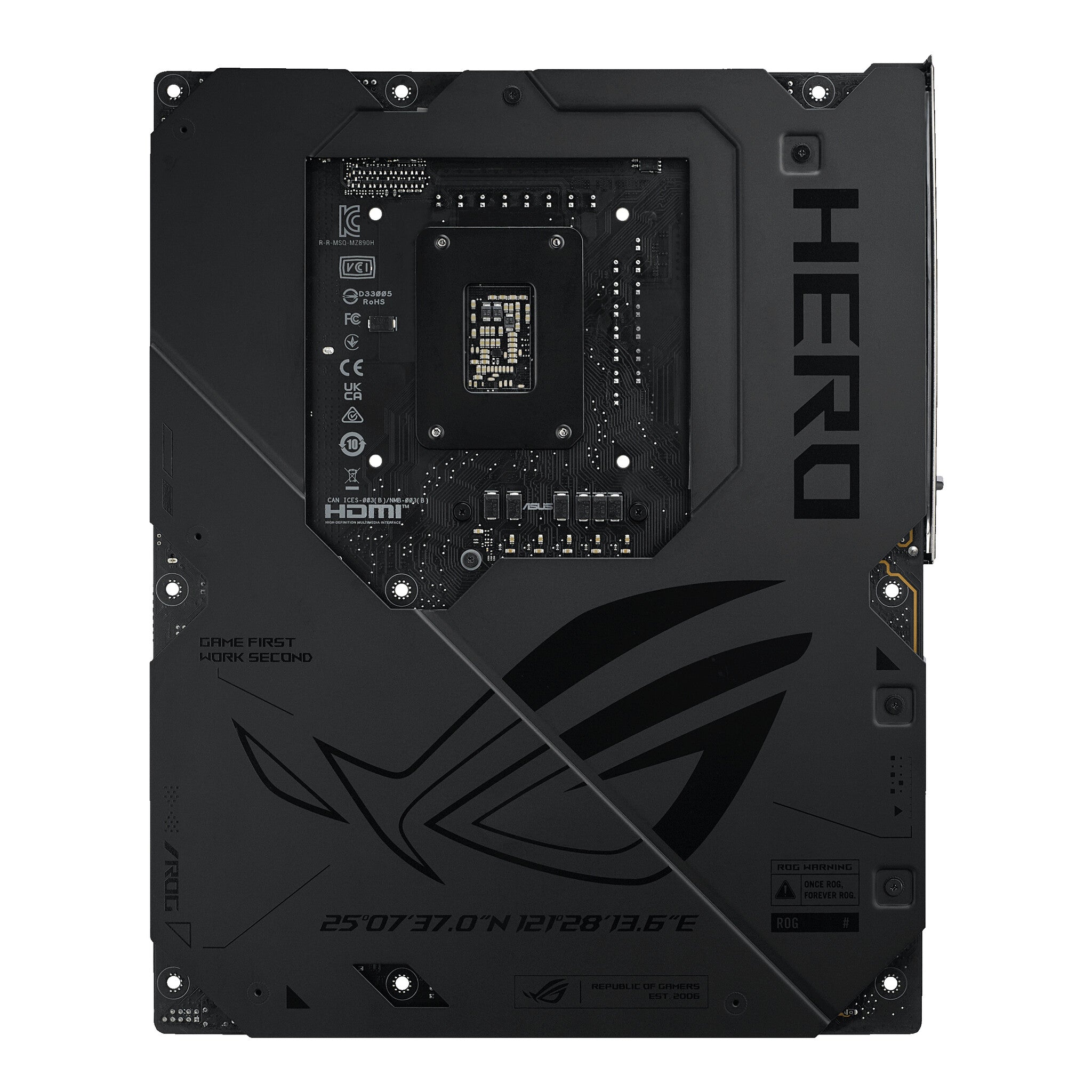

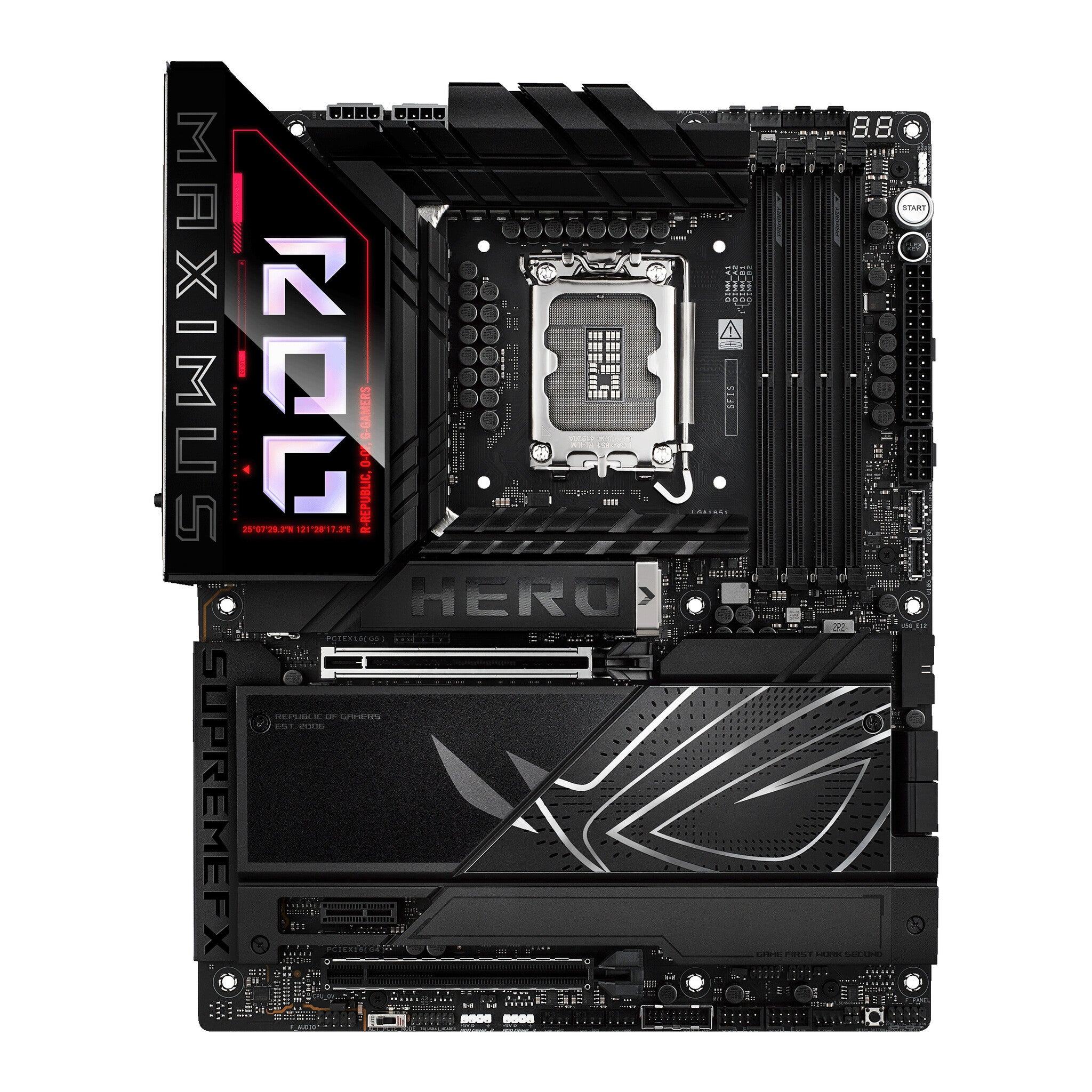

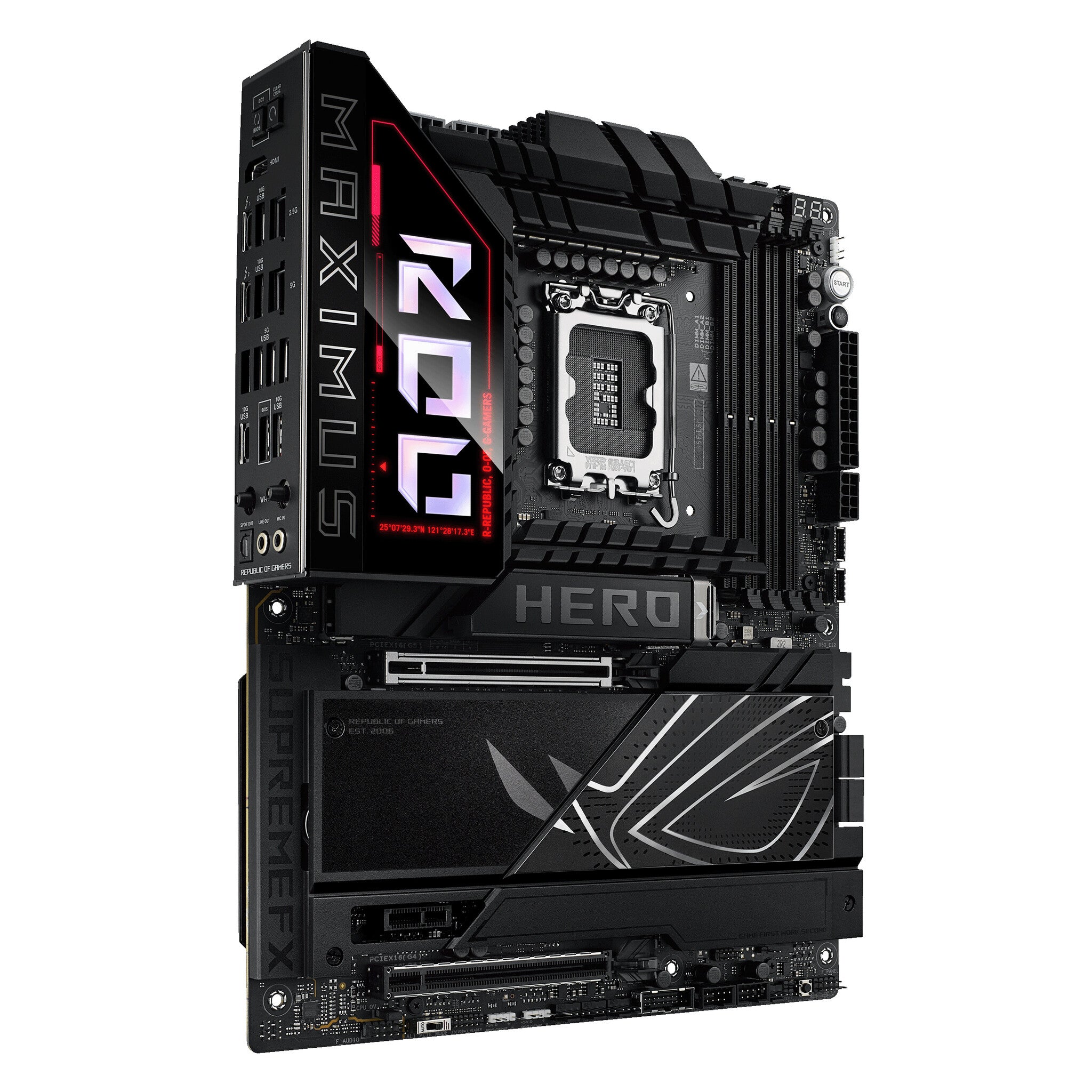

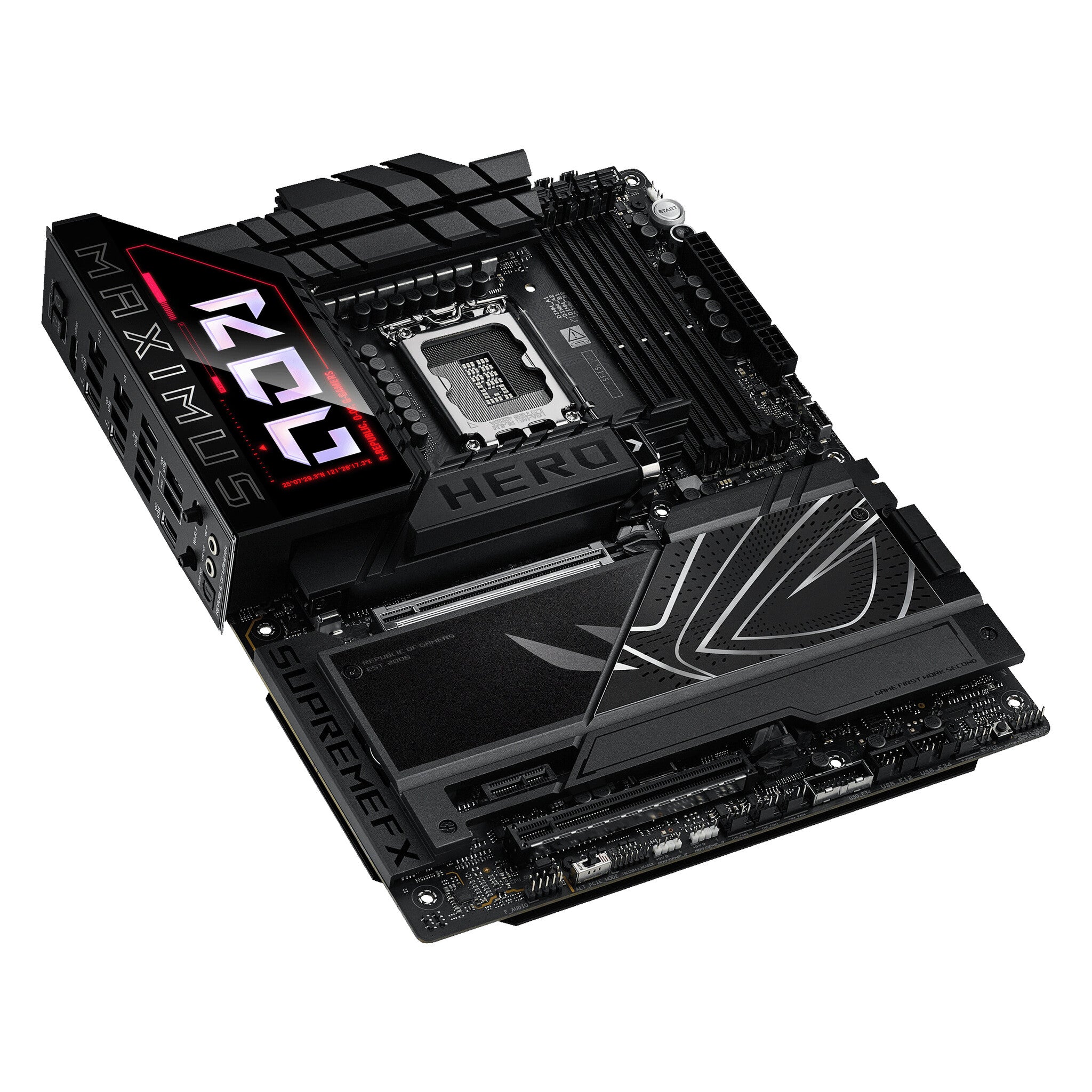

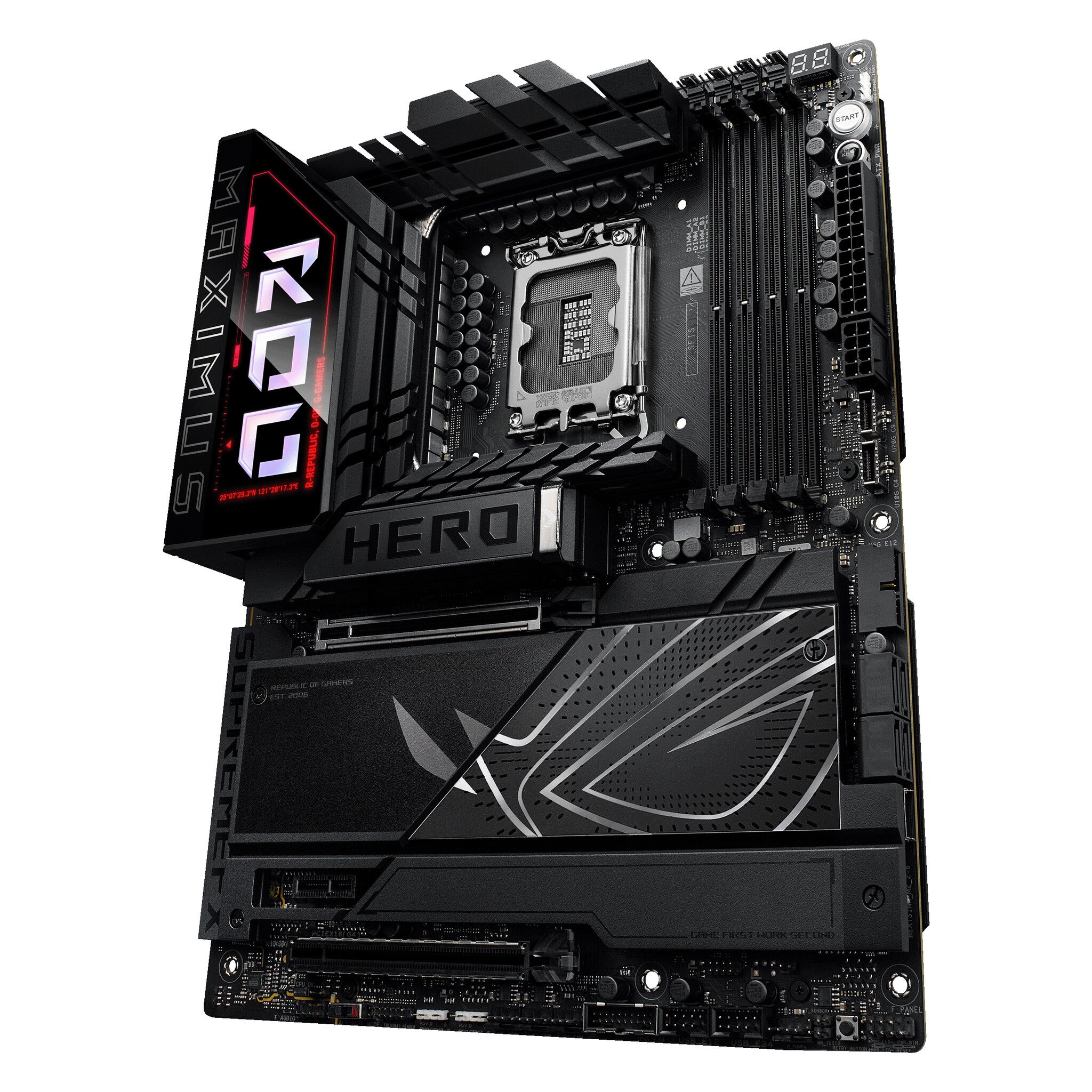

ASUS ROG MAXIMUS Z890 HERO Intel Z890 LGA 1851 (Socket V1) ATX
Couldn't load pickup availability
- Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2)
- PC ATX Intel Z890 Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 10
- BIOS type: UEFI AMI 256 Mbit Clear CMOS button
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4
ROG Maximus Z890 HERO
The ROG Maximus Z890 Hero unleashes the performance of Intel® Core™ Ultra processors (Series 2) via exclusive AI PC technologies, robust power delivery, optimized thermal management, extensive PCIe® 5.0 support, DDR5 slots and WiFi 7. Meanwhile, angular design elements and Polymo II Lighting accents around the ROG logo deliver a signature aesthetic that elevates system design.
Processor | |
---|---|
Compatible processor series | Intel Core Ultra (Series 2) |
Processor socket | LGA 1851 (Socket V1) |
Processor manufacturer | Intel |
Memory | |
---|---|
Unbuffered memory | Yes |
Maximum internal memory | 192 GB |
Supported memory clock speed (max) | 8800 MHz |
ECC сompatibility | Non-ECC |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory types | DDR5-SDRAM |
Storage controllers | |
---|---|
RAID levels | 0, 1, 5 |
RAID support | Yes |
Number of storage drives supported | 10 |
Number of HDDs supported | 4 |
Supported storage drive interfaces | M.2, SATA III |
Supported storage drive types | HDD & SSD |
Graphics | |
---|---|
On-board graphics card | No |
Parallel processing technology support | Not supported |
Internal I/O | |
---|---|
Thunderbolt headers | 1 |
12V power connector | Yes |
EPS power connector (8-pin) | Yes |
Number of chassis fan connectors | 4 |
CPU fan connector | Yes |
ATX Power connector (24-pin) | Yes |
Front panel audio connector | Yes |
Number of SATA III connectors | 4 |
USB 3.2 Gen 2x2 connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
USB 2.0 connectors | 2 |

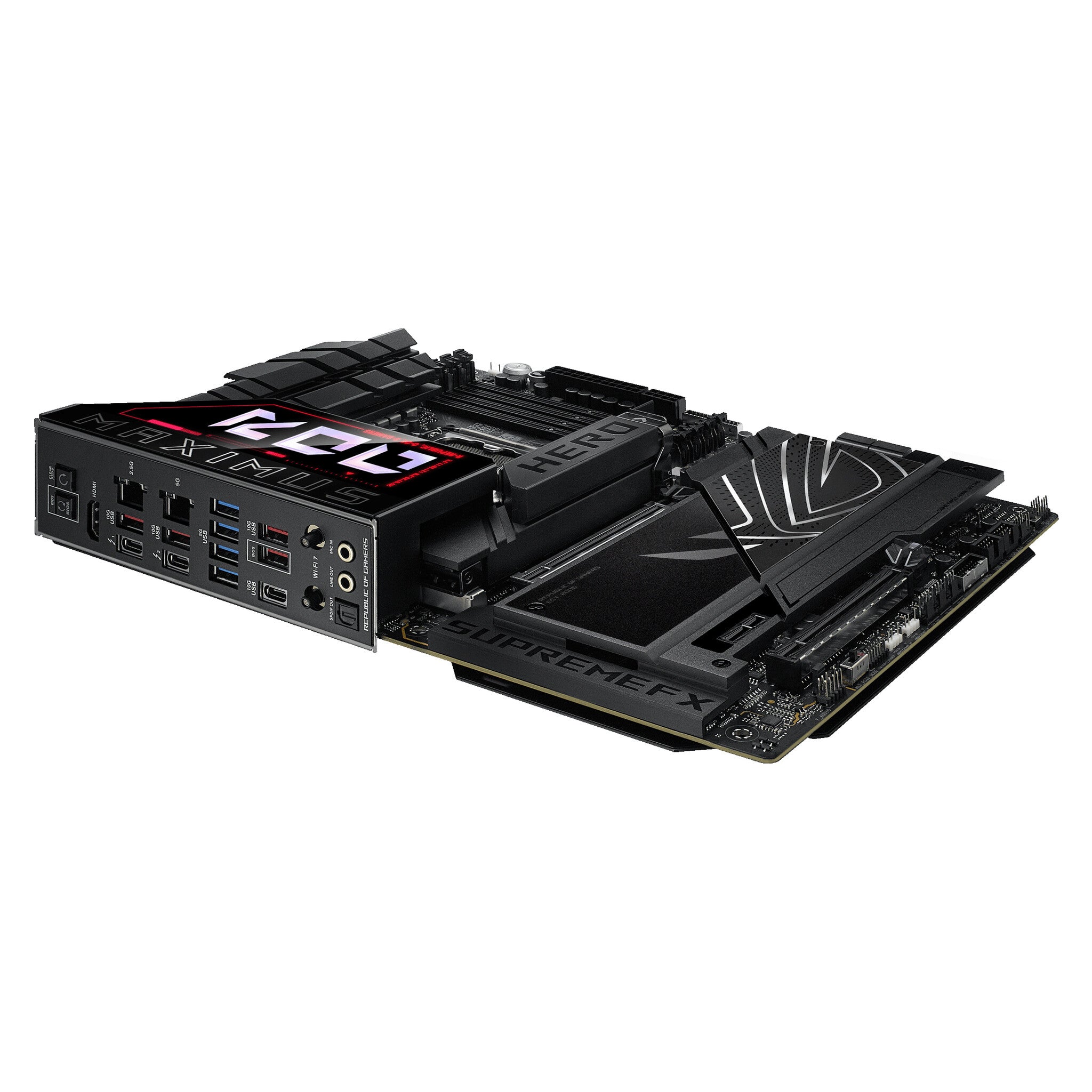

Rear panel I/O ports | |
---|---|
USB connector type | USB Type-A, USB Type-C |
Thunderbolt ports quantity | 2 |
S/PDIF out port | Yes |
Microphone in | Yes |
HDMI ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |

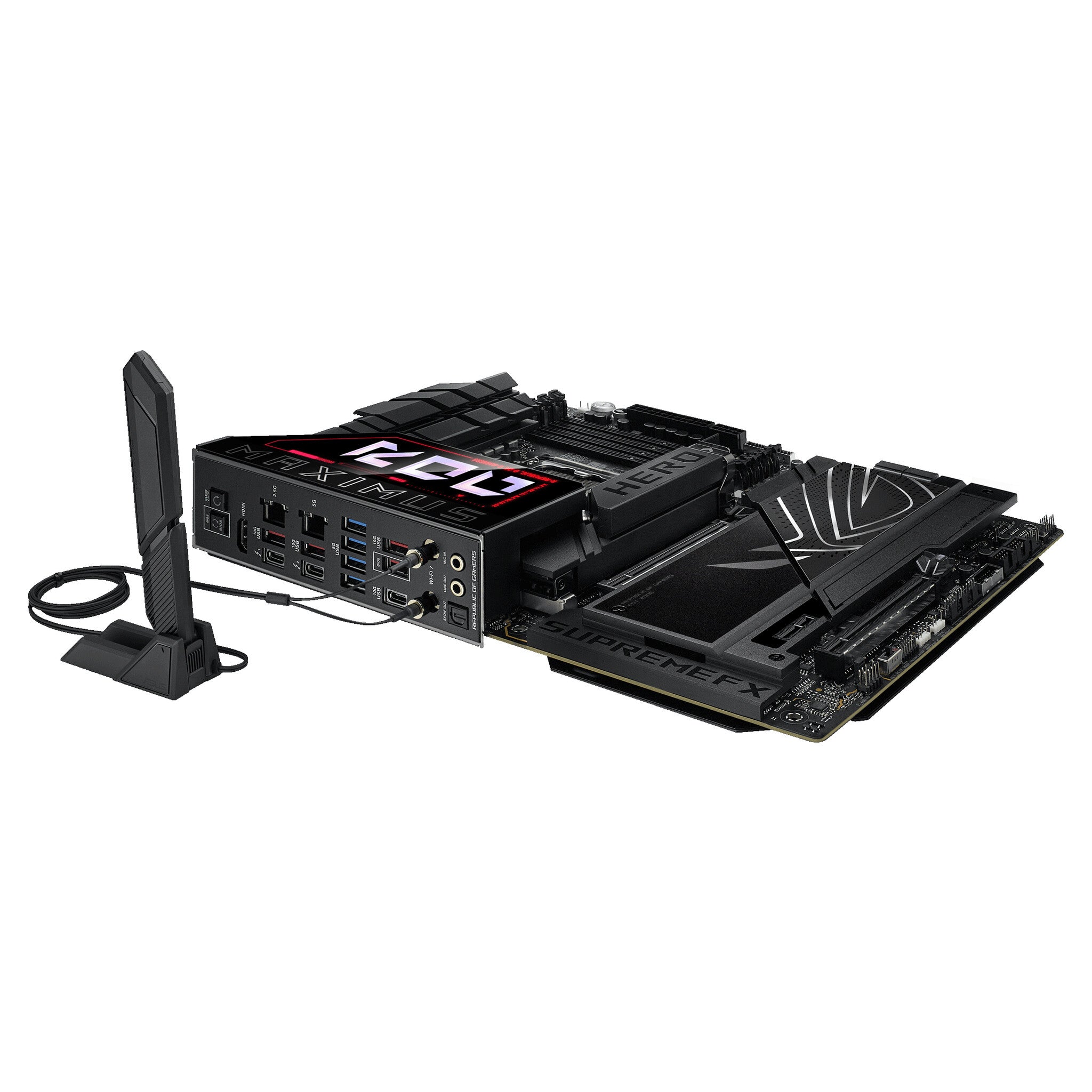

Network | |
---|---|
Bluetooth version | 5.4 |
Bluetooth | Yes |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Wi-Fi | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
Ethernet LAN | Yes |
Features | |
---|---|
Windows operating systems supported | Windows 11 |
Product colour | Black |
Audio output channels | 7.1 channels |
Audio chip | Realtek ALC4082 |
Motherboard chipset | Intel Z890 |
Motherboard chipset family | Intel |
Motherboard form factor | ATX |
Component for | PC |
Expansion slots | |
---|---|
Number of M.2 (M) slots | 6 |
PCI Express x16 (Gen 5.x) slots | 1 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x1 (Gen 4.x) slots | 1 |
BIOS | |
---|---|
Clear CMOS button | Yes |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Packaging data | |
---|---|
Package height | 108 mm |
Package depth | 312 mm |
Package width | 370 mm |
Weight & dimensions | |
---|---|
Depth | 244 mm |
Width | 305 mm |
