ASUS ProArt -RTX5090-O32G NVIDIA GeForce RTX 5090 32 GB GDDR7
Couldn't load pickup availability
- Fifth-Gen Tensor Cores
- Max AI performance with FP4 and DLSS 4.5
- New Streaming Multiprocessors
- Optimized for neural shaders
- Fourth-Gen Ray Tracing Cores
- Built for Mega Geometry

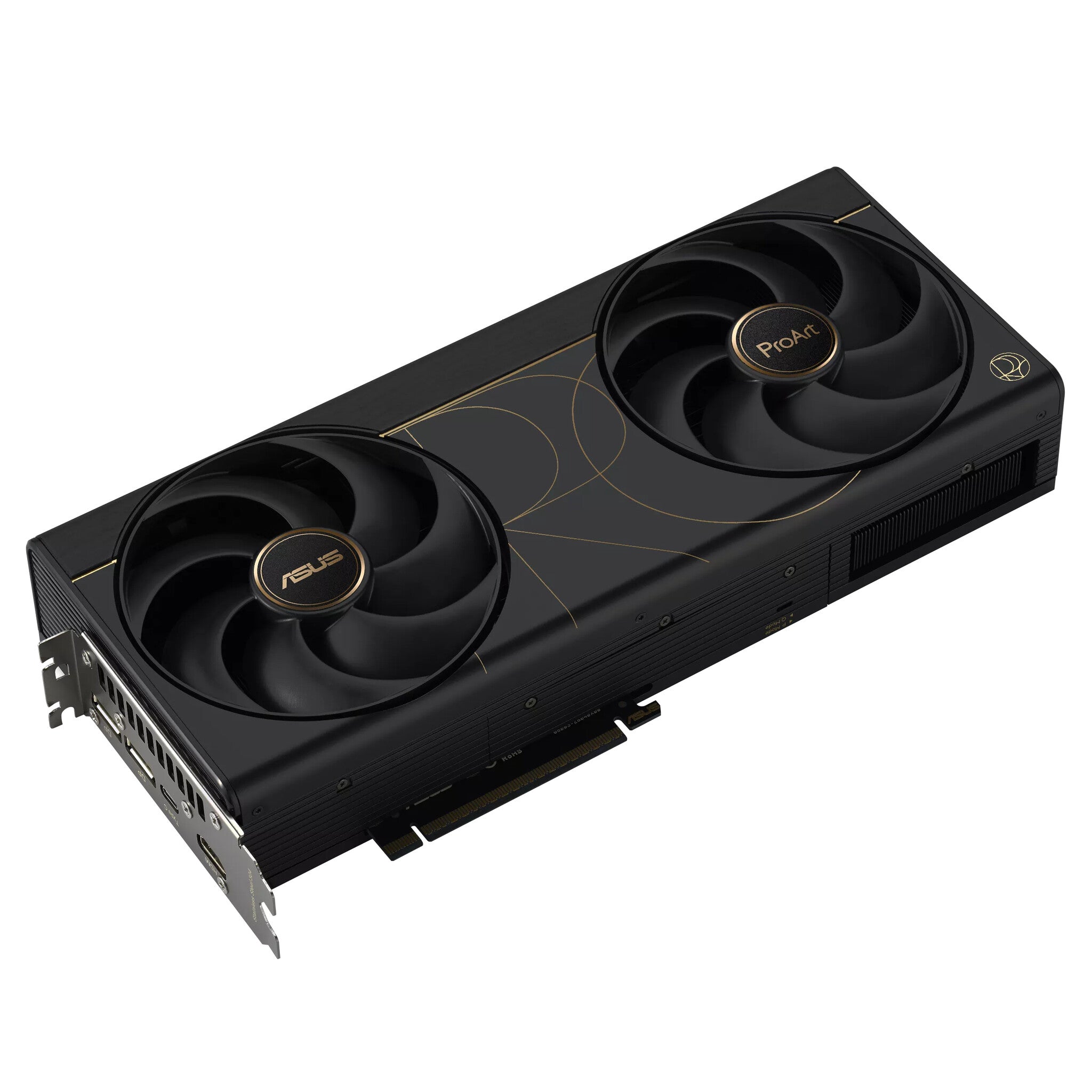

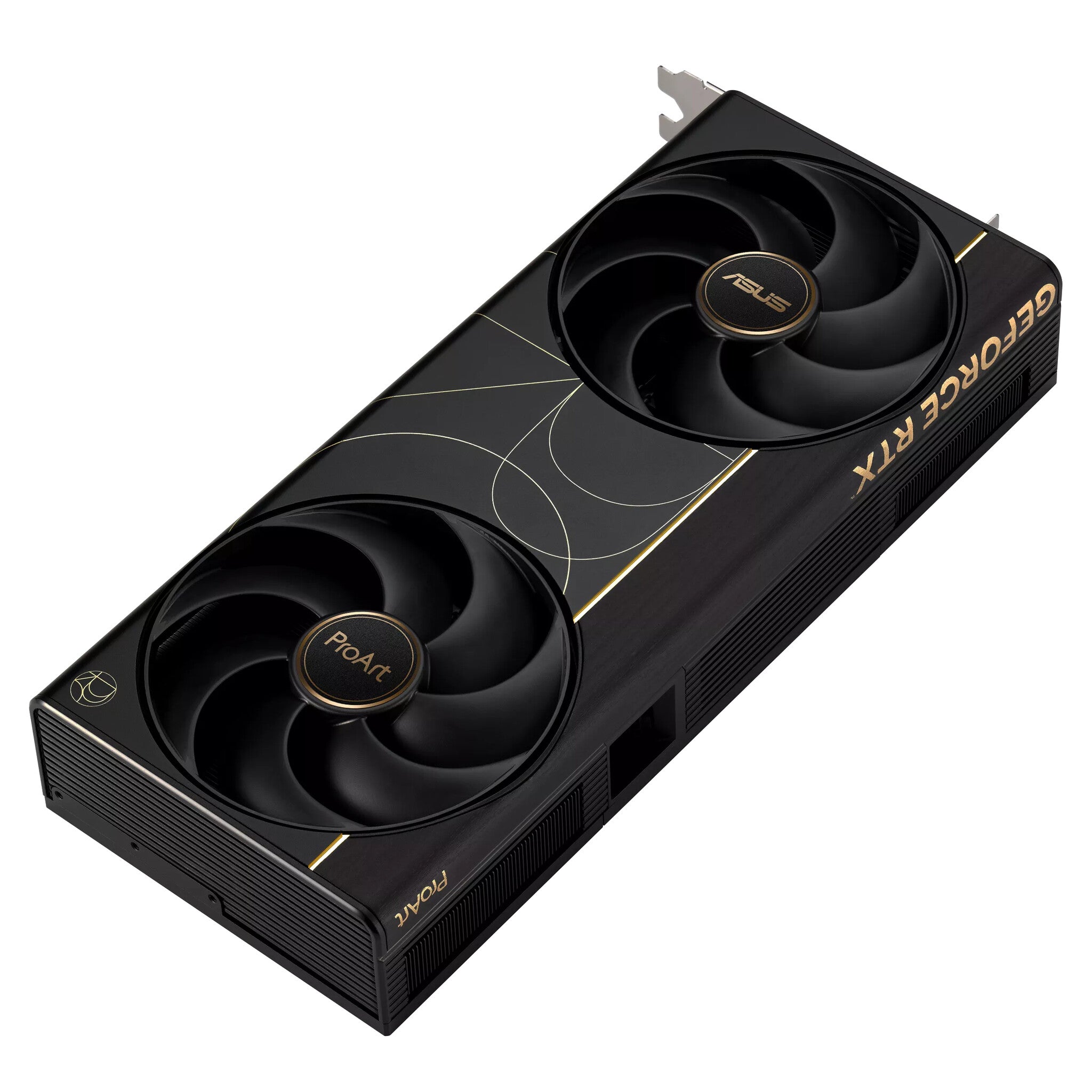

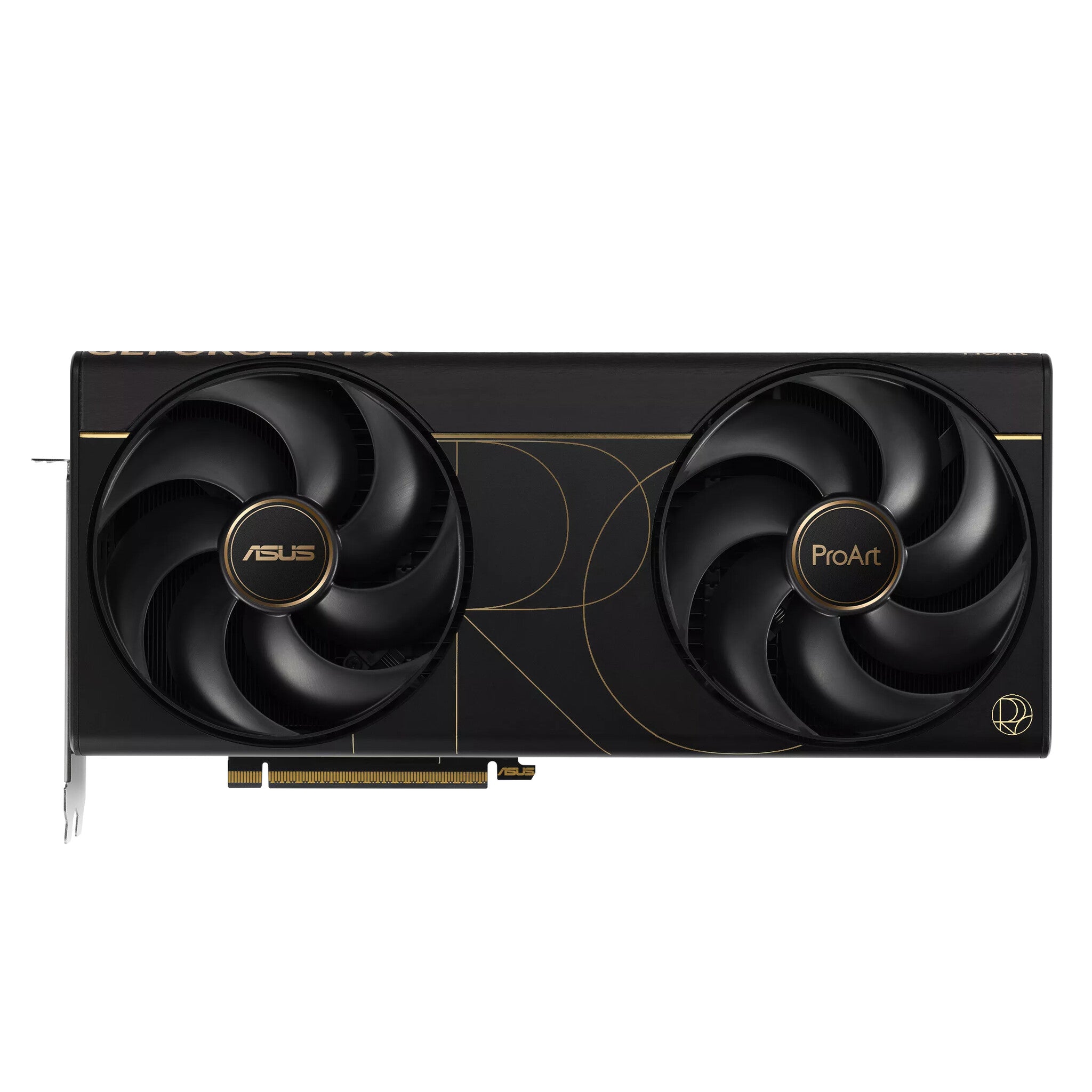

ProArt GeForce RTX™ 5090 OC Edition
Artistry Meets Performance
Experience exceptional power and cooling in a compact design with the ProArt GeForce RTX™ 5090. This first-ever 2.5-slot compact RTX 5090 card from ASUS features two large Axial-tech fans, a vapor chamber, and a double-vented backplate. It also features liquid metal thermal compound for enhanced GPU cooling, helping to ensure optimal performance. A USB Type-C port enhances versatility for content creation workflows, and wood-patterned laminate trim plus subtle ProArt elements deliver a refined aesthetic. Whether you're building a small-form-factor workstation or a full-scale tower, the ProArt RTX 5090 delivers ultimate versatility.
Build Small. Play Big.
You can pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Look for cases that are compatible with SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.
Premium Cooling
Exceptional Thermal in Compact 2.5-Slot Design

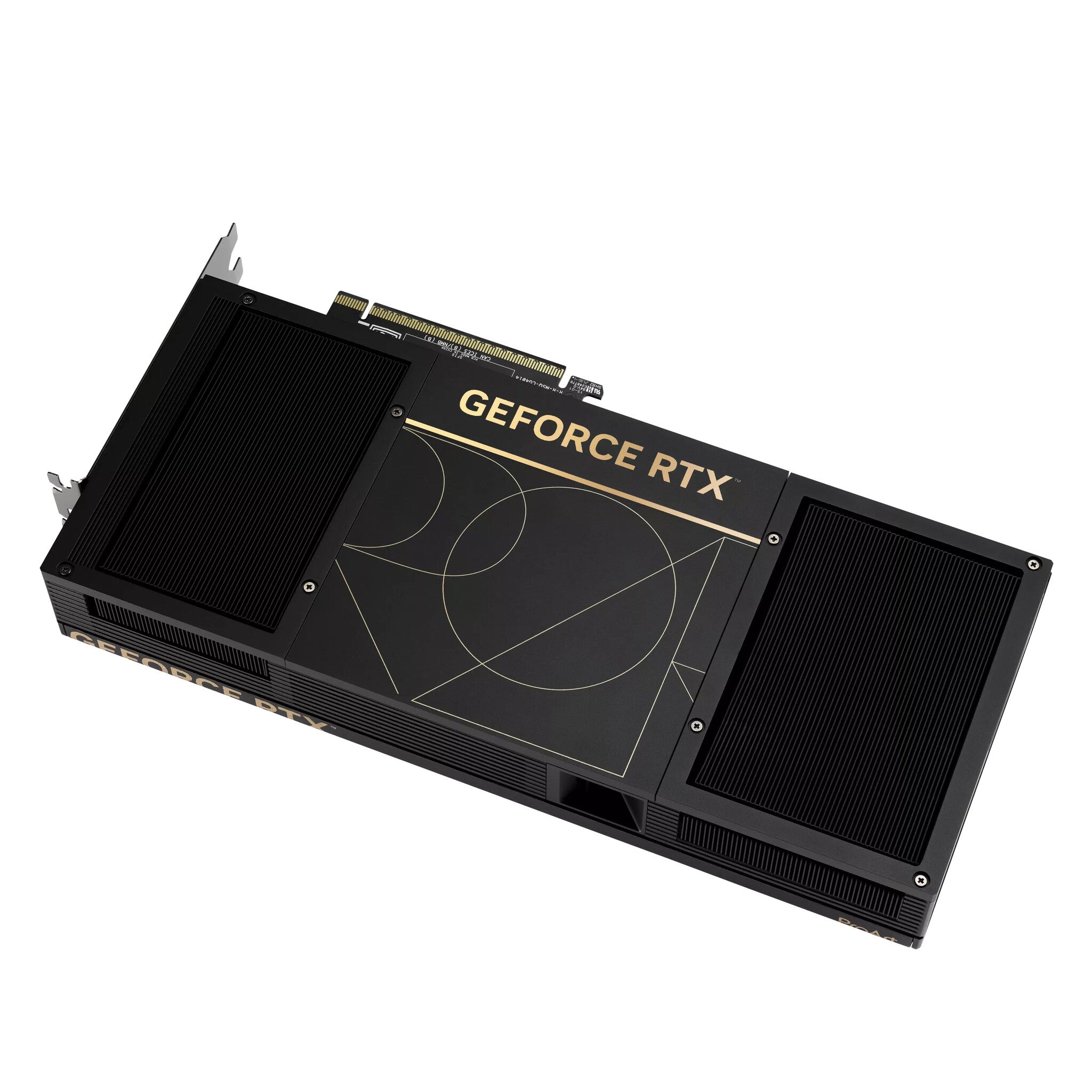

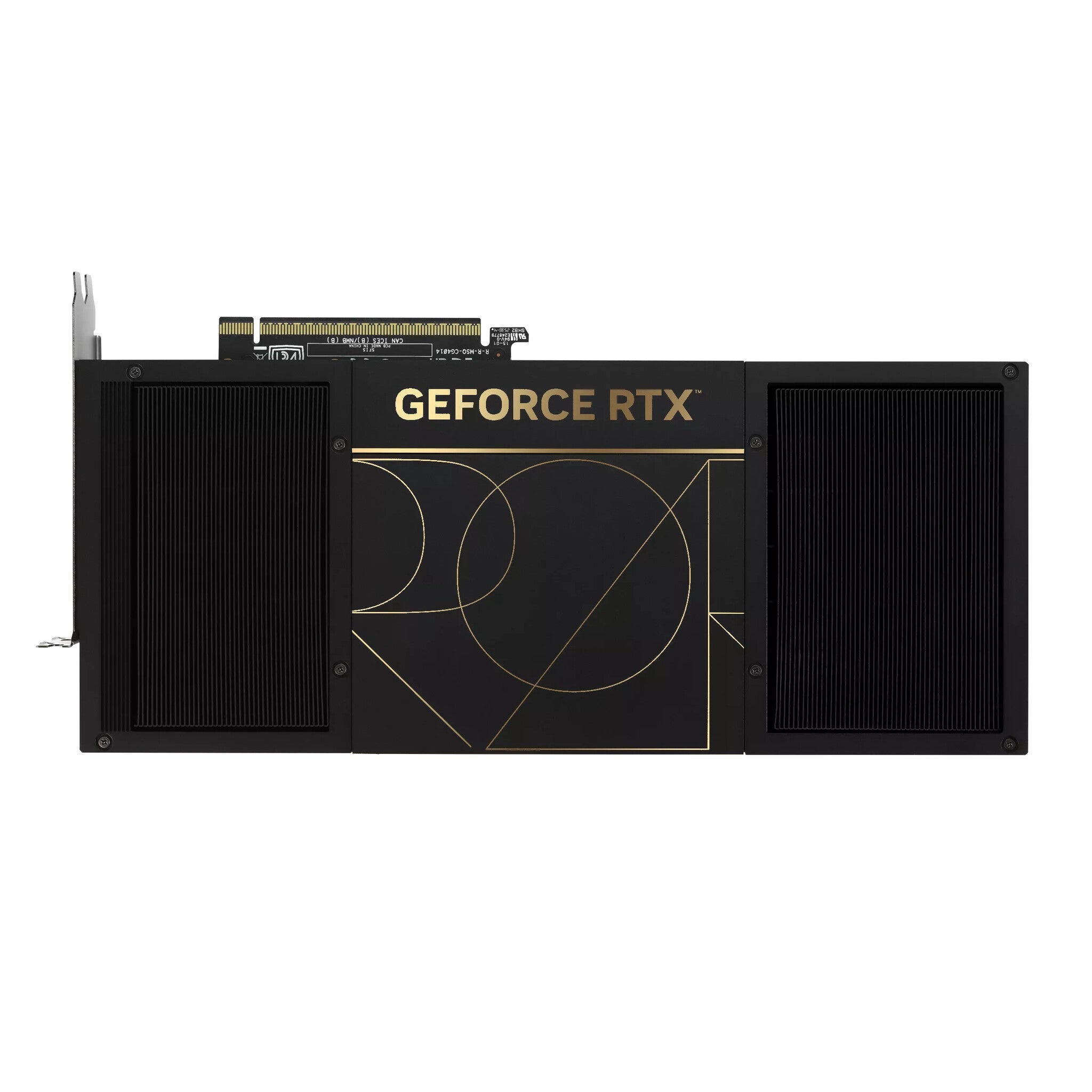

Large dual Axial-tech fans and a double-vented backplate maximize airflow, while a vapor chamber and liquid metal compound help ensure exceptional thermal performance in a compact design.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5090 |
| Maximum resolution | 7680 x 4320 pixels |
| CUDA | Yes |
| CUDA cores | 21760 |
| Processor frequency | 2482 MHz |
| Processor frequency (OC mode) | 2512 MHz |
| Maximum displays per videocard | 4 |
| Parallel processing technology support | Not supported |
| Memory | |
|---|---|
| Discrete graphics card memory | 32 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 512 bit |
| Data transfer rate | 28 Gbit/s |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express 5.0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1b |
| USB Type-C ports quantity | 1 |
| DisplayPort version | 2.1b |
| Performance | |
|---|---|
| TV tuner integrated | No |
| OpenGL version | 4.6 |
| HDCP version | 2.3 |
| HDCP | Yes |
| NPU performance up to | 3352 TOPs |
| Overclocked (OC) edition | Yes |
| Design | |
|---|---|
| Cooling type | Active |
| Cooling technology | ASUS Axial-tech |
| Number of fans | 2 fan(s) |
| Number of slots | 2.5 |
| SFF ready | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Minimum system power supply | 1000 W |
| Weight & dimensions | |
|---|---|
| Length | 304 mm |
| Depth | 50 mm |
| Height | 140 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| Manual | Yes |
| General | |
|---|---|
| Product family | ProArt |
