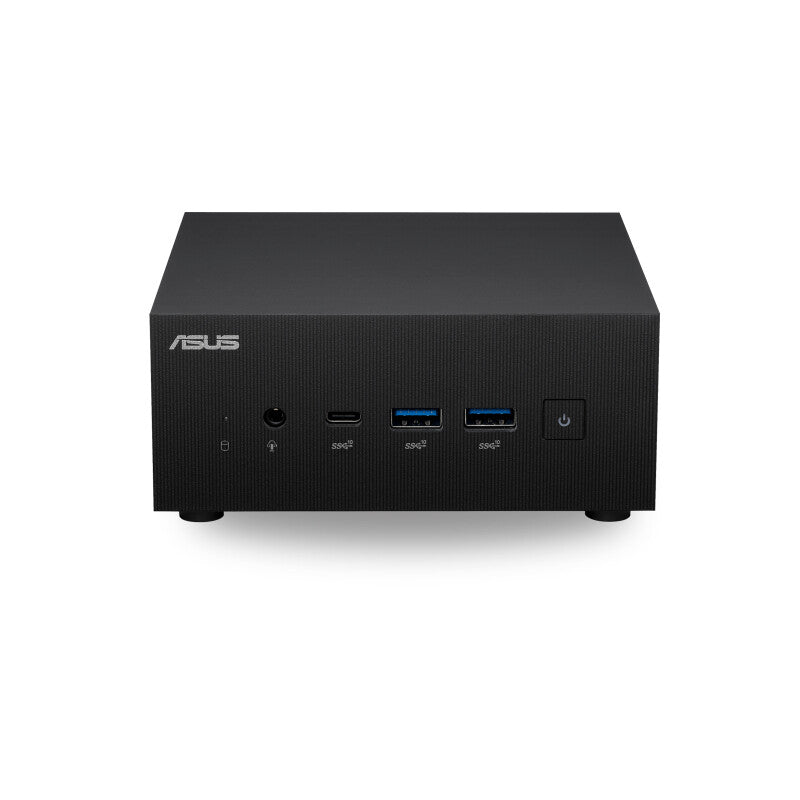

ASUS PN52-B-S7056MD PC/workstation barebone 0.92L sized PC Black 5800H 3.2 GHz
Couldn't load pickup availability
- 0.92L sized PC Black
- Built-in processor AMD 5800H 3.2 GHz
- 2 SO-DIMM DDR4-SDRAM
- HDD & SSD 2.5,M.2
- On-board graphics card AMD Radeon Graphics
- Ethernet LAN Wi-Fi
System & CPU Performance
ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 and Cinebench benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.
ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 15% in 3DMark Fire Strike to 23.6% in the 3DMark Night Raid performance benchmarks.
4K Resolution & Quad Display Support
ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.
*Configurable ports are confirmed SKU before configuring.
*Configurable - VGA ports can not support 4K due to transfer speed limit.
**High resolution/multi displays requires sufficient memory bandwidth
Ultra-realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.
Hyper-realistic 8K Support
*High resolution/multi displays requires sufficient memory bandwidth
USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
| Processor | |
|---|---|
| L2 cache | 4 MB |
| Processor cache | 16 MB |
| Processor frequency | 3.2 GHz |
| Processor boost frequency | 4.4 GHz |
| Processor threads | 16 |
| Processor cores | 8 |
| Processor model | 5800H |
| Processor family | AMD Ryzen™ 7 |
| Processor manufacturer | AMD |
| Built-in processor | Yes |
| Memory | |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | SO-DIMM |
| Storage | |
|---|---|
| Number of storage drives supported | 1 |
| Storage drive interface | PCI Express, Serial ATA III |
| SSD form factor | M.2 |
| Storage drive sizes supported | 2.5,M.2 |
| Supported storage drive types | HDD & SSD |
| Graphics | |
|---|---|
| On-board graphics card model | AMD Radeon Graphics |
| Graphics card family | AMD |
| On-board graphics card | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Network | |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Design | |
|---|---|
| Product type | Mini PC barebone |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| On/off switch | Yes |
| Cooling type | Active |
| Product colour | Black |
| Chassis type | 0.92L sized PC |
| Performance | |
|---|---|
| Audio chip | Realtek ALC3251-CG |
| Number of processors supported | 1 |
| Certificates | |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| Weight & dimensions | |
|---|---|
| Weight | 1 kg |
| Height | 58 mm |
| Depth | 130 mm |
| Width | 120 mm |
