Overview
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel® Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and 1 PCI Express Gen4 slot
- Dual Intel I210AT Gigabit Ethernet with teaming support
- One M.2 support to 2280 PCIe Gen4 x4 Link for faster OS booting
- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R-I server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Dual Ethernet bandwidth
With dual onboard LAN powered by an Intel I210AT Ethernet controller, P12R-I server motherboards provide business-grade connectivity and support high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications.
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Specifications
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor socket | LGA 1200 (Socket H5) |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
Memory
| Supported memory types | DDR4-SDRAM |
|---|---|
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,2933,3200 MHz |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Maximum internal memory | 64 GB |
Show all 42 specificationsShow fewer specifications
Storage controllers
| Supported storage drive interfaces | M.2, SATA III |
|---|
Graphics
| Graphics card family | ASPEED |
|---|---|
| Graphics card | AST2600 |
| On-board graphics card memory | 64 MB |
Internal I/O
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
|---|---|
| Number of SATA III connectors | 6 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |

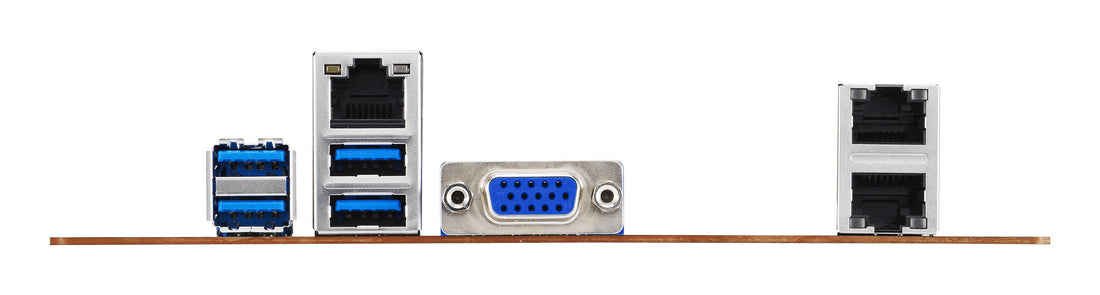

Rear panel I/O ports
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |
| Number of SAS ports | 2 |
Network
| Ethernet LAN | Yes |
|---|---|
| LAN controller | Intel® I210-AT |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features
| Component for | Server |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel C252 |
Expansion slots
| PCI Express x16 slots | 1 |
|---|---|
| Number of M.2 (M) slots | 1 |
Operational conditions
| Storage temperature (T-T) | -40 - 70 °C |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions
| Width | 170 mm |
|---|---|
| Depth | 170 mm |
Other features
| Weight | 500 g |
|---|
