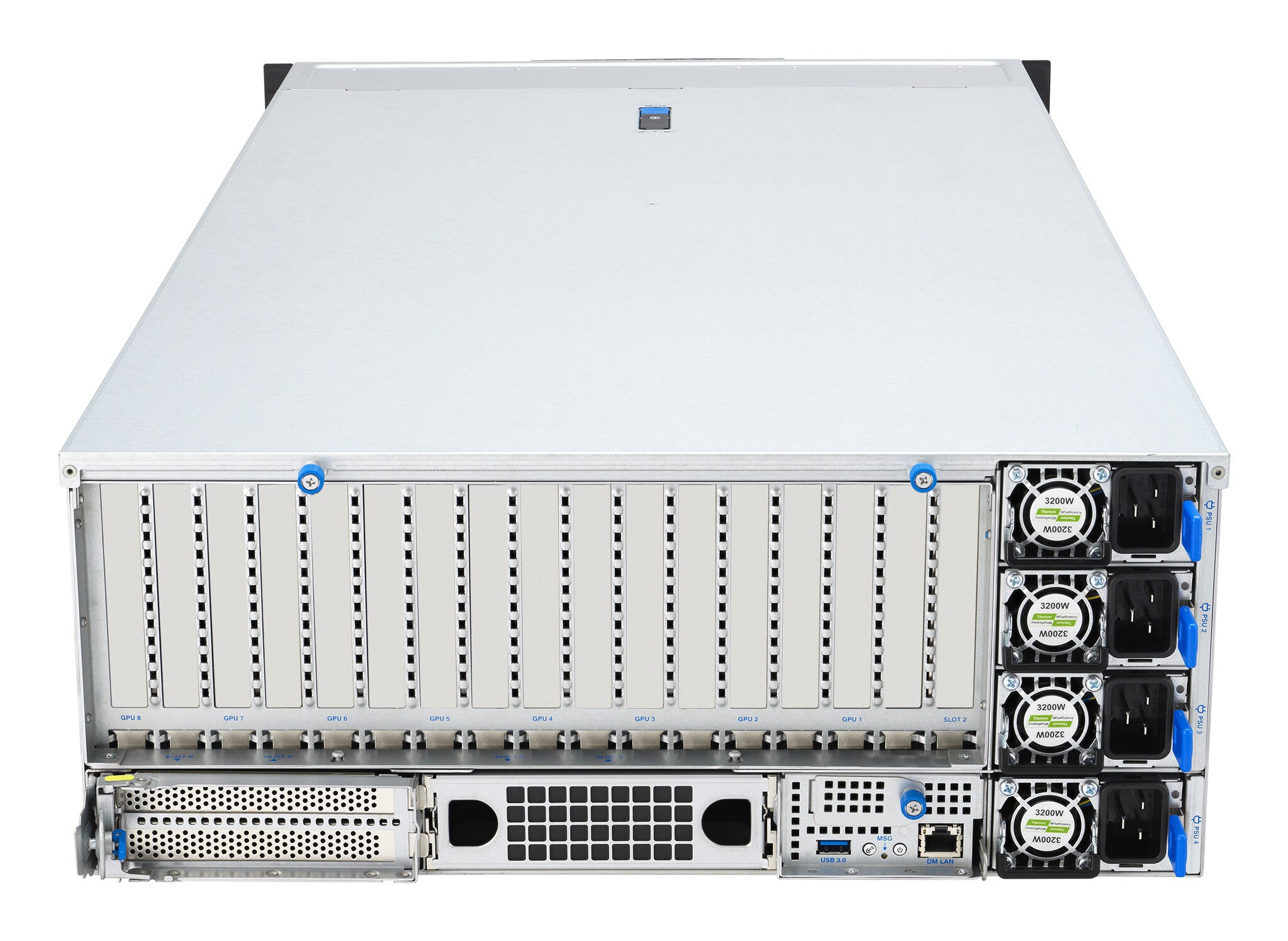

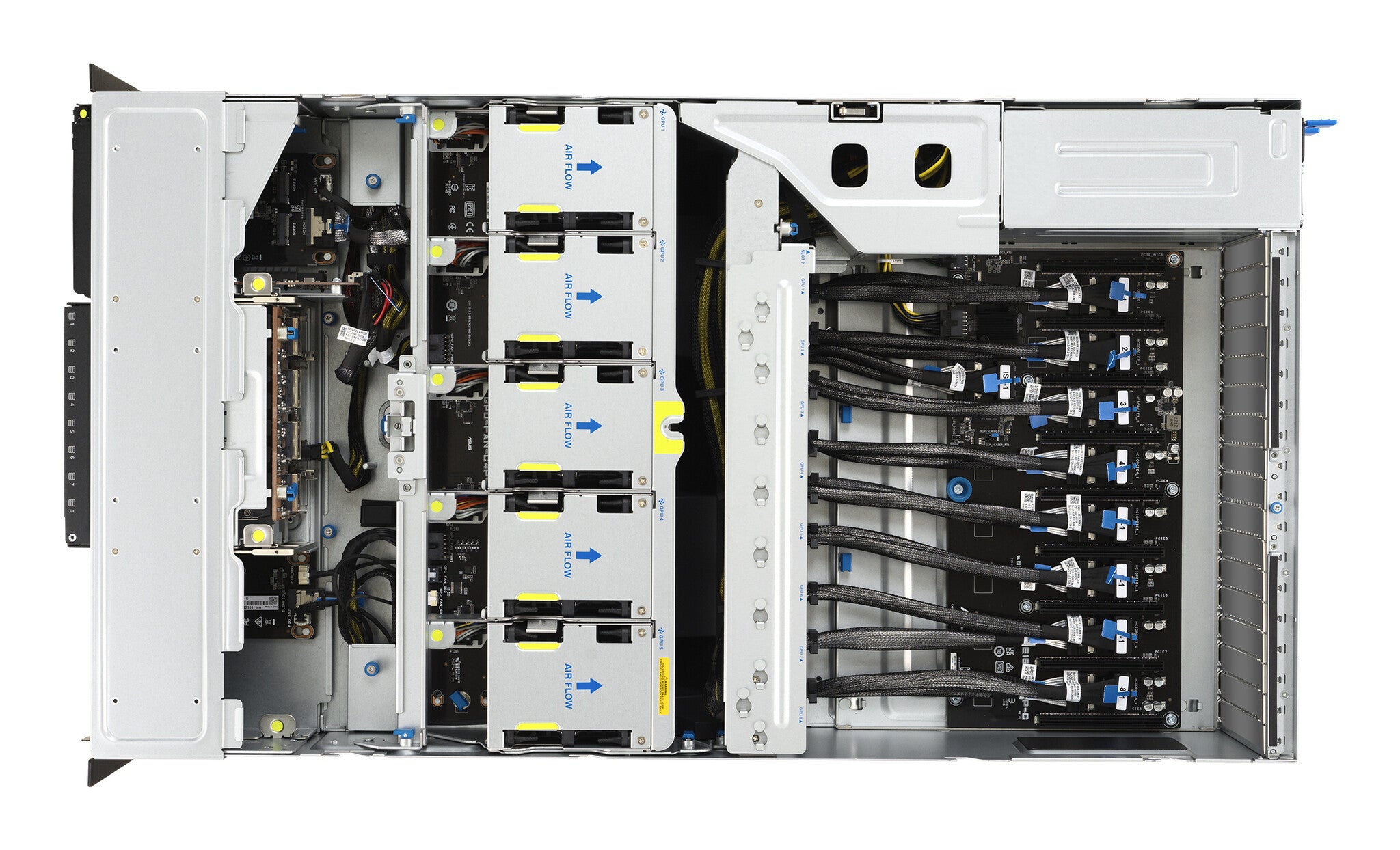

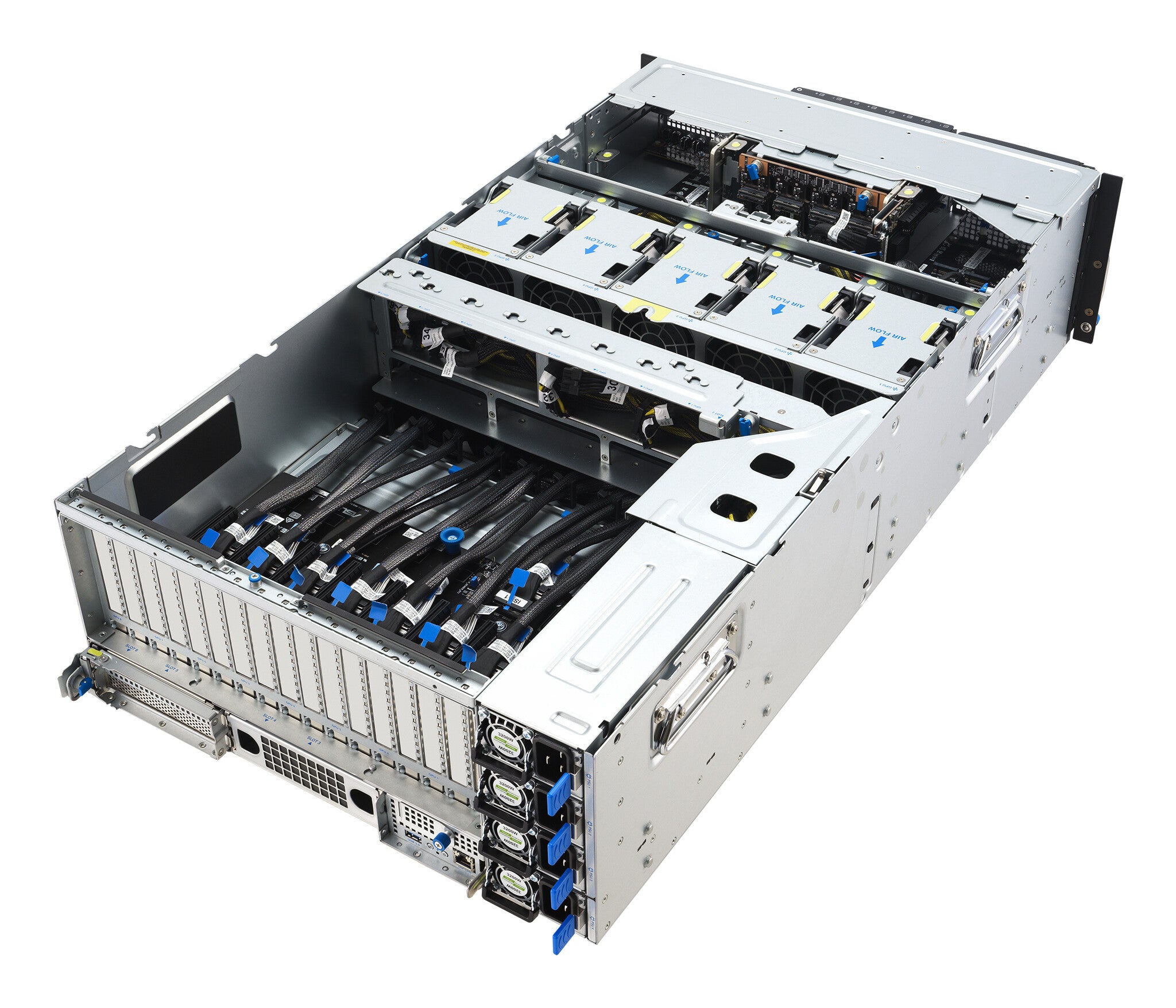

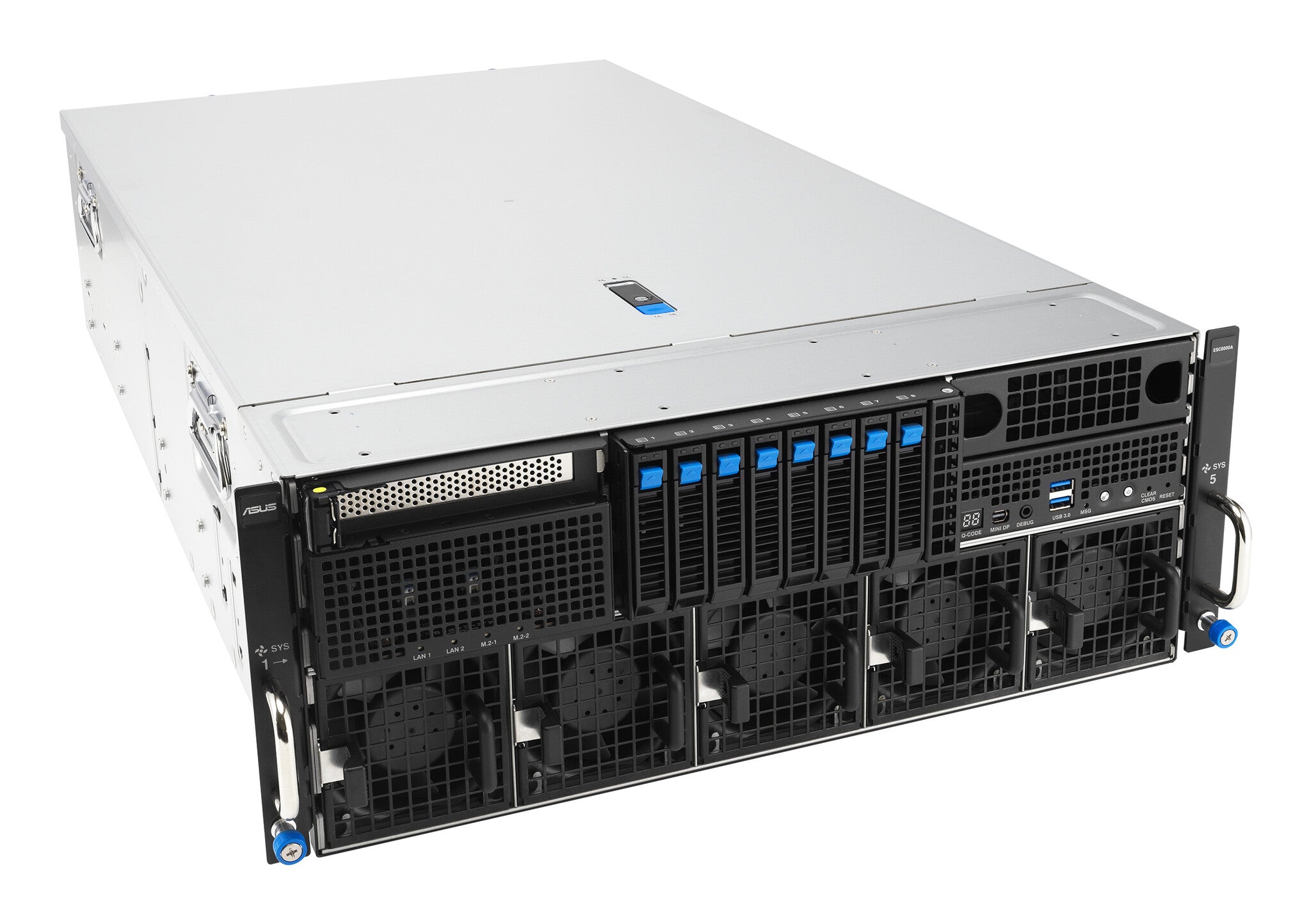

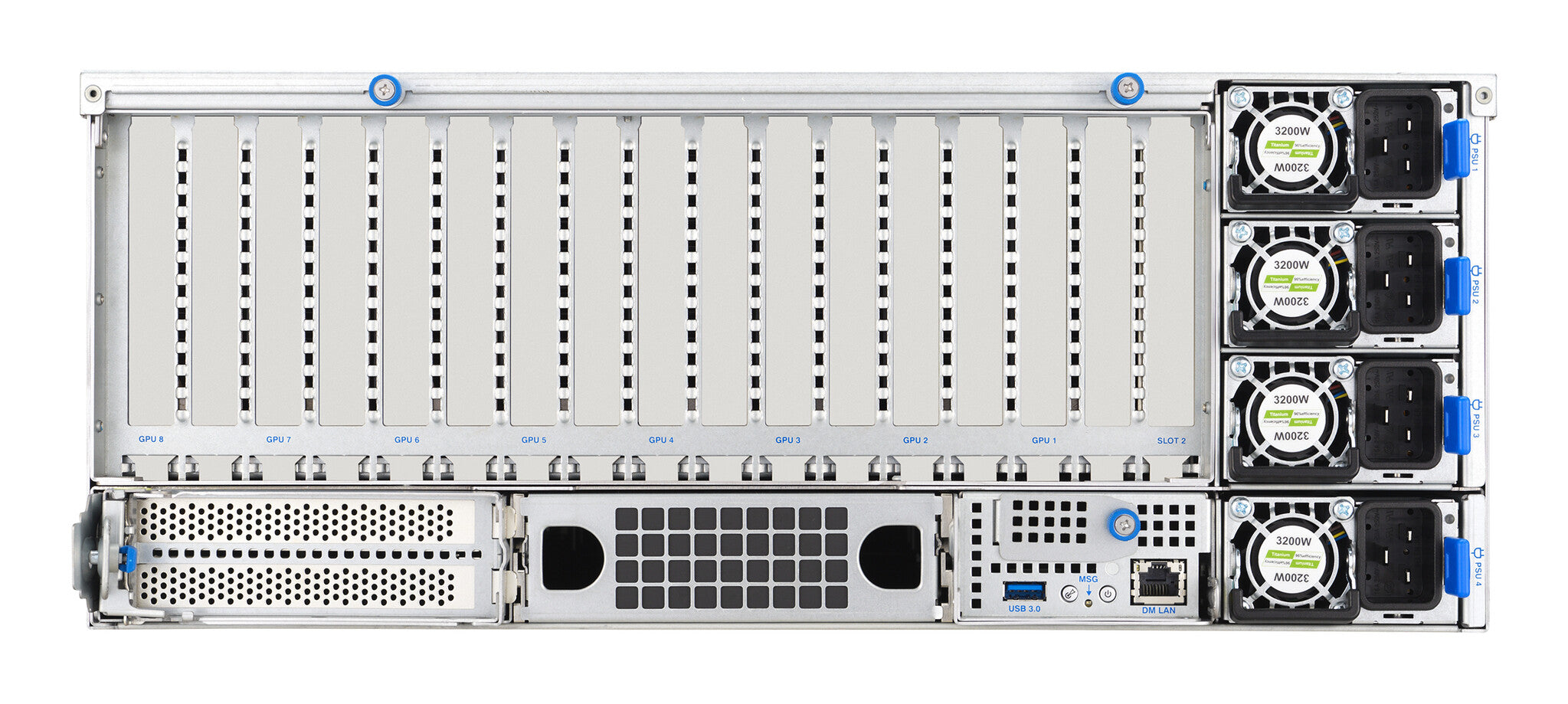

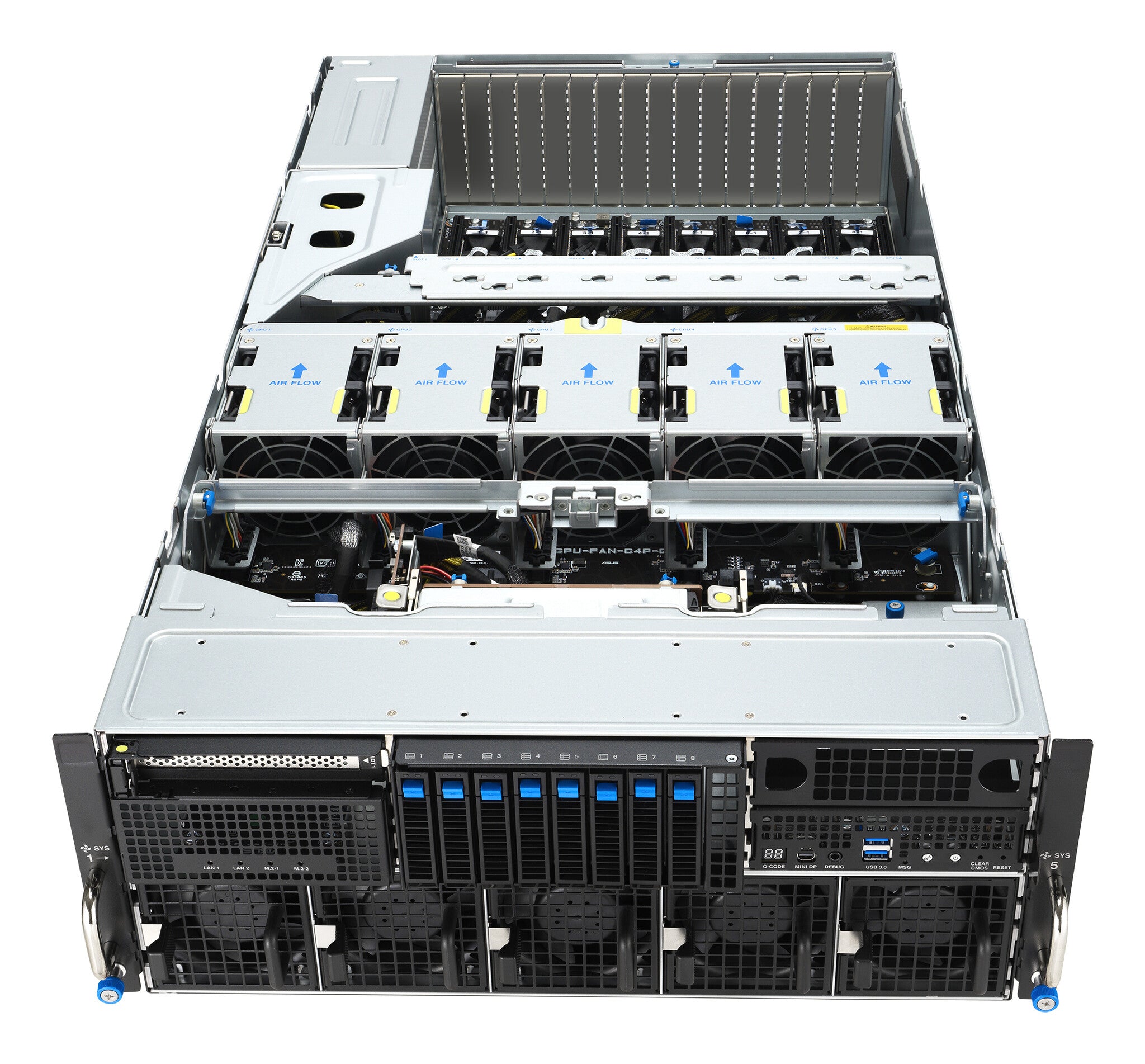

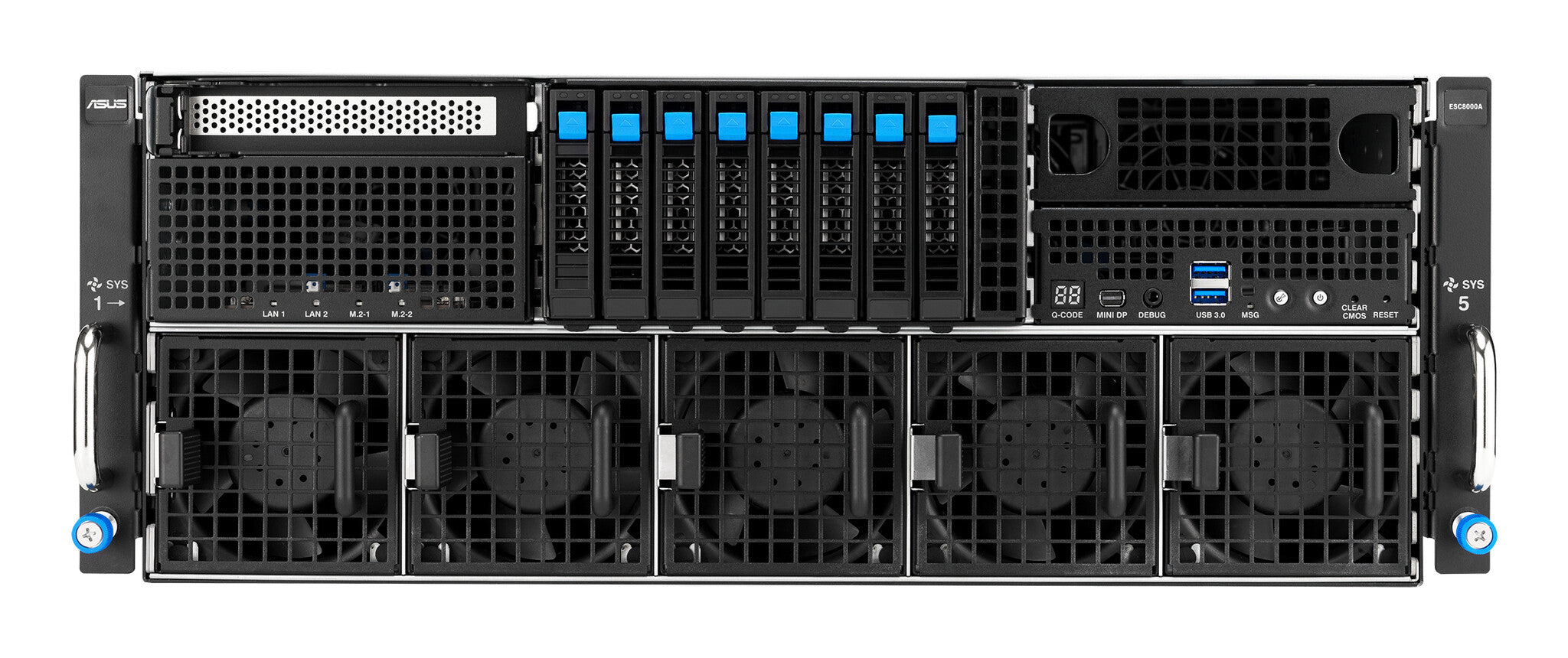

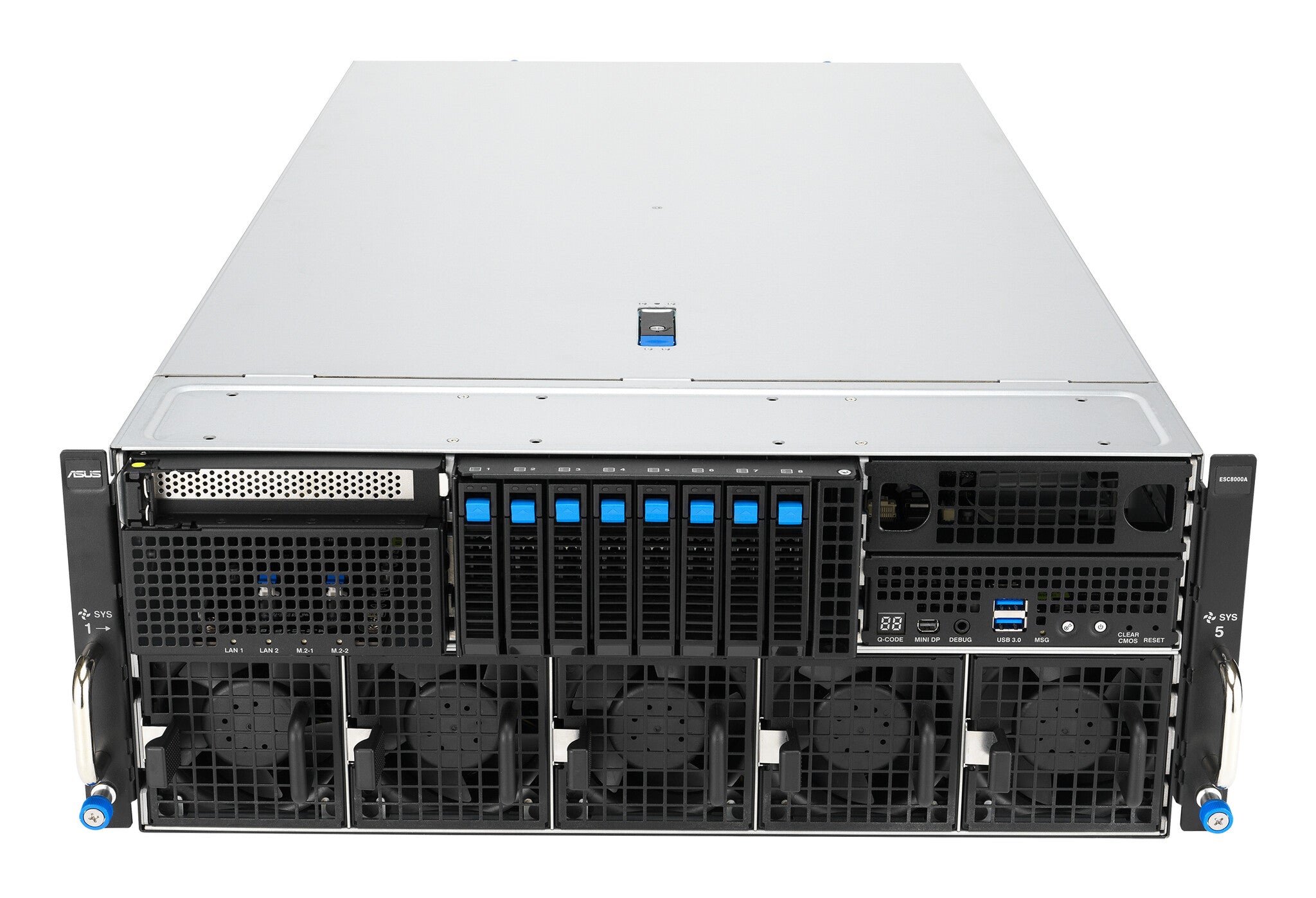

ASUS ESC8000A-E13 LGA 6096 Rack (4U) Silver
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £3,928.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- High-performance server configuration: Equipped with AMD EPYC 9005 processors featuring 192 Zen 5c cores, 12-channel DDR5 memory up to 6400MHz and a maximum TDP of 500 watts per socket.

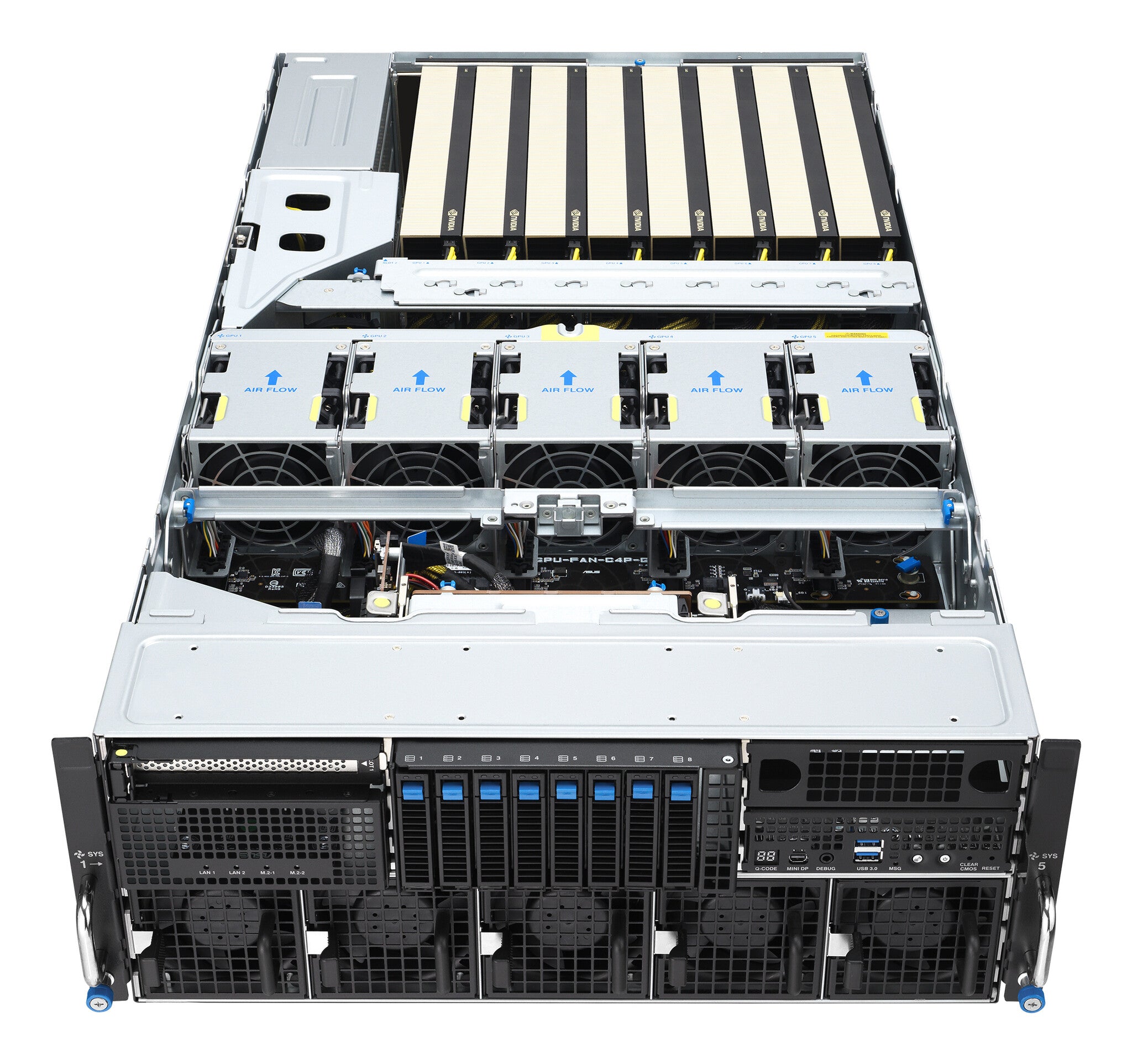

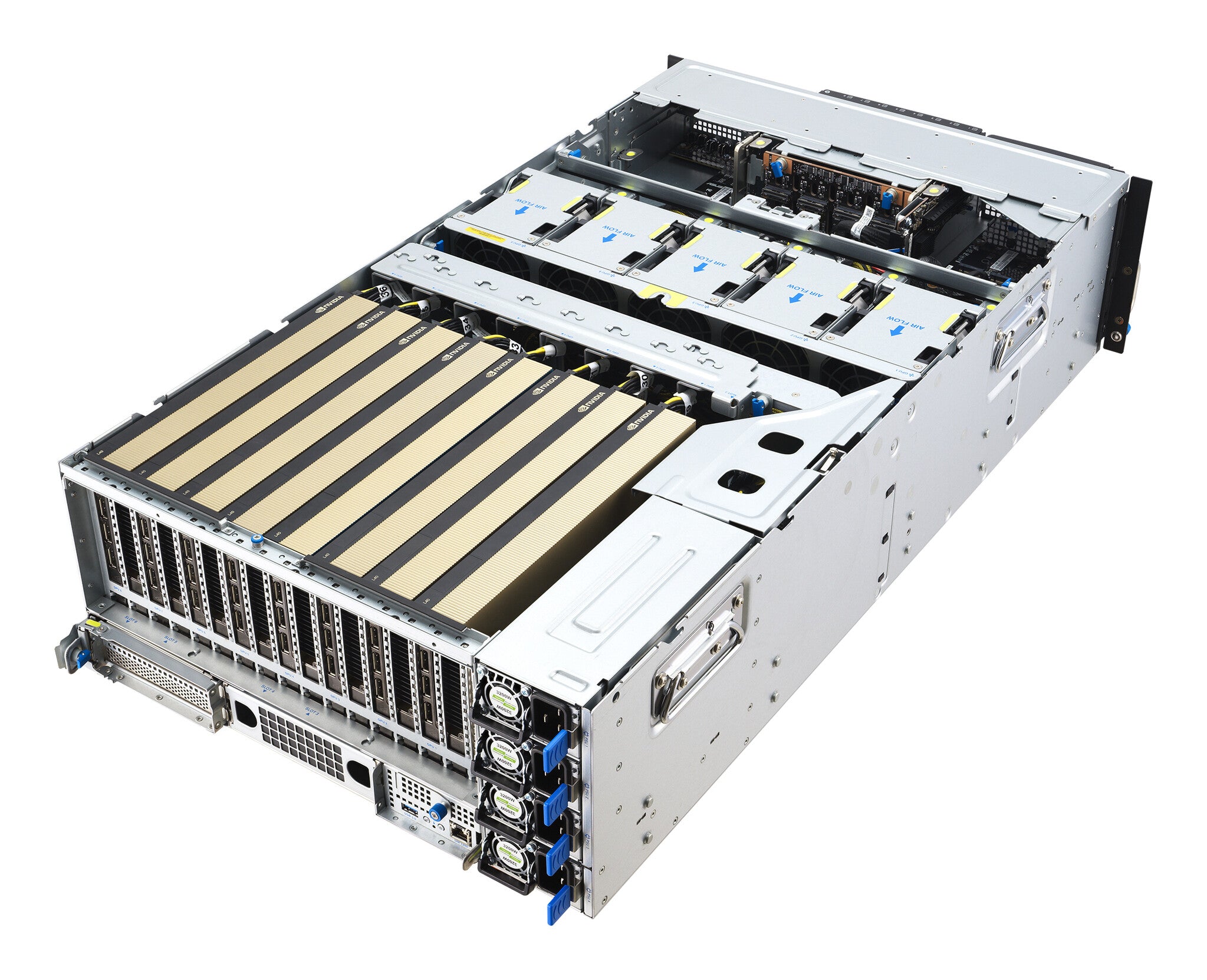

- Direct GPU support: Designed as a high-density 4U server capable of housing eight dual-slot NVIDIA H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, each supporting up to 600 watts.
- Optimized connectivity: Offers two PCIe 5.0 slots for high-bandwidth NICs and DPUs, connected directly to CPU to reduce latency.
- Storage flexibility: Includes options for hardware RAID function support, configurations with additional support for up to six 2.5” U.2 NVMe drives
- Efficient maintenance: Features ASUS-exclusive toolless design for streamlined maintenance and maximum efficiency.
- Advanced management: Includes ASUS Control Center IT-management software and a hardware-level Root-of-Trust solution for enhanced security and control.
AMD EPYC™ 9005 dual-processor 4U server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, up to 24 DIMM, two PCIe®5.0 slots and up to six U.2 NVMe drives.

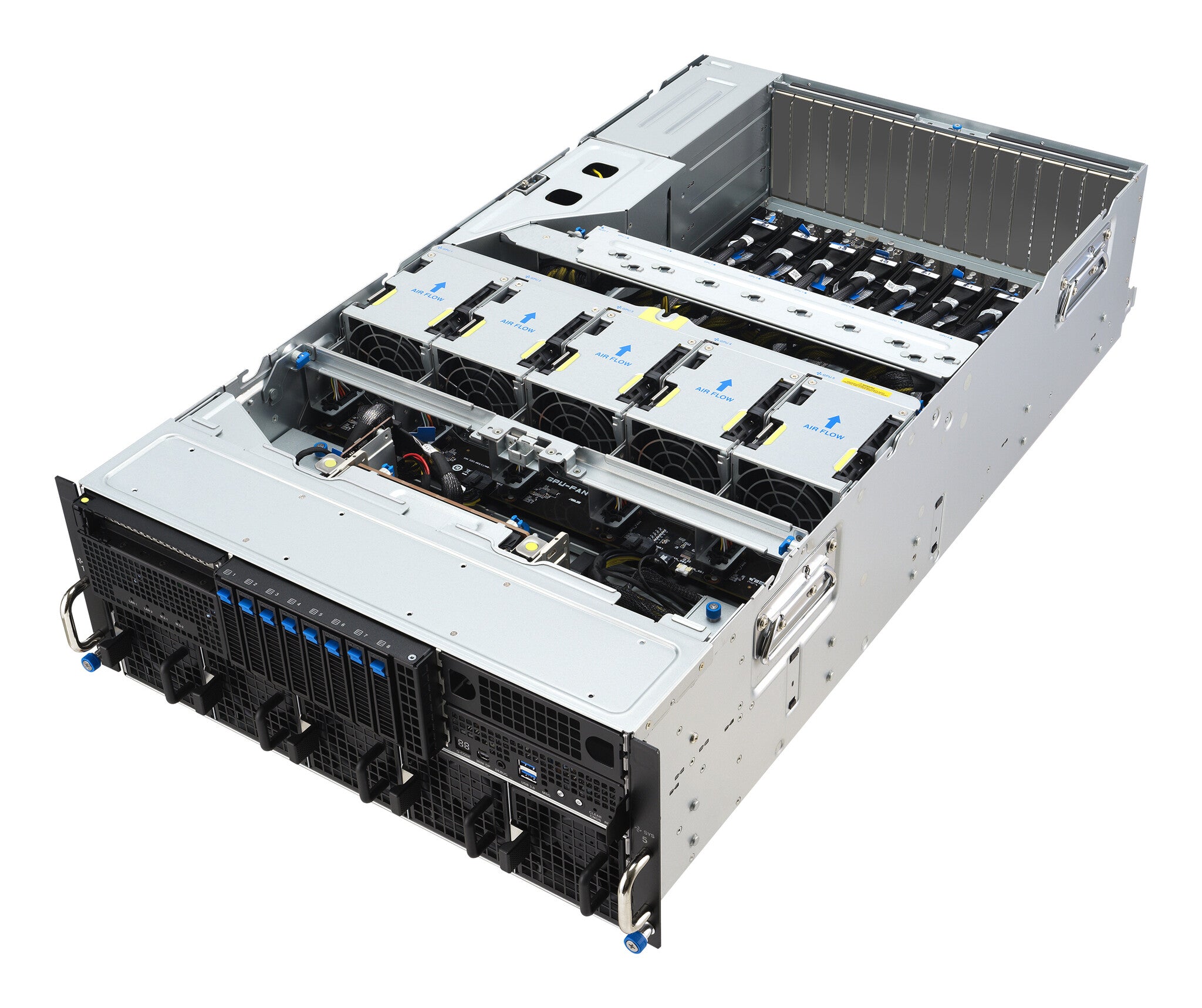

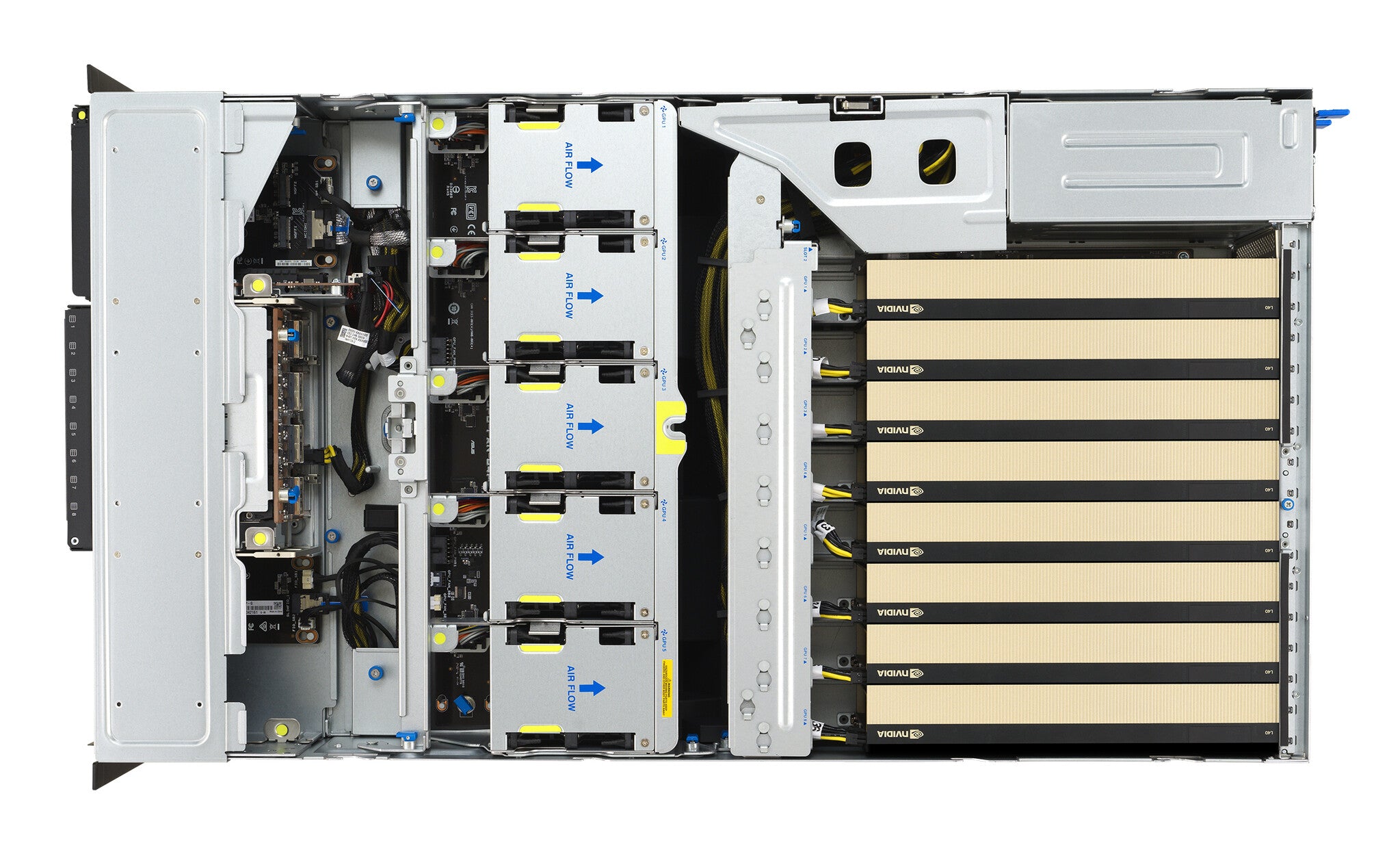

Eight dual-slot GPUs in a high-density 4U compute server
ASUS ESC8000A-E13, powered by AMD EPYC™ 9005 processors, delivers outstanding performance with top-tier GPUs, faster GPU interconnects, and a high-bandwidth fabric. This robust server directly supports up to eight dual-slot GPUs, available in both active and passive configurations, and provides flexible scalability through options like the NVIDIA® NVLink® Bridge. This setup ensures seamless scaling and performance optimization, making ESC8000A-E13 a perfect solution for handling demanding AI training and inferencing workloads.
Specifications
Processor
| Built-in processor | No |
|---|---|
| Processor socket | LGA 6096 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9005 |
Memory
| Number of DIMM slots | 24 |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Supported DIMM module capacities | 16GB, 32GB, 64GB, 128GB |
| Maximum internal memory | 3 TB |
| Supported RDIMM clock speeds | 6400,5600 MHz |
Show all 35 specificationsShow fewer specifications
Storage
| Number of storage drives supported | 8 |
|---|---|
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 2.5" |
Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| IPMI LAN (RJ-45) port | Yes |
| Mini DisplayPorts quantity | 1 |
Expansion slots
| PCI Express x16 (Gen 5.x) slots | 11 |
|---|
Design
| Chassis type | Rack (4U) |
|---|---|
| Product colour | Silver |
| LED indicators | Yes |
| Certification | BSMI, CB, CE, FCC(Class A), RCM |
Power
| Power supply | 3200 W |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 4 |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50/60 Hz |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Storage relative humidity (H-H) | 20 - 90% |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Weight | 42 kg |
|---|---|
| Height | 175 mm |
| Depth | 439.5 mm |
| Width | 800 mm |
