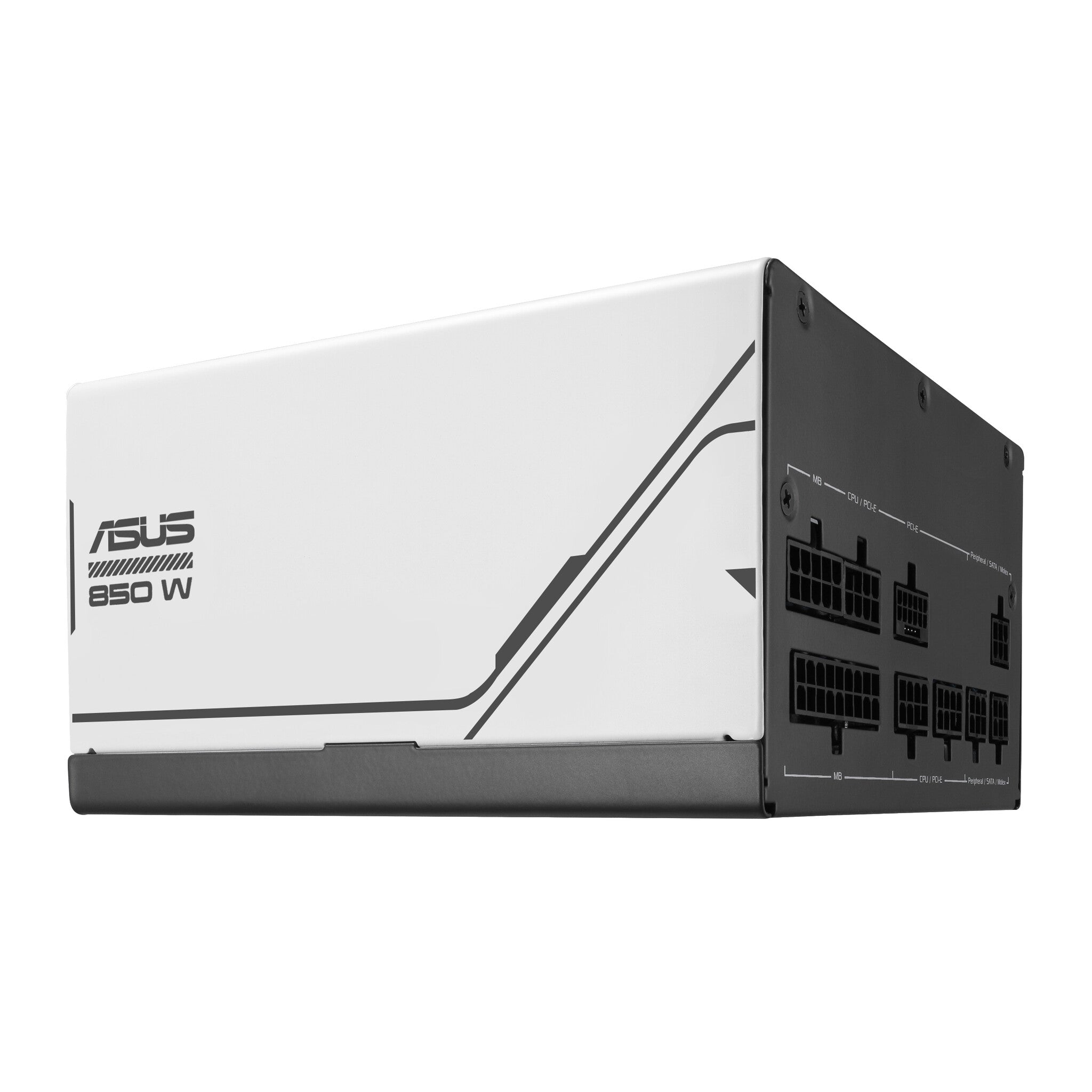

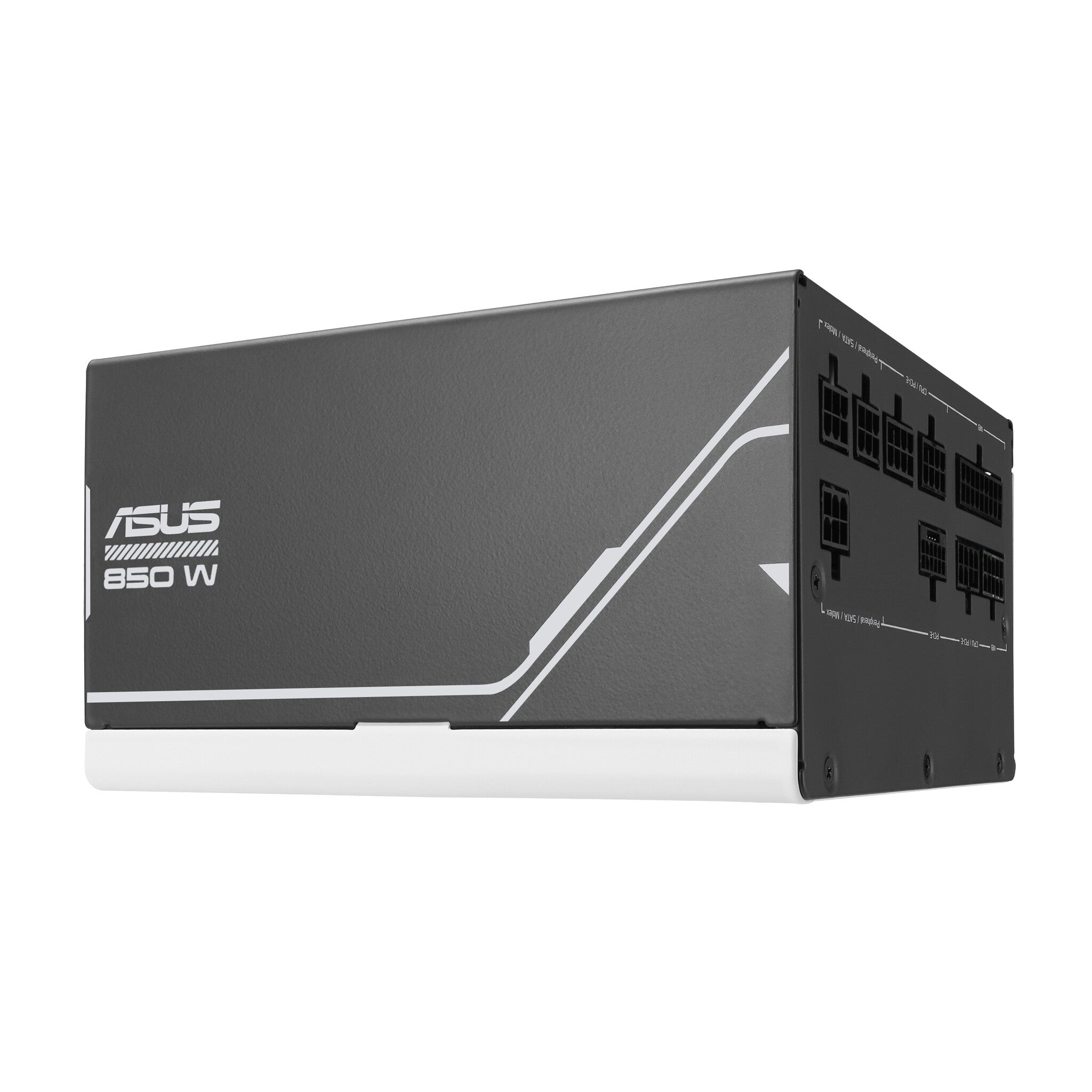

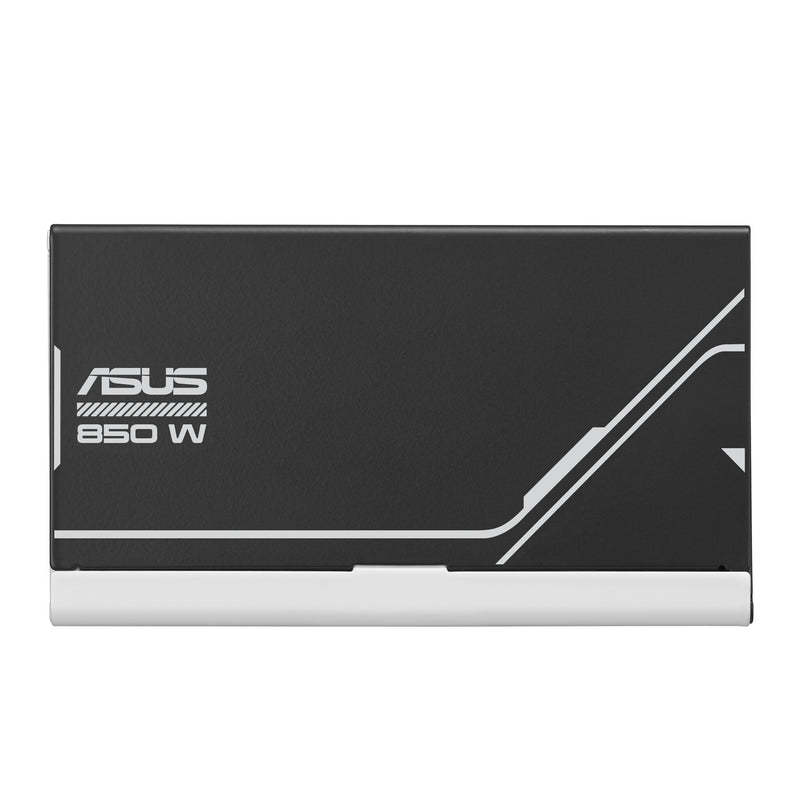

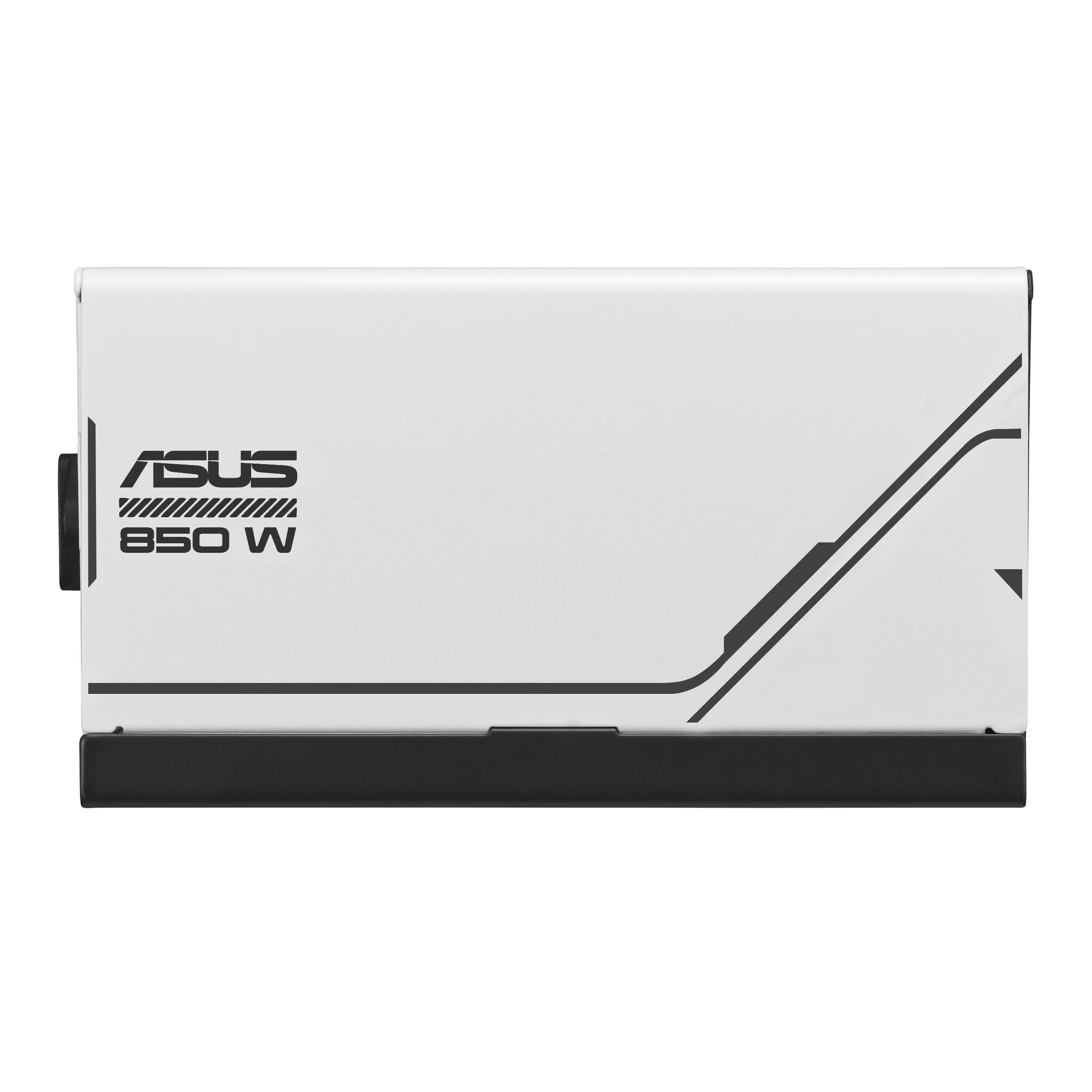

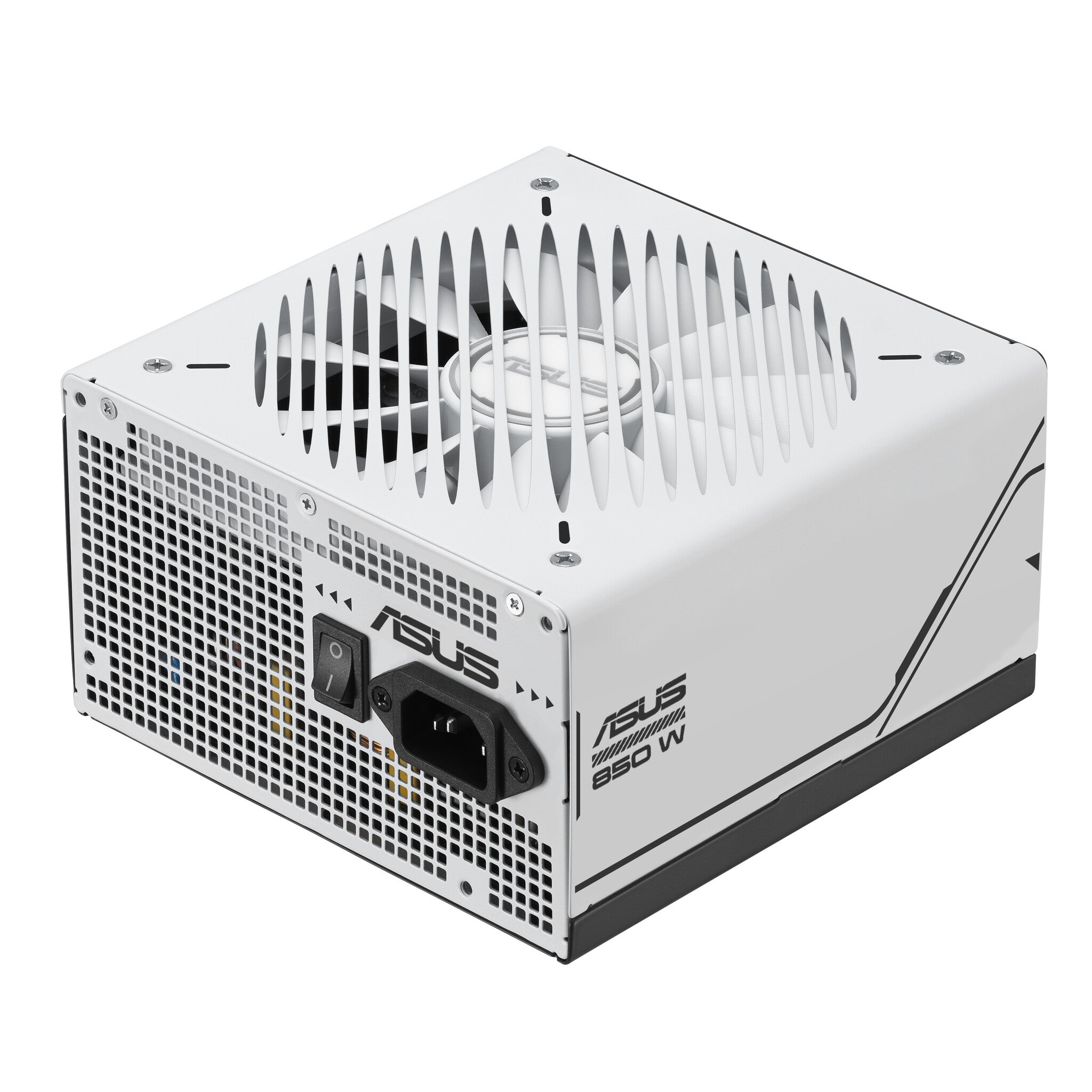

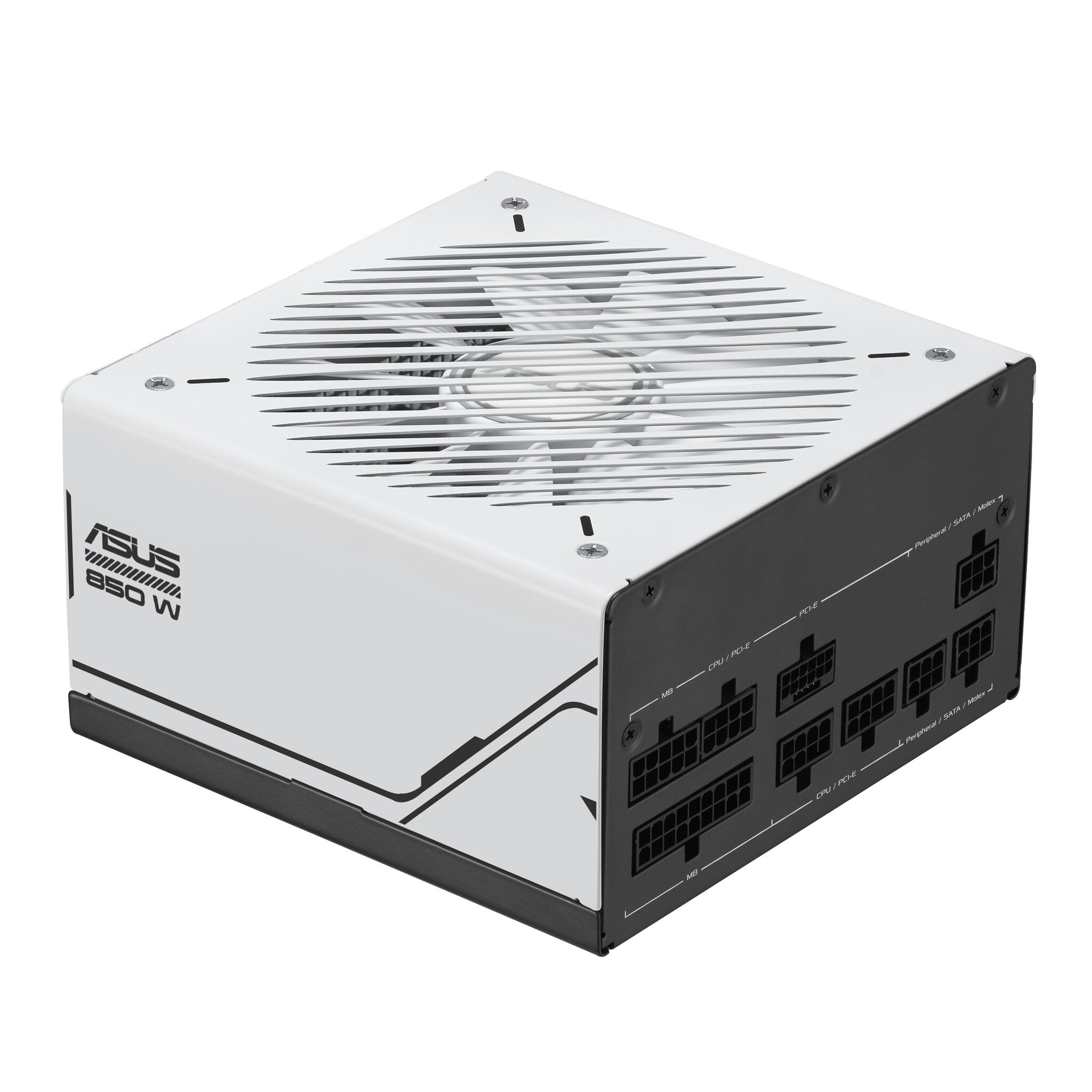

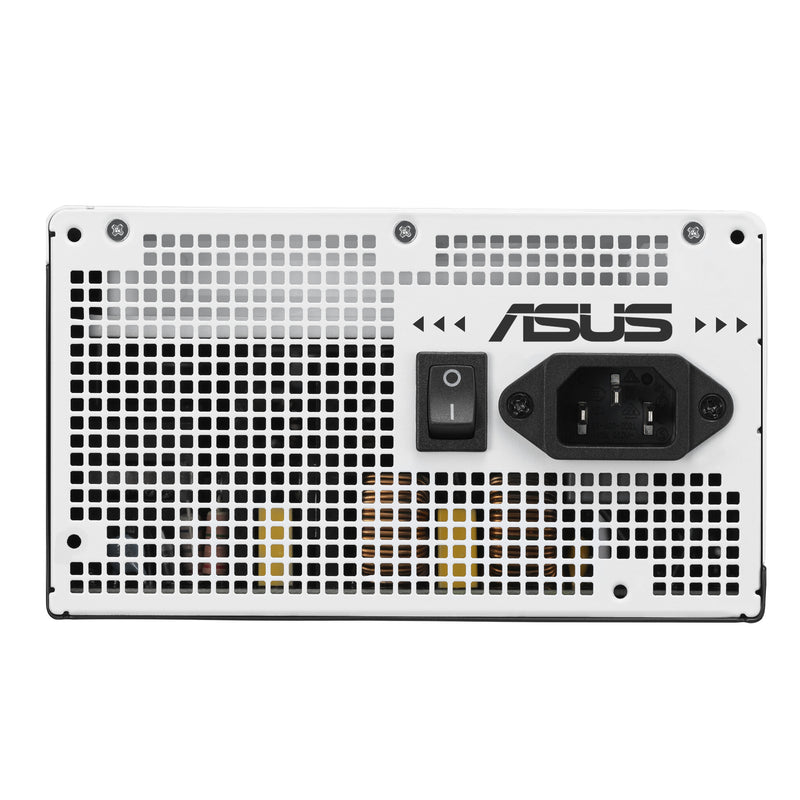

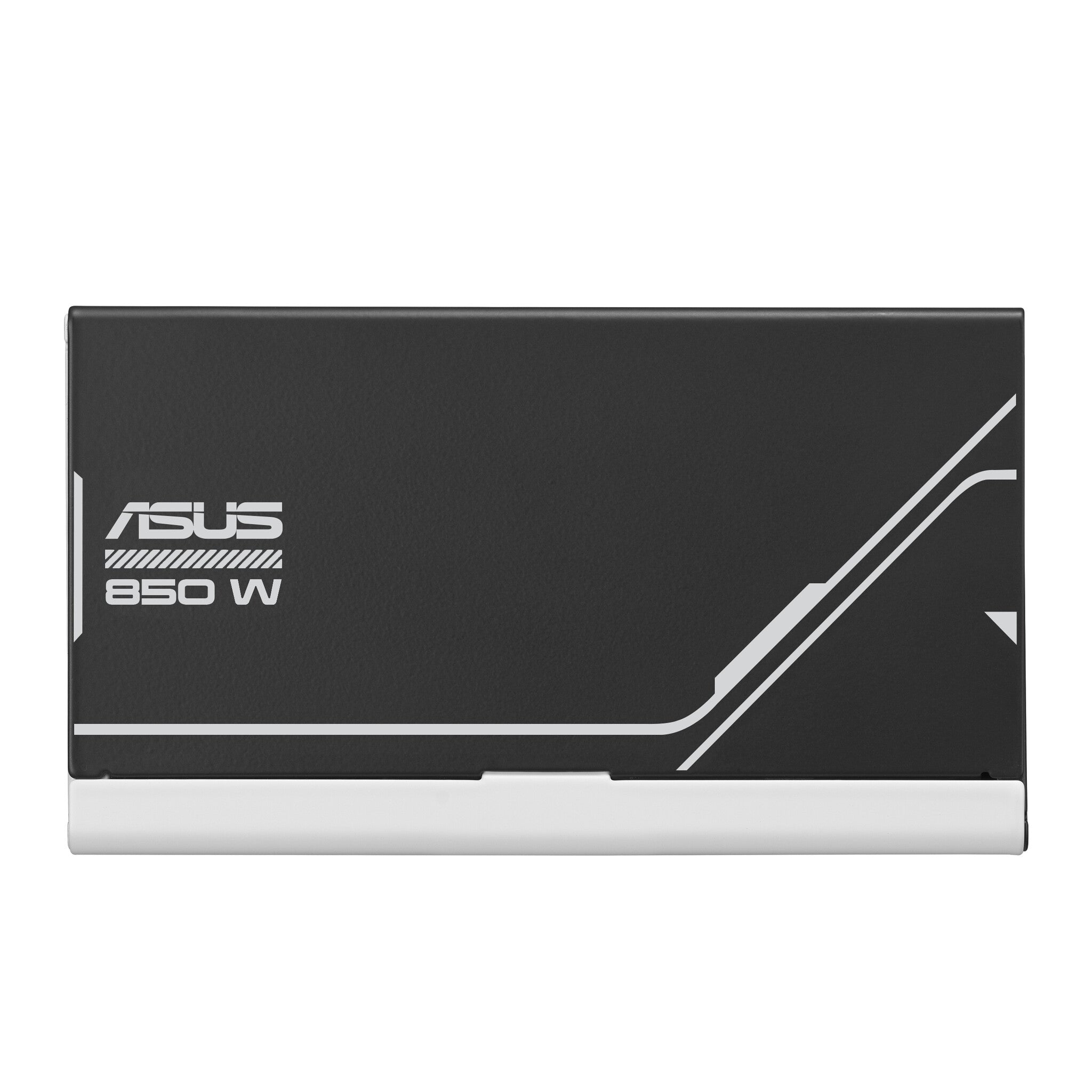

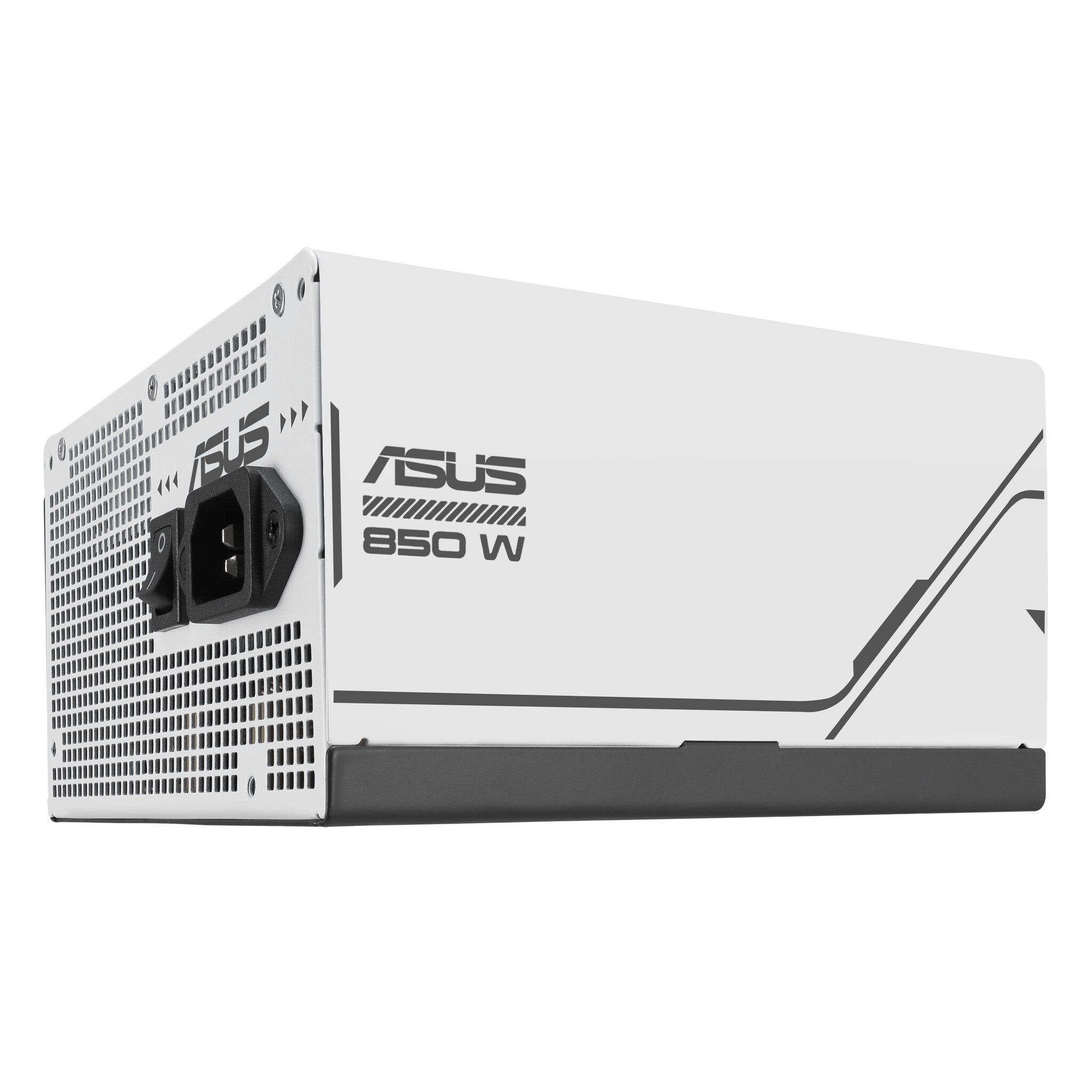

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
iFrame
£98.99
Couldn't load pickup availability
- Dual ball fan bearings that can last up to twice as long as sleeve bearing designs
- An 80 Plus gold certification is the result of low-ESR capacitors and other premium components
- ATX 3.0 compatible: ASUS Prime Gold is compliant with ATX 3.0 guidelines and bundled with a 16-pin PCIe cable that is compatible with PCIe Gen 5.0 graphics cards
Prime Performance
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
| Power | |
|---|---|
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5V) | 20 A |
| Max output current (+12V) | 70.5 A |
| Max output current (+3.3V) | 20 A |
| Combined power (+5Vsb) | 12.5 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5V) | 110 W |
| Combined power (+12V) | 846 W |
| Combined power (+3.3V) | 110 W |
| Power Factor Correction (PFC) type | Active |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |

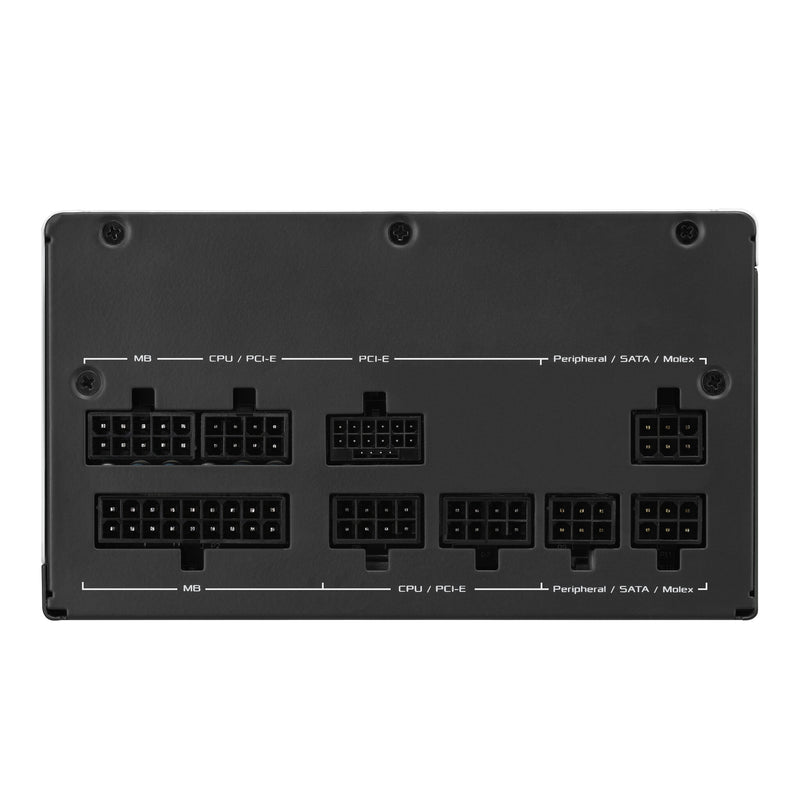

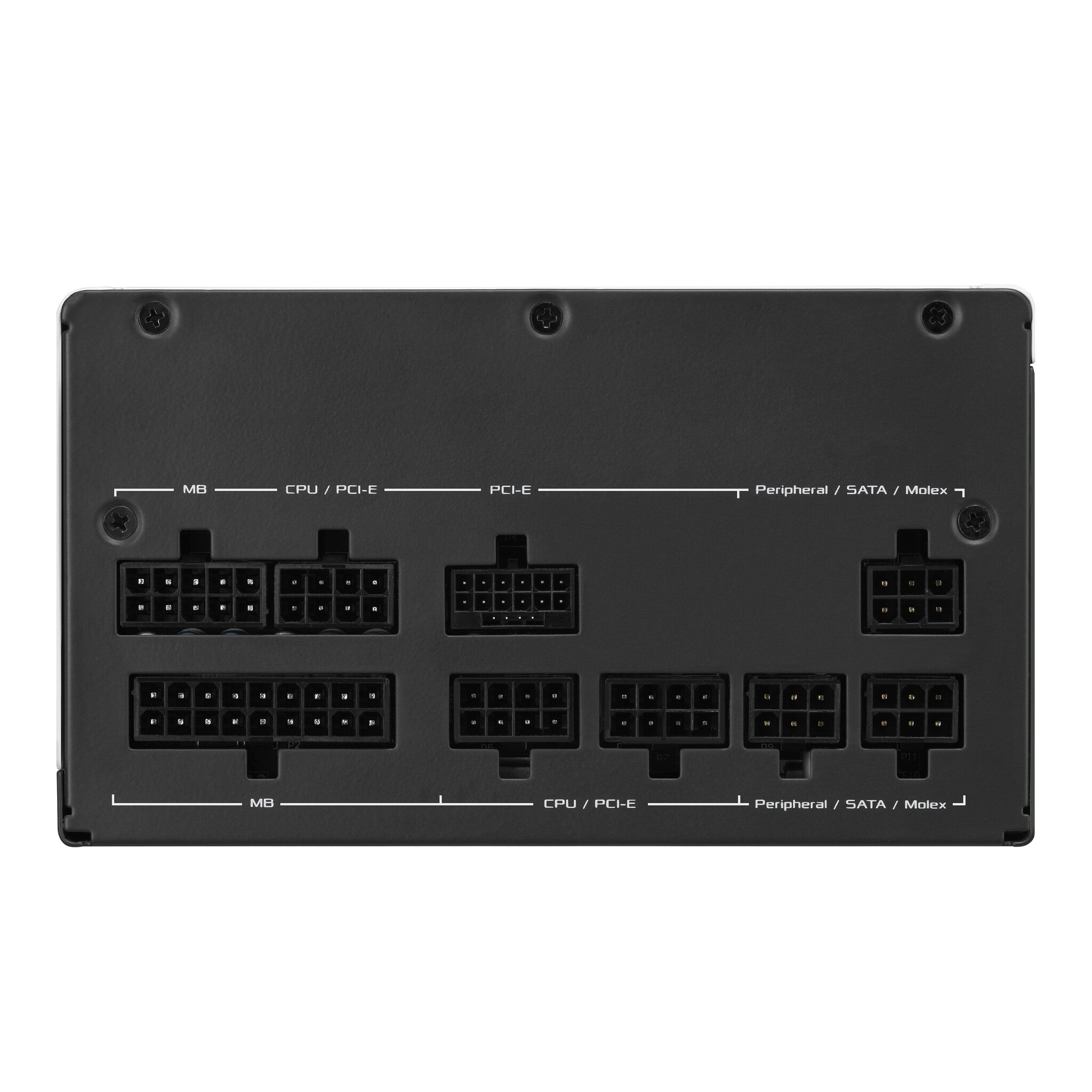

| Ports & interfaces | |
|---|---|
| Cabling type | Fully-Modular |
| CPU power cable length | 65 cm |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power cable length | 67.5 cm |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| Peripheral (Molex) power cable length | 400,150 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 400,120 mm |
| Number of SATA power connectors | 5 |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 120000 h |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Design | |
|---|---|
| Illumination | Yes |

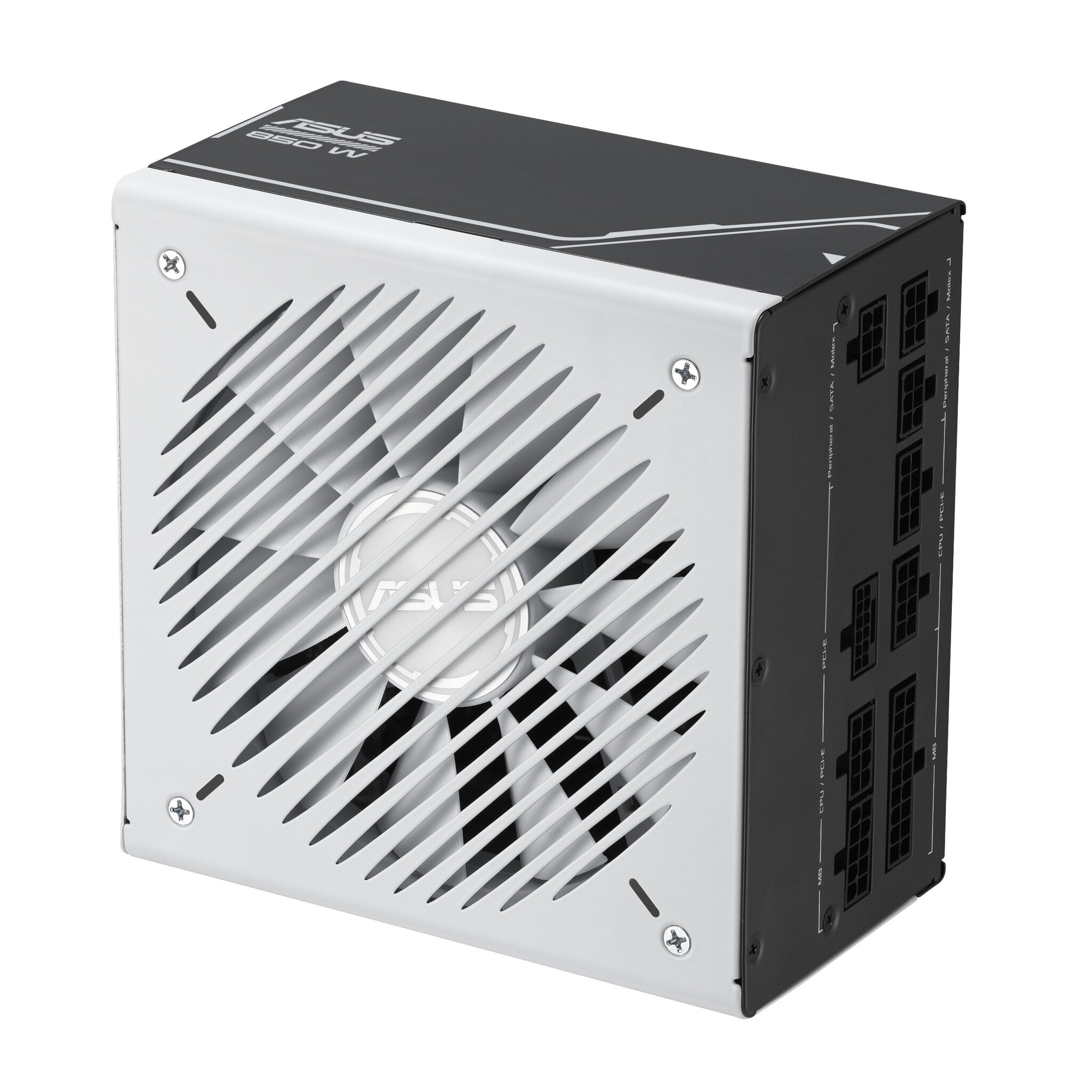

| Fan location | Top |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Product colour | Black, White |
| Certificates | |
|---|---|
| Compliance certificates | RoHS |
| Packaging content | |
|---|---|
| Cables included | CPU, PCIe, SATA, Peripheral (Molex) |
| Weight & dimensions | |
|---|---|
| Weight | 1.5 kg |
| Height | 86 mm |
| Depth | 150 mm |
| Width | 150 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 2.92 kg |
| Package height | 144 mm |
| Package depth | 208 mm |
| Package width | 346 mm |
