£94.99

Stock Available: 18
  • Supports AMD AM4 Socket Ryzen™ 3000, 4000 G-Series and 5000 Series Desktop Processors
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 3.0 x16
  • Graphics Output: DisplayPort, HDMI
  • 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
  • 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
  • 6 x USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 x Rear Type-C)
  • Realtek Gigabit LAN
  • Intel® 802.11ac WiFi + BT 4.2

A520 MOTHERBOARD FOR EVERYONE

All Essentials You Need For Computing

8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.

Premium 60A Power Choke

Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.

Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.

AMD SMART ACCESS MEMORY

Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

Dual USB 3.2 Gen1 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen1 ports built on the rear i/o for supporting next generation USB 3.2 Gen1 devices and to deliver up to 5 Gbps data transfer rates.

Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Processor
Processor socket Socket AM4
Processor manufacturer AMD
Memory
Unbuffered memory Yes
Maximum internal memory 64 GB
Supported memory clock speeds 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533,4600 MHz
ECC сompatibility ECC & Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 2
Supported memory types DDR4-SDRAM
Storage controllers
RAID levels 0, 1, 10
Supported storage drive interfaces SATA III, Ultra M.2
Graphics
DirectX version 12.0
HDCP Yes
Maximum resolution 4096 x 2160 pixels
Graphics card Radeon Vega
Graphics card family AMD
Internal I/O
RGB LED pin header Yes
12V power connector Yes
Number of chassis fan connectors 1
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel audio connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 2.0 connectors 1

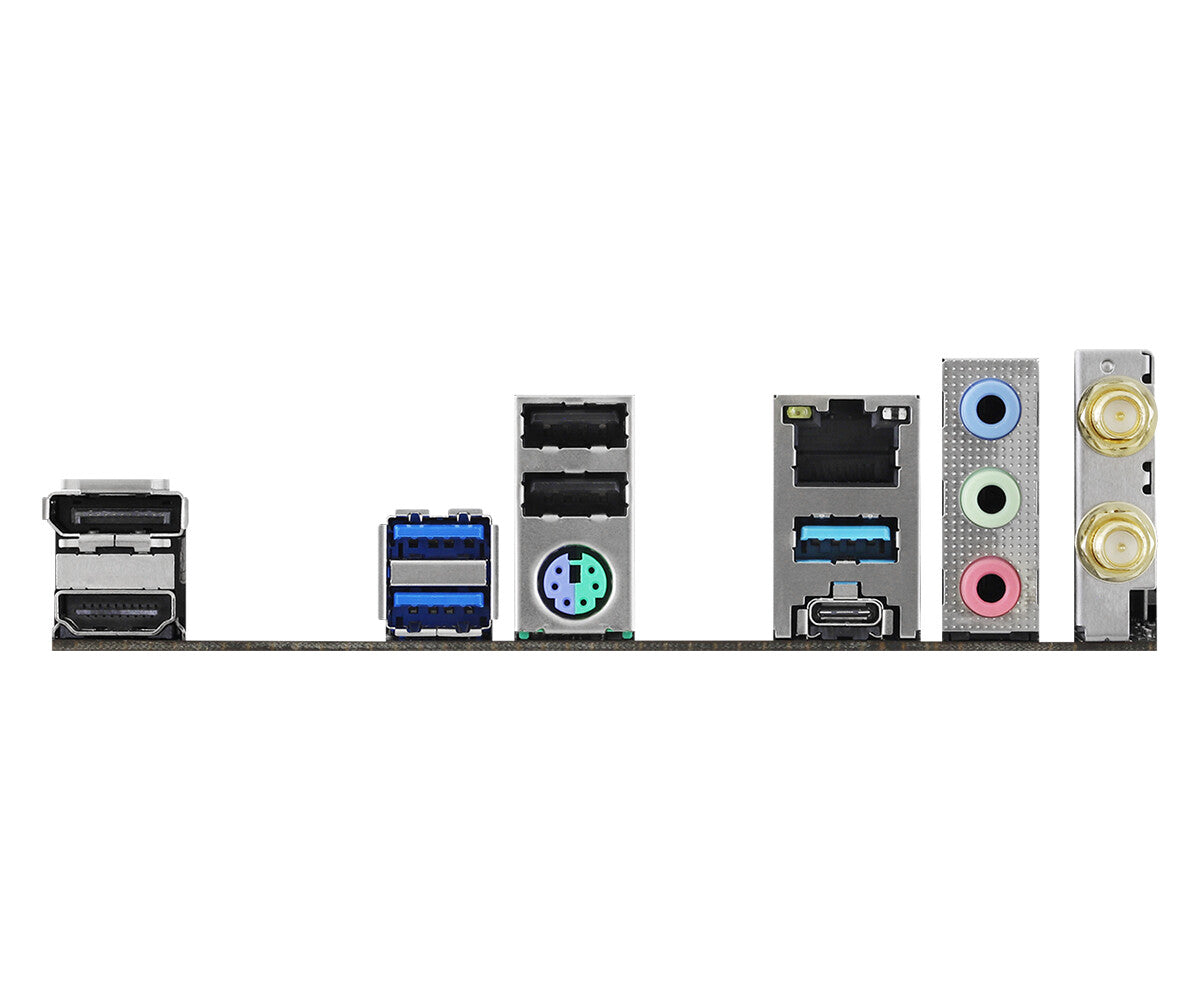

Rear panel I/O ports
WiFi-AP antenna jack 1
Microphone in Yes
Headphone outputs 1
DisplayPort version 1.4
DisplayPorts quantity 1
HDMI version 2.1
HDMI ports quantity 1
PS/2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3
USB 2.0 ports quantity 2
Network
Bluetooth version 4.2
Bluetooth Yes
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard Wi-Fi 5 (802.11ac)
Wi-Fi Yes
Wake-on-LAN ready Yes
LAN controller Realtek RTL8111H
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Certification FCC, CEErP/EuP ready
Windows operating systems supported Windows 10 x64
PC health monitoring CPU, Fan, Temperature, Voltage
Audio output channels 7.1 channels
Motherboard chipset AMD A520
Motherboard chipset family AMD
Motherboard form factor mini ITX
Component for PC
Expansion slots
Number of M.2 (M) slots 1
PCI Express x16 (Gen 3.x) slots 1
BIOS
System Management BIOS (SMBIOS) version 2.3
ACPI version 5.1
BIOS memory size 128 Mbit
BIOS type UEFI AMI
Logistics data
Harmonized System (HS) code 84733020
Weight & dimensions
Depth 170 mm
Width 170 mm
Packaging content
Bundled software ASRock Motherboard Utility (A-Tuning)ASRock Polychrome SYNCASRock XFast LAN
Drivers included Yes
Cables included SATA
Technical details
Sustainability compliance Yes
Sustainability certificates ErP
Compliance certificates CE
