Asrock A520M-HDV AMD A520 Socket AM4 micro ATX
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £18.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- AMD Socket AM4 AMD Ryzen 3000 Series
- PC micro ATX AMD A520 7.1 channels
- DDR4-SDRAM 2 DIMM Maximum internal memory: 64 GB
- M.2, SATA III RAID support Number of storage drives supported: 5
- AMD Radeon Vega
- BIOS type: UEFI AMI
- Gigabit Ethernet
A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Specifications
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
Memory
| Supported memory types | DDR4-SDRAM |
|---|---|
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133,2400,2666,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4500,4533 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Show all 48 specificationsShow fewer specifications
Storage controllers
| Supported storage drive interfaces | M.2, SATA III |
|---|---|
| Number of storage drives supported | 5 |
| Number of HDDs supported | 5 |
| RAID support | Yes |
Graphics
| Graphics card family | AMD |
|---|---|
| Graphics card | Radeon Vega |
Internal I/O
| USB 2.0 connectors | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |

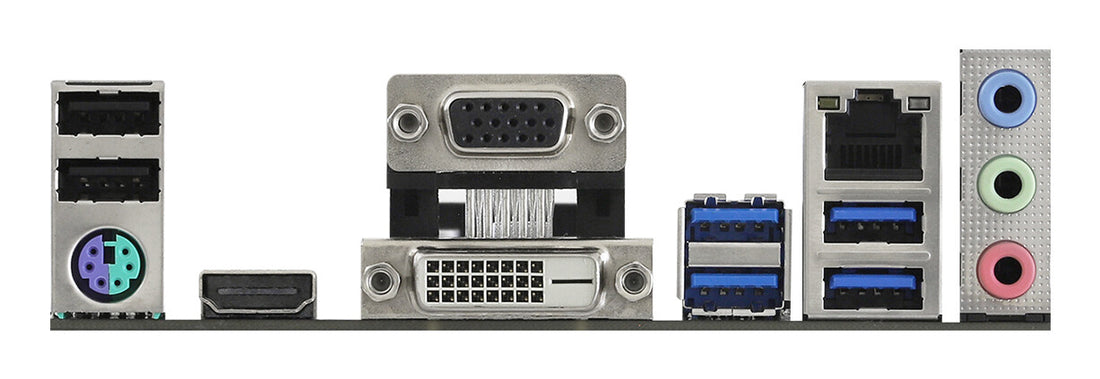

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111H |
| Wake-on-LAN ready | Yes |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features
| Component for | PC |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Audio output channels | 7.1 channels |
Expansion slots
| PCI Express x1 (Gen 3.x) slots | 1 |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
BIOS
| BIOS type | UEFI AMI |
|---|
Weight & dimensions
| Width | 230 mm |
|---|---|
| Depth | 201 mm |
