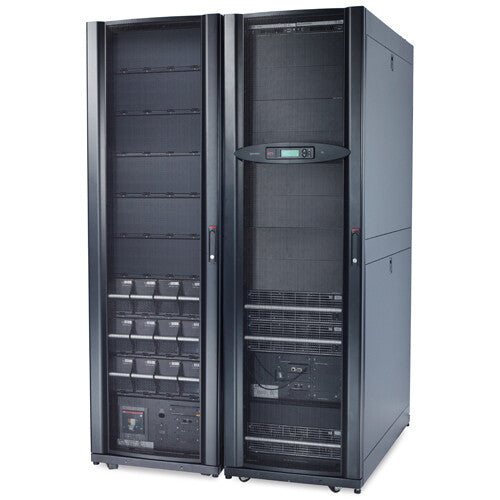

APC Symmetra PX 32kW Scalable to 160kW, 400V uninterruptible power supply (UPS) 32 kVA
£30,990.99
Couldn't load pickup availability
Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. Suitable for small, medium & large data center applications.
Includes: Network Management Card, Start-Up Service, User Manual
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Noise level | 63 dB |
| Emergency Power Off (EPO) | Yes |
| Output power capacity | 32 kVA |
| Battery | |
|---|---|
| Battery recharge time | 3.5 h |
| Design | |
|---|---|
| Product colour | Black |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 999.9 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | CE,EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111 |
| Weight & dimensions | |
|---|---|
| Weight | 1029 kg |
| Packaging data | |
|---|---|
| Package weight | 1124 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Other features | |
|---|---|
| Package dimensions (WxDxH) | 1696 x 1210 x 2140 mm |
| Output voltage note | 380, 400/415 |
| Dimensions (WxDxH) | 1200 x 1070 x 1991 mm |
| Output connections | 1x Hard Wire 5-wire (3PH + N + G) |
| Interface | 2x SmartSlot |
| Battery type | VRLA |
