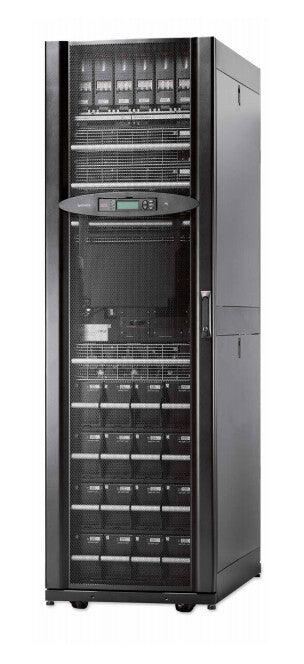

APC Symmetra PX 32kW All-In-One, Scalable to 48kW, without Batteries, 400V

APC Symmetra PX 32kW All-In-One, Scalable to 48kW, without Batteries, 400V

APC
£28,707.99
Stock Available: 0
  • Double-conversion (Online)
  • 32 kVA 32000 W
  • Waveform: Sine
  • Black

Scalable power and distribution in a high-density, single-frame design. This high-efficiency 3-phase UPS scales as your data center grows up to 48 kW/48 kVA. Suitable for small and medium data centers applications. To be used with either external third party battery system, or with internal long life modular batteries SYBT9-B4LL.

Features
UPS topology Double-conversion (Online)
Output power capacity 32 kVA
Output power 32000 W
Waveform Sine
Input operation voltage (min) 340 V
Input operation voltage (max) 477 V
Input frequency 40 - 70 Hz
Output operation voltage (min) 240 V
Output operation voltage (max) 415 V
Output frequency 50/60 Hz
Maximum current 65 A
Emergency Power Off (EPO) Yes
Output voltage Total Harmonic Distortion (THD) 2%
Input current Total Harmonic Distortion (THD) 5%
Noise level 61 dB
Web-based management Yes
Audible alarm(s) Yes
Audible alarm modes Alarm when on battery, Low battery alarm
Ports & interfaces
Power plug Terminal
SmartSlot Yes
Design
Product colour Black
Display type LCD
LED indicators Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 40 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Non-operating altitude 0 - 15000 m
Sustainability
Sustainability certificates ENERGY STAR
Certificates
Certification EN 50091-1, EN/IEC 62040-1-1, EN/IEC 62040-3, FCC Part 15 Class A, ISO 14001, ISO 9001, VFI-SS-111
Weight & dimensions
Width 600 mm
Depth 1070 mm
Height 1991 mm
Weight 369 kg
Packaging data
Management card included Yes
Service included Start-Up Service
Package width 848 mm
Package depth 1210 mm
Package height 2150 mm
Package weight 399 kg
Other features
Packaging content Network Management Card, Start-Up Servic
