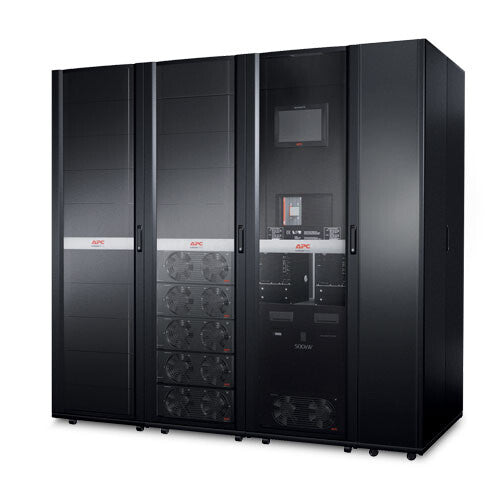

APC Symmetra PX 125kW Scalable to 500kW with Maintenance Bypass and Distribution, No Batteries
£72,430.99
Couldn't load pickup availability
A high-performance, 3-phase, modular, scalable, power protection solution with industry-leading efficiency, capacity, and performance for medium to large data centers and mission critical environments.
| Features | |
|---|---|
| Audible alarm(s) | Yes |
| Noise level | 54 dB |
| EMI/RFI noise filtering | Yes |
| Input current Total Harmonic Distortion (THD) | 5% |
| Output voltage Total Harmonic Distortion (THD) | 6% |
| Emergency Power Off (EPO) | Yes |
| Efficiency | 96% |
| Output operation voltage (max) | 480 V |
| Output operation voltage (min) | 400 V |
| Input operation voltage (max) | 552 V |
| Input operation voltage (min) | 408 V |
| Output power | 125000 W |
| Output power capacity | 125 kVA |
| Battery | |
|---|---|
| Hot-swap battery | Yes |
| Design | |
|---|---|
| Display type | LCD |
| Product colour | Black |
| Operational conditions | |
|---|---|
| Non-operating altitude | 0 - 15000 m |
| Operating altitude | 0 - 999.9 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | cUL Listed,CE,EN/IEC 62040-2,EN/IEC 62040-3,EN/IEC 62040-1-1,UL 1778,UL 60950-1,UL Listed |
| Weight & dimensions | |
|---|---|
| Weight | 1262.3 kg |
| Height | 1991 mm |
| Depth | 1070 mm |
| Width | 2200 mm |
| Packaging data | |
|---|---|
| Package weight | 1514.1 kg |
| Other features | |
|---|---|
| Package dimensions (WxDxH) | 1870 x 1270 x 2150 mm |
| Management platform | SNMP |
| Interface | 3 x SmartSlot |
| Number of phases | 3 |
