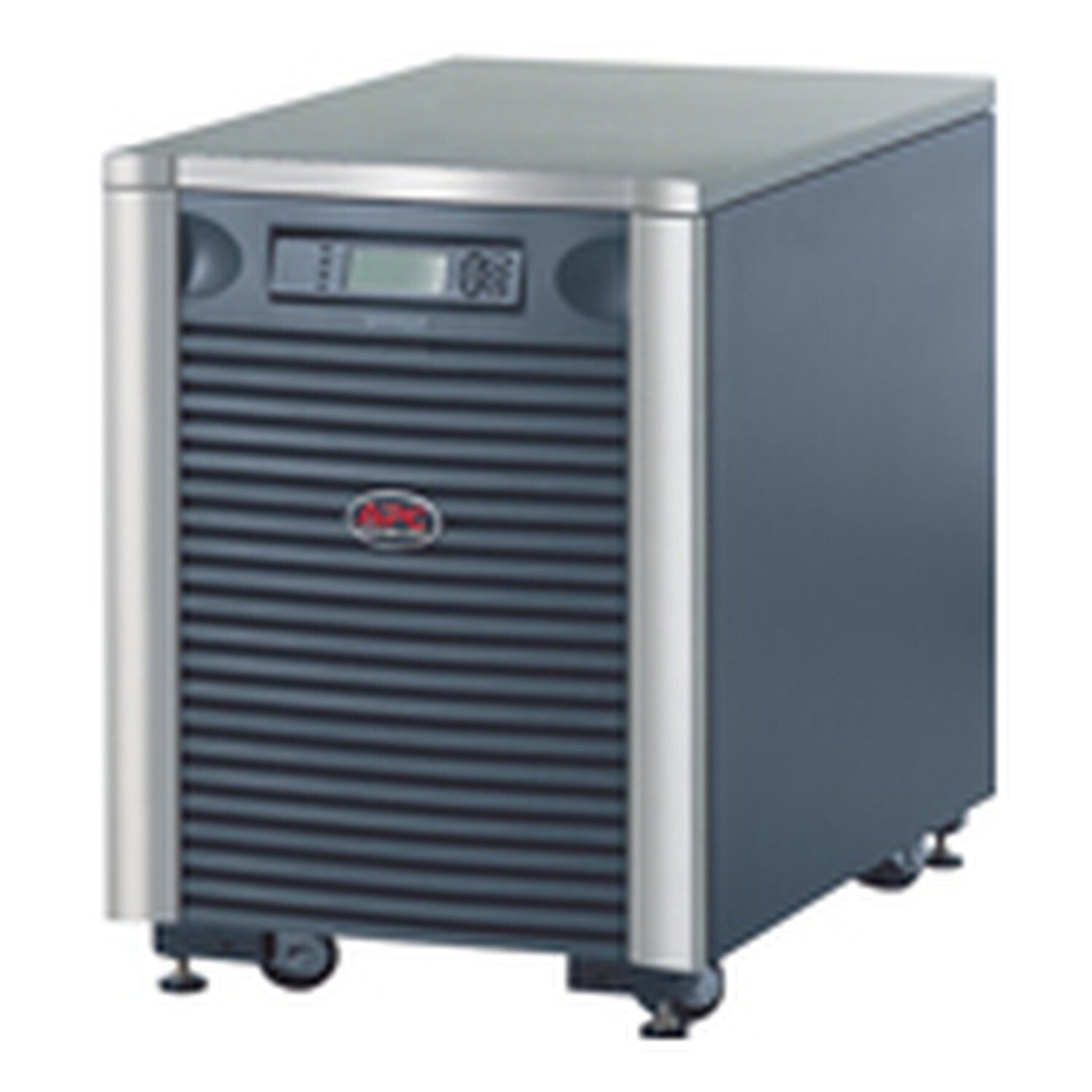

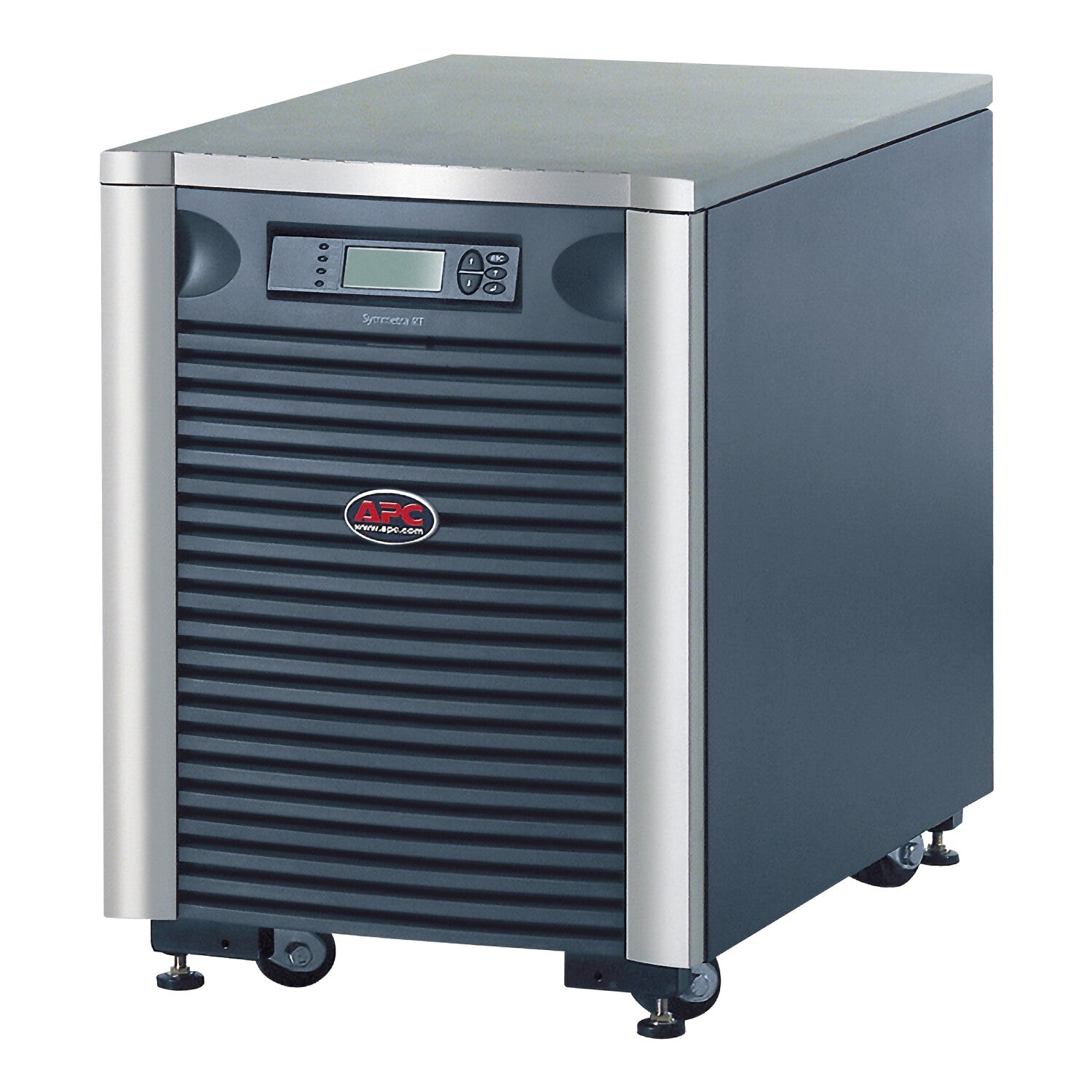

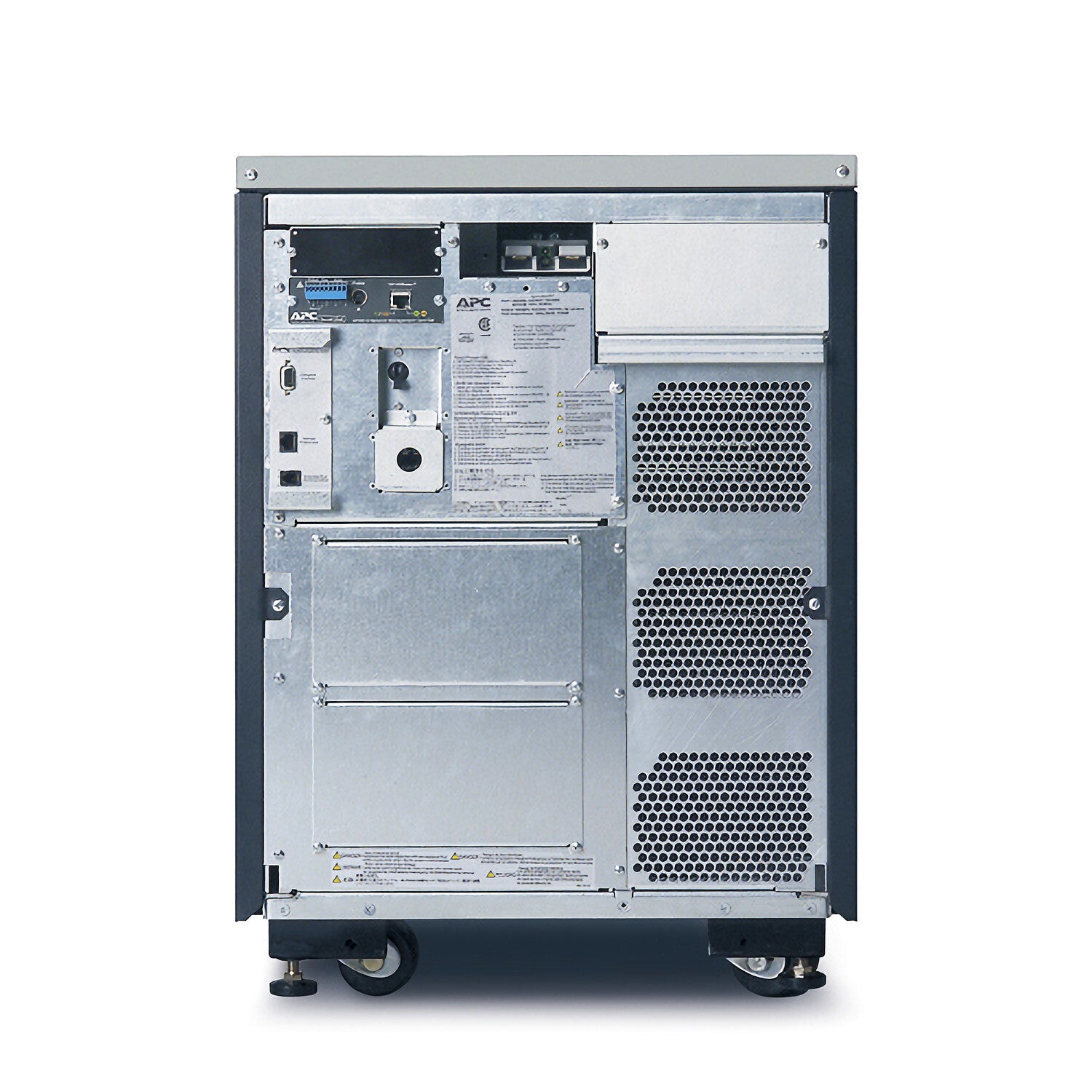

APC Symmetra LX 4kVA Scalable to 8kVA N+1, 220/230/240V or 380/400/415V
£8,978.99
Couldn't load pickup availability
High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
| Features | |
|---|---|
| Emergency Power Off (EPO) | Yes |
| Output power | 2800 W |
| Output power capacity | 4 kVA |
| Ports & interfaces | |
|---|---|
| AC outlet types | Hardwire |
| Battery | |
|---|---|
| Replacement battery cartridge | SYBT5 |
| Typical backup time at half load | 20 min |
| Typical backup time at full load | 7.5 min |
| Design | |
|---|---|
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 158 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 14420.63 |
| Other features | |
|---|---|

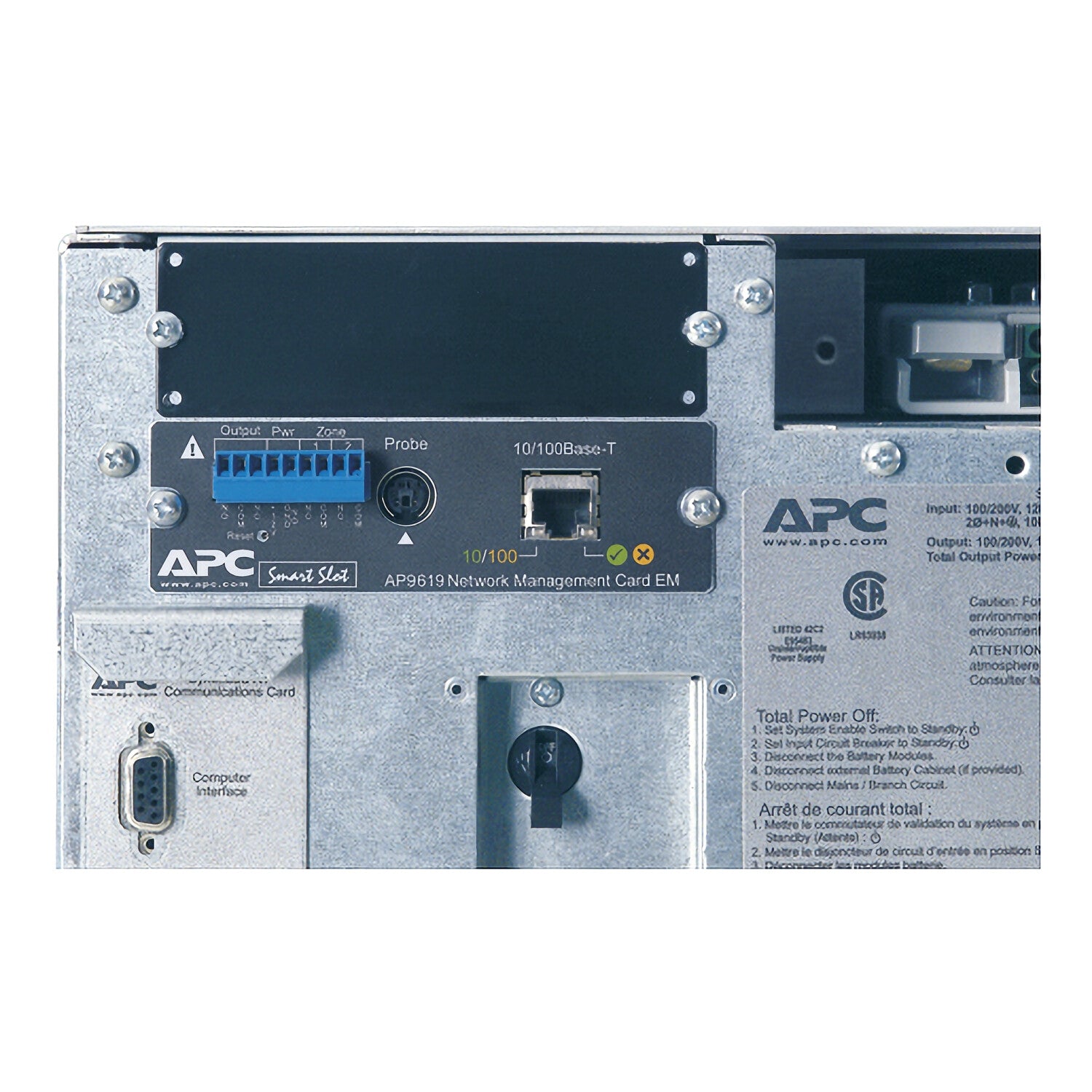

| I/O ports | Available Smart Slot Interface Quantity - 1 Pre-Installed SmartSlot Cards - AP9619 |
| Nominal output voltage | 230 V |
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
| Dimensions (WxDxH) | 480 x 730 x 660 mm |
| Input connection type | Hard Wire 3 wire (1PH+N+G) |
| Output connections | (1) Hard Wire 3-wire (H N + G) |
| Interface | DB-9 RS-232, Smart-Slot |
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
